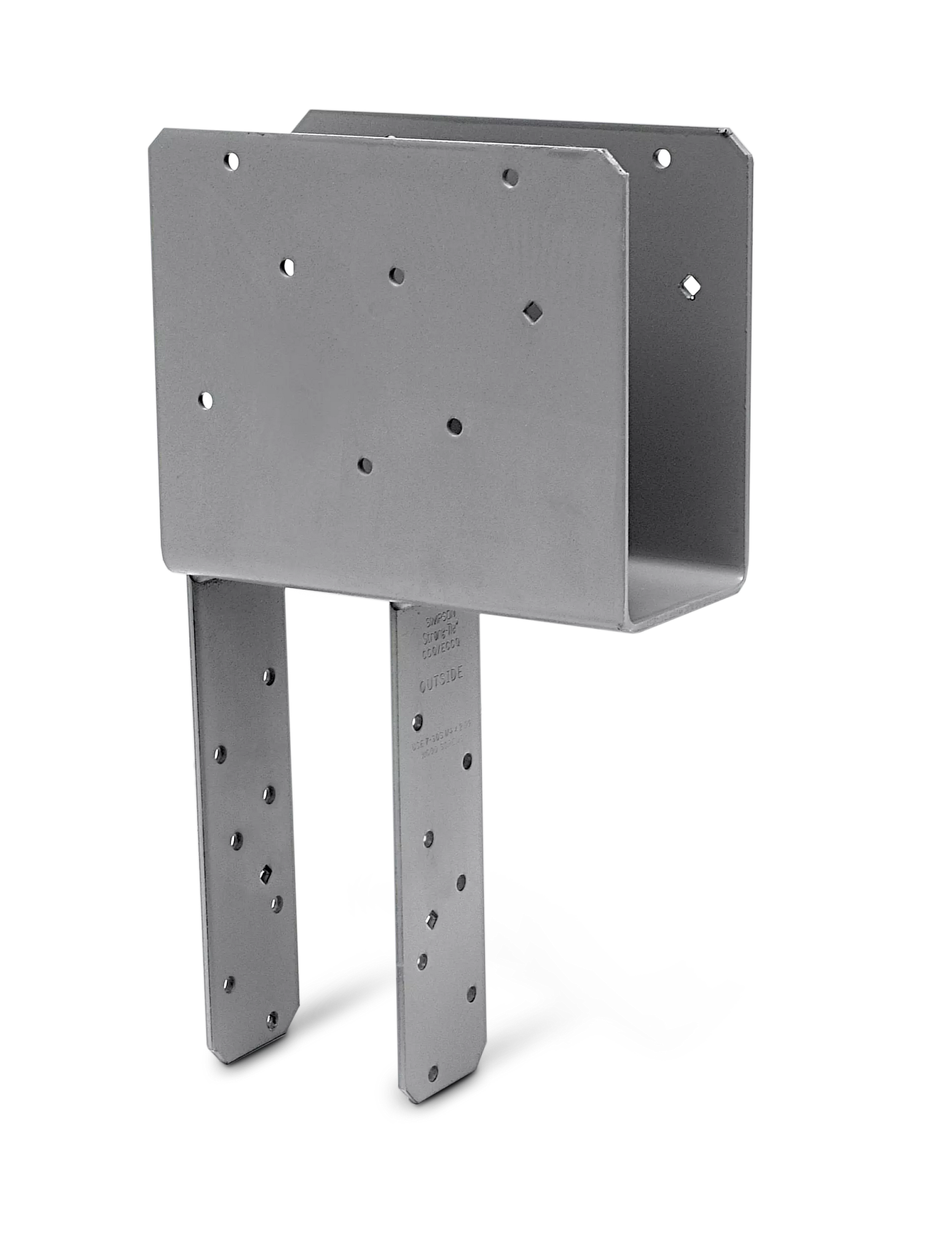

Simpson Strong-Tie ECCQ84SDS2.5 8X BEAM END, 4X POST SDS

$184.25

MPN: ECCQ84SDS2.5

Brand: Simpson Strong-Tie
Barcode: 707392785118
Availability : In Stock Pre order Out of stock
Add to Wishlist

Minimum order quantity is .

Maximum order quantity is .
The product can be bought in quantity increments of .

left in stock.

The Simpson Strong-Tie ECCQ84SDS2.5 8X BEAM END, 4X POST SDS is engineered to deliver robust connections between columns and beams in wood construction, ensuring durability and structural integrity. This innovative product is ideal for end-of-beam applications, where reliability is paramount. The ECCQ design features an extended bearing surface that effectively distributes the load from the beam, providing enhanced support for your construction projects.

Key Features

  • Strong Column-Beam Connections: The ECCQ is specifically designed to create strong and stable connections, making it a vital component in any wood construction.
  • Extended Bearing Surface: The unique design of the column cap allows for a larger area of bearing, which further enhances load distribution and support.
  • Fast Installation: Utilizing Strong-Drive® SDS Heavy-Duty Connector screws, the ECCQ ensures quick and efficient assembly, reducing labor time on your projects.
  • Greater Net Section Area: The ECCQ connects to a larger net section area of the column than typical bolt attachments, resulting in a more secure and reliable connection.

Applications

The Simpson Strong-Tie ECCQ84SDS2.5 8X BEAM END, 4X POST SDS is perfect for a variety of applications including residential construction, commercial buildings, and any project requiring dependable column-beam connections. Its versatility and strength make it an essential product for builders and contractors alike.

Why Choose Simpson Strong-Tie?

With a reputation for excellence in structural support products, Simpson Strong-Tie continues to be a trusted name in the industry. The ECCQ84SDS2.5 combines advanced engineering with high-quality materials to deliver exceptional performance and peace of mind for your wood construction needs.

Ask a Question
Specifications

Simpson Strong-Tie ECCQ84SDS2.5

•The SDS screws provide a lower profile than standard through bolts
•Certified welds for confidence in strength and loading
•Uplift loads have been increased for earthquake or wind loading
•Diamond holes for temporary fastening
•ECCQ3, ECCQ4, ECCQ4.62, ECCQ6 — 7 gauge; all others — 3 gauge
•Simpson Strong-Tie gray paint; available in HDG and stainless steel. See Corrosion Information.
•Fasten with 1/4" x 2 1/2" Strong-Drive SDS Heavy-Duty Connector screws, which are provided with the column cap. (Lag screws will not achieve the same load.) Use stainless-steel Strong-Drive screws with stainless-steel connectors.
•For rough-cut lumber sizes, provide dimensions. An optional W2 dimension may be specified with any column size given. (Note that the W2 dimension on straps rotated 90° is limited by the W1 dimension.)


Description

The Simpson Strong-Tie ECCQ84SDS2.5 8X BEAM END, 4X POST SDS is engineered to deliver robust connections between columns and beams in wood construction, ensuring durability and structural integrity. This innovative product is ideal for end-of-beam applications, where reliability is paramount. The ECCQ design features an extended bearing surface that effectively distributes the load from the beam, providing enhanced support for your construction projects.

Key Features

  • Strong Column-Beam Connections: The ECCQ is specifically designed to create strong and stable connections, making it a vital component in any wood construction.
  • Extended Bearing Surface: The unique design of the column cap allows for a larger area of bearing, which further enhances load distribution and support.
  • Fast Installation: Utilizing Strong-Drive® SDS Heavy-Duty Connector screws, the ECCQ ensures quick and efficient assembly, reducing labor time on your projects.
  • Greater Net Section Area: The ECCQ connects to a larger net section area of the column than typical bolt attachments, resulting in a more secure and reliable connection.

Applications

The Simpson Strong-Tie ECCQ84SDS2.5 8X BEAM END, 4X POST SDS is perfect for a variety of applications including residential construction, commercial buildings, and any project requiring dependable column-beam connections. Its versatility and strength make it an essential product for builders and contractors alike.

Why Choose Simpson Strong-Tie?

With a reputation for excellence in structural support products, Simpson Strong-Tie continues to be a trusted name in the industry. The ECCQ84SDS2.5 combines advanced engineering with high-quality materials to deliver exceptional performance and peace of mind for your wood construction needs.
