MalcoEdge CRT2Y Hi-Flow Core Removal Tool Dual Valve with Sight Glass

Malco CRT2Y

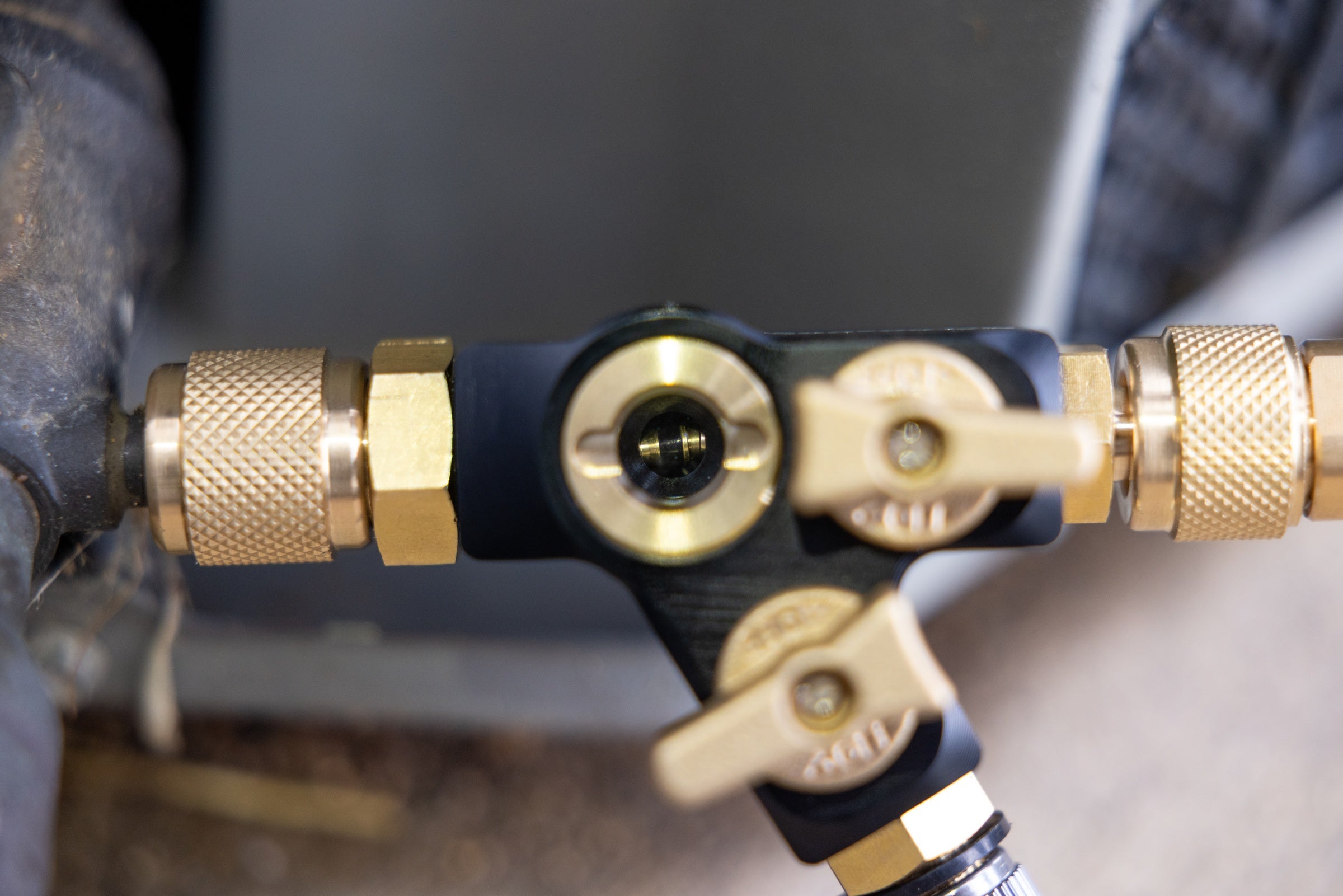

•Integrated sight glass shows the valve core captured prior to rod removal.
•Dual independent valves let you connect a vacuum gauge and hose at once and isolate either leg.

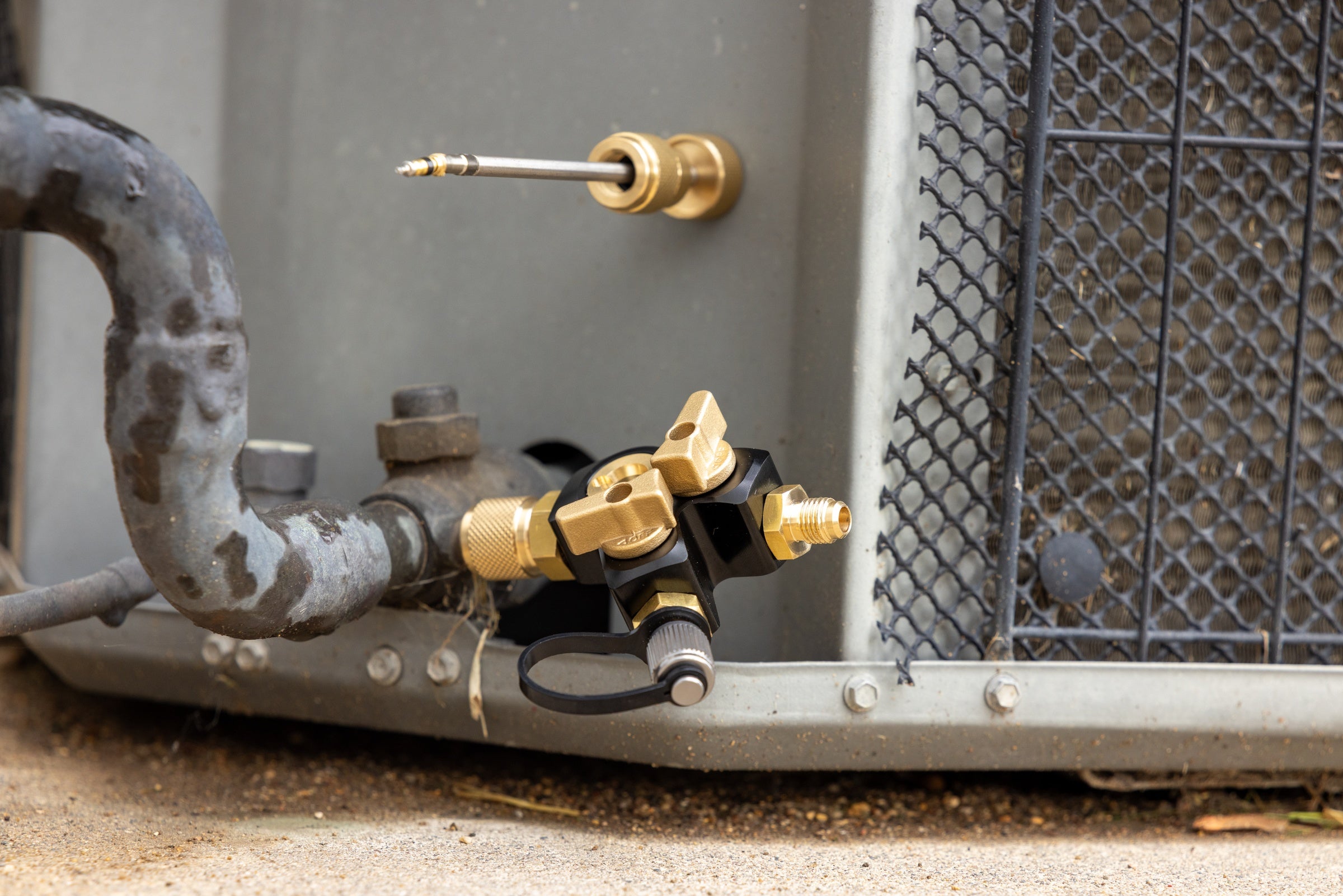

•Magnetic capture rod knob attaches securely to any magnetic surface for quick access during service.

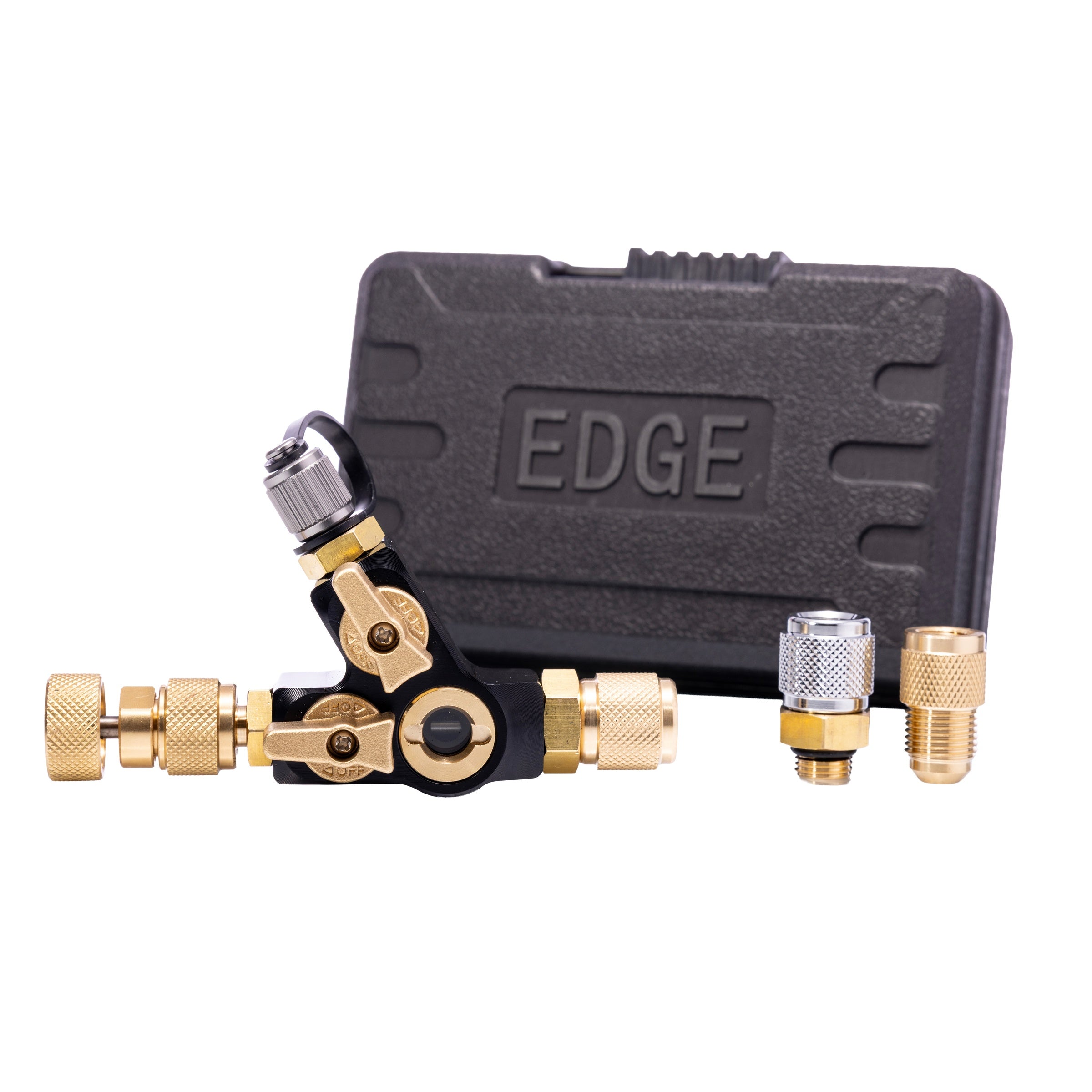

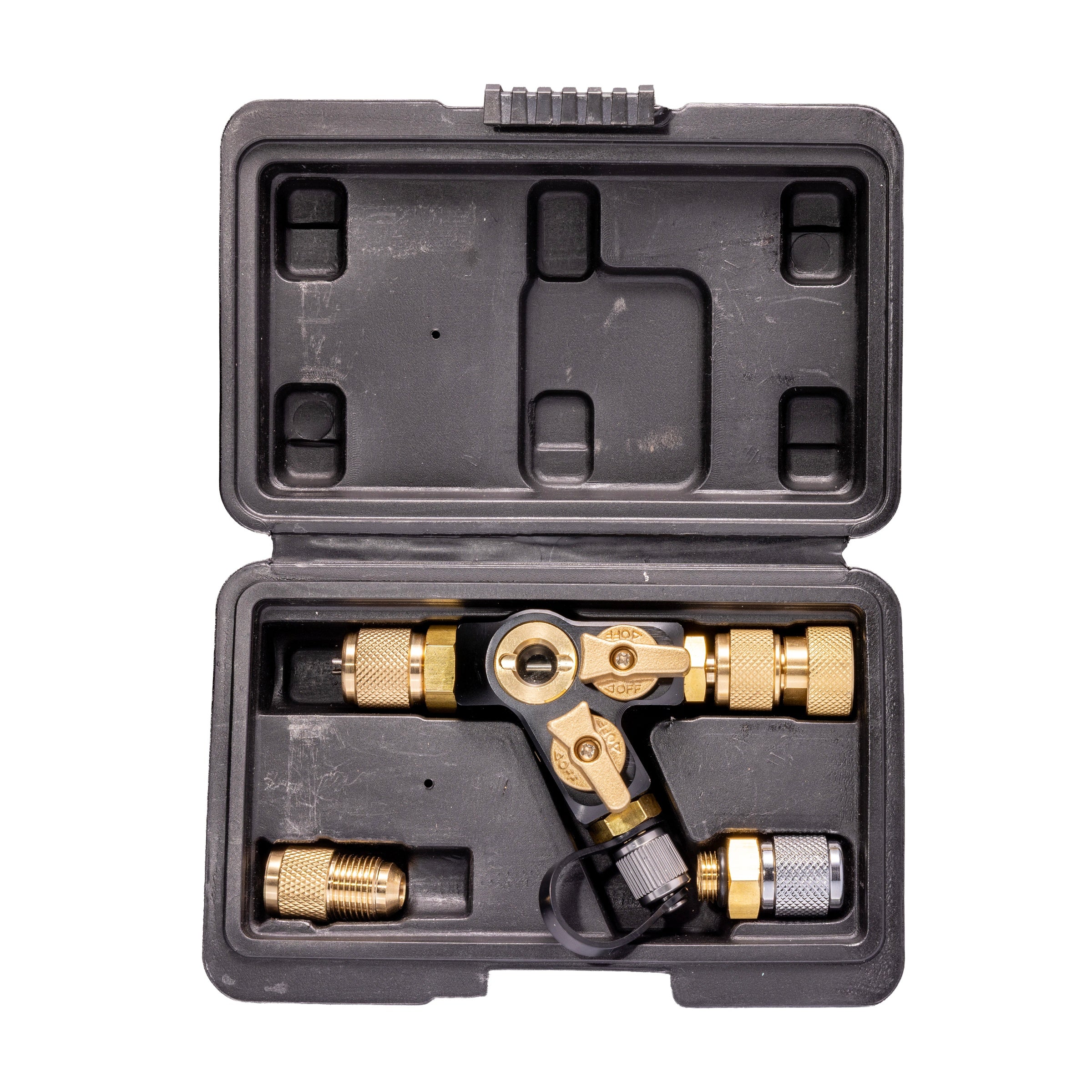

•Supports multiple system connections with a standard 1/4" F base, an included swappable 5/16" F fitting, and a 1/4" M-to-3/8" M adapter.
•Maximum working pressure of 800 psi.

Malco CRT2Y

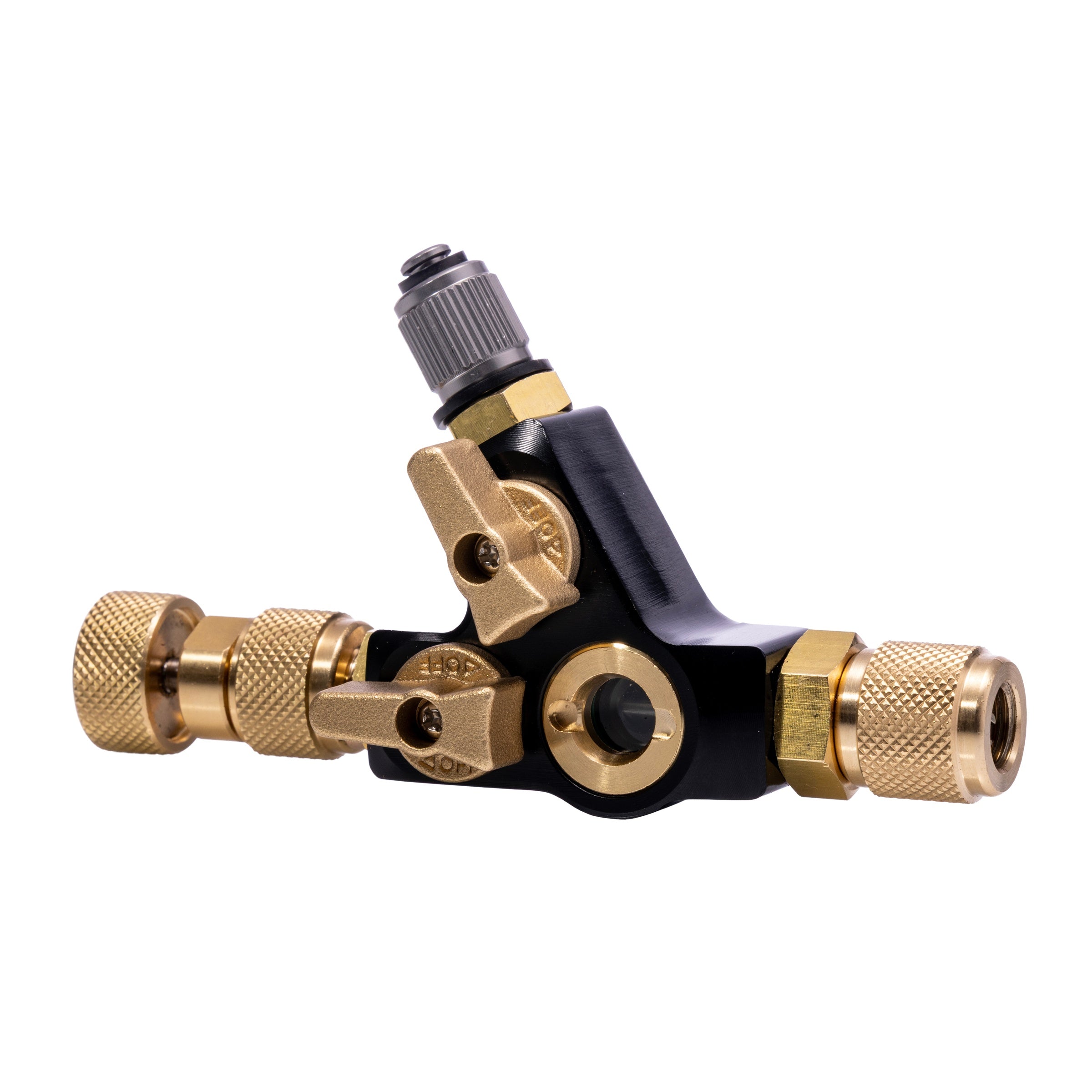

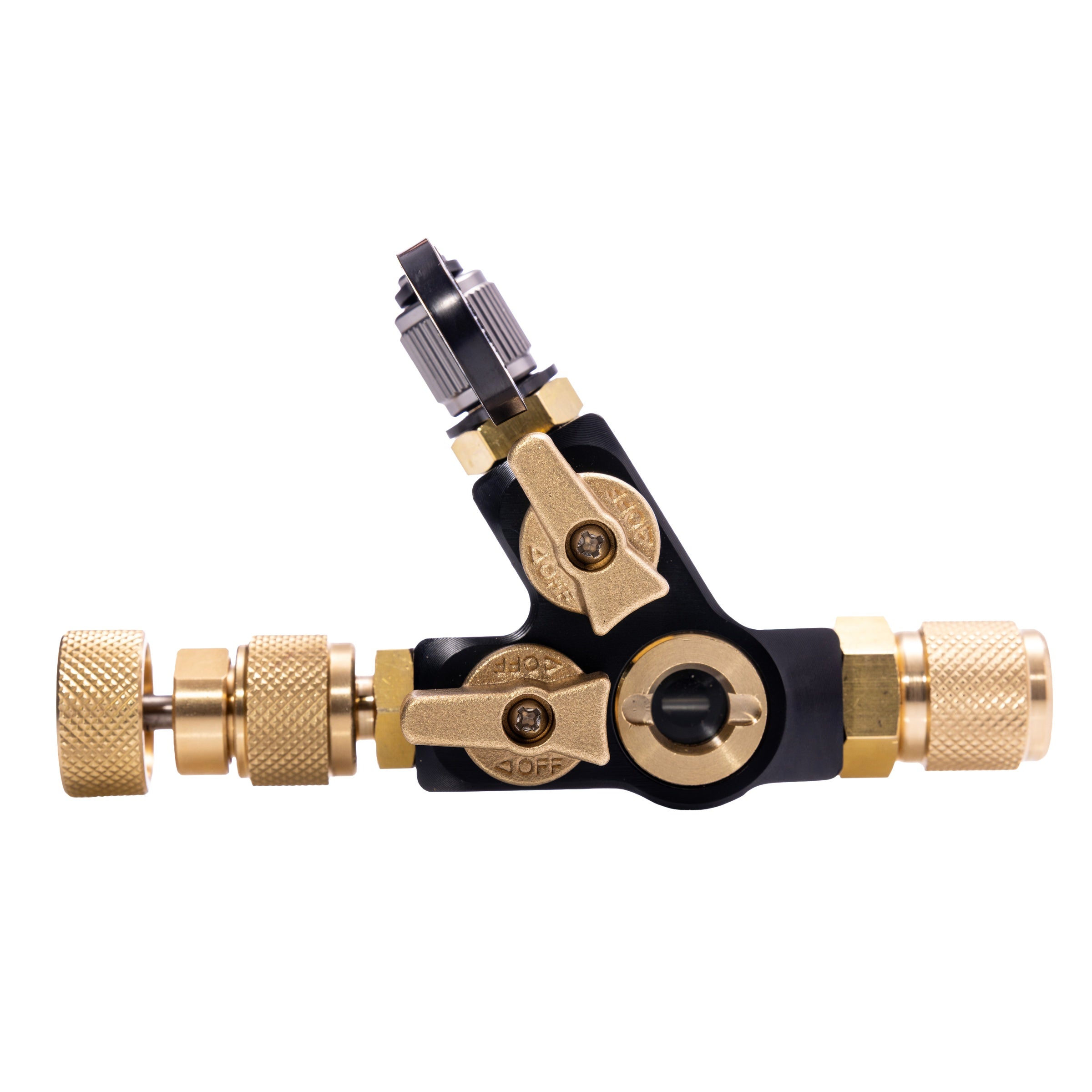

The MalcoEdge CRT2Y Hi-Flow Core Removal Tool features a Y-shaped dual-valve body with an integrated sight glass, allowing HVACR technicians to visually confirm the valve core is securely captured on the rod instead of removing it blind. A magnetic capture rod knob attaches to any magnetic surface, keeping it within easy reach during service. Independent valves on each leg let you keep both a vacuum gauge and hose connected simultaneously while isolating either side as needed. This core removal tool features a swappable 5/16" F fitting and 1/4" M-to-3/8" M adapter that expands system compatibility beyond the standard 1/4" F configuration. The entire assembly is vacuum-rated to 20 microns for high-performance evacuation.
