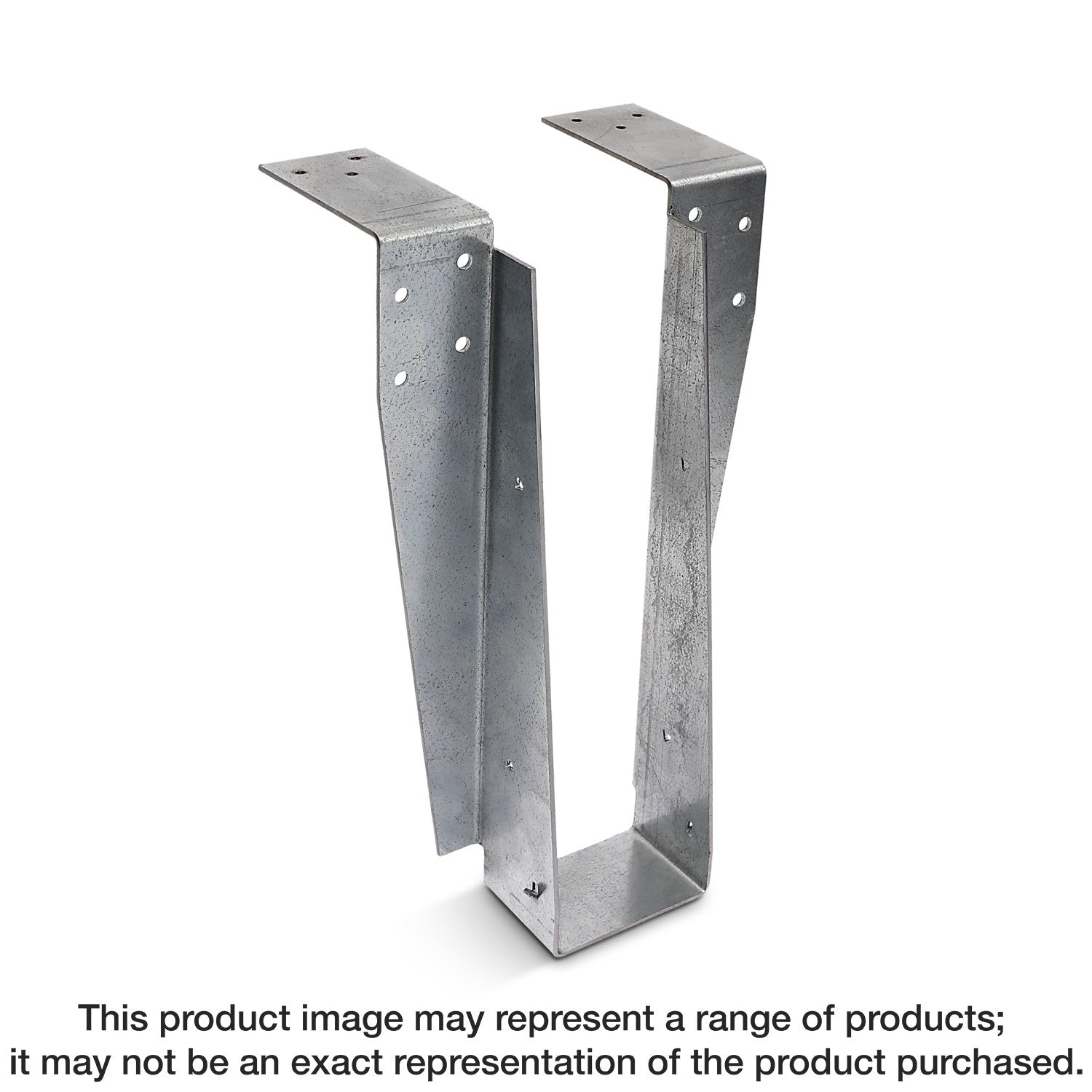

Simpson DHU2.1/11.88TF DHUTF Top-Flange Drywall Hanger for 2 in. x 11-7/8 in. Engineered Wood with SDS Screws

$56.21

Simpson Strong-Tie DHU2.1/11.88TF

Engineered and tested to perform, Simpson Strong-Tie hangers are manufactured to the highest quality standards for structural strength and safety. DHUTF top-mount hangers are designed to carry joist floor loads to a wood stud wall over two layers of 5/8-in. gypsum board (drywall). These hangers install after the drywall is in place.

Type: Hanger

Hanger
Add to Wishlist
Ask a Question
Brand: Simpson Strong-Tie
Barcode: 707392694076
Availability : Limited Stock Out of stock
Specifications

Simpson Strong-Tie DHU2.1/11.88TF

•Available to order skewed up to 45°
•Testing verifies that the DHUTF hangers do not reduce the two-hour fire wall assembly rating in either 2x4 or 2x6 walls
•DHUTF fire wall hangers are code listed for structural use under ICC-ES ESR-2552
•Hangers have been tested according to ASTM E814 and received F (flame) and T (temperature) ratings for use on one or both sides of the wall in Intertek Design No. SST/WPCF 120-01
•If hangers are installed on both sides of the wall, then it must be a 2x6 wall
•Seat width: 2-1/8 in.
•Height: 11-13/16 in.
•Made from 12-gauge steel
•Galvanized (G90) for extra corrosion resistance

Description

Simpson Strong-Tie DHU2.1/11.88TF

Engineered and tested to perform, Simpson Strong-Tie hangers are manufactured to the highest quality standards for structural strength and safety. DHUTF top-mount hangers are designed to carry joist floor loads to a wood stud wall over two layers of 5/8-in. gypsum board (drywall). These hangers install after the drywall is in place.

Additional Information
Type

Hanger
