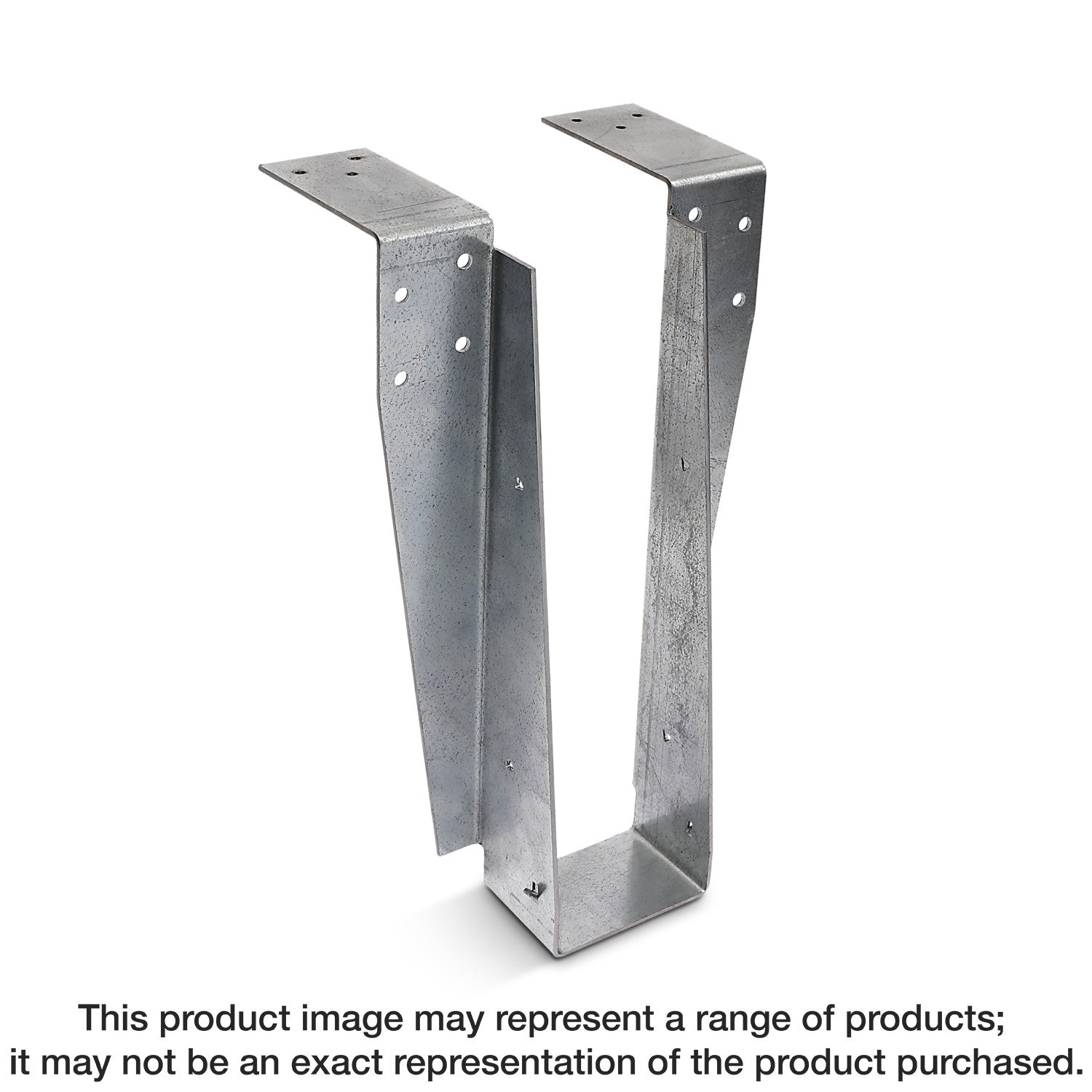

Simpson DHU2.56/20TF DHUTF Top-Flange Drywall Hanger for 2-1/2 in. x 20 in. Engineered Wood with SDS Screws
Simpson DHU2.56/20TF DHUTF Top-Flange Drywall Hanger for 2-1/2 in. x 20 in. Engineered Wood with SDS Screws
Simpson DHU2.56/20TF DHUTF Top-Flange Drywall Hanger for 2-1/2 in. x 20 in. Engineered Wood with SDS Screws

Simpson DHU2.56/20TF DHUTF Top-Flange Drywall Hanger for 2-1/2 in. x 20 in. Engineered Wood with SDS Screws

$67.12

MPN: DHU2.56/20TF

Brand: Simpson Strong-Tie
Barcode: 707392756422
Availability : In Stock Pre order Out of stock

Type: Hanger

Hanger
Add to Wishlist

Minimum order quantity is .

Maximum order quantity is .
The product can be bought in quantity increments of .

left in stock.

Unleash the Power of Durability with the Simpson DHU2.56/20TF Top-Flange Drywall Hanger

The Simpson DHU2.56/20TF Top-Flange Drywall Hanger is engineered to meet the highest standards in structural strength and safety. This innovative hanger is designed specifically for 2-1/2 inch x 20 inch engineered wood, ensuring that your projects are supported with uncompromised reliability.

Key Features:

  • Exceptional Quality: Manufactured with precision, our hangers undergo rigorous testing to guarantee superior performance.
  • Optimized Design: The top-mount configuration allows for seamless installation over two layers of 5/8 inch gypsum board (drywall), making it a perfect fit for your building needs.
  • Easy Installation: Designed to be installed after the drywall is in place, simplifying the construction process and enhancing efficiency.
  • Comprehensive Load Support: Specifically crafted to support joist floor loads, ensuring stability and safety in your structures.

Why Choose Simpson Strong-Tie?

With a commitment to innovation and quality, Simpson Strong-Tie continues to set the bar for structural connectors and fasteners. The DHU2.56/20TF is not just a hanger; it's a testament to our dedication to excellence in every project.

Choose the Simpson DHU2.56/20TF Top-Flange Drywall Hanger to elevate your construction projects with unmatched strength and reliability. Experience the difference today!

Ask a Question
Specifications

Simpson Strong-Tie DHU2.56/20TF

•Available to order skewed up to 45°
•Testing verifies that the DHUTF hangers do not reduce the two-hour fire wall assembly rating in either 2x4 or 2x6 walls
•DHUTF fire wall hangers are code listed for structural use under ICC-ES ESR-2552
•Hangers have been tested according to ASTM E814 and received F (flame) and T (temperature) ratings for use on one or both sides of the wall in Intertek Design No. SST/WPCF 120-01
•If hangers are installed on both sides of the wall, then it must be a 2x6 wall
•Seat width: 2-9/16 in.
•Height: 19-15/16 in.
•Made from 12-gauge steel
•Galvanized (G90) for extra corrosion resistance

Description

Unleash the Power of Durability with the Simpson DHU2.56/20TF Top-Flange Drywall Hanger

The Simpson DHU2.56/20TF Top-Flange Drywall Hanger is engineered to meet the highest standards in structural strength and safety. This innovative hanger is designed specifically for 2-1/2 inch x 20 inch engineered wood, ensuring that your projects are supported with uncompromised reliability.

Key Features:

  • Exceptional Quality: Manufactured with precision, our hangers undergo rigorous testing to guarantee superior performance.
  • Optimized Design: The top-mount configuration allows for seamless installation over two layers of 5/8 inch gypsum board (drywall), making it a perfect fit for your building needs.
  • Easy Installation: Designed to be installed after the drywall is in place, simplifying the construction process and enhancing efficiency.
  • Comprehensive Load Support: Specifically crafted to support joist floor loads, ensuring stability and safety in your structures.

Why Choose Simpson Strong-Tie?

With a commitment to innovation and quality, Simpson Strong-Tie continues to set the bar for structural connectors and fasteners. The DHU2.56/20TF is not just a hanger; it's a testament to our dedication to excellence in every project.

Choose the Simpson DHU2.56/20TF Top-Flange Drywall Hanger to elevate your construction projects with unmatched strength and reliability. Experience the difference today!

Additional Information
Type

Hanger
