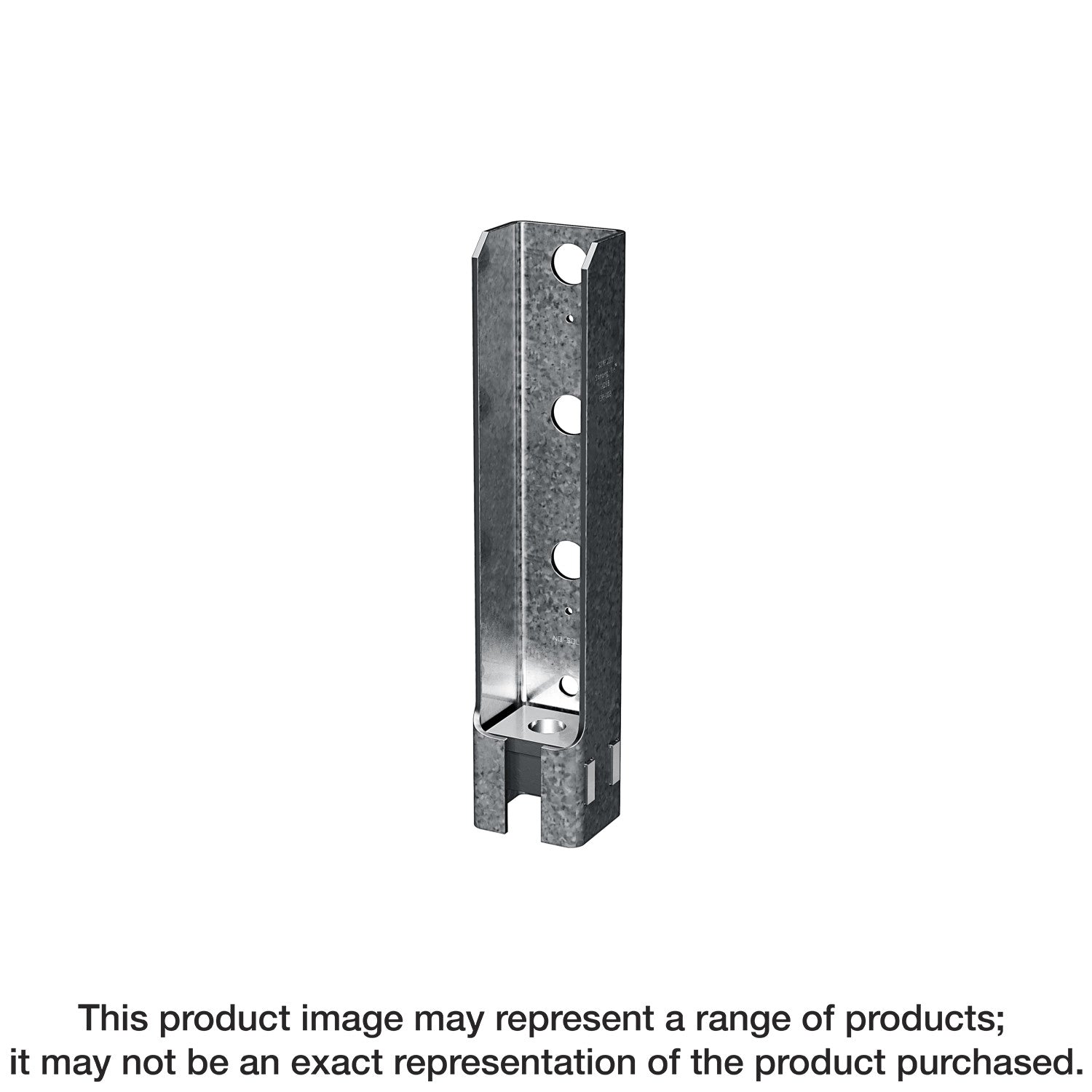

Simpson HD9BHDG HDB 14 in. Hot-Dip Galvanized Bolted Holdown
Simpson HD9BHDG HDB 14 in. Hot-Dip Galvanized Bolted Holdown
Simpson HD9BHDG HDB 14 in. Hot-Dip Galvanized Bolted Holdown

Simpson HD9BHDG HDB 14 in. Hot-Dip Galvanized Bolted Holdown

$89.55

MPN: HD9BHDG

Brand: Simpson Strong-Tie
Barcode: 707392572305
Availability : In Stock Pre order Out of stock

Type: Holdown

Holdown
Add to Wishlist

Minimum order quantity is .

Maximum order quantity is .
The product can be bought in quantity increments of .

left in stock.

Simpson HD9BHDG HDB 14 in. Hot-Dip Galvanized Bolted Holdown

Discover the reliability and strength of the Simpson HD9BHDG HDB Bolted Holdown, engineered for high-performance in wood construction. This innovative holdown is crafted to enhance the stability and safety of your structures, making it an ideal choice for:

  • Intermediate-load-range shearwalls
  • Braced-wall panels
  • Lateral applications

Key features of the Simpson HD9BHDG include:

  • Robust Construction: Hot-dip galvanized finish ensures superior corrosion resistance and long-lasting durability.
  • Low-Deflection Performance: Designed to meet a variety of load requirements while maintaining structural integrity.
  • Versatile Installation: Easily installed with bolts into studs or columns, suitable for both standard and back-to-back applications.
  • Enhanced Eccentricity Management: Perfect for projects where eccentric loading is a concern, ensuring safety and compliance with structural standards.

Choose the Simpson HD9BHDG HDB Bolted Holdown for a dependable solution that combines strength and versatility, making it an essential component for any woodworking project that demands excellence. Ensure your constructions stand the test of time with this state-of-the-art holdown.

Ask a Question
Specifications

Simpson Strong-Tie HD9BHDG

•Installed after the placement of concrete and framing is in place
•Can be installed directly on the sill plate or raised above it
•Self-jigging, ensuring the code-required minimum of seven bolt diameters from the end of the post when installed flush with the sill plate
•Feature a unique seat design which greatly minimizes deflection under load
•Base made from 3/8-in. steel; body made from 7-gauge steel
•Width: 2-7/8 in.
•Height: 14 in.
•Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications


Description

Simpson HD9BHDG HDB 14 in. Hot-Dip Galvanized Bolted Holdown

Discover the reliability and strength of the Simpson HD9BHDG HDB Bolted Holdown, engineered for high-performance in wood construction. This innovative holdown is crafted to enhance the stability and safety of your structures, making it an ideal choice for:

  • Intermediate-load-range shearwalls
  • Braced-wall panels
  • Lateral applications

Key features of the Simpson HD9BHDG include:

  • Robust Construction: Hot-dip galvanized finish ensures superior corrosion resistance and long-lasting durability.
  • Low-Deflection Performance: Designed to meet a variety of load requirements while maintaining structural integrity.
  • Versatile Installation: Easily installed with bolts into studs or columns, suitable for both standard and back-to-back applications.
  • Enhanced Eccentricity Management: Perfect for projects where eccentric loading is a concern, ensuring safety and compliance with structural standards.

Choose the Simpson HD9BHDG HDB Bolted Holdown for a dependable solution that combines strength and versatility, making it an essential component for any woodworking project that demands excellence. Ensure your constructions stand the test of time with this state-of-the-art holdown.

Additional Information
Type

Holdown
