Simpson Strong-Tie BA3.56/18 BA Top-Flange Joist Hanger for 3-1/2 in. x 18 in. Engineered Wood

$42.68

MPN: BA3.56/18

Brand: Simpson Strong-Tie
Barcode: 707392001973
Availability : Limited Stock Out of stock

Type: Hanger

Hanger
Add to Wishlist

Minimum order quantity is .

Maximum order quantity is .
The product can be bought in quantity increments of .

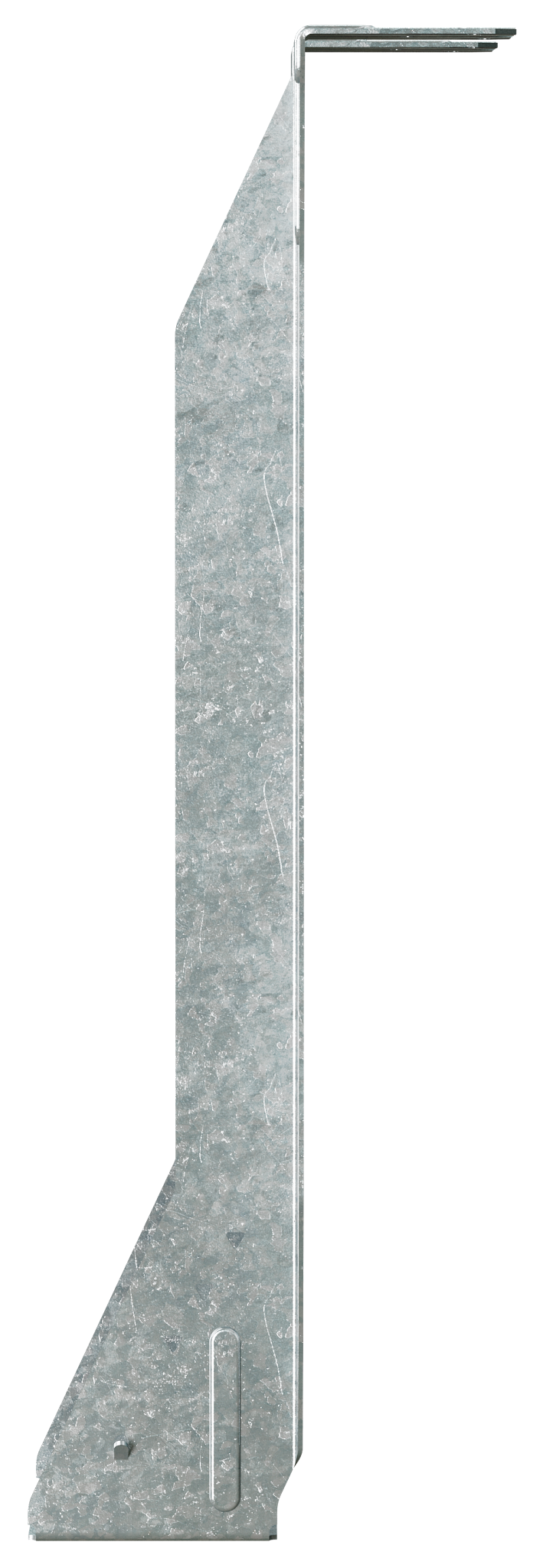

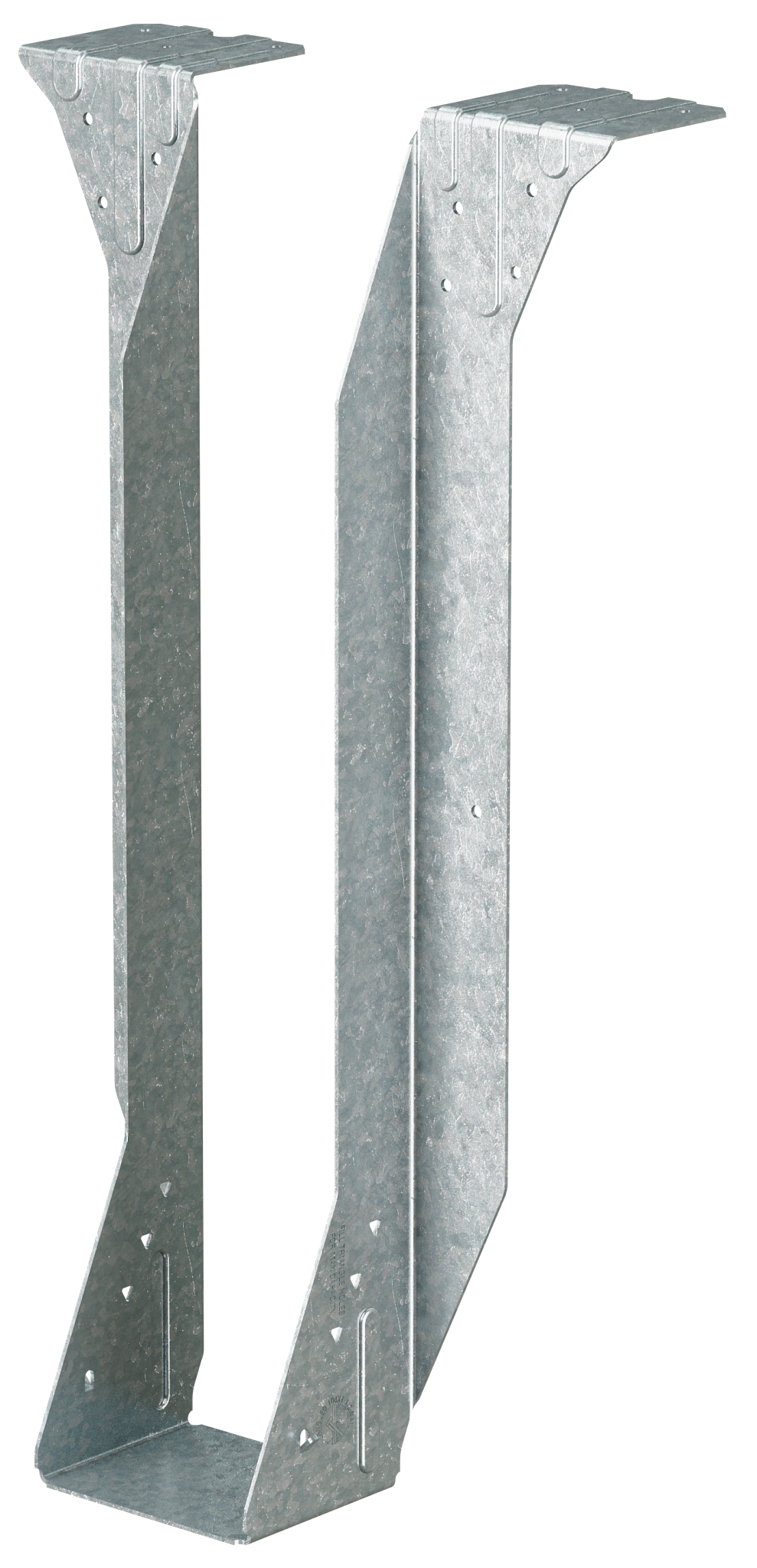

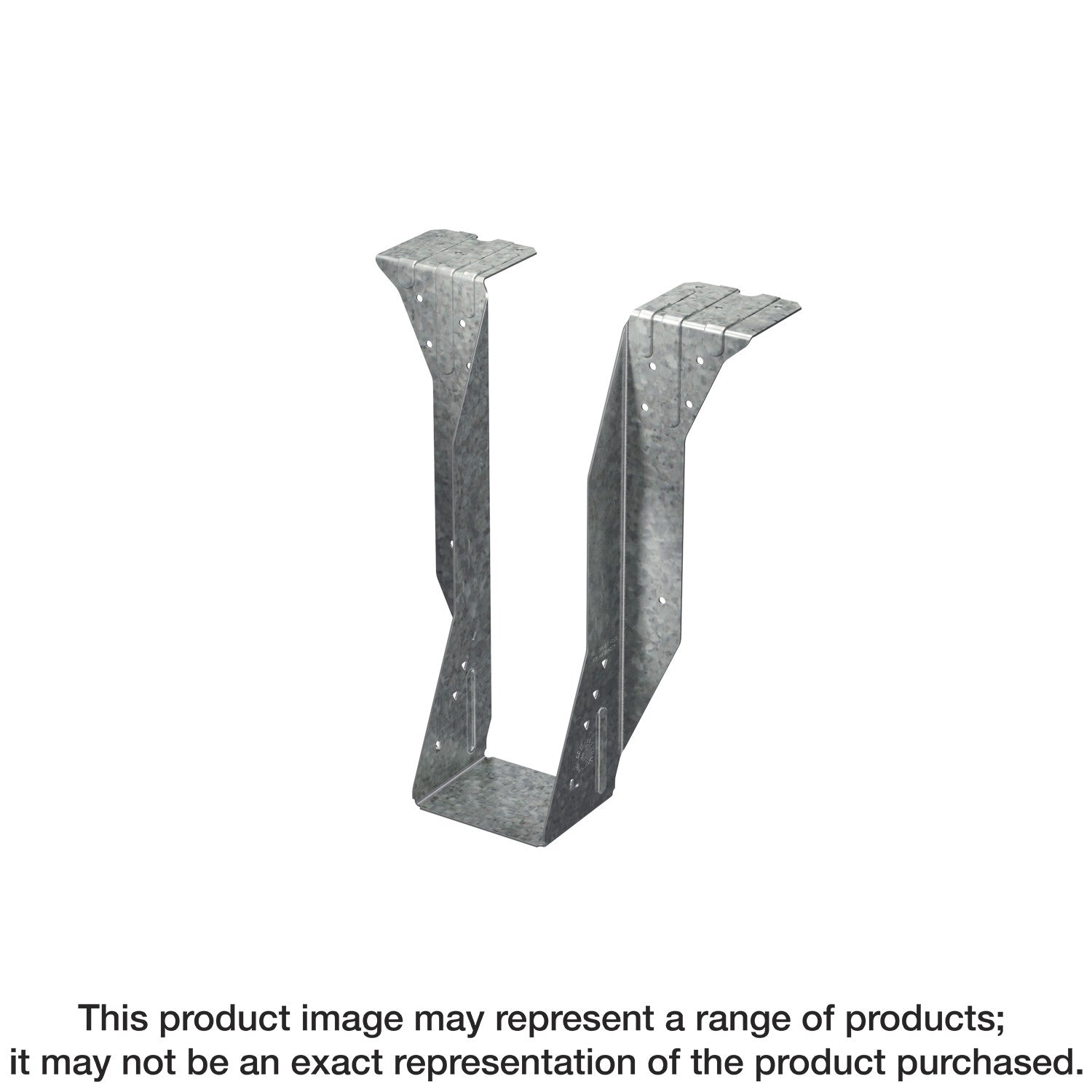

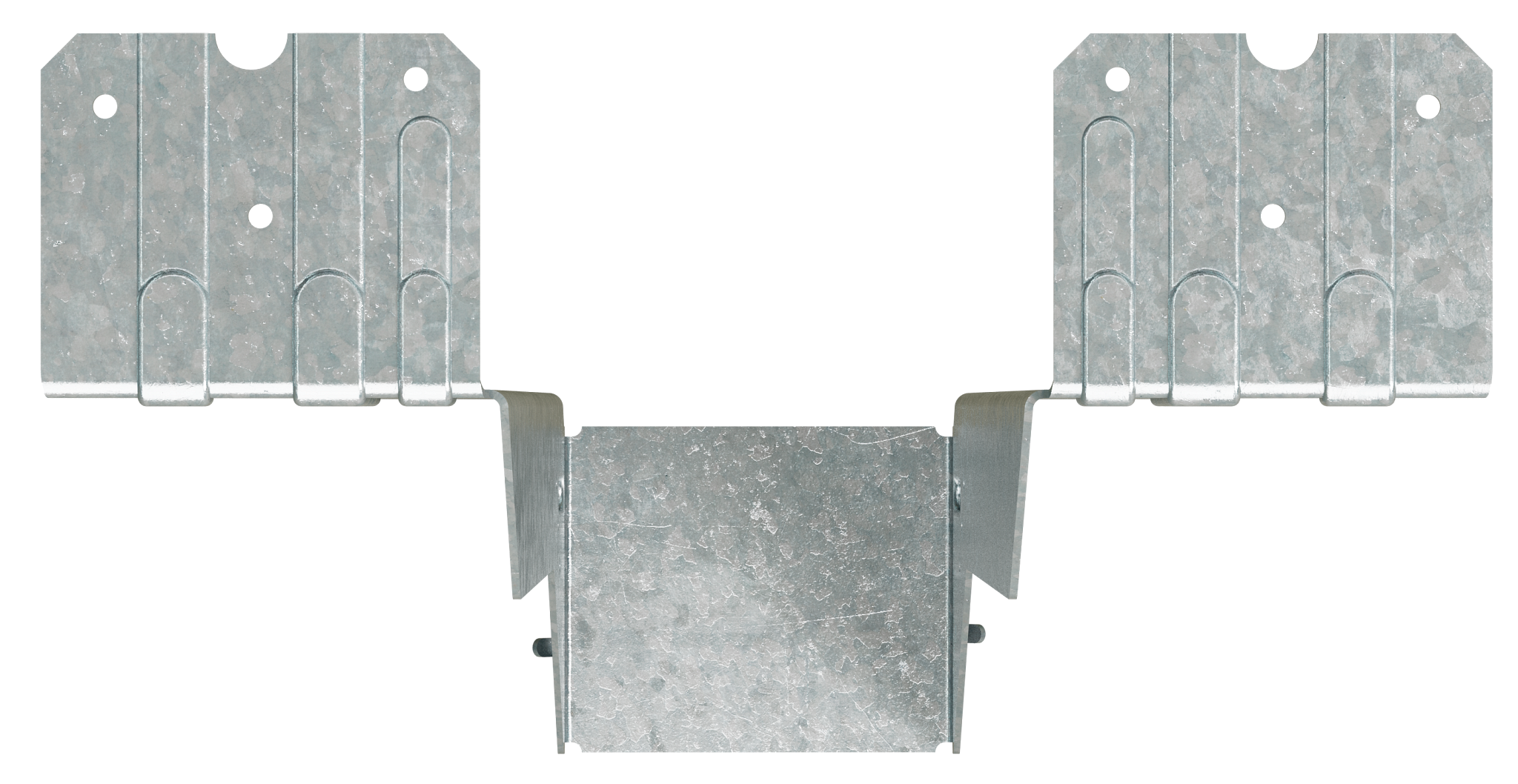

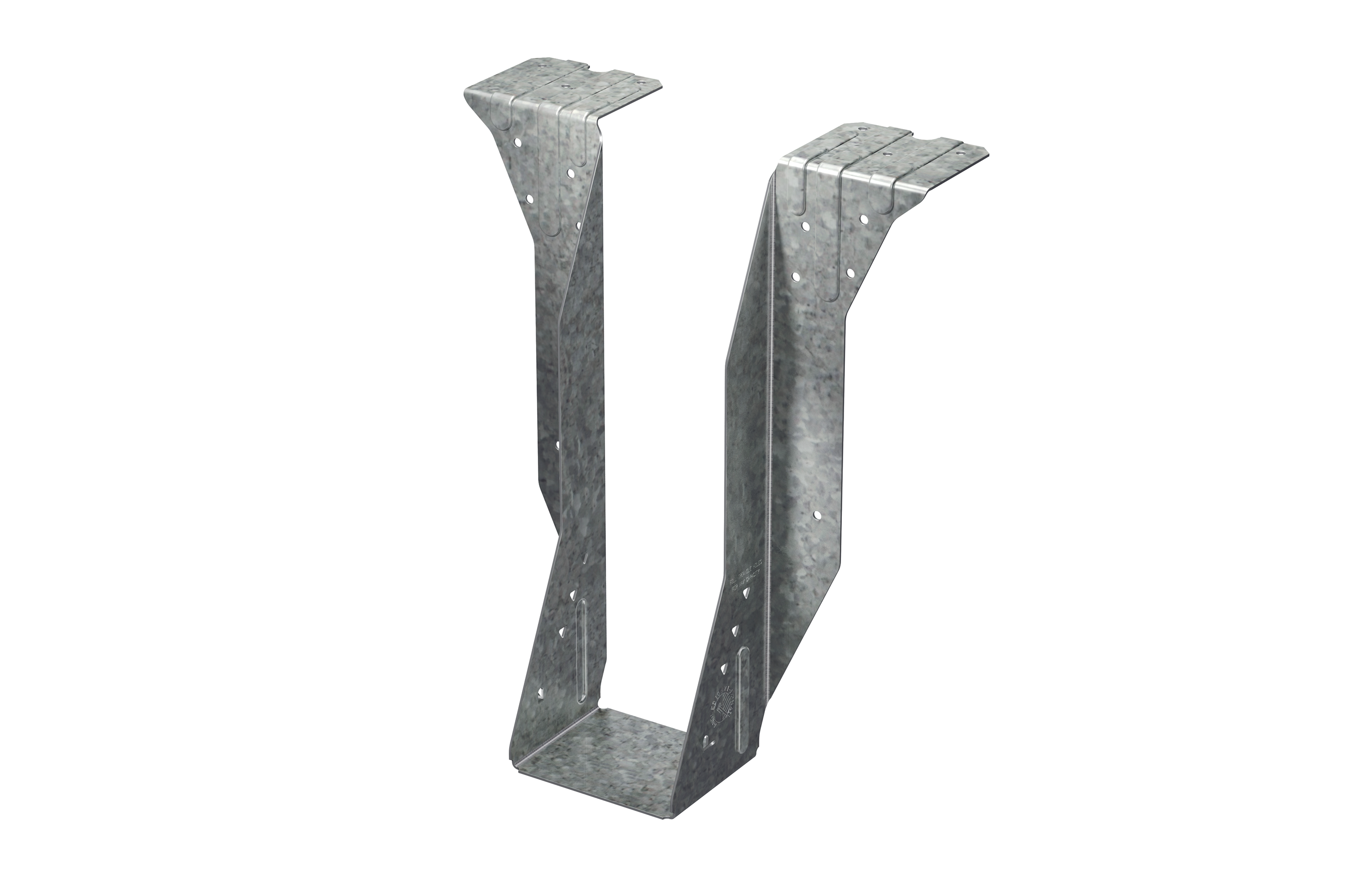

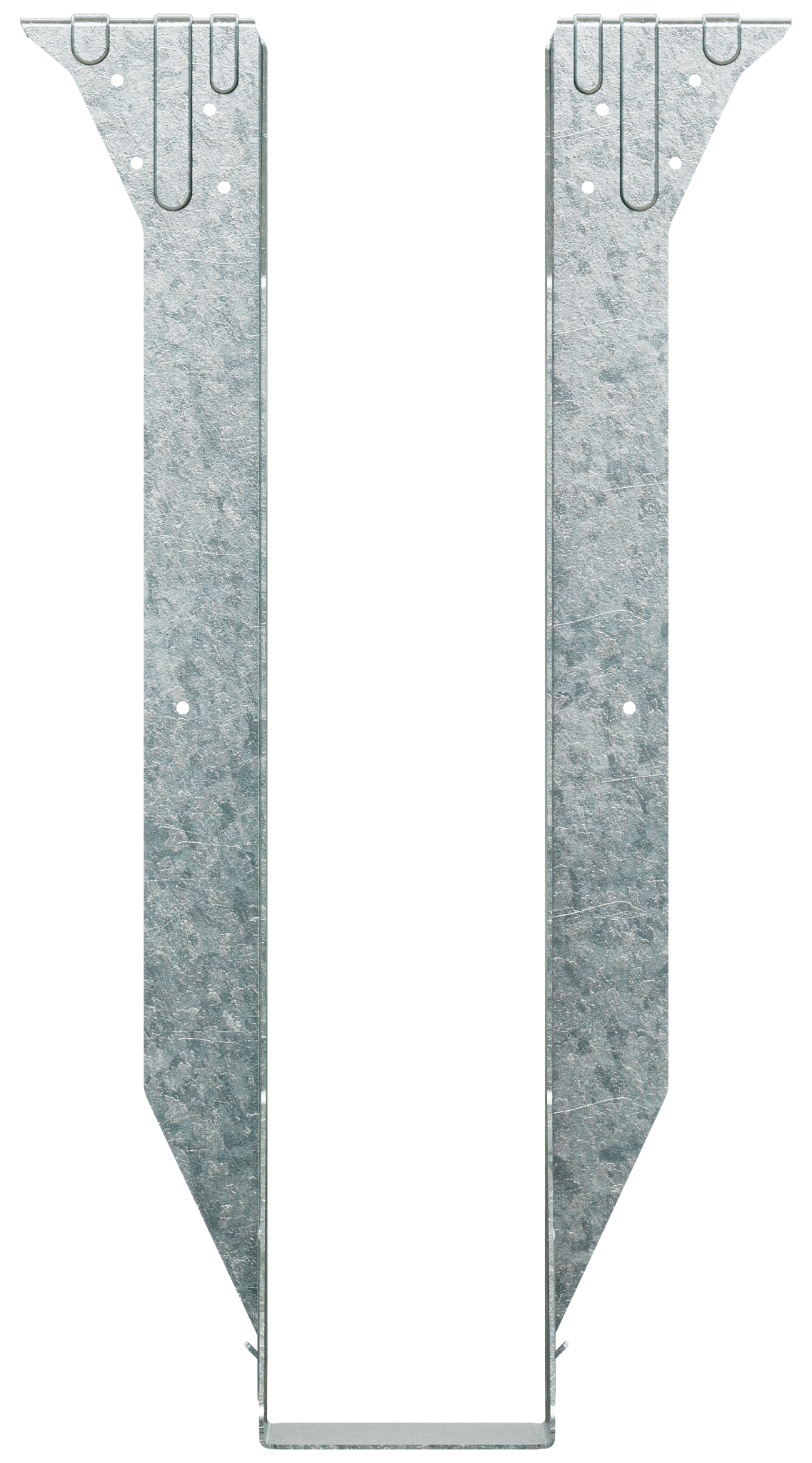

Simpson Strong-Tie BA3.56/18

The BA is designed for engineered wood and solid sawn lumber applications. This top-flange hanger can carry medium loads with solid sawn lumber and higher loads with engineered wood products. The BA features minimum nailing with positive-angle nailing (PAN) to target moderate load conditions and maximum nailing to support higher loads.

Ask a Question
Specifications

Simpson Strong-Tie BA3.56/18

•Cost-effective one-piece design compared to welded hangers
•A full-height joist flange that captures the top chord of the joist to prevent rotation and eliminate the need for web stiffeners
•Available for special order to accommodate sloped and/or skewed members
•Actual joist size: 3-1/2 in. x 18 in.
•Made from 14-gauge steel
•Galvanized (G90) for extra corrosion resistance




Description

Simpson Strong-Tie BA3.56/18

The BA is designed for engineered wood and solid sawn lumber applications. This top-flange hanger can carry medium loads with solid sawn lumber and higher loads with engineered wood products. The BA features minimum nailing with positive-angle nailing (PAN) to target moderate load conditions and maximum nailing to support higher loads.

Additional Information
Type

Hanger
