Simpson Strong-Tie CBT2Z-KT CBTZ™ 12-Gauge ZMAX® Concealed Beam Tie for 4x4 Post

$47.12

MPN: CBT2Z-KT

Brand: Simpson Strong-Tie
Barcode: 707392935049
Availability : Limited Stock Out of stock

Type: Column Cap

Column Cap
Add to Wishlist

Minimum order quantity is .

Maximum order quantity is .
The product can be bought in quantity increments of .

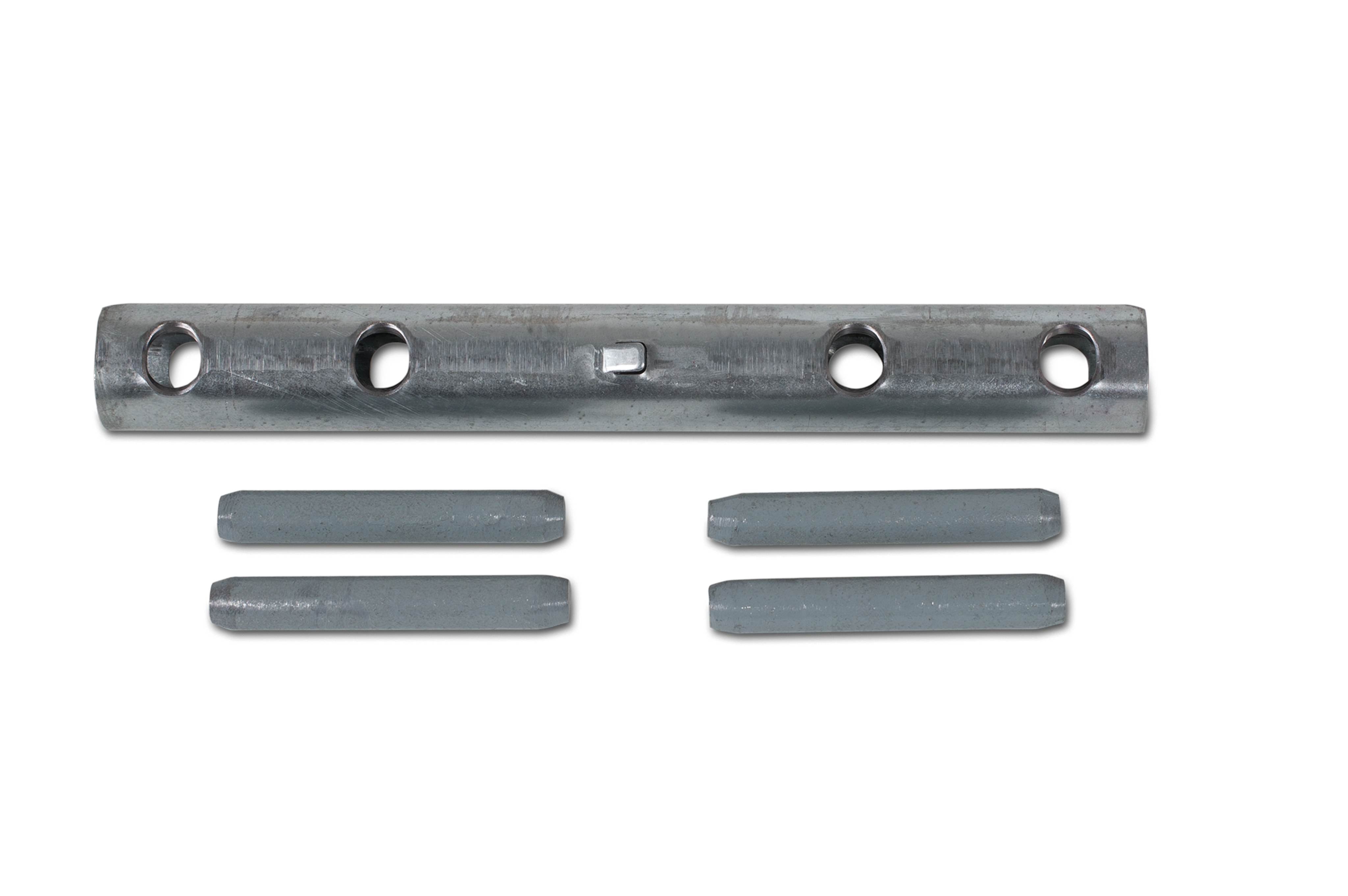

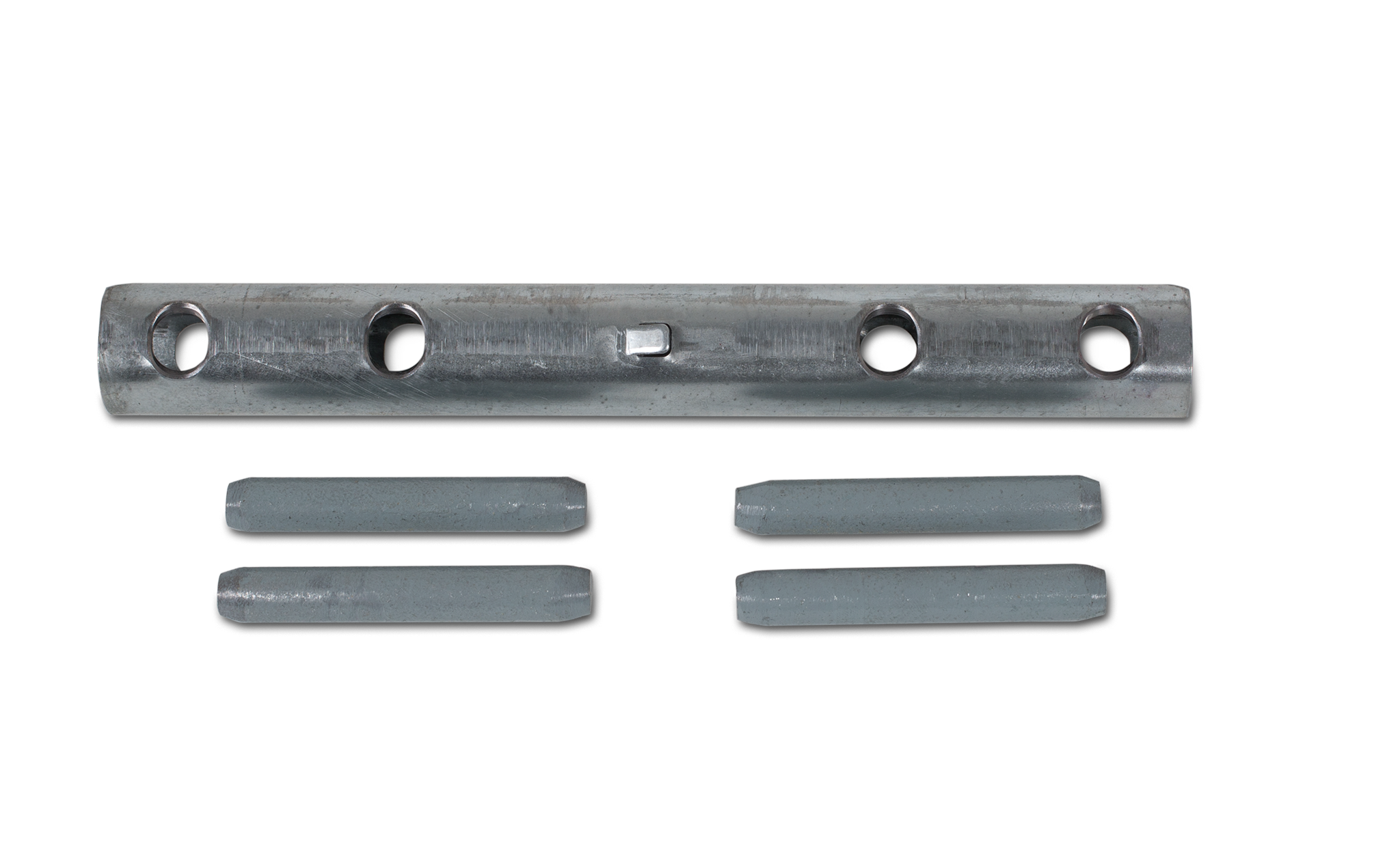

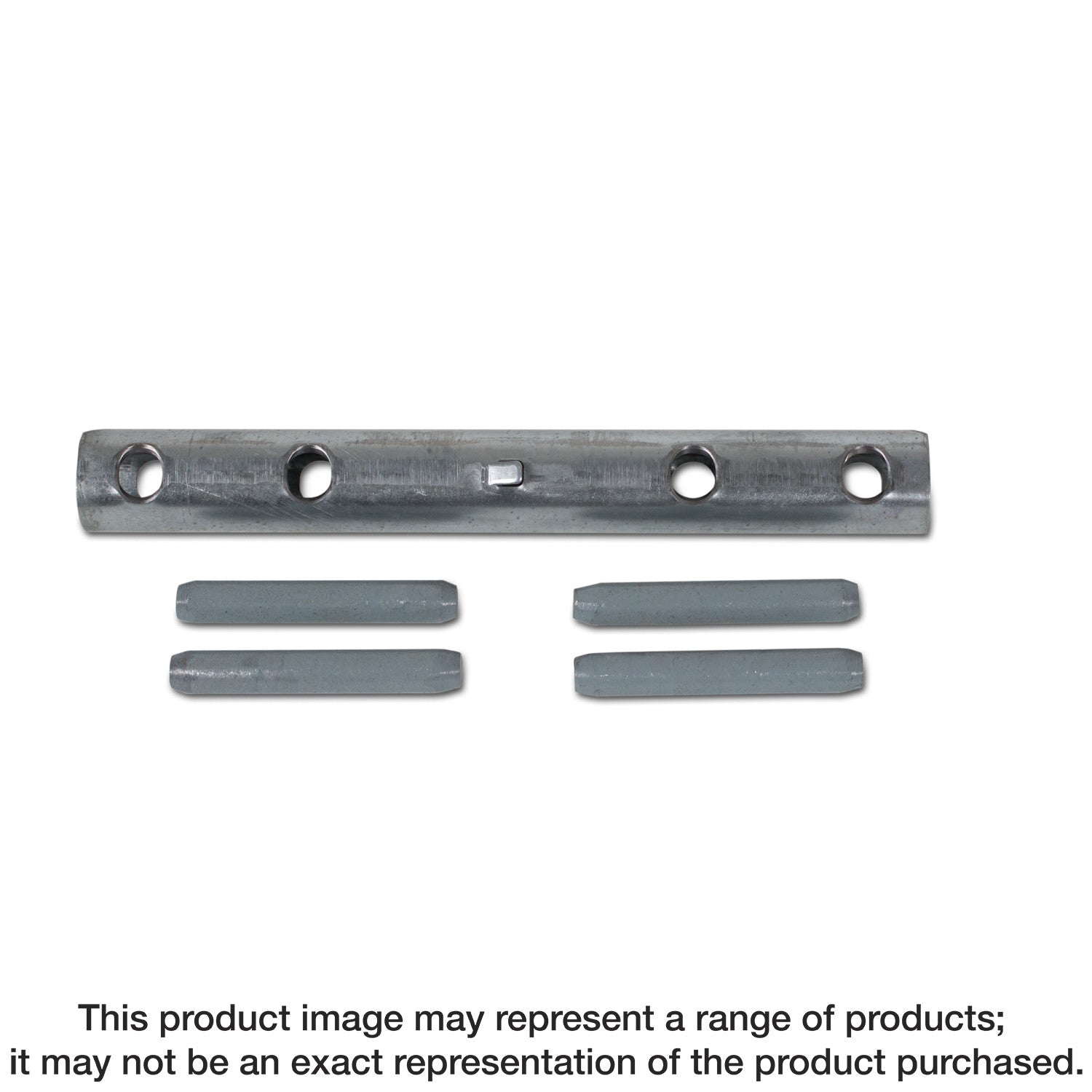

Simpson Strong-Tie CBT2Z-KT

The Simpson Strong-Tie® CBTZ™ is part of the concealed structural connector line that combines structural strength with invisibility. Designed to connect horizontal beams atop a vertical post, the CBTZ continues the structural load path into the foundation through the CPTZ. The simplistic cylindrical design allows installations with a common drill bit, eliminating challenging kerf cuts. The CBTZ is available in two models designed to connect beams and posts of a variety of sizes. It is part of a concealed connector system that includes the CPTZ and CJT.

WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Ask a Question
Specifications

Simpson Strong-Tie CBT2Z-KT

•Flattened sides assist installer while using the CBTZ as a template
•Locator tabs provide proper dimensional layout
•Required dowel pins included
•Orientation markings distinguish which end installs into the post and which end goes into the beam
•Dimensions: 1-1/4 in. x 10 in.
•Sized for a nominal 4x4 post
•Made from 12-gauge steel
•ZMAX galvanization on CBTZ offers extra corrosion resistance for exterior and treated-wood applications
•1/2 in.-diameter drift dowels are mechanically galvanized in accordance with ASTM B695, Class 55

Description

Simpson Strong-Tie CBT2Z-KT

The Simpson Strong-Tie® CBTZ™ is part of the concealed structural connector line that combines structural strength with invisibility. Designed to connect horizontal beams atop a vertical post, the CBTZ continues the structural load path into the foundation through the CPTZ. The simplistic cylindrical design allows installations with a common drill bit, eliminating challenging kerf cuts. The CBTZ is available in two models designed to connect beams and posts of a variety of sizes. It is part of a concealed connector system that includes the CPTZ and CJT.

Additional Information
Type

Column Cap
