Simpson Strong-Tie DBC2.5-R200

Simpson Strong-Tie® cold-formed steel connectors are designed to provide the strength and performance required in every cold-formed steel application. The DBC's patented design allows for one- or two-screw installation, significantly reducing labor and material cost. Load rated for 3/4 in. u-channel, the DBC joins the SUBH line of bridging connectors tested as a system, ensuring that published design capacities capture the influence of stud web depth and thickness.

Ask a Question
Specifications

Simpson Strong-Tie DBC2.5-R200

•Most applications require only a single screw
•Designed for 3/4 in. u-channel to fit smaller web knockouts common to drywall studs
•Compatible with drywall stud depths of 3-5/8 in. and 6 in. with 1-1/2 in. wide knockouts
•Made from 33 mil (20 ga.) carbon steel
•Galvanized (G90) for corrosion resistance

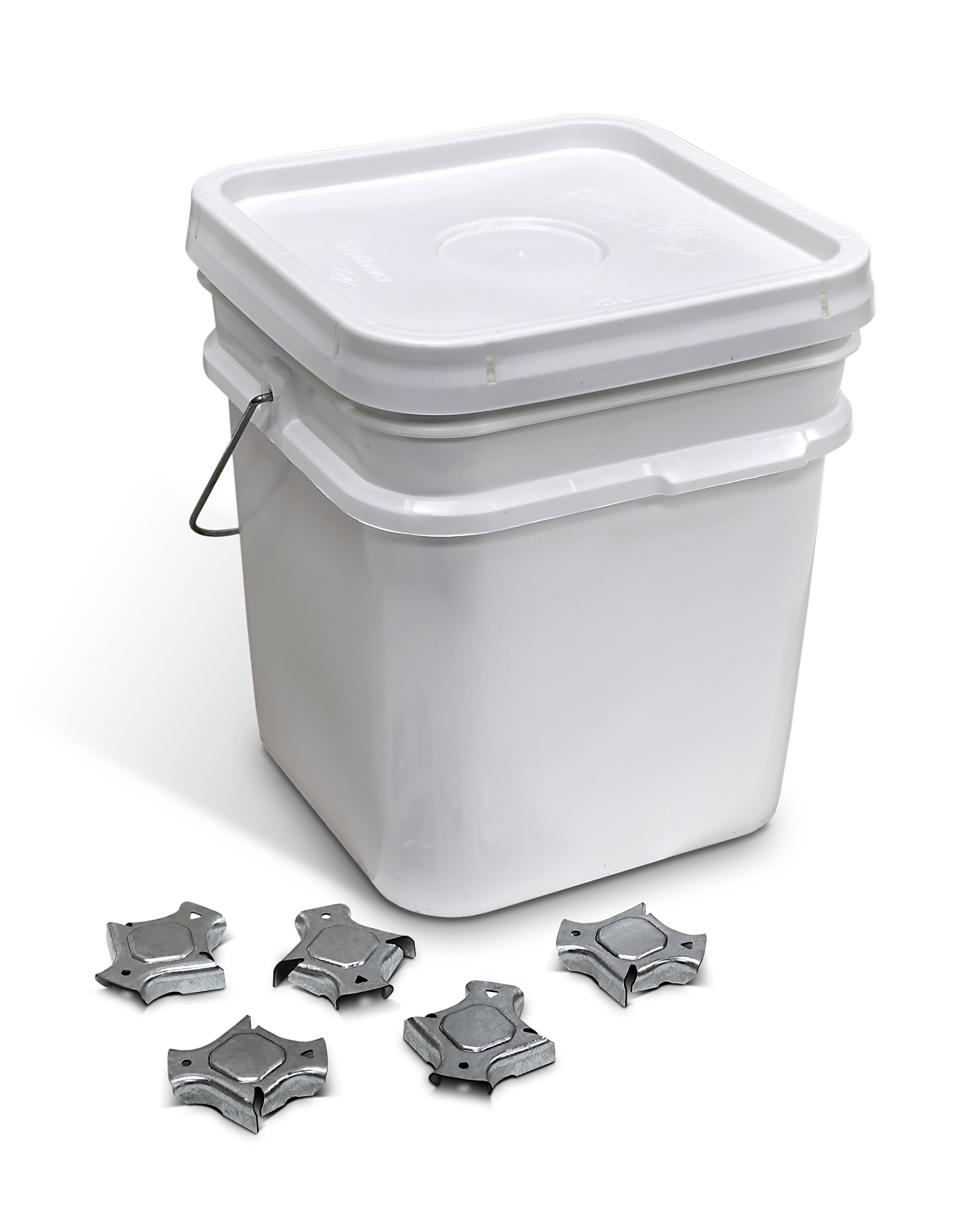

•Quantity: 200 per package




Description

Simpson Strong-Tie DBC2.5-R200

Simpson Strong-Tie® cold-formed steel connectors are designed to provide the strength and performance required in every cold-formed steel application. The DBC's patented design allows for one- or two-screw installation, significantly reducing labor and material cost. Load rated for 3/4 in. u-channel, the DBC joins the SUBH line of bridging connectors tested as a system, ensuring that published design capacities capture the influence of stud web depth and thickness.
