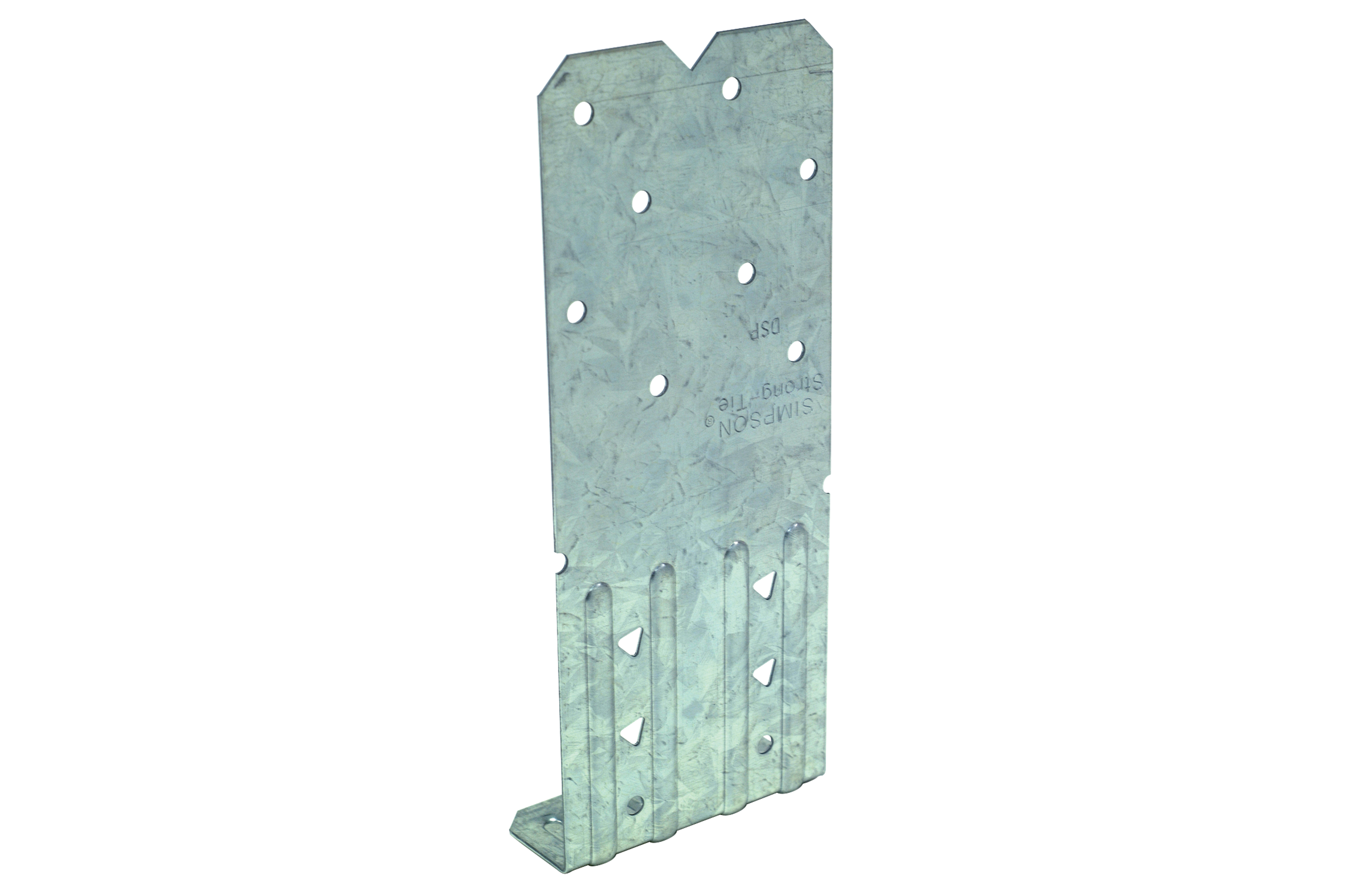

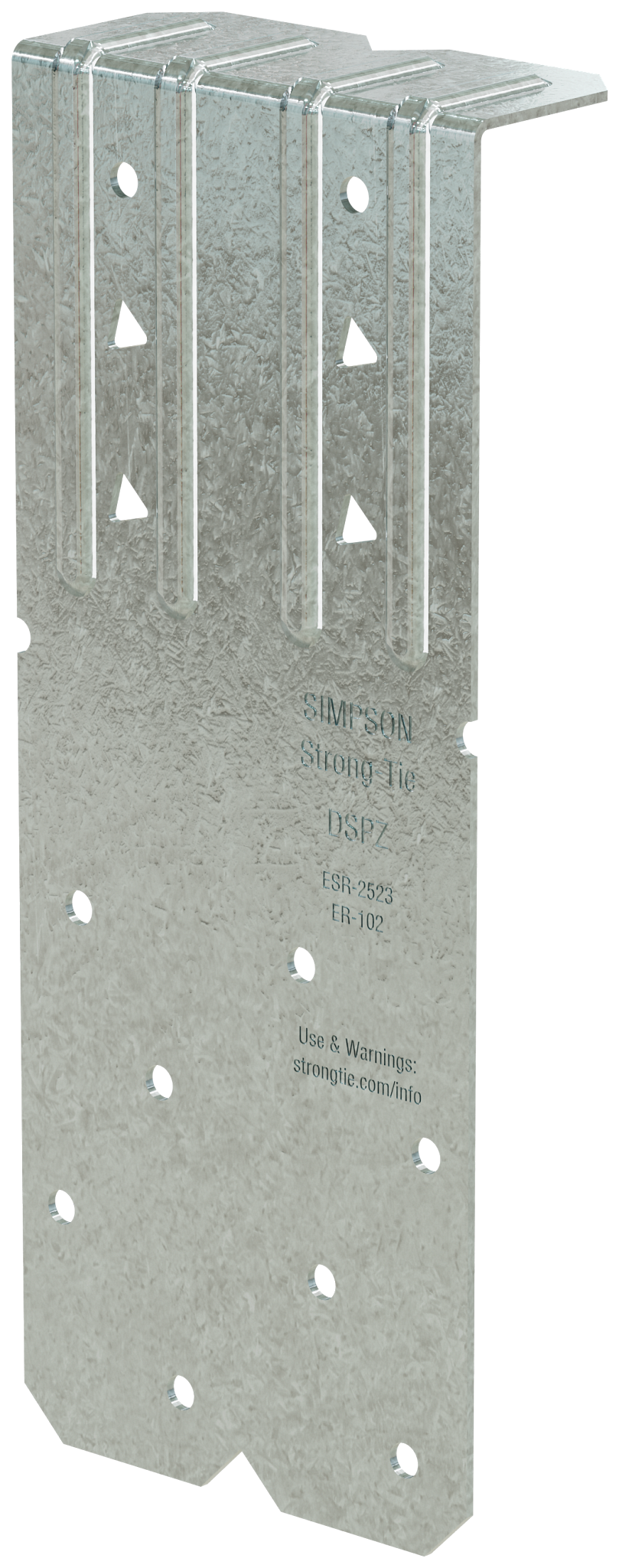

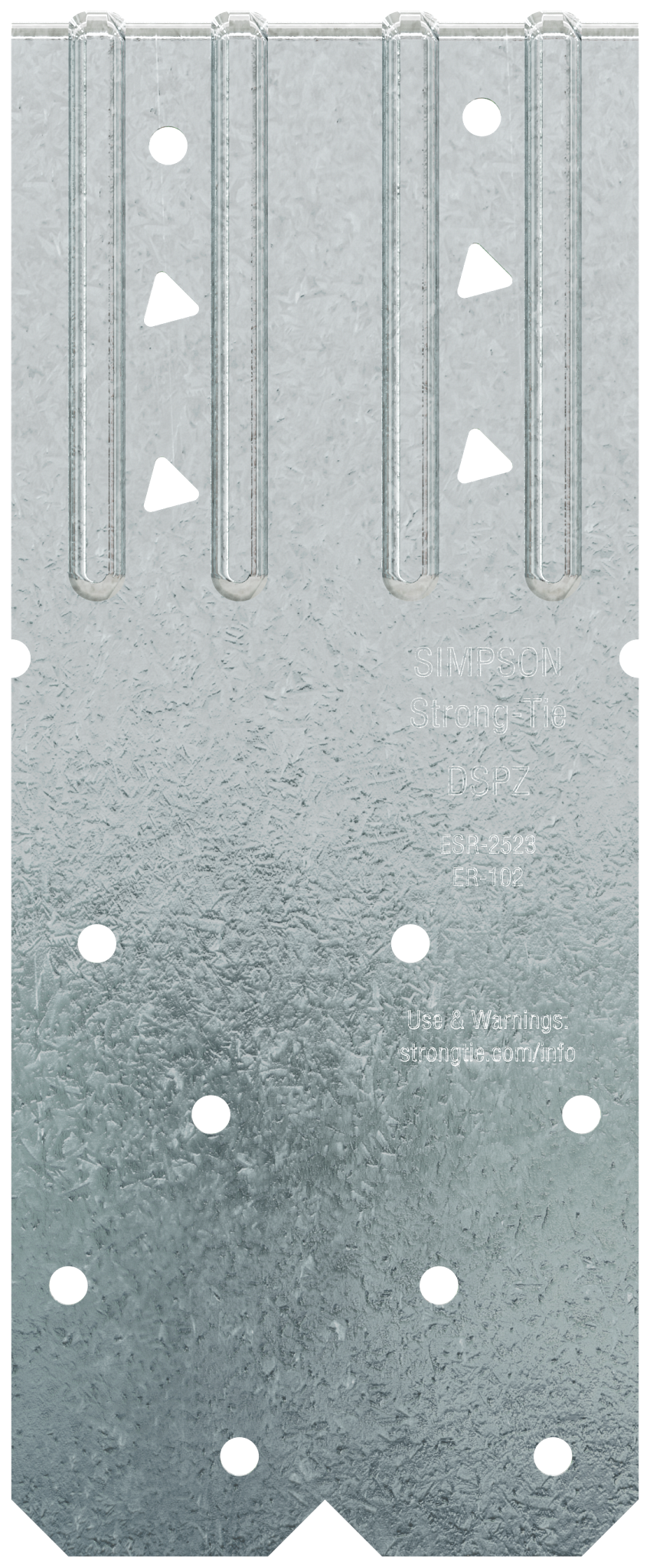

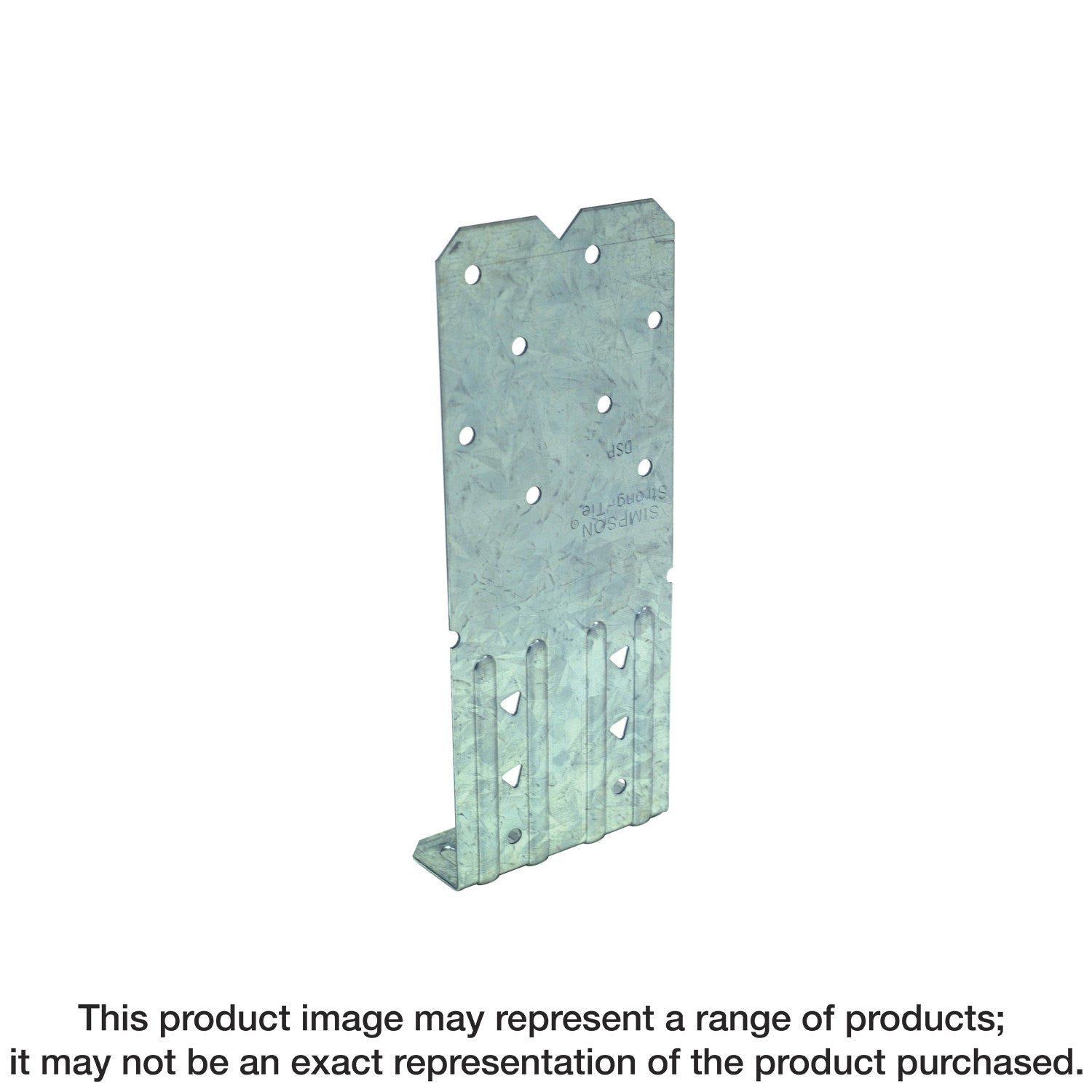

Simpson Strong-Tie DSPZ

Simpson Strong-Tie straps and plates join and reinforce joints with simple, versatile solutions for a wide range of connections. Available in many lengths, widths and thicknesses, straps can be used on the wide or narrow face of lumber for light repairs or heavy-duty projects. Many straps are designed to be used back-to-back on a piece of lumber without fastener interference. The stud plate tie series offers various solutions for connecting the stud to the top and bottom plates. DSP double-stud plate ties connect double studs to top and bottom track and can be used for either top- or bottom-track applications.

Ask a Question
Specifications

Simpson Strong-Tie DSPZ

•For sill plate installation, fill all round holes
•For top plate installation, fill all round holes and triangle holes
•Width: 2-3/4 in.
•Length: 6-11/16 in.
•Made from 18-gauge steel
•ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications




Description

Simpson Strong-Tie DSPZ

Simpson Strong-Tie straps and plates join and reinforce joints with simple, versatile solutions for a wide range of connections. Available in many lengths, widths and thicknesses, straps can be used on the wide or narrow face of lumber for light repairs or heavy-duty projects. Many straps are designed to be used back-to-back on a piece of lumber without fastener interference. The stud plate tie series offers various solutions for connecting the stud to the top and bottom plates. DSP double-stud plate ties connect double studs to top and bottom track and can be used for either top- or bottom-track applications.
