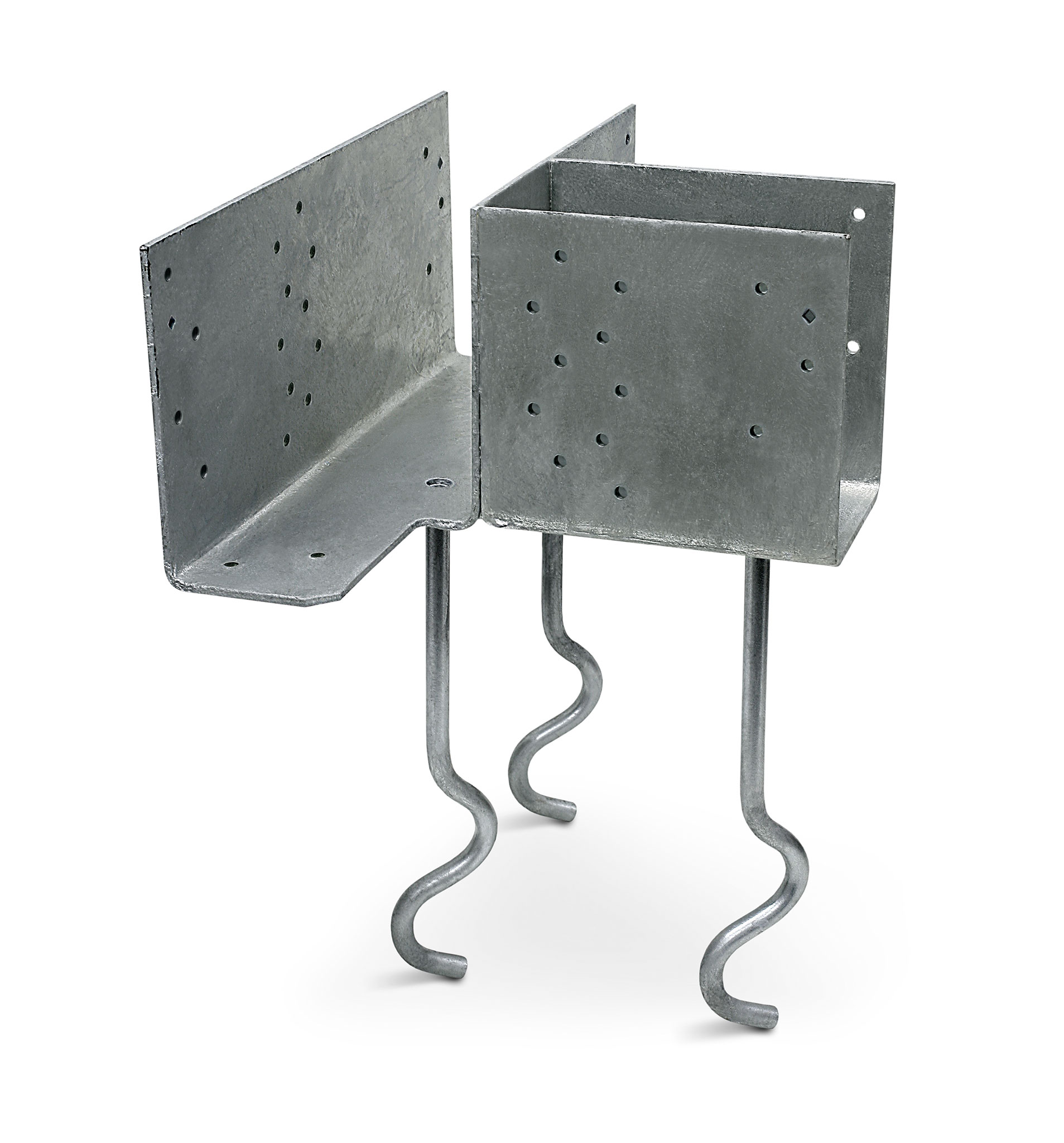

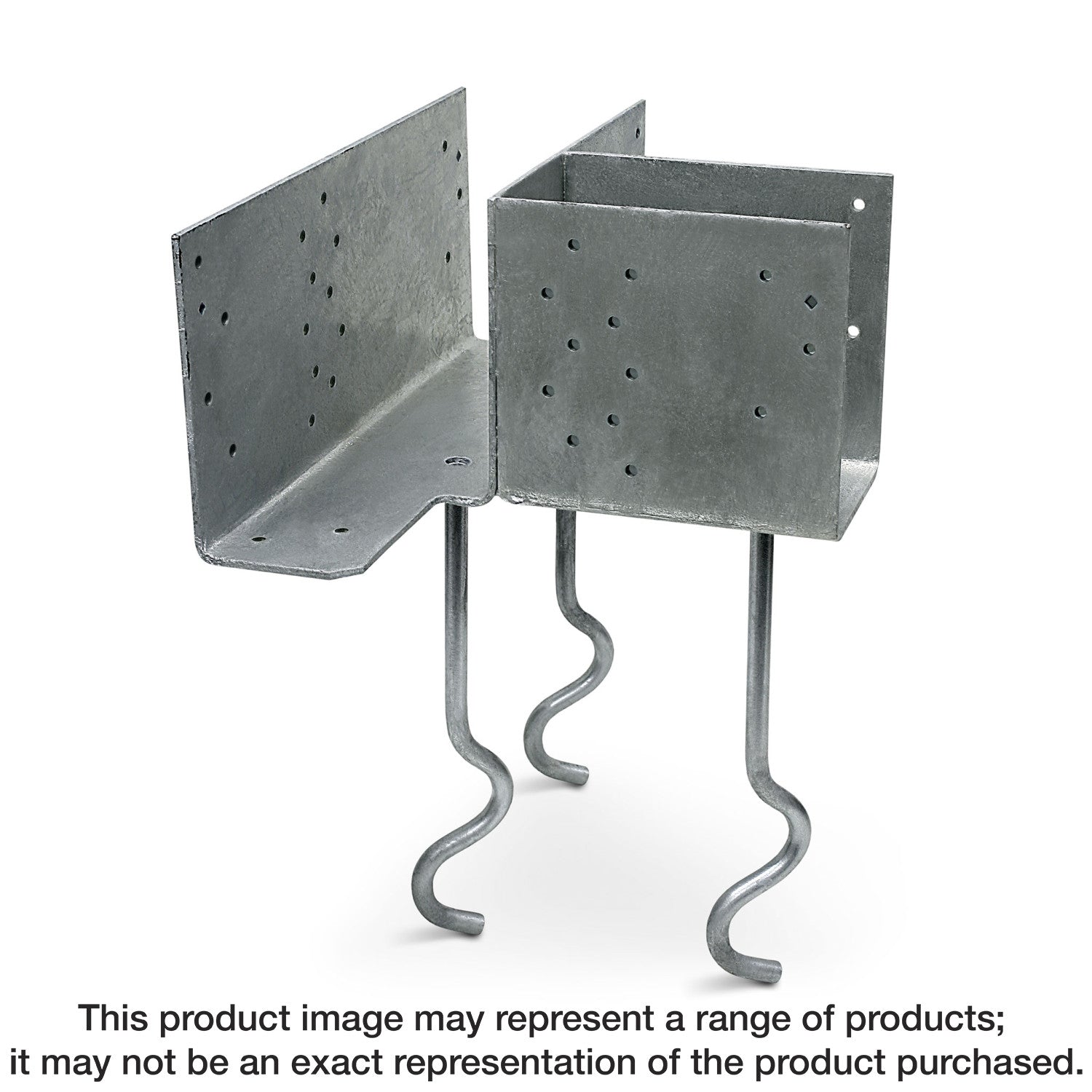

Simpson Strong-Tie ECCLLQMD3.62G-KT ECCLQMD™ Hot-Dip Galvanized L-Shape Embedded Column Cap for 3-5/8 in Beam, Skewed Left

$712.95

MPN: ECCLLQMD3.62G-KT

Brand: Simpson Strong-Tie
Barcode: 707392733409
Availability : Limited Stock Out of stock

Type: Column Cap

Column Cap
Add to Wishlist

Minimum order quantity is .

Maximum order quantity is .
The product can be bought in quantity increments of .

Simpson Strong-Tie ECCLLQMD3.62G-KT

ECCLQM embedded column caps are designed for use in raised pier foundations and applications where heavy timbers rest on concrete or concrete block columns. The heavy-gauge beam seats and unique SSTB-style anchor bolts provide the high uplift and lateral resistance needed to help resist high-wind events. The ECCLQMD is a variation that incorporates an additional seat to support a third member at the corner connection.

WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Ask a Question
Specifications

Simpson Strong-Tie ECCLLQMD3.62G-KT

•Ideal for applications where a member is needed off the corner of the structure, such as a deck joist/beam.
•Left direction. Order ECCLRQMD for right direction.
•Main channel width: 3-5/8 in.
•Main channel length: 16-1/2 in.
•Made from 7-gauge steel
•Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications




Description

Simpson Strong-Tie ECCLLQMD3.62G-KT

ECCLQM embedded column caps are designed for use in raised pier foundations and applications where heavy timbers rest on concrete or concrete block columns. The heavy-gauge beam seats and unique SSTB-style anchor bolts provide the high uplift and lateral resistance needed to help resist high-wind events. The ECCLQMD is a variation that incorporates an additional seat to support a third member at the corner connection.

Additional Information
Type

Column Cap
