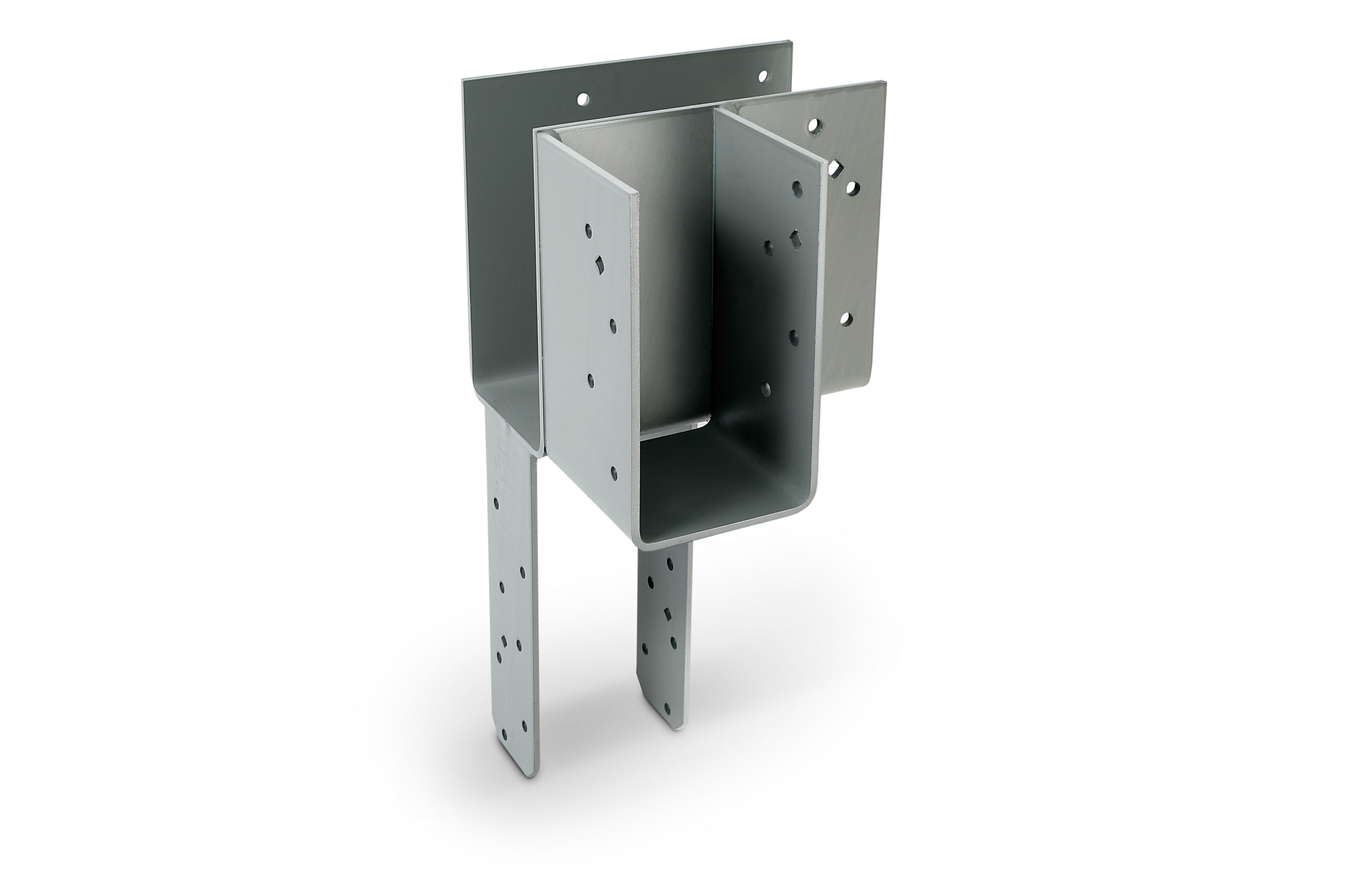

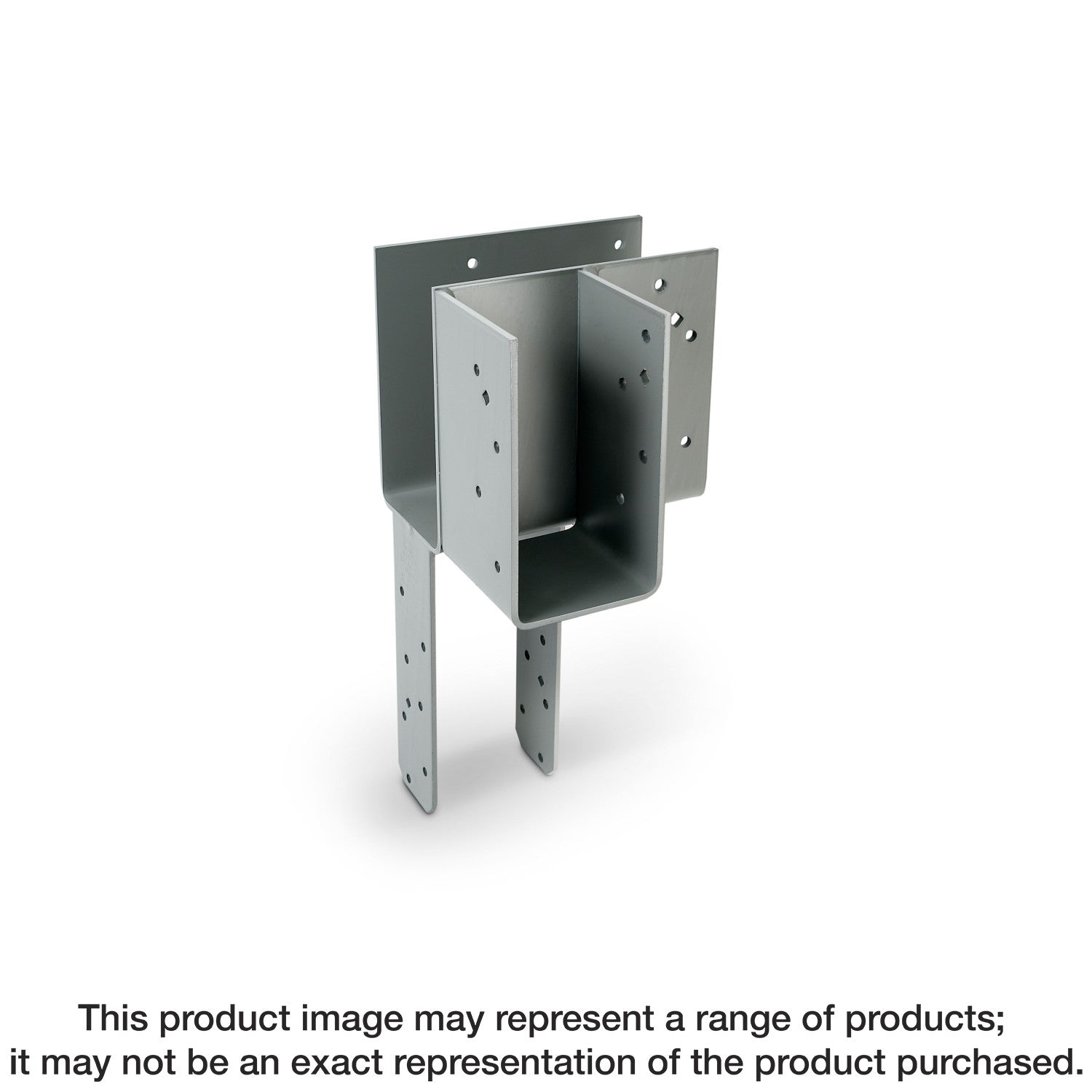

Simpson Strong-Tie ECCLQM3.62G-KT ECCLQM™ 3-5/8 in. L-Shape End Column Cap for Masonry w/ SDS Screws

$705.23

MPN: ECCLQM3.62G-KT

Brand: Simpson Strong-Tie
Barcode: 707392551300
Availability : Limited Stock Out of stock

Type: Column Cap

Column Cap
Add to Wishlist

Minimum order quantity is .

Maximum order quantity is .
The product can be bought in quantity increments of .

Simpson Strong-Tie ECCLQM3.62G-KT

The ECCLQM embedded column cap is designed for use in raised pier foundations and applications where heavy timbers rest on concrete or concrete block columns. The heavy-gauge beam seat and unique Simpson Strong-Tie SSTB® anchor bolts provide the high uplift and lateral resistance needed to help resist high-wind events. The ECCLQM-KT is intended for use at the building corners.

WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Ask a Question
Specifications

Simpson Strong-Tie ECCLQM3.62G-KT

•MSTQM straps to make the connection from the ECCLQM to the wall framing
•Screws are configured to provide high uplift design values
•Certified welds for confidence in strength and loading
•SSTB offset allows flush installation to edge of pier
•SSTBs spaced to fit in standard CMU cells
•3-5/8 in. main channel and side stirrup widths
•Main channel length: 11-1/2 in.
•Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications
•Fasten with Simpson Strong-Tie Strong-Drive® SDS Heavy-Duty Connector screws (included), which install with no pre-drilling and feature a corrosion resistant double-barrier coating

Description

Simpson Strong-Tie ECCLQM3.62G-KT

The ECCLQM embedded column cap is designed for use in raised pier foundations and applications where heavy timbers rest on concrete or concrete block columns. The heavy-gauge beam seat and unique Simpson Strong-Tie SSTB® anchor bolts provide the high uplift and lateral resistance needed to help resist high-wind events. The ECCLQM-KT is intended for use at the building corners.

Additional Information
Type

Column Cap
