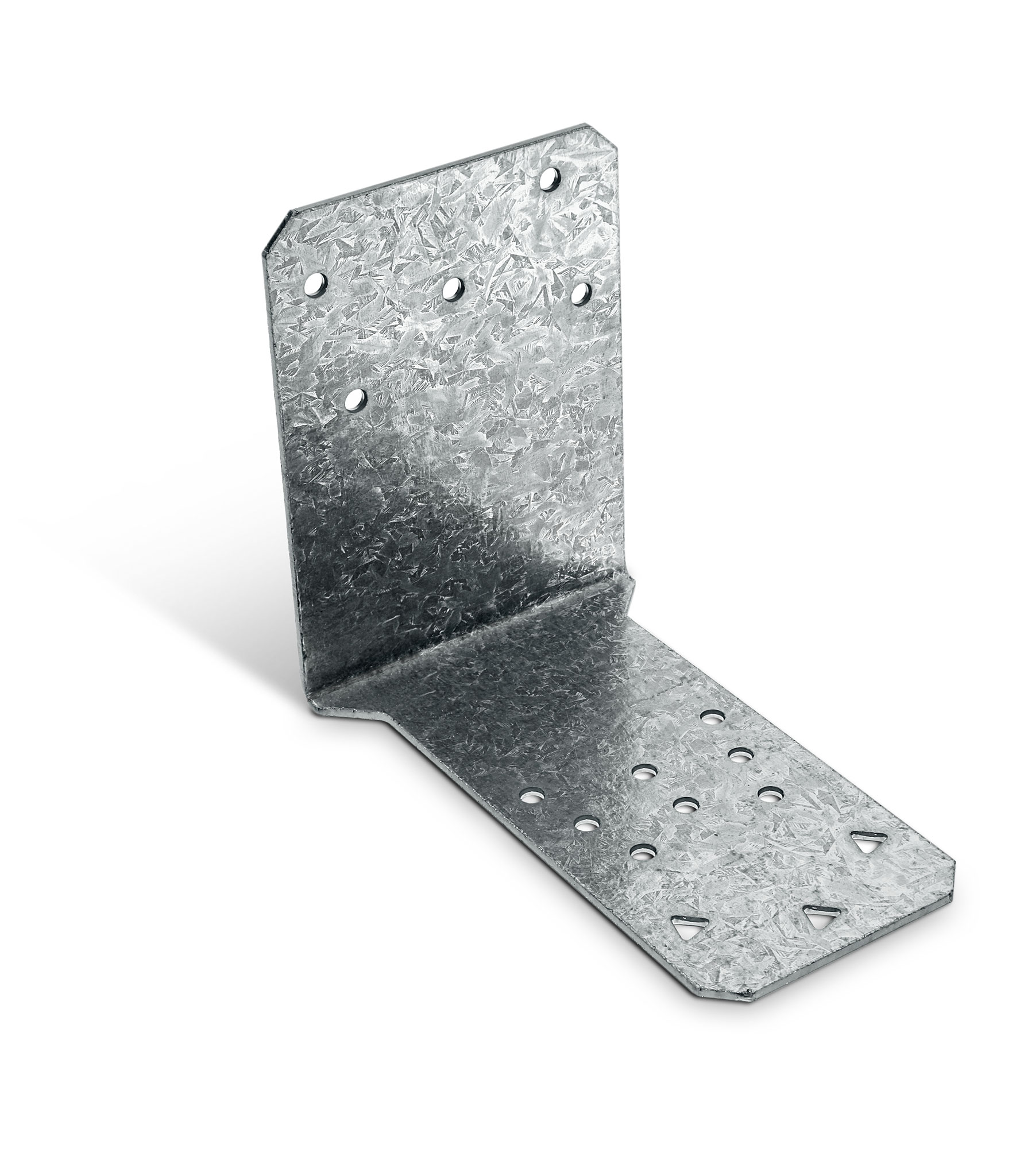

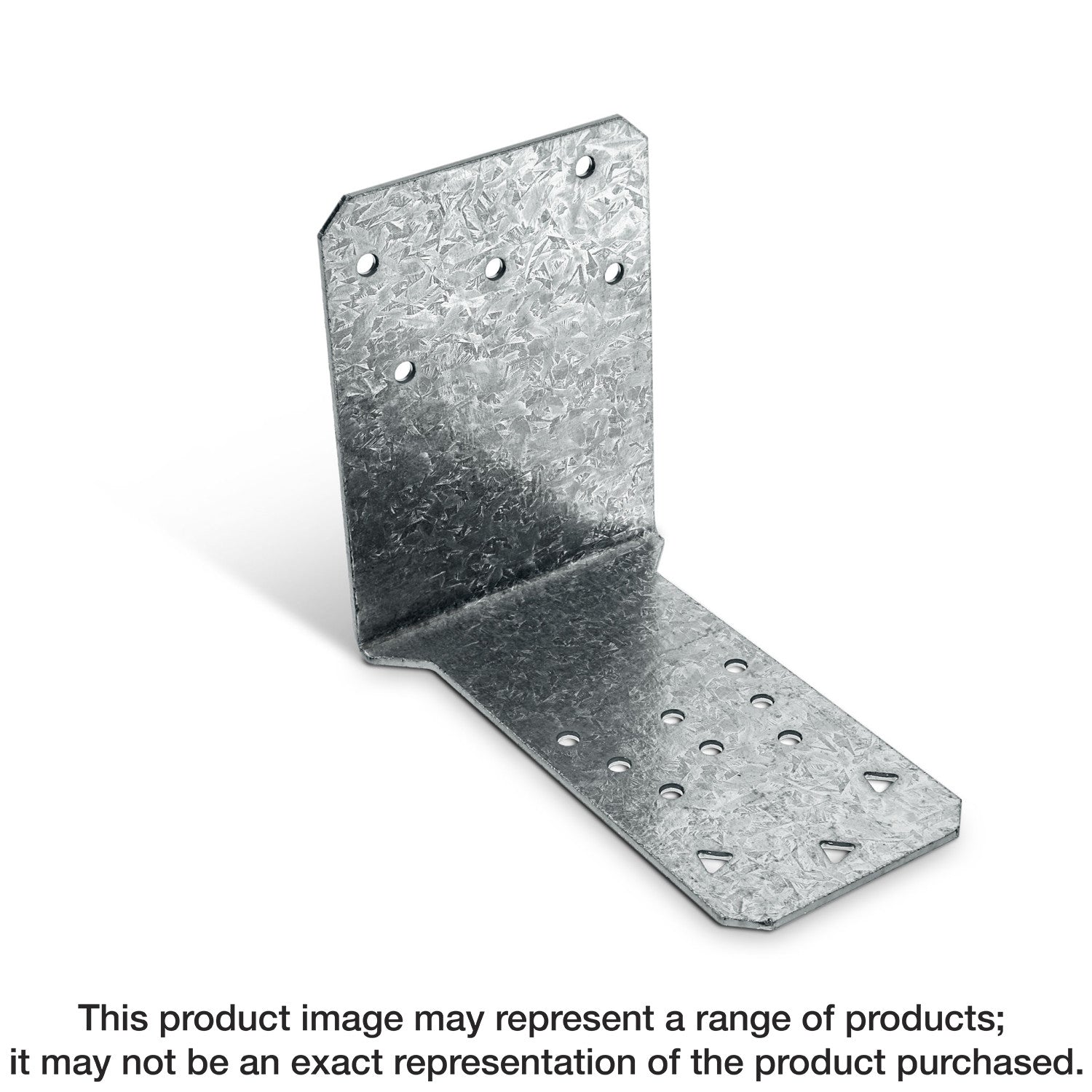

Simpson Strong-Tie FWANZ FWANZ ZMAX® Galvanized Nail-On Foundation Wall Angle

$11.11

MPN: FWANZ

Brand: Simpson Strong-Tie
Barcode: 707392521105
Availability : Limited Stock Out of stock

Type: Other

Other
Add to Wishlist

Minimum order quantity is .

Maximum order quantity is .
The product can be bought in quantity increments of .

Simpson Strong-Tie FWANZ

FWA foundation anchors connect the foundation or basement walls to the floor system to resist out-of-plane forces imposed by soil pressure. The FWANZ fastens to the mudsill with nails, relying on other anchorage (by Designer) to anchor the sill plate to the foundation. Spacing of the FWA anchors is independent of the joist spacing, allowing for a multitude of options based on soil pressures.

Ask a Question
Specifications

Simpson Strong-Tie FWANZ

•Compatible with solid sawn joists, I-joists and floor trusses
•Testing performed on most common rim materials and types
•Addresses design needs set forth in Section 1610.1 in the IBC and Section R404.1 in the IRC
•Eliminates the need of costly cantilevered foundation designs
•Made from 14-gauge steel
•ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications




Description

Simpson Strong-Tie FWANZ

FWA foundation anchors connect the foundation or basement walls to the floor system to resist out-of-plane forces imposed by soil pressure. The FWANZ fastens to the mudsill with nails, relying on other anchorage (by Designer) to anchor the sill plate to the foundation. Spacing of the FWA anchors is independent of the joist spacing, allowing for a multitude of options based on soil pressures.

Additional Information
Type

Other
