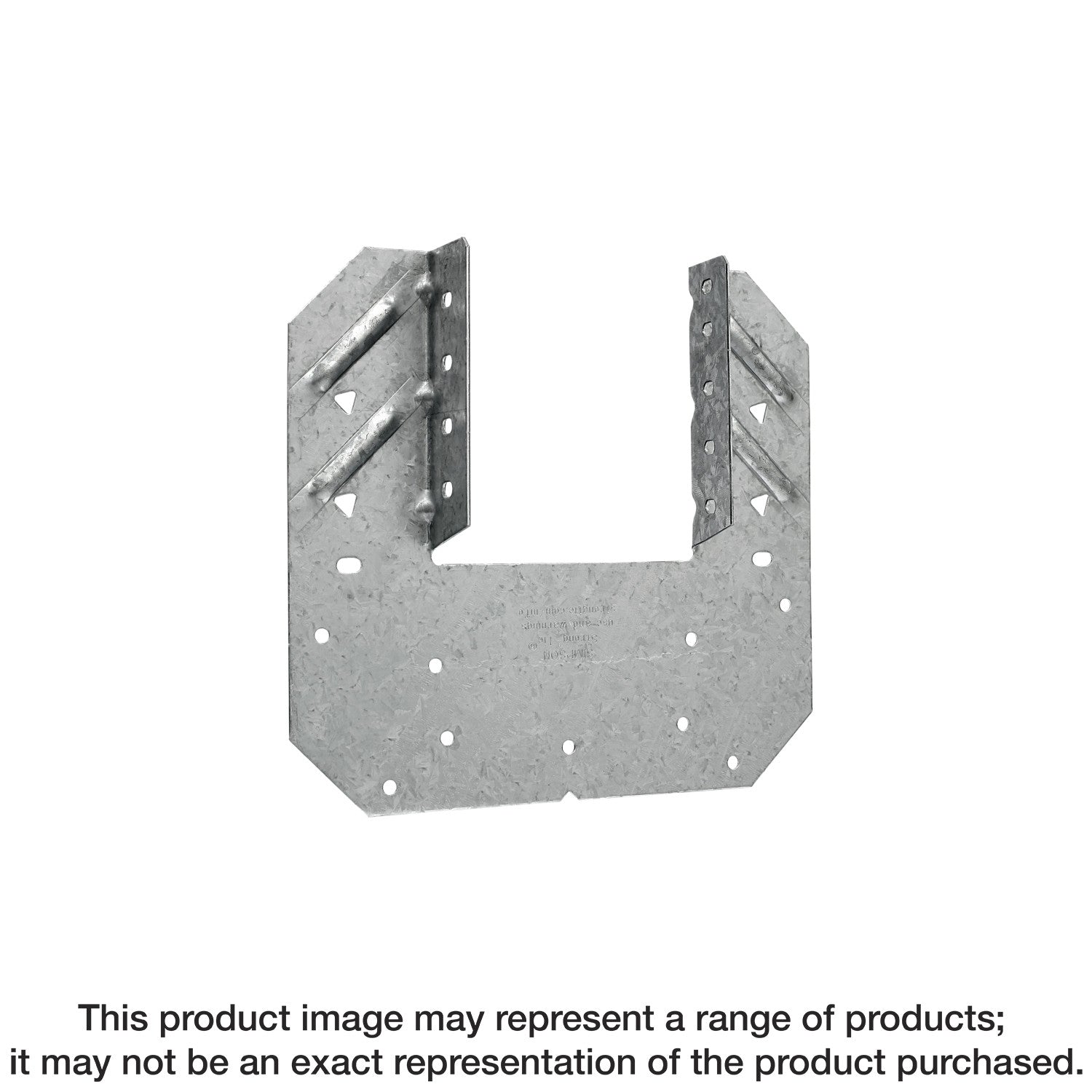

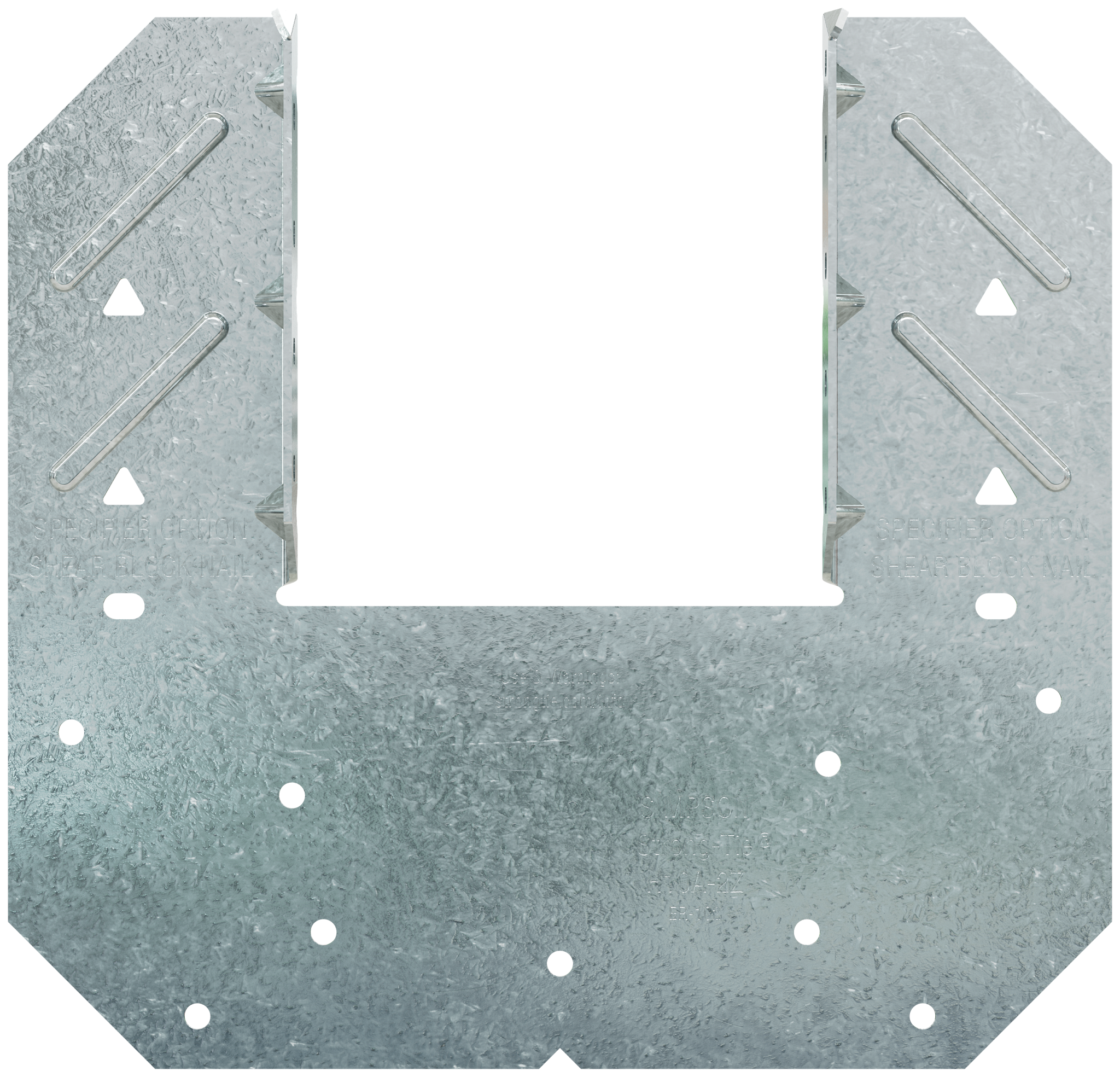

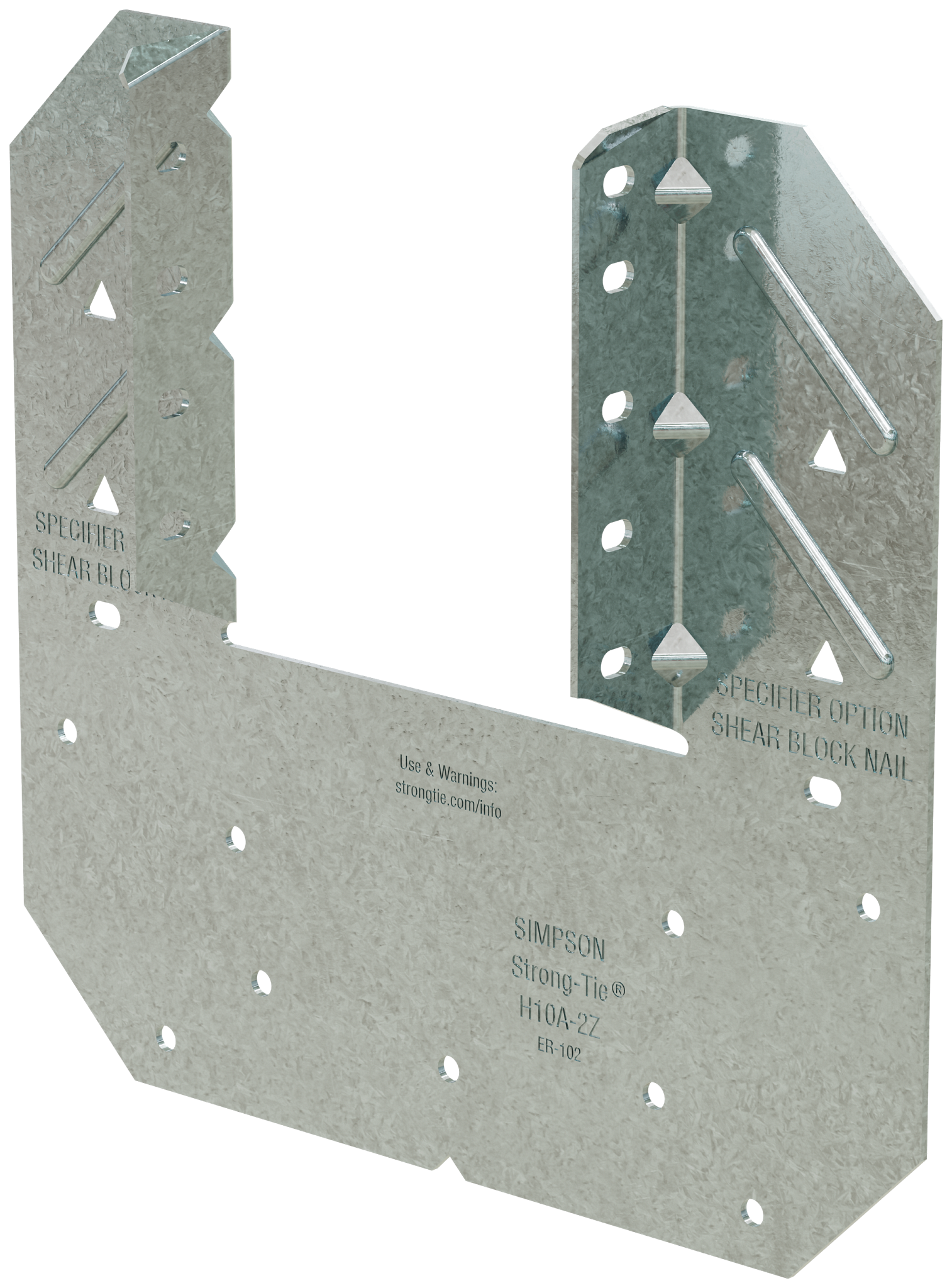

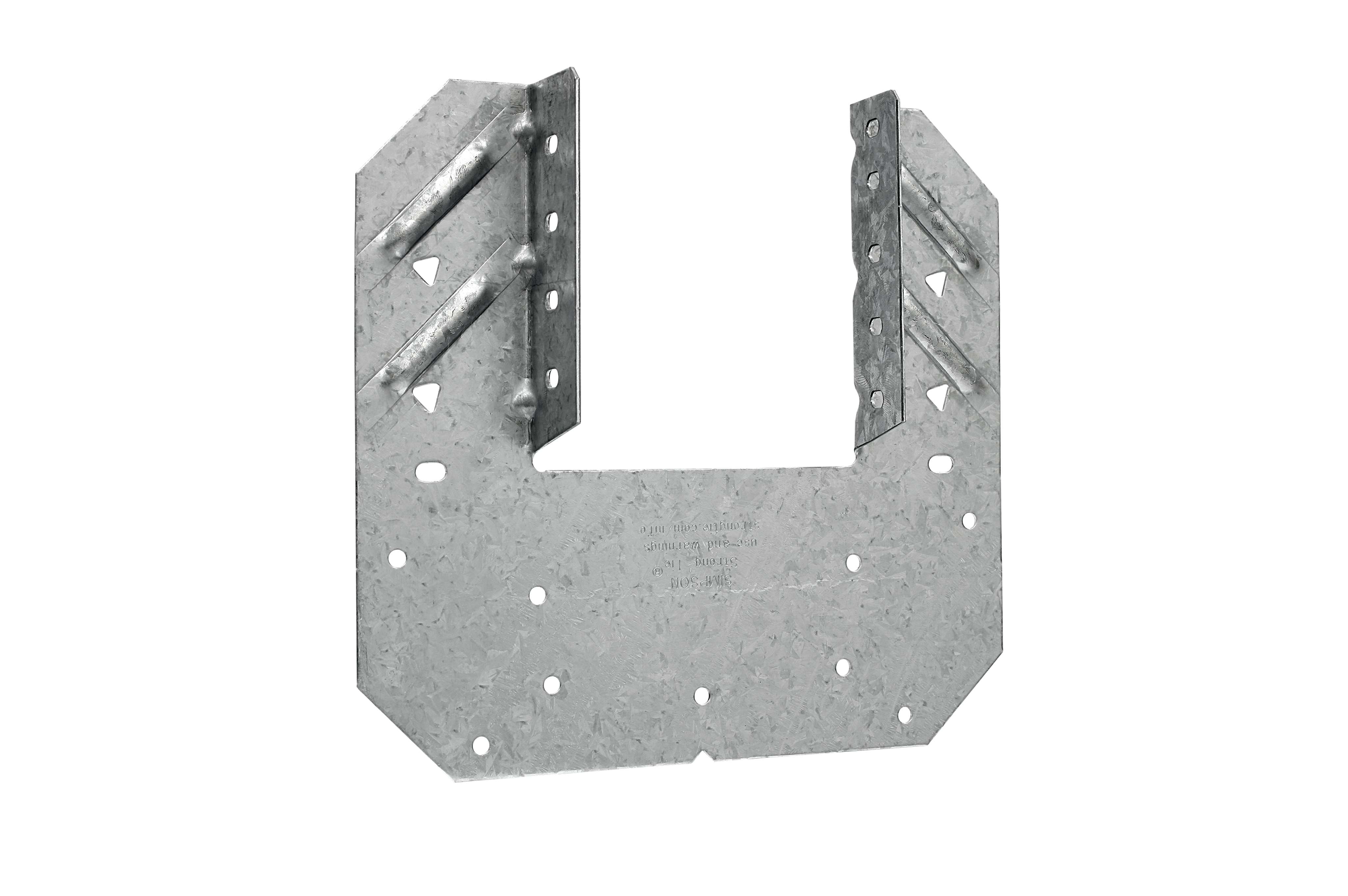

Simpson Strong-Tie H10A-2Z

The H10A series holds the rafter or truss on both sides for higher uplift applications with embossments that add stiffness in crucial areas for improved performance. These U-shaped hurricane ties provide faster installation than using two single-sided ties. H10A models come with optional fastener holes to connect roof blocking to the top plate. Slots allow field bending up to a maximum pitch of 6:12 to accommodate angled blocking.

Ask a Question
Specifications

Simpson Strong-Tie H10A-2Z

•Forms part of a continuous load path to resist wind and seismic forces
•The H10A-2 model holds a double-ply member
•Approved for installation with the Strong-Drive® SD Connector screw
•Seat width: 3-1/8 in.
•Made from 18-gauge steel
•ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications




Description

Simpson Strong-Tie H10A-2Z

The H10A series holds the rafter or truss on both sides for higher uplift applications with embossments that add stiffness in crucial areas for improved performance. These U-shaped hurricane ties provide faster installation than using two single-sided ties. H10A models come with optional fastener holes to connect roof blocking to the top plate. Slots allow field bending up to a maximum pitch of 6:12 to accommodate angled blocking.
