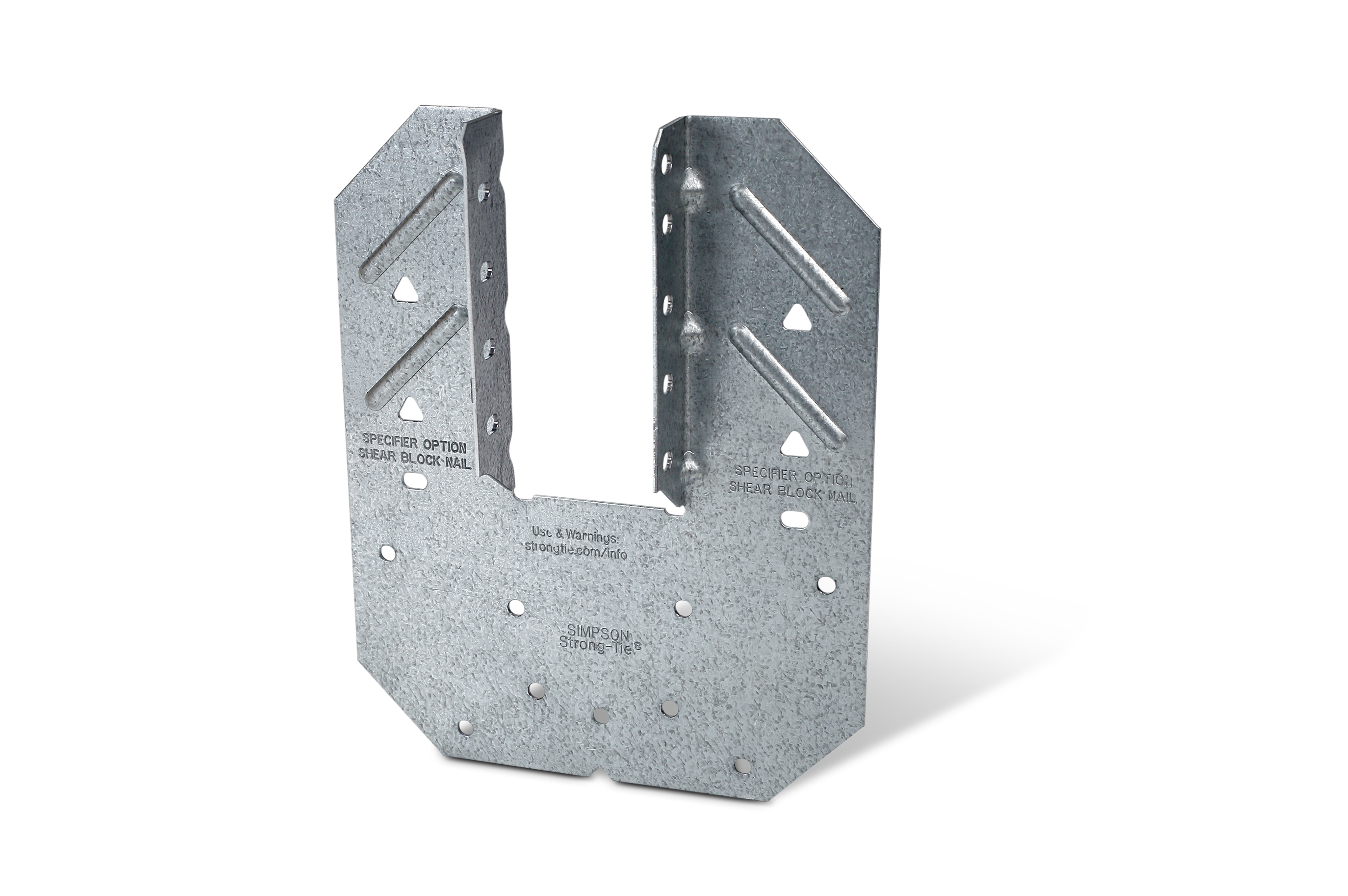

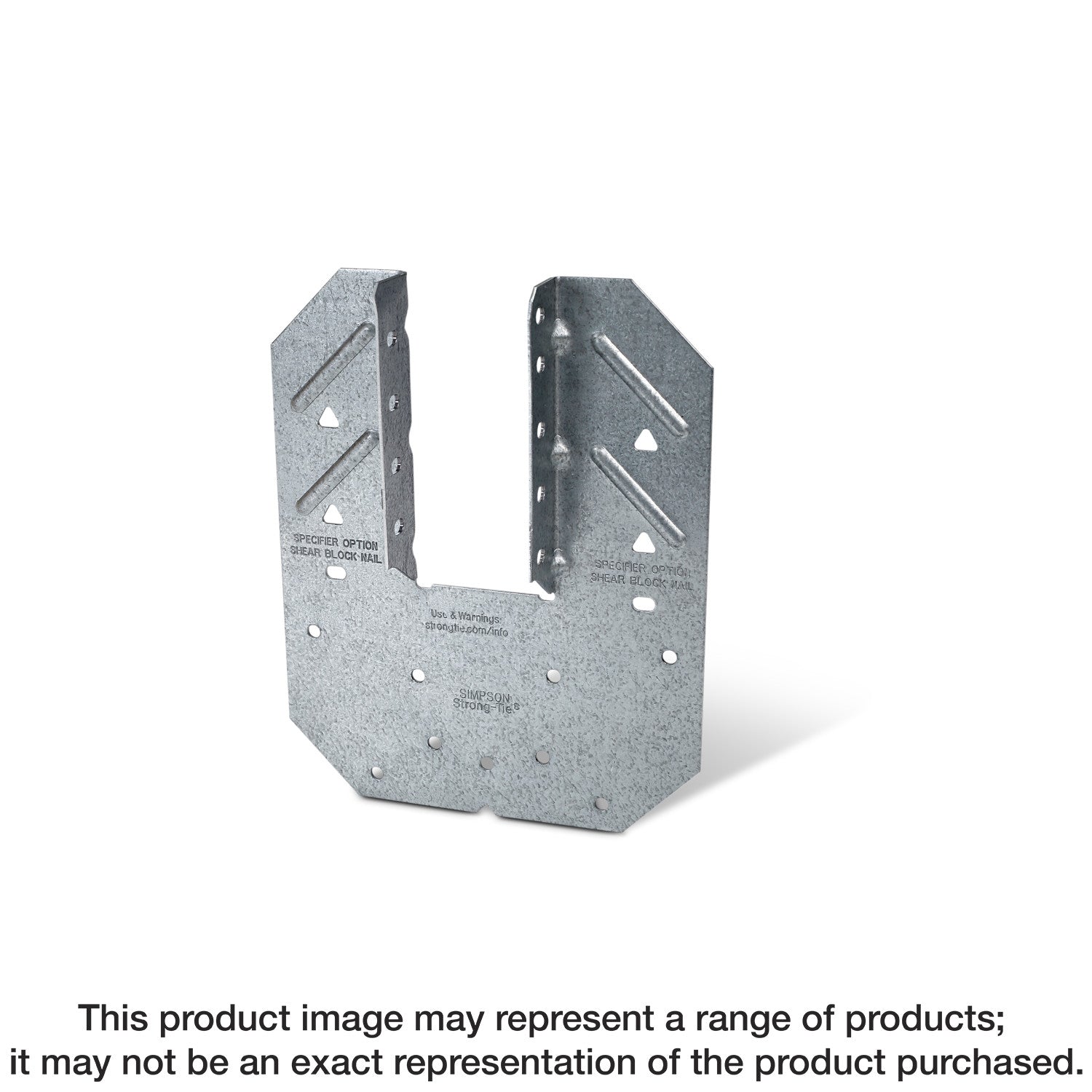

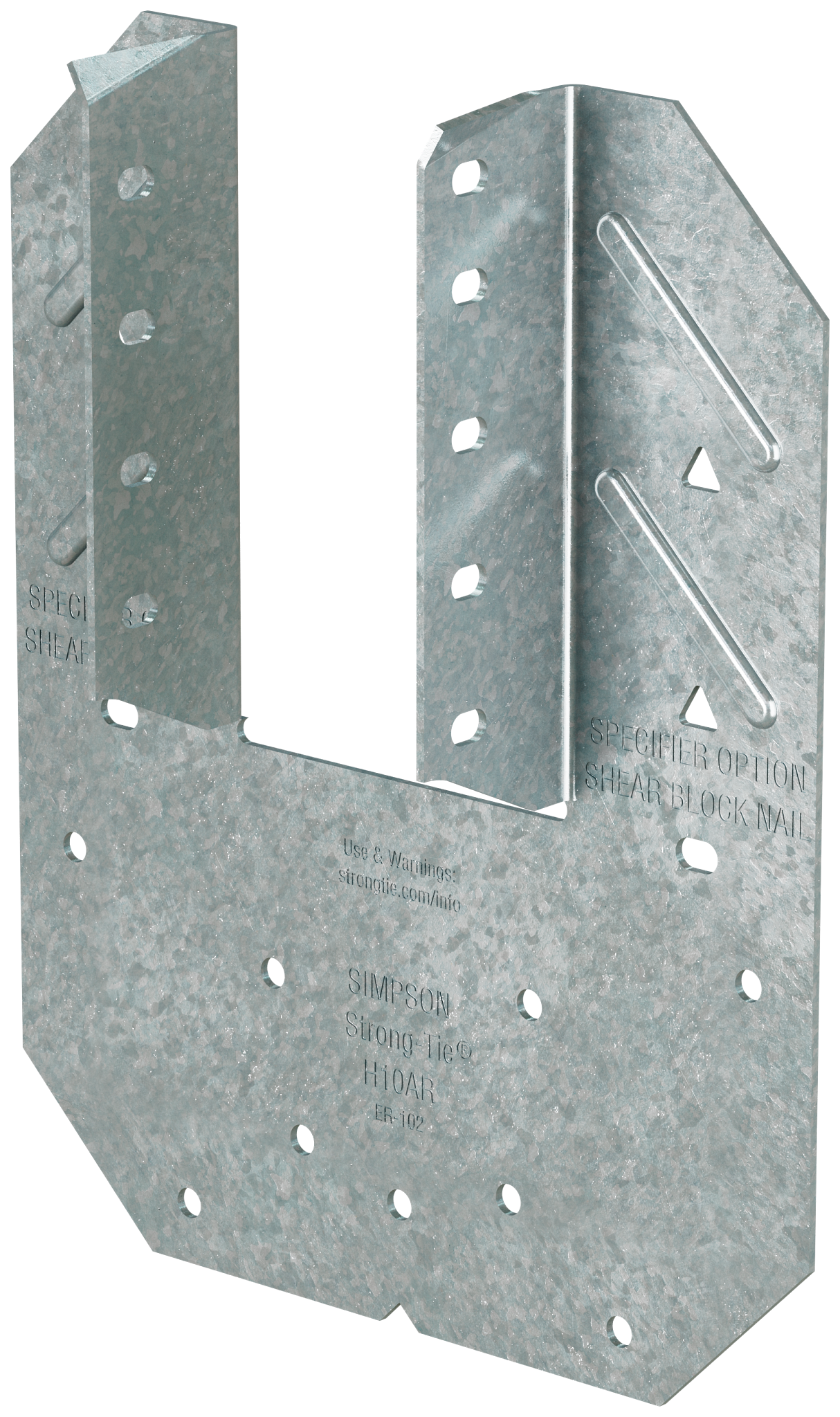

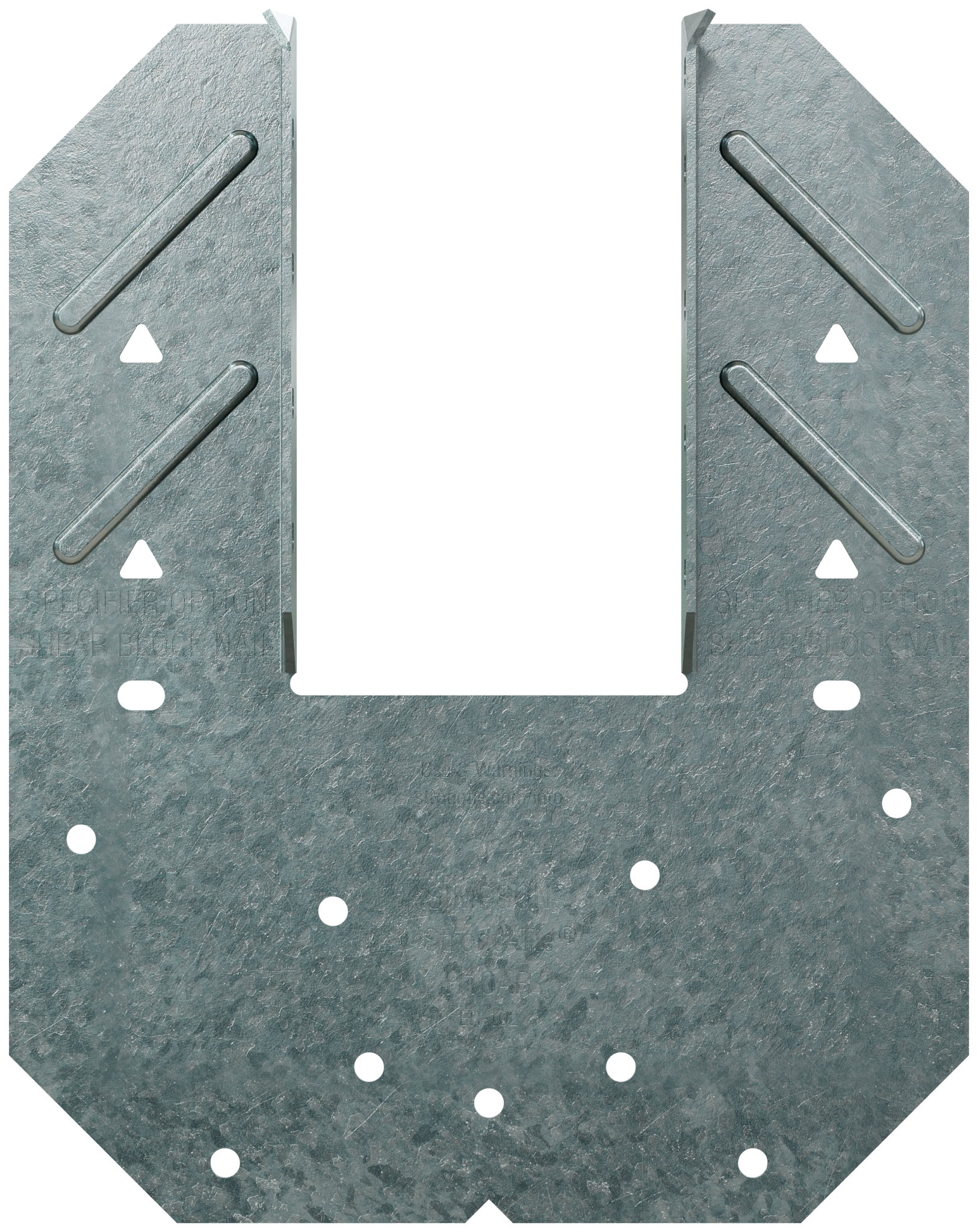

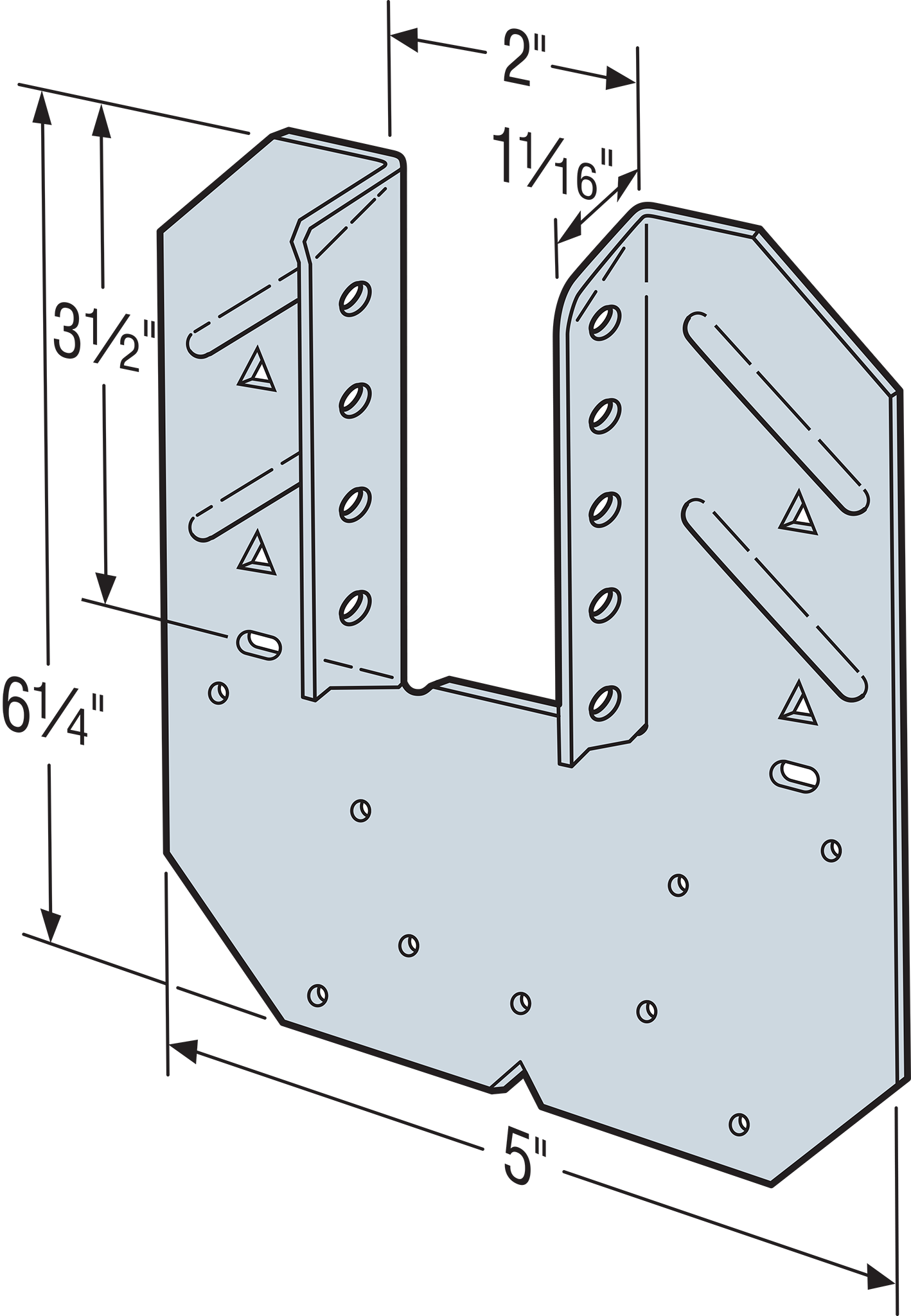

Simpson Strong-Tie H10AR H10AR 18-Gauge Galvanized Hurricane Tie

$9.98

MPN: H10AR

Brand: Simpson Strong-Tie
Barcode: 707392430605
Availability : Limited Stock Out of stock
Add to Wishlist

Minimum order quantity is .

Maximum order quantity is .
The product can be bought in quantity increments of .

Simpson Strong-Tie H10AR

The H10A series holds the rafter or truss on both sides for higher uplift applications with embossments that add stiffness in crucial areas for improved performance. These U-shaped hurricane ties provide faster installation than using two single-sided ties. H10A models come with optional fastener holes to connect roof blocking to the top plate. Slots allow field bending up to a maximum pitch of 6:12 to accommodate angled blocking.

Ask a Question
Specifications

Simpson Strong-Tie H10AR

•Forms part of a continuous load path to resist wind and seismic forces
•The H10AR model is designed for rough lumber
•Seat width: 2 in.
•Made from 18-gauge steel
•Galvanized (G90) for extra corrosion resistance





Description

Simpson Strong-Tie H10AR

The H10A series holds the rafter or truss on both sides for higher uplift applications with embossments that add stiffness in crucial areas for improved performance. These U-shaped hurricane ties provide faster installation than using two single-sided ties. H10A models come with optional fastener holes to connect roof blocking to the top plate. Slots allow field bending up to a maximum pitch of 6:12 to accommodate angled blocking.
