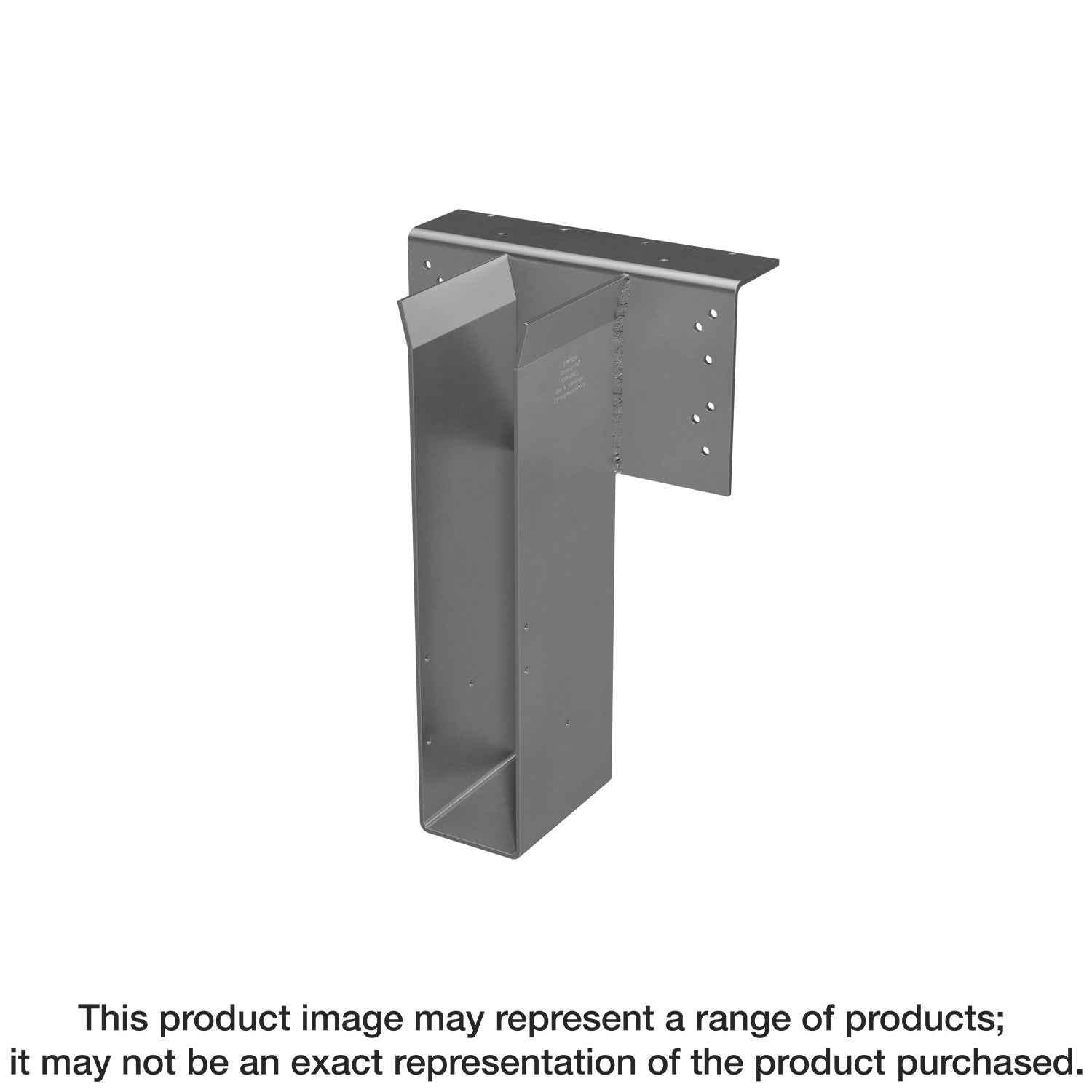

Simpson Strong-Tie HGLTV3.56/11.25

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. HGLTV hangers are designed for use with structural composite lumber header applications that require high loads. The top-flange nails are sized and specifically located to prevent degradation of the header due to splitting of laminations. The Funnel Flangeâ„¢ design allows for easy installation of beams.

Ask a Question
Specifications

Simpson Strong-Tie HGLTV3.56/11.25

•This series may be used for weld-on applications
•Web stiffeners are required with I-joists using this hanger style
•Actual joist size: 3-1/2 in. x 11-1/4 in.
•Top flange made from 3-gauge steel
•Stirrup made from 7-gauge steel
•Simpson Strong-Tie gray paint finish




Description

Simpson Strong-Tie HGLTV3.56/11.25

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. HGLTV hangers are designed for use with structural composite lumber header applications that require high loads. The top-flange nails are sized and specifically located to prevent degradation of the header due to splitting of laminations. The Funnel Flangeâ„¢ design allows for easy installation of beams.

Additional Information
Type

Hanger
