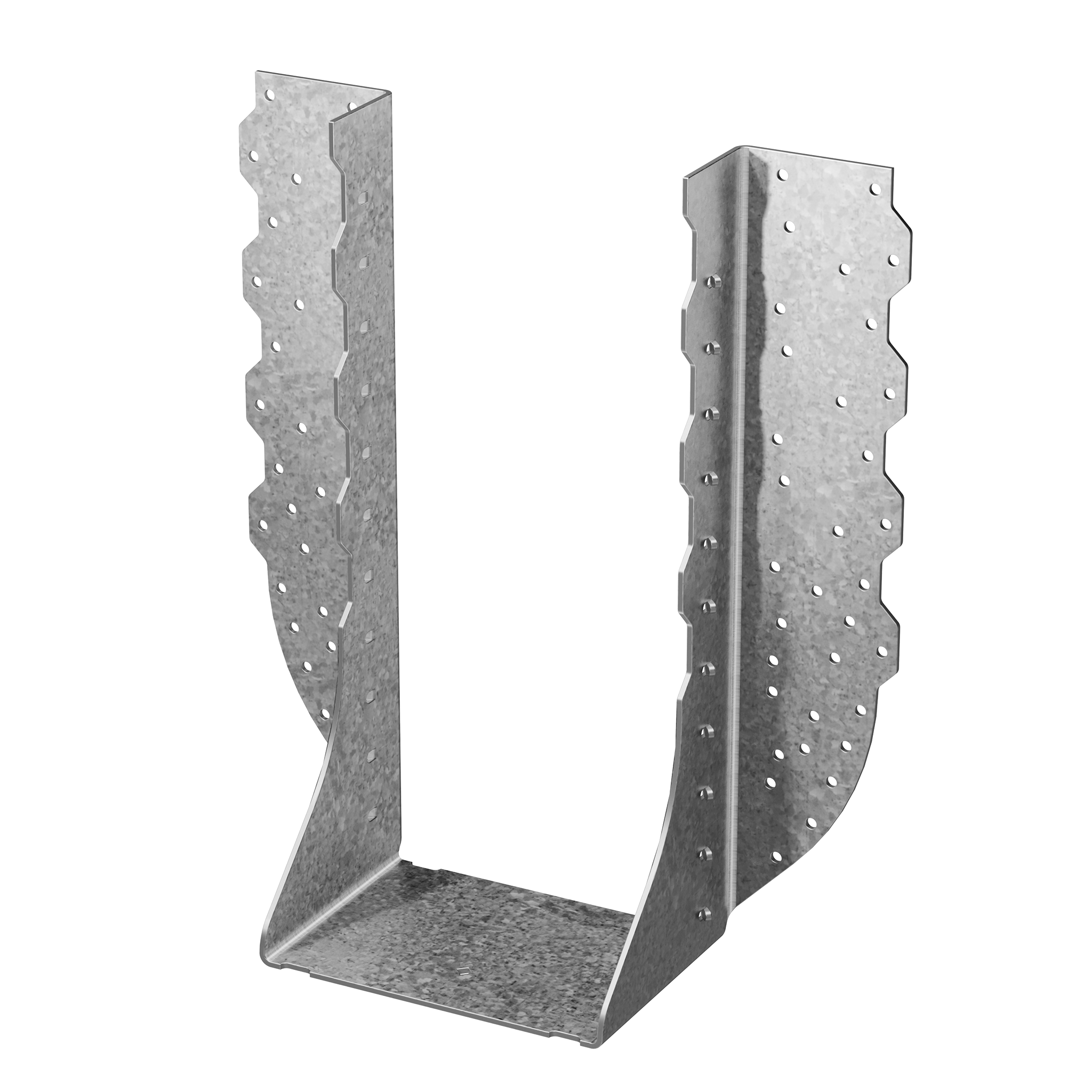

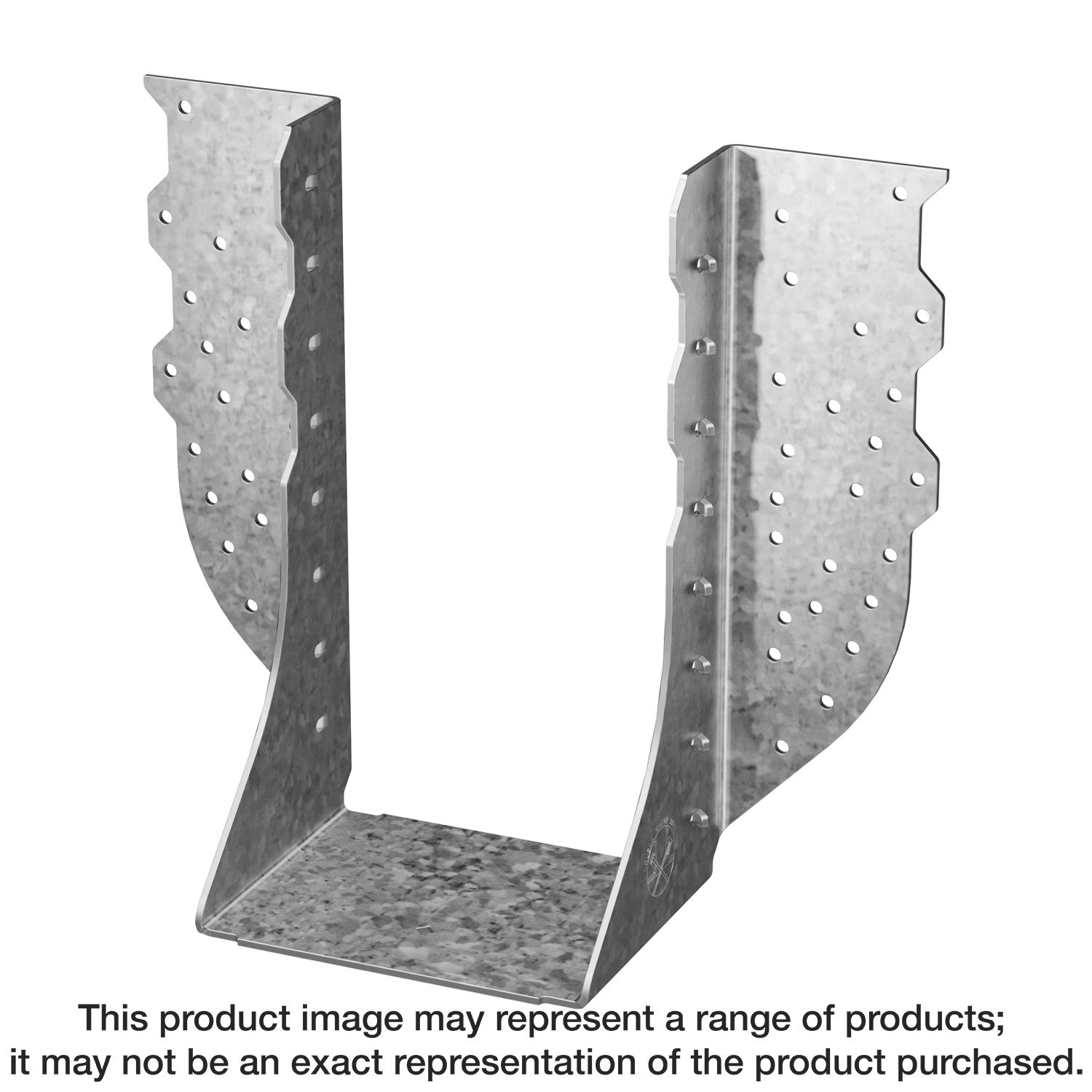

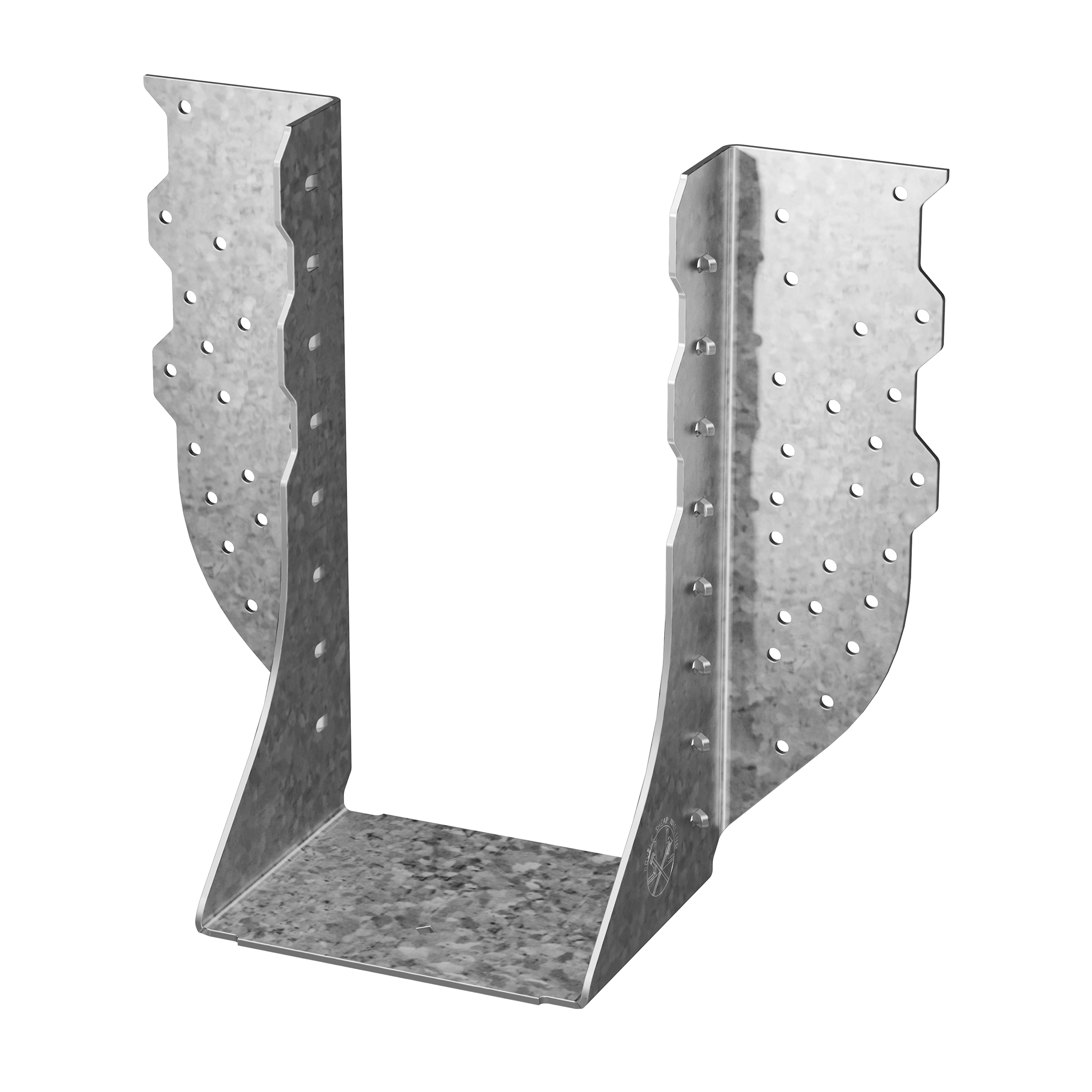

Simpson Strong-Tie HGUS5.62/14 HGUS® Galvanized Face-Mount Joist Hanger for 6x14

$101.33

MPN: HGUS5.62/14

Brand: Simpson Strong-Tie
Barcode: 044315277108
Availability : Limited Stock Out of stock

Type: Hanger

Hanger
Add to Wishlist

Minimum order quantity is .

Maximum order quantity is .
The product can be bought in quantity increments of .

Simpson Strong-Tie HGUS5.62/14

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. HGUS® hangers are designed for applications where higher load values are needed.

Ask a Question
Specifications

Simpson Strong-Tie HGUS5.62/14

•Features double-shear nailing which distributes the load through two points on each joist nail for greater strength
•Allows for the use of fewer nails, faster installation, and the use of standard nails for all connections
•Do not bend or remove tabs
•Joist size: nominal 6x12, nominal 6x14, nominal 6x16, 5-1/2 in. x 14 to 24 in. tall glulam
•Seat width: 5-5/8 in.
•Hanger height: 12-7/16 in.
•Made from 12-gauge steel
•Galvanized (G90) for extra corrosion resistance


Description

Simpson Strong-Tie HGUS5.62/14

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. HGUS® hangers are designed for applications where higher load values are needed.

Additional Information
Type

Hanger
