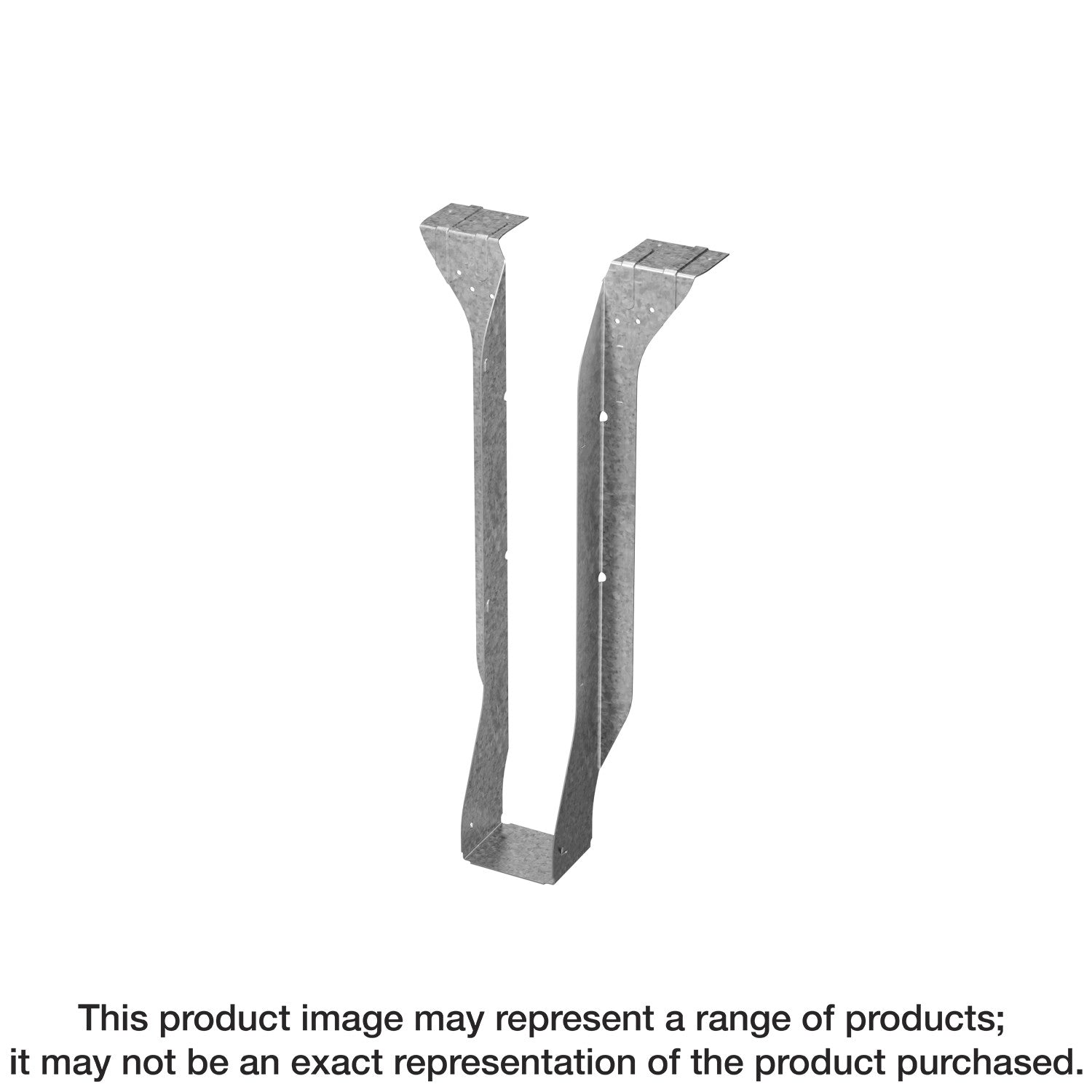

Simpson Strong-Tie HIT420 HIT Galvanized Top-Flange Joist Hanger for 3-1/2 in. x 20 in. Engineered Wood

$38.93

MPN: HIT420

Brand: Simpson Strong-Tie
Barcode: 044315687006
Availability : Limited Stock Out of stock

Type: Hanger

Hanger
Add to Wishlist

Minimum order quantity is .

Maximum order quantity is .
The product can be bought in quantity increments of .

Simpson Strong-Tie HIT420

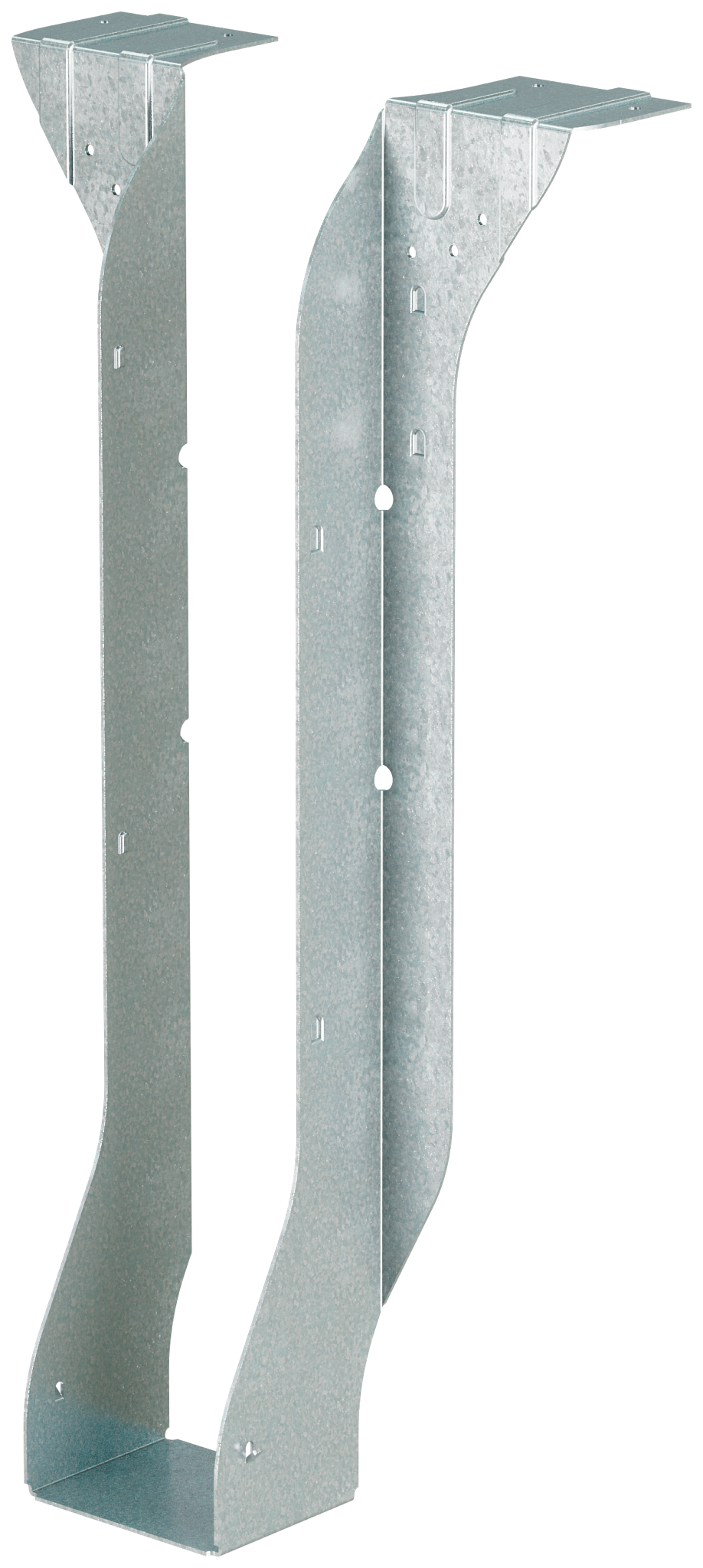

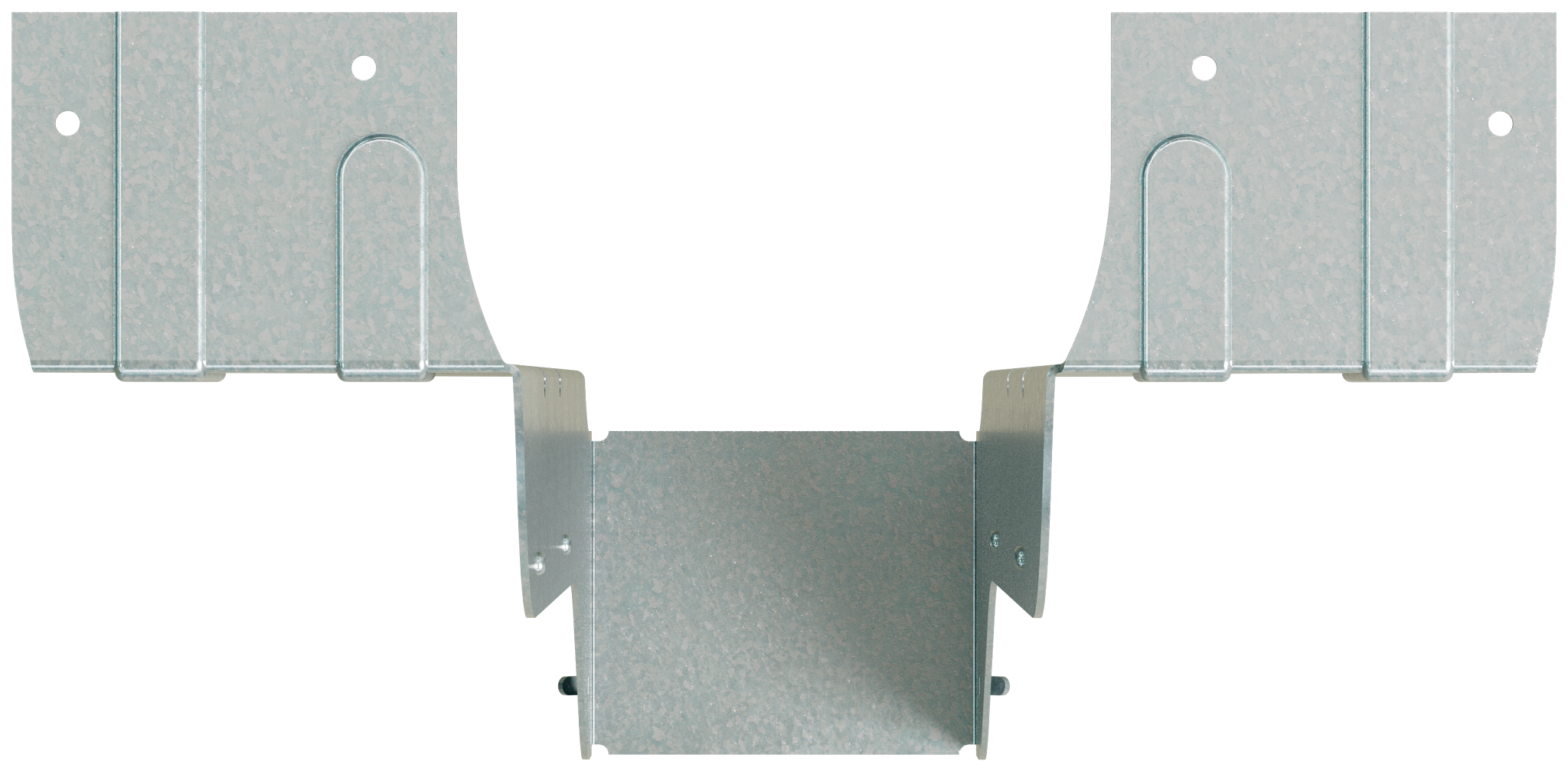

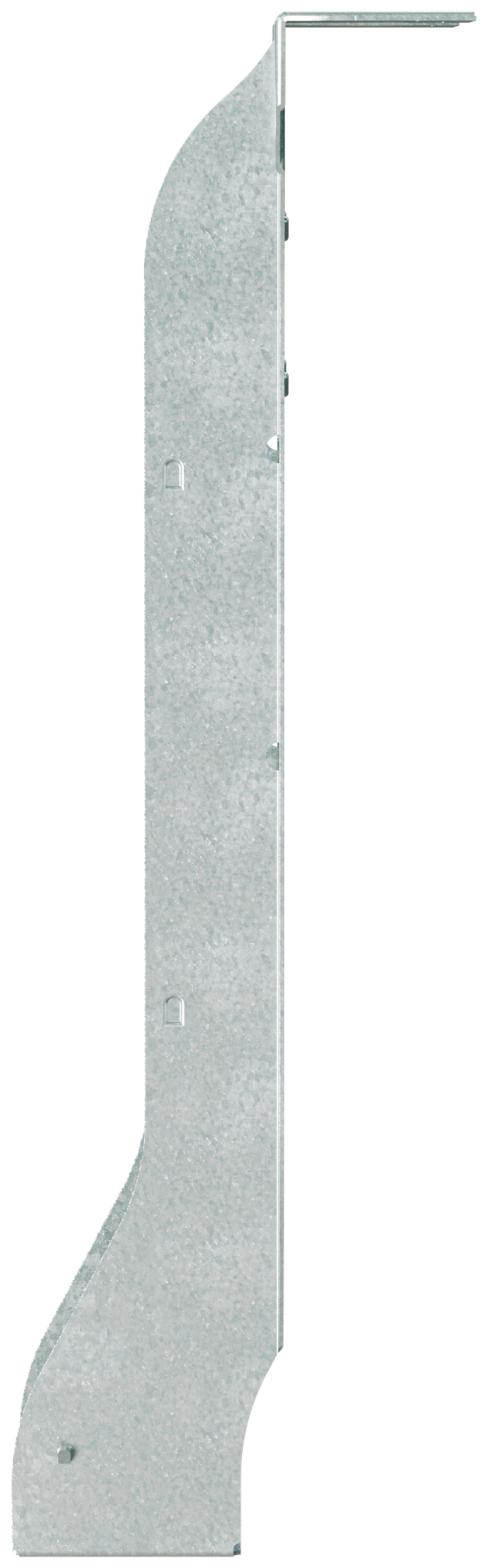

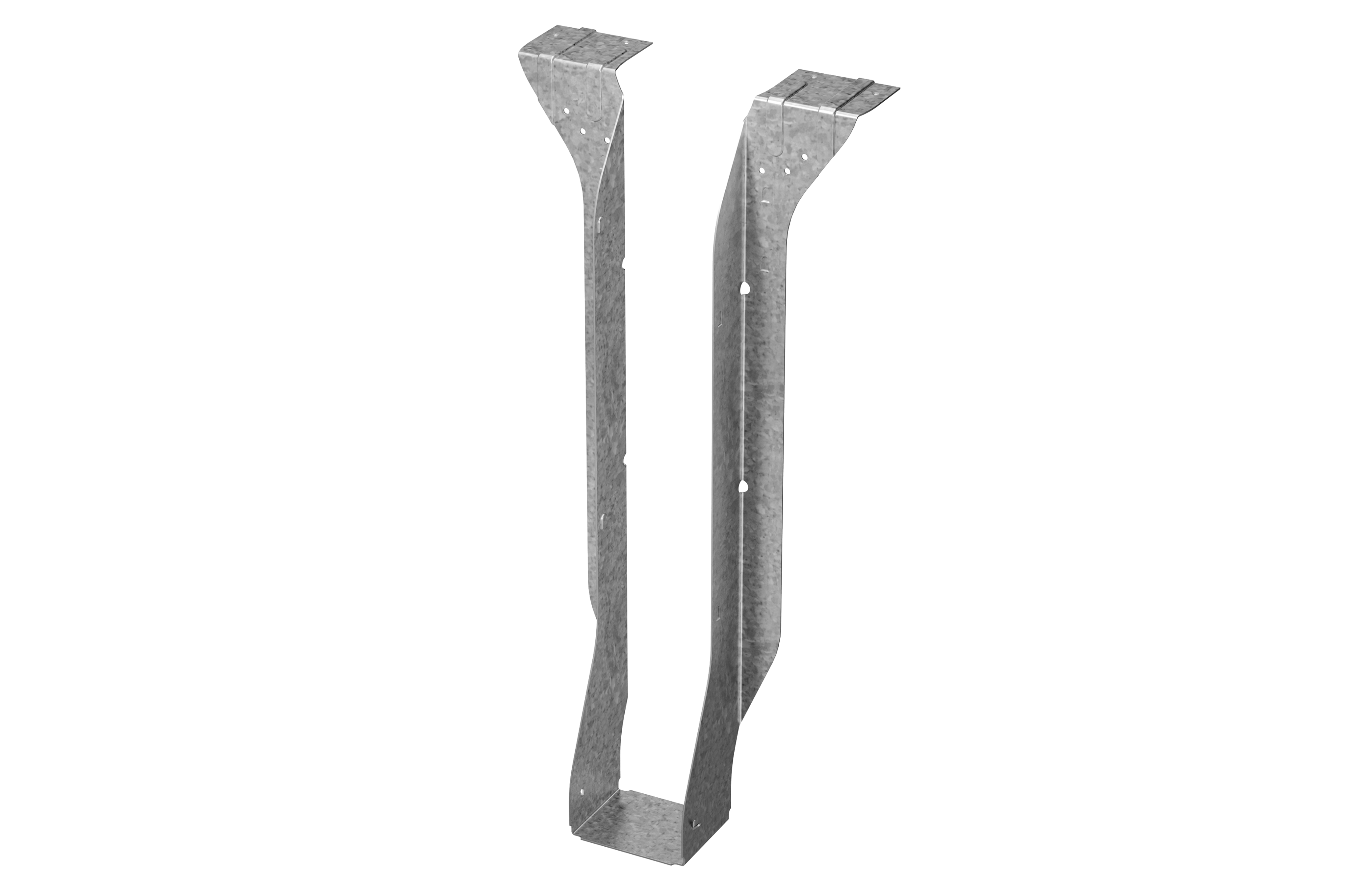

The HIT is designed for standard 90° connections of I-joists to headers. This heavy top-flange hanger features positive-angle nailing (PAN), specifically created for I-joists to minimize splitting. The HIT also features extra triangle holes to allow higher uplift loads.

Ask a Question
Specifications

Simpson Strong-Tie HIT420

•Time-saving PAN nailing
•Features two face nails to allow for a higher uplift
•Cost-effective solution for standard 90° connections in comparison to welded hangers
•Seat width: 3-9/16 in.
•Actual joist size: 3-1/2 in. x 20 in.
•Made from 16-gauge steel
•Galvanized (G90) for extra corrosion resistance



Description

Simpson Strong-Tie HIT420

The HIT is designed for standard 90° connections of I-joists to headers. This heavy top-flange hanger features positive-angle nailing (PAN), specifically created for I-joists to minimize splitting. The HIT also features extra triangle holes to allow higher uplift loads.

Additional Information
Type

Hanger
