Simpson Strong-Tie HSKP5.75X17KT HSKP™ 5.75 in. x 17 in. Wood-to-Wood Heavy Seated Knife Plate Hanger with Screws

$545.97

MPN: HSKP5.75X17KT

Brand: Simpson Strong-Tie
Barcode: 707392022879
Availability : Limited Stock Out of stock

Type: Hanger

Hanger
Add to Wishlist

Minimum order quantity is .

Maximum order quantity is .
The product can be bought in quantity increments of .

Simpson Strong-Tie HSKP5.75X17KT

Preserve the clean aesthetic of mass timber while delivering engineered performance with the Simpson Strong-Tie® HSKP™. Designed for high-load applications, this heavy seated knife plate installs easily using Strong-Drive® SDCF Timber-CF structural screws — reducing jobsite labor and improving efficiency. ICC-ES code listed and tested for inter-story drift, the HSKP is engineered to meet demanding structural requirements. Generous fit-up tolerance allows for easier beam placement during erection, making it ideal for precision mass timber projects.

WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Ask a Question
Specifications

Simpson Strong-Tie HSKP5.75X17KT

•High capacity
•Code listed in ICC-ES ESR 2552; 1- and 2-hour fire-resistance ratings per ASTM E119
•Factory installation of connector reduces on-site labor
•Quick field connection of beam to supporting member reduces crane cycle-time
•Inclined screw hole feature reduces the overall screw count compared to horizontal screws

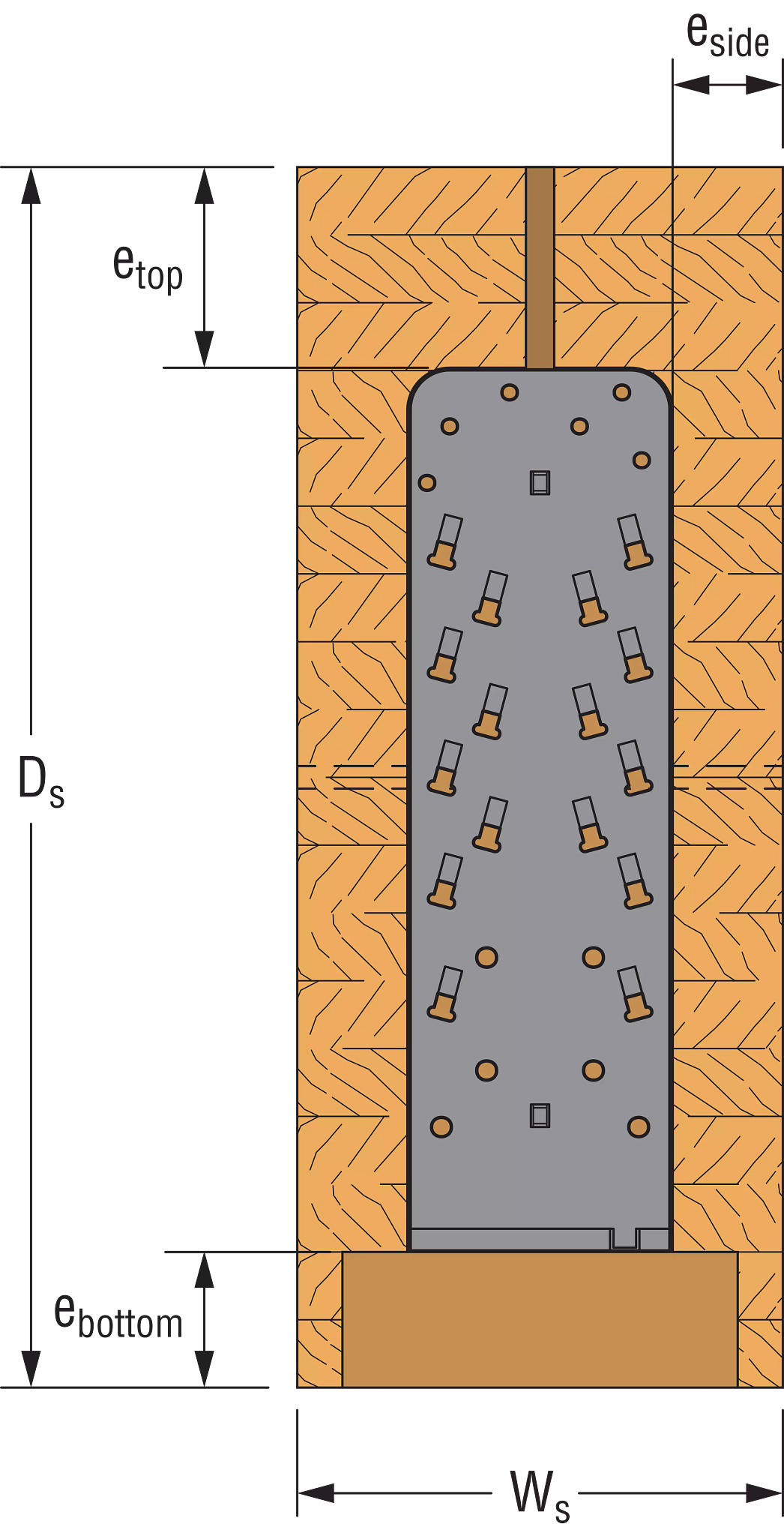

•HSKP offers a concealed wood-to-wood connection
•Recommended for use at beam-to-beam or beam-to-column connections in any Seismic Design Category
•Size: 5.75 in. width x 17 in. height
•HSKP5.75X17 connector — Simpson Strong-Tie® gray-paint finish; SDCF Timber-CF screw — yellow-zinc finish; CJTPL steel dowel — mechanically galvanized

Description

Simpson Strong-Tie HSKP5.75X17KT

Preserve the clean aesthetic of mass timber while delivering engineered performance with the Simpson Strong-Tie® HSKP™. Designed for high-load applications, this heavy seated knife plate installs easily using Strong-Drive® SDCF Timber-CF structural screws — reducing jobsite labor and improving efficiency. ICC-ES code listed and tested for inter-story drift, the HSKP is engineered to meet demanding structural requirements. Generous fit-up tolerance allows for easier beam placement during erection, making it ideal for precision mass timber projects.

Additional Information
Type

Hanger
