Simpson Strong-Tie HSUR5.12/11 HSUR Galvanized Joist Hanger for 5 in. x 11-7/8 in. Engineered Wood, Skewed Right

$65.38

MPN: HSUR5.12/11

Brand: Simpson Strong-Tie
Barcode: 707392444800
Availability : Limited Stock Out of stock

Type: Hanger

Hanger
Add to Wishlist

Minimum order quantity is .

Maximum order quantity is .
The product can be bought in quantity increments of .

Simpson Strong-Tie HSUR5.12/11

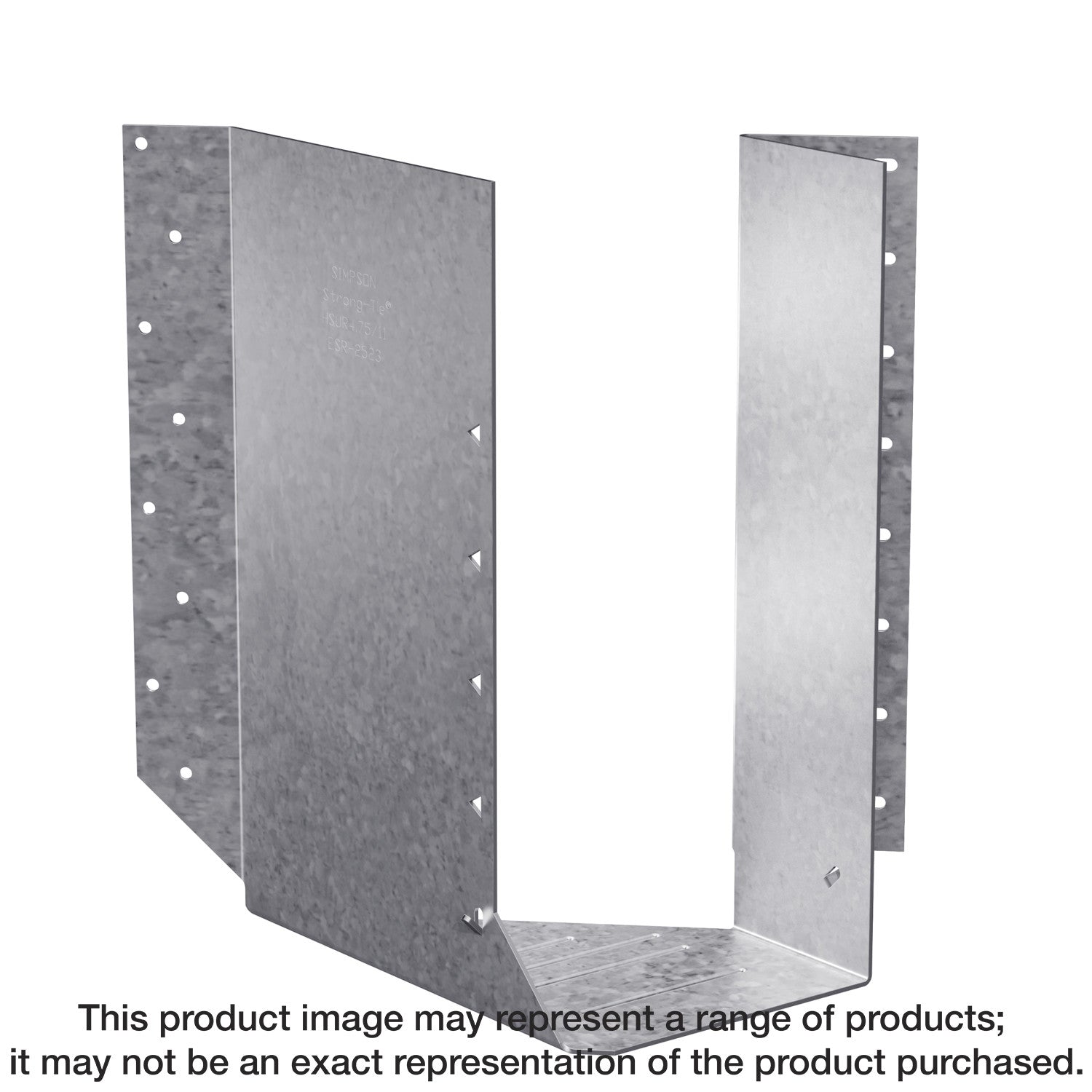

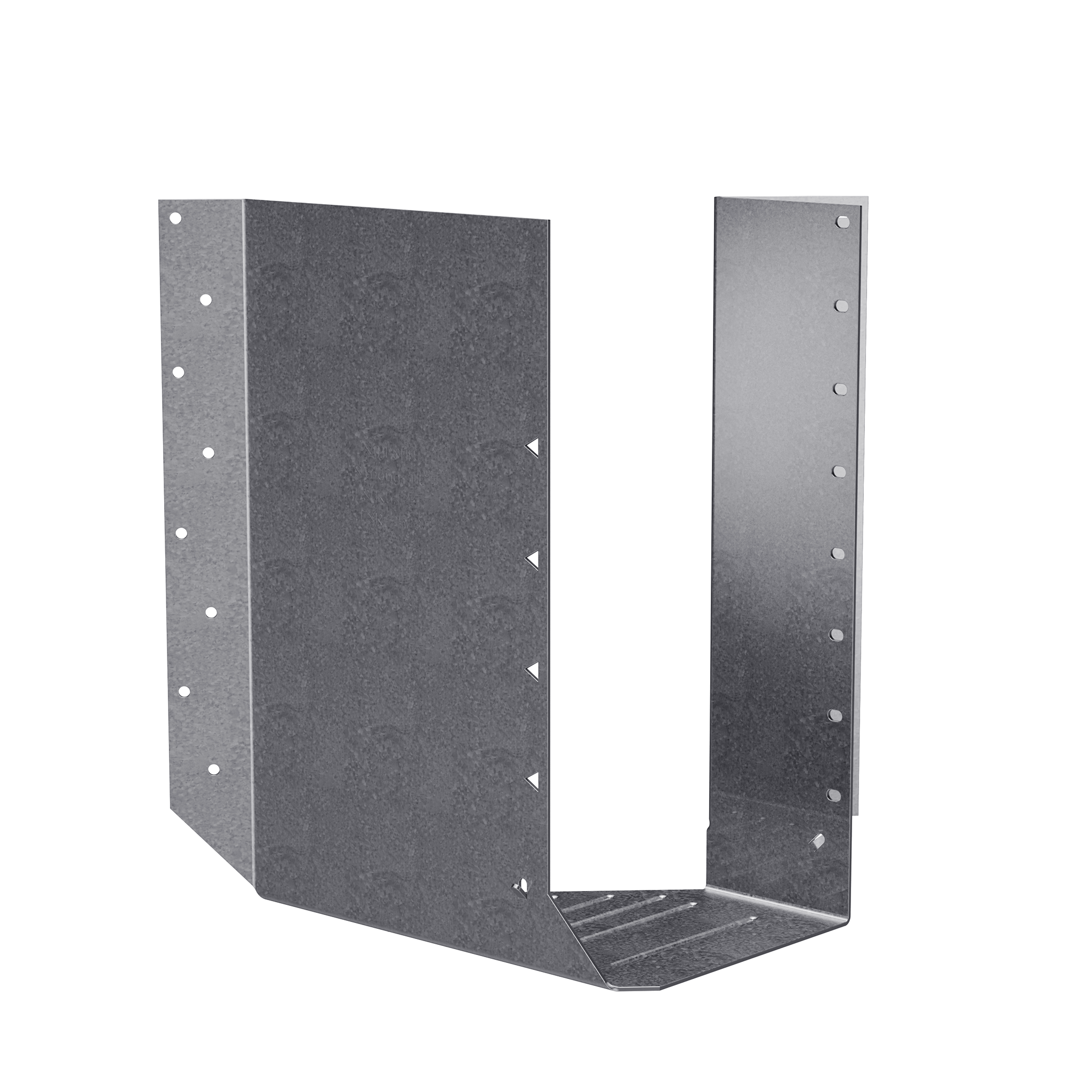

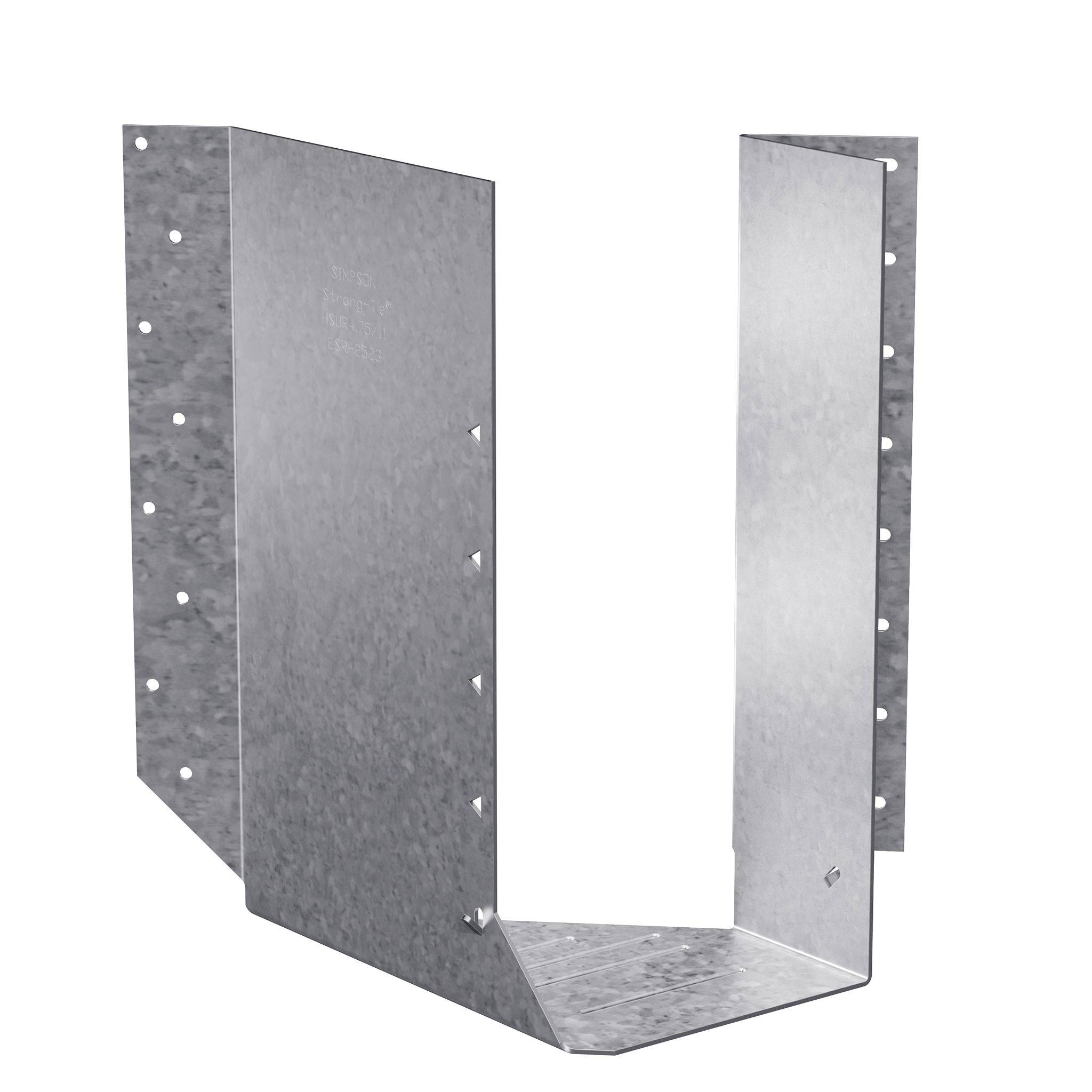

The HSUR/L are 45°-skewed hangers designed to support large joist members or double I-joists in wood construction. These heavy U-shaped hangers encapsulate the top flange of the joist, so no web stiffeners are required for standard installation. The HSUR and HSUL hangers are identical except that they are skewed 45° to the right (HSUR) and the left (HSUL), respectively.

Ask a Question
Specifications

Simpson Strong-Tie HSUR5.12/11

•HSUR = skewed right
•Features obround nail holes on the acute side, allowing nails to be easily installed parallel to the joist
•These hangers cannot be modified but will accommodate a 40°- to 50°-skewed joist
•Features positive-angle nailing for engineered wood sizes to prevent wood splitting and to speed installation
•Actual joist size: 5 in. x 11-7/8 in.
•Made from 14-gauge steel
•Galvanized (G90) for extra corrosion resistance



Description

Simpson Strong-Tie HSUR5.12/11

The HSUR/L are 45°-skewed hangers designed to support large joist members or double I-joists in wood construction. These heavy U-shaped hangers encapsulate the top flange of the joist, so no web stiffeners are required for standard installation. The HSUR and HSUL hangers are identical except that they are skewed 45° to the right (HSUR) and the left (HSUL), respectively.

Additional Information
Type

Hanger
Reviews
