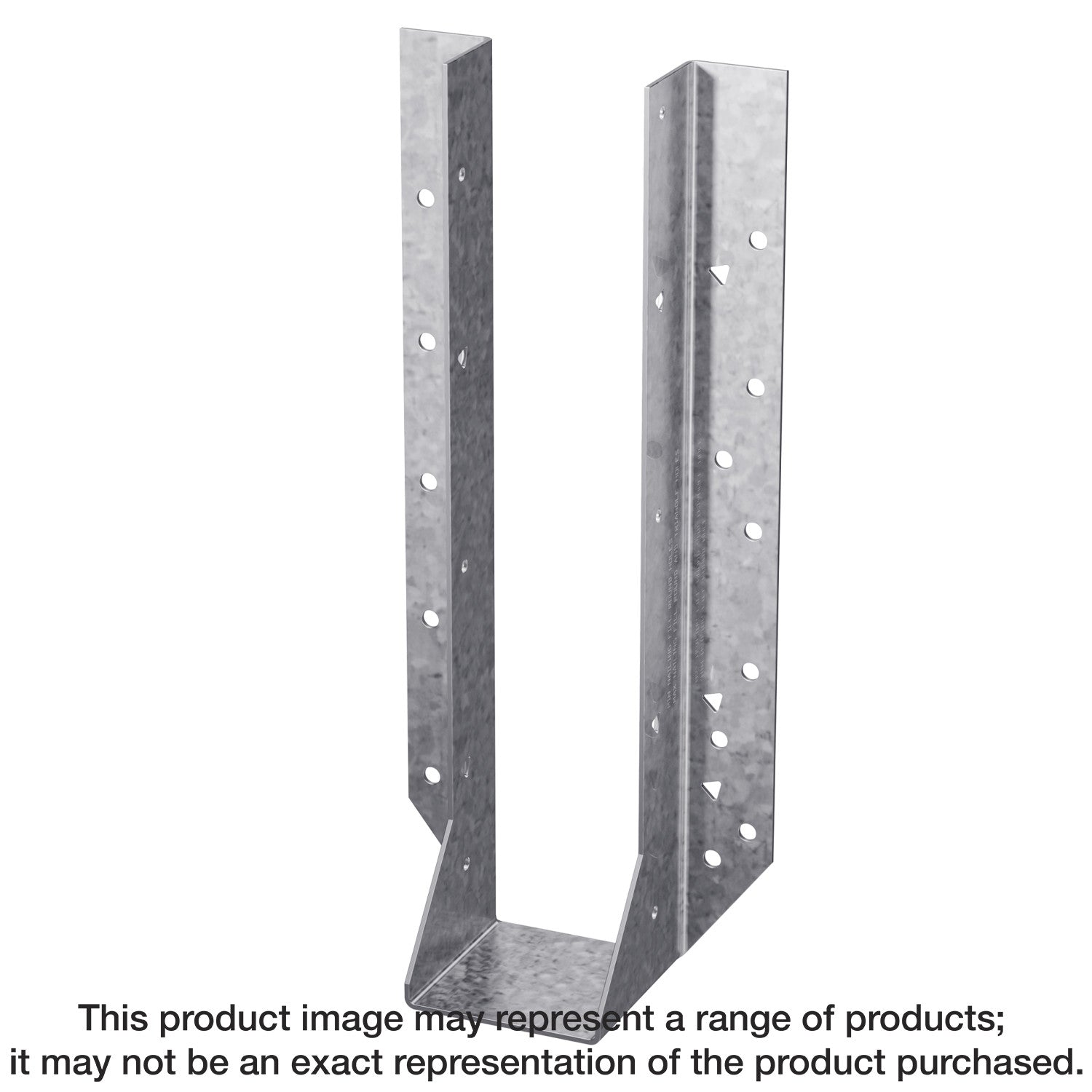

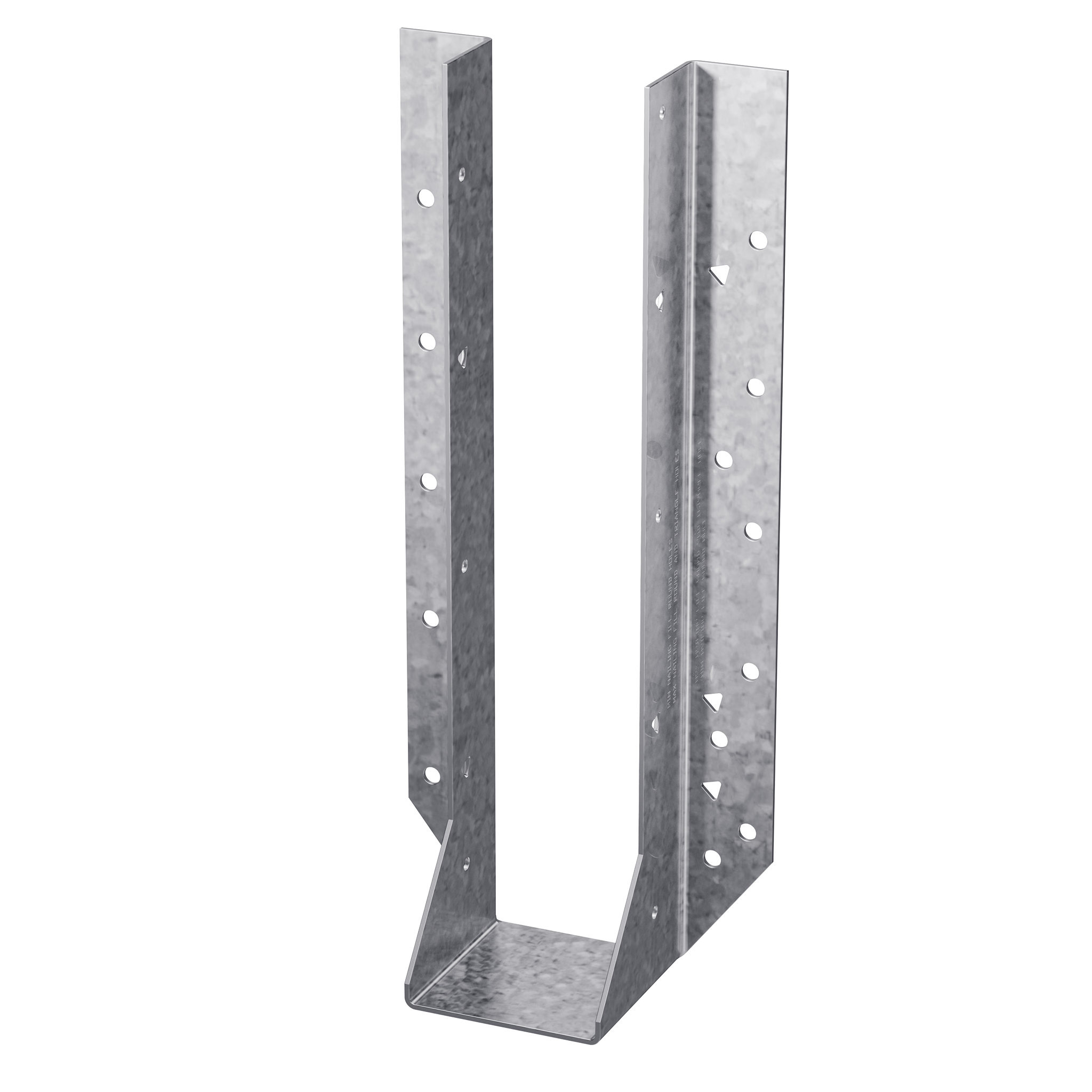

Simpson Strong-Tie HU4.12/11 4 X 11-7/8 TO 16 FACE MOUNT HANGER

Simpson Strong-Tie HU4.12/11

•HEAVY-DUTY LOAD SUPPORT: Engineered to be 4-1/8 in. (W) x 10-5/16 in. (H) x 2-1/2 in. (B), the HU Heavy Face-Mount Joist Hanger is designed with 14-gauge steel to be able to handle demanding loads where standard hangers may not suffice.
• MULTIPLE FASTENER OPTIONS: Built to accommodate a range of nominal lumber sizes with optional triangular and round nail holes that allow varied nailing patterns, helping increase load capacity and providing flexibility for different framing requirements.

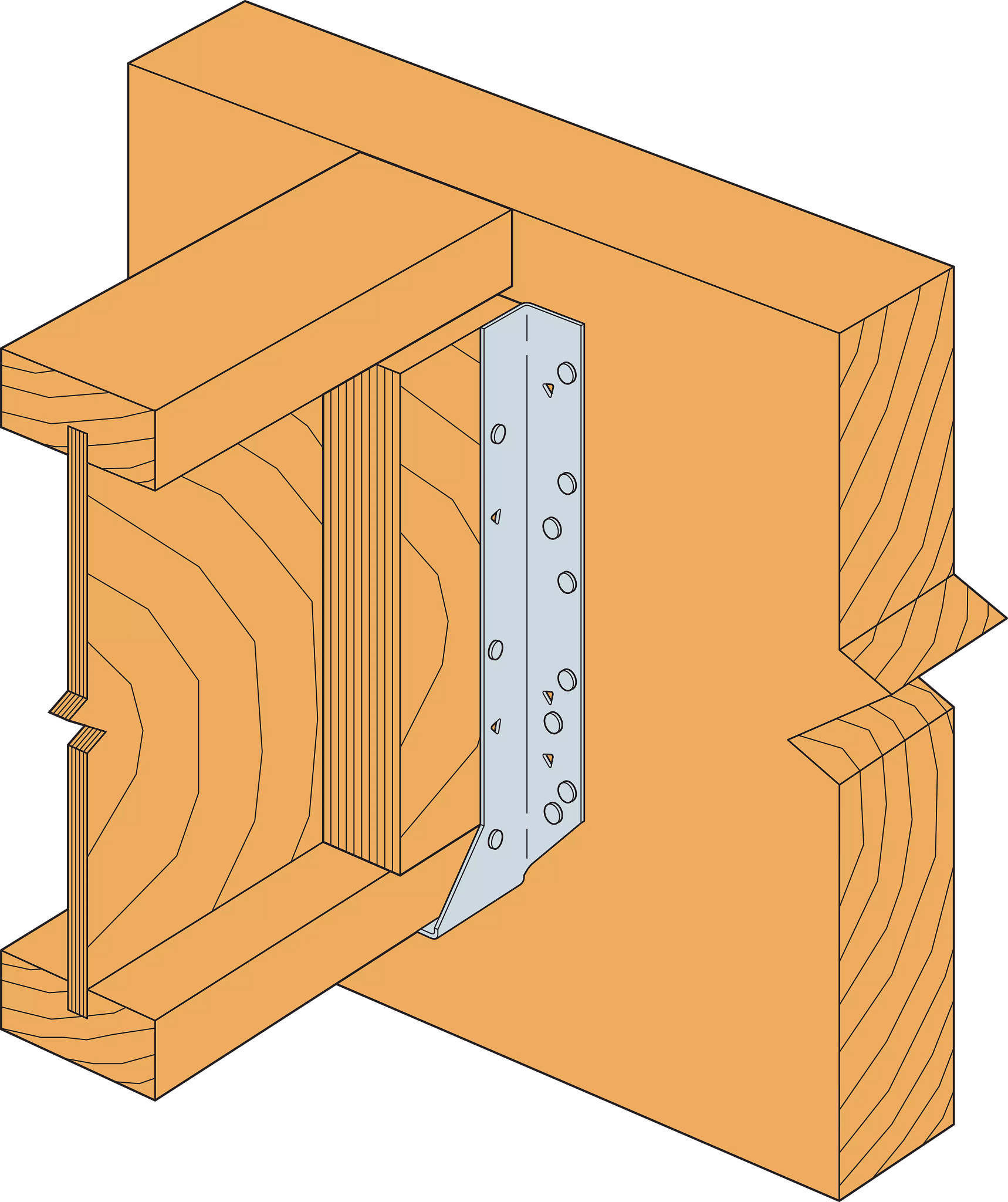

• QUICK AND EASY INSTALLATION: Clearly marked fastener locations and a face-mount configuration simplify placement on the carrying member. Use all specified nails, filling both round and triangle holes where allowed, to achieve published load values.
• DURABLE STEEL CONSTRUCTION: Made from heavy duty 14-gauge steel with a G90 galvanized finish for corrosion resistance in outdoor and above-grade framing environments, helping ensure long-term performance and code-compliant connections.
• SIMPSON STRONG-TIE RELIABILITY: At Simpson Strong-Tie, our mission is to provide solutions that help people design and build safer, stronger structures. As a pioneer in the building industry, we have an unmatched passion for problem solving through skillful engineering and thoughtful innovation.

The HU is designed for structures requiring additional strength and safety factors. Some models of this heavy-duty, face-mount hanger can be special ordered with a skewable seat and a seat that slopes as far as up to 45 degree;.
