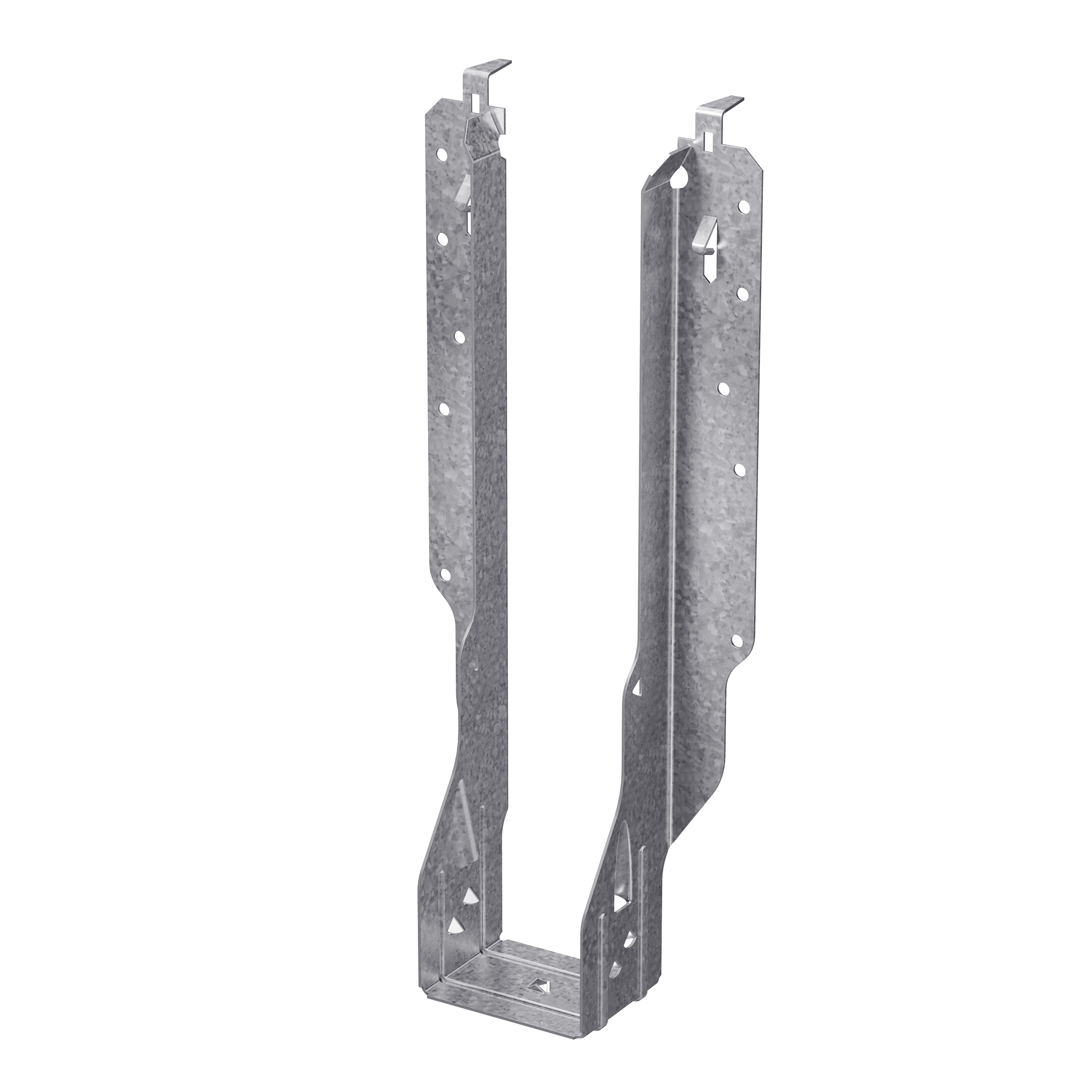

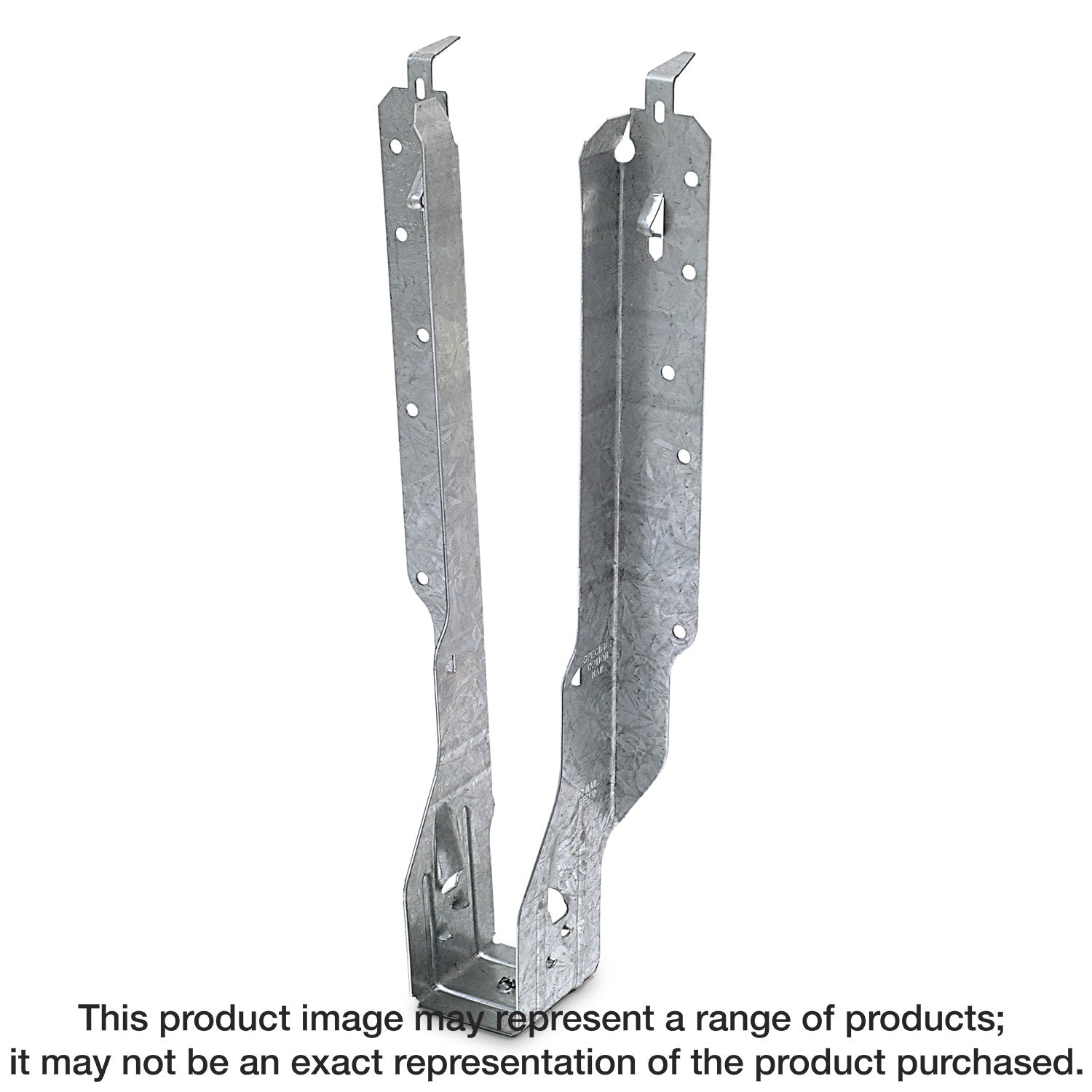

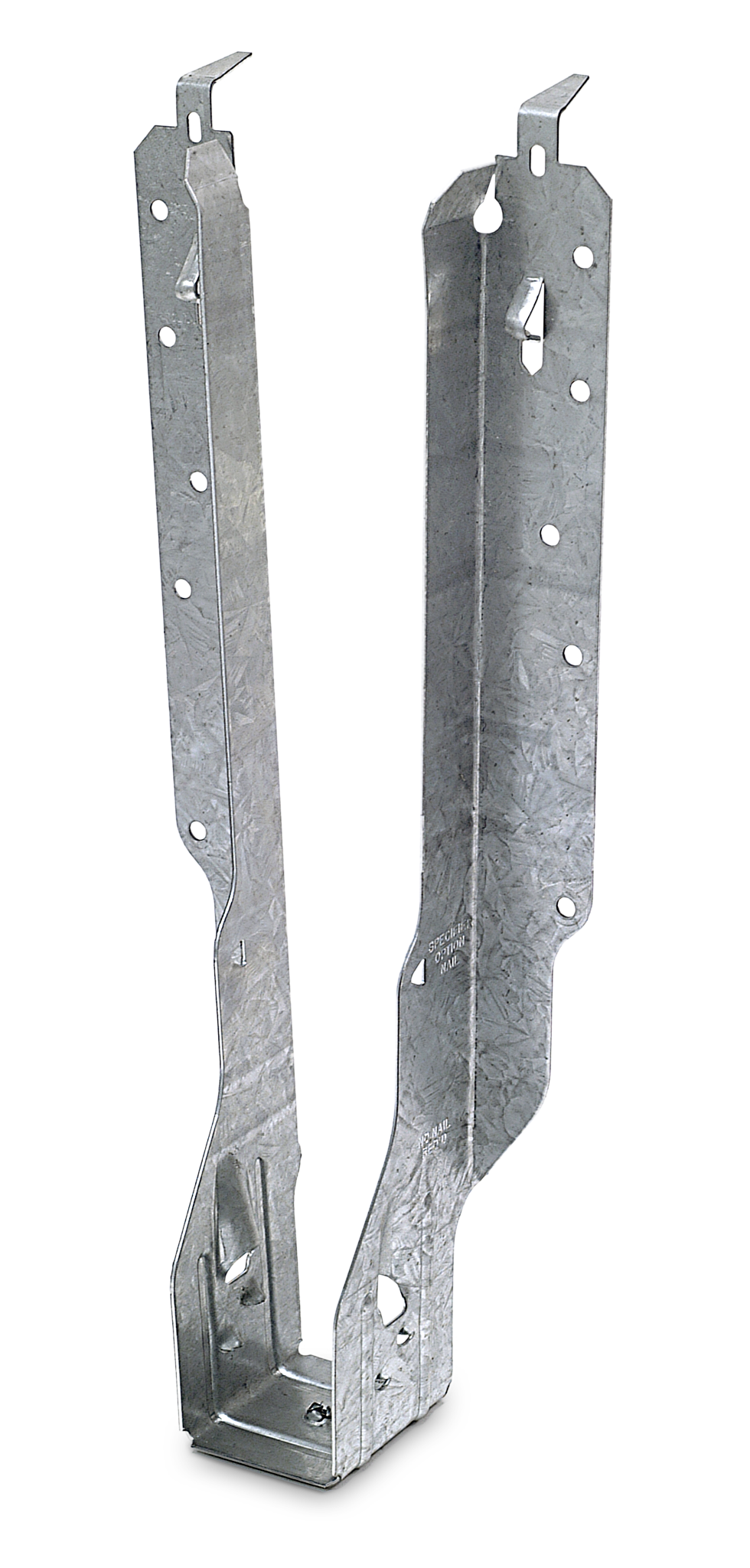

Simpson Strong-Tie IUS2.37/11.88 IUS Galvanized Face-Mount Joist Hanger for 2-5/16 in. x 11-7/8 in. Engineered Wood

$11.76

MPN: IUS2.37/11.88

Brand: Simpson Strong-Tie
Barcode: 707392827108
Availability : Limited Stock Out of stock

Type: Hanger

Hanger
Add to Wishlist

Minimum order quantity is .

Maximum order quantity is .
The product can be bought in quantity increments of .

Simpson Strong-Tie IUS2.37/11.88

The IUS is a hybrid hanger that incorporates the advantages of the face-mount and top-mount hanger. The Strong-Grip™ seat feature allows the I-joist to snap securely into place without the need for joist nails, resulting in a low installed cost. The IUS hanger also features easy-to-reach face nails and self-jigging locator tabs for easier installation.

Ask a Question
Specifications

Simpson Strong-Tie IUS2.37/11.88

•Locator tabs may be bent back to adjust for hanger placement or to leave a completely smooth top surface
•Models will normally accommodate a skew of up to 5°
•IUS-series hangers are tested, load rated and code compliant
•Seat width: 2-7/16 in.
•Height: 11-7/8 in.
•Actual Joist Size: 2-5/16 in. x 11-7/8 in.
•Made from 18-gauge steel
•Galvanized (G90) for extra corrosion resistance


Description

Simpson Strong-Tie IUS2.37/11.88

The IUS is a hybrid hanger that incorporates the advantages of the face-mount and top-mount hanger. The Strong-Grip™ seat feature allows the I-joist to snap securely into place without the need for joist nails, resulting in a low installed cost. The IUS hanger also features easy-to-reach face nails and self-jigging locator tabs for easier installation.

Additional Information
Type

Hanger
