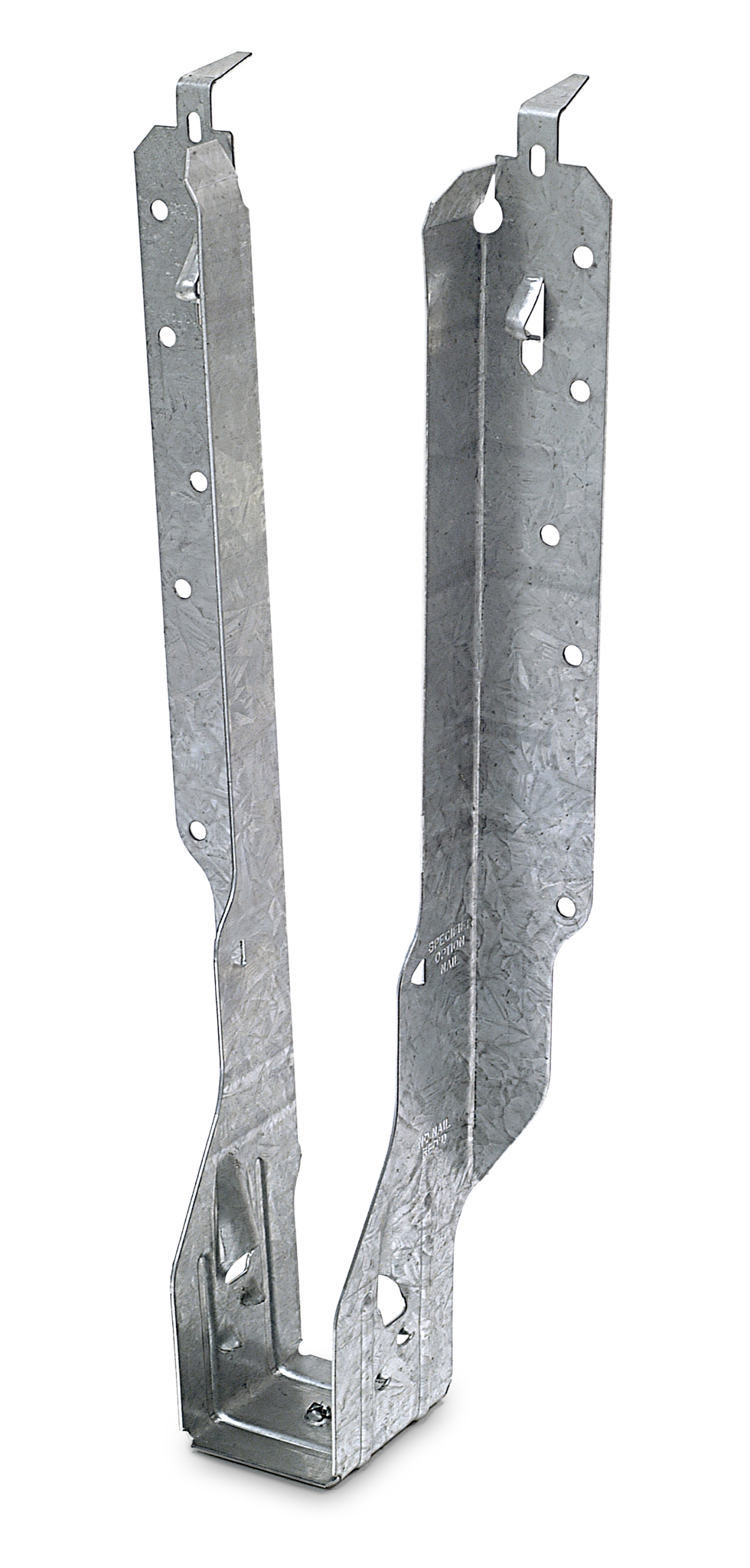

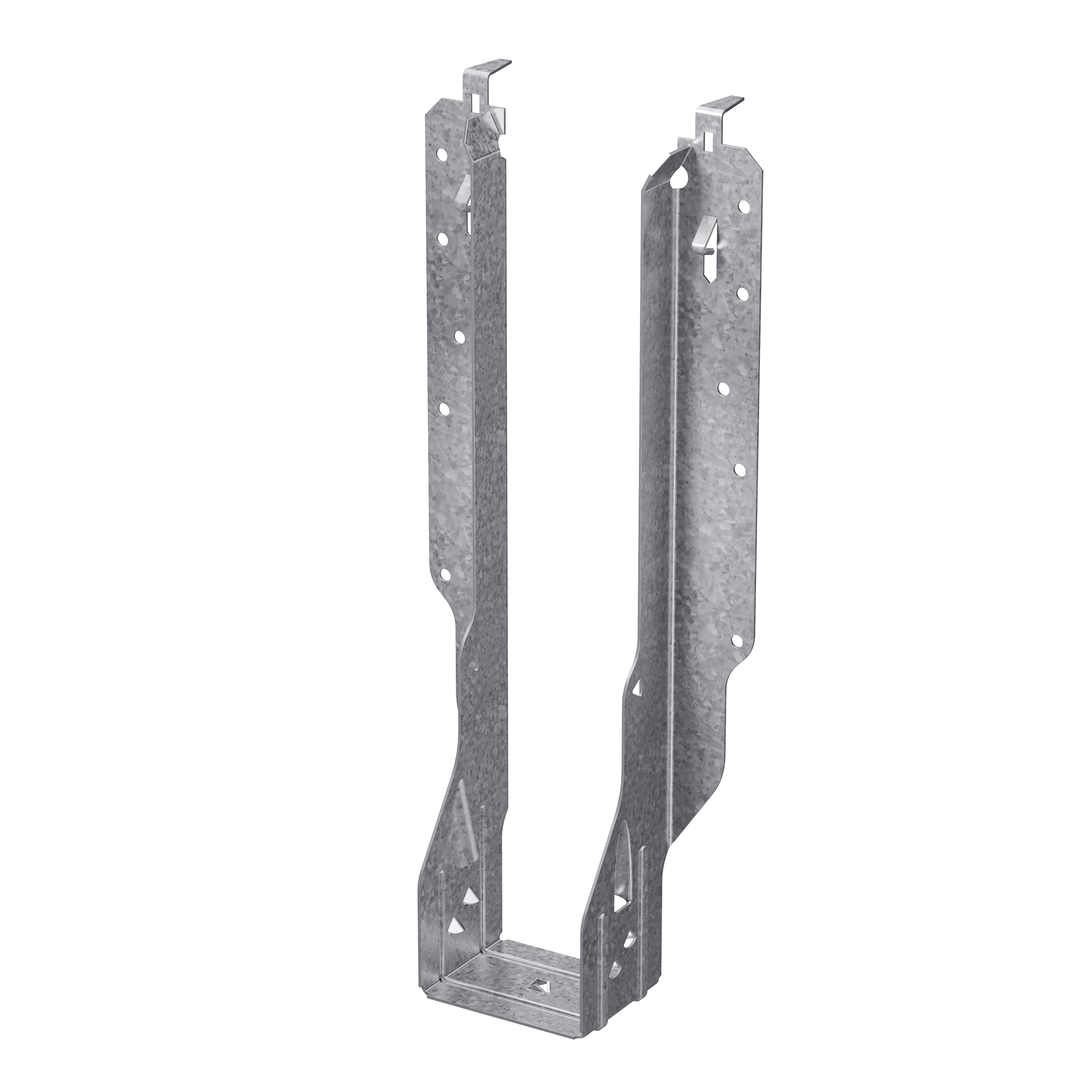

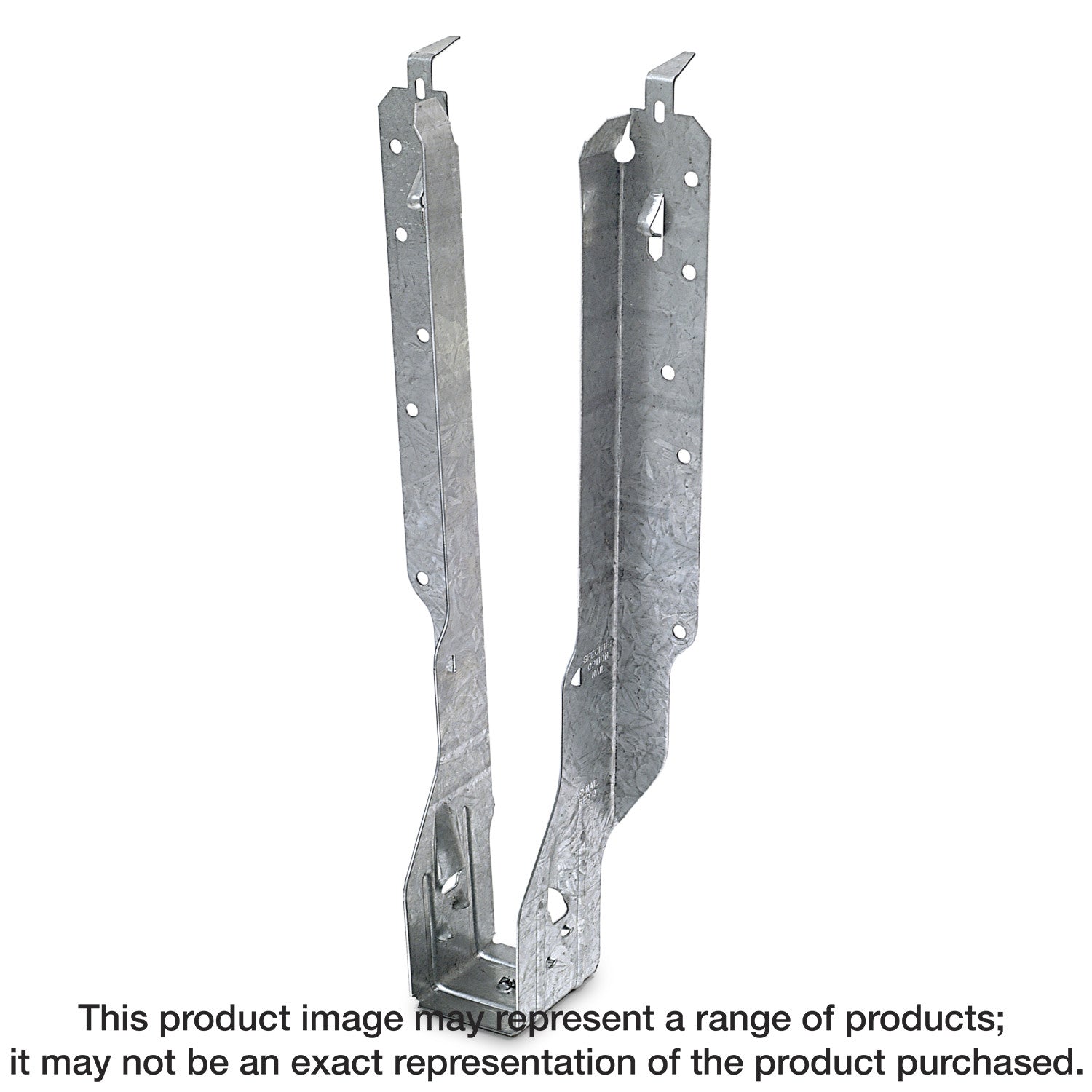

Simpson Strong-Tie IUS2.37/9.5 IUS Galvanized Face-Mount Joist Hanger for 2-5/16 in. x 9-1/2 in. Engineered Wood

$11.04

MPN: IUS2.37/9.5

Brand: Simpson Strong-Tie
Barcode: 707392660408
Availability : Limited Stock Out of stock

Type: Hanger

Hanger
Add to Wishlist

Minimum order quantity is .

Maximum order quantity is .
The product can be bought in quantity increments of .

Simpson Strong-Tie IUS2.37/9.5

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. The IUS series is a hybrid hanger that incorporates the advantages of the face-mount and top-mount hanger and is fully compatible with shallow-flange I-joists.

Ask a Question
Specifications

Simpson Strong-Tie IUS2.37/9.5

•Installation is fast with the Strong-Grip™ seat, easy-to-reach face nails and self-jigging locator tabs
•Fasten hanger to header; position I-joist into hanger and snap into place
•Seat width: 2-7/16 in.
•Height: 9-1/2 in.
•Actual joist size: 2-5/16 in. x 9-1/2 in.
•Made from 18-gauge steel
•Galvanized (G90) for extra corrosion resistance



Description

Simpson Strong-Tie IUS2.37/9.5

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. The IUS series is a hybrid hanger that incorporates the advantages of the face-mount and top-mount hanger and is fully compatible with shallow-flange I-joists.

Additional Information
Type

Hanger
