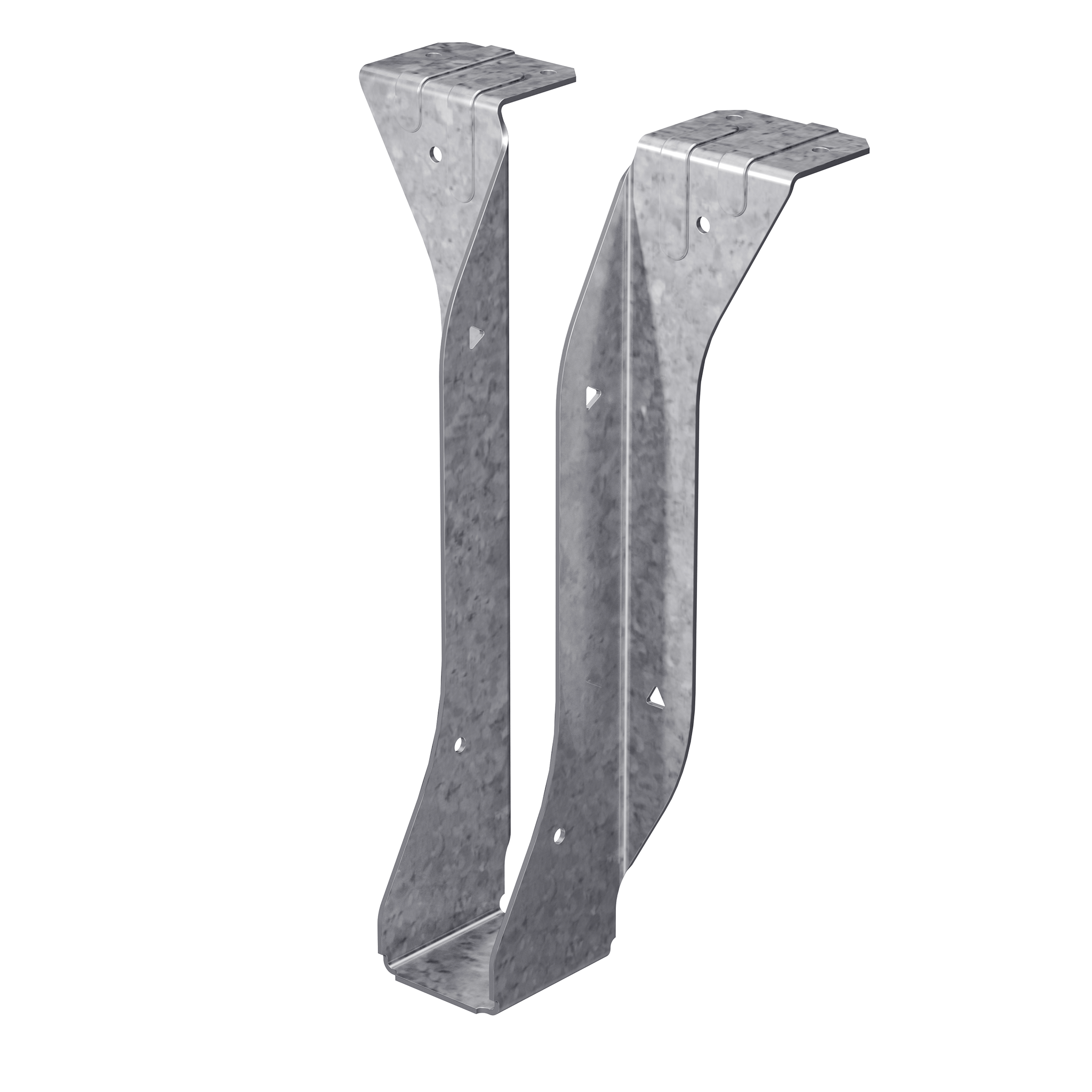

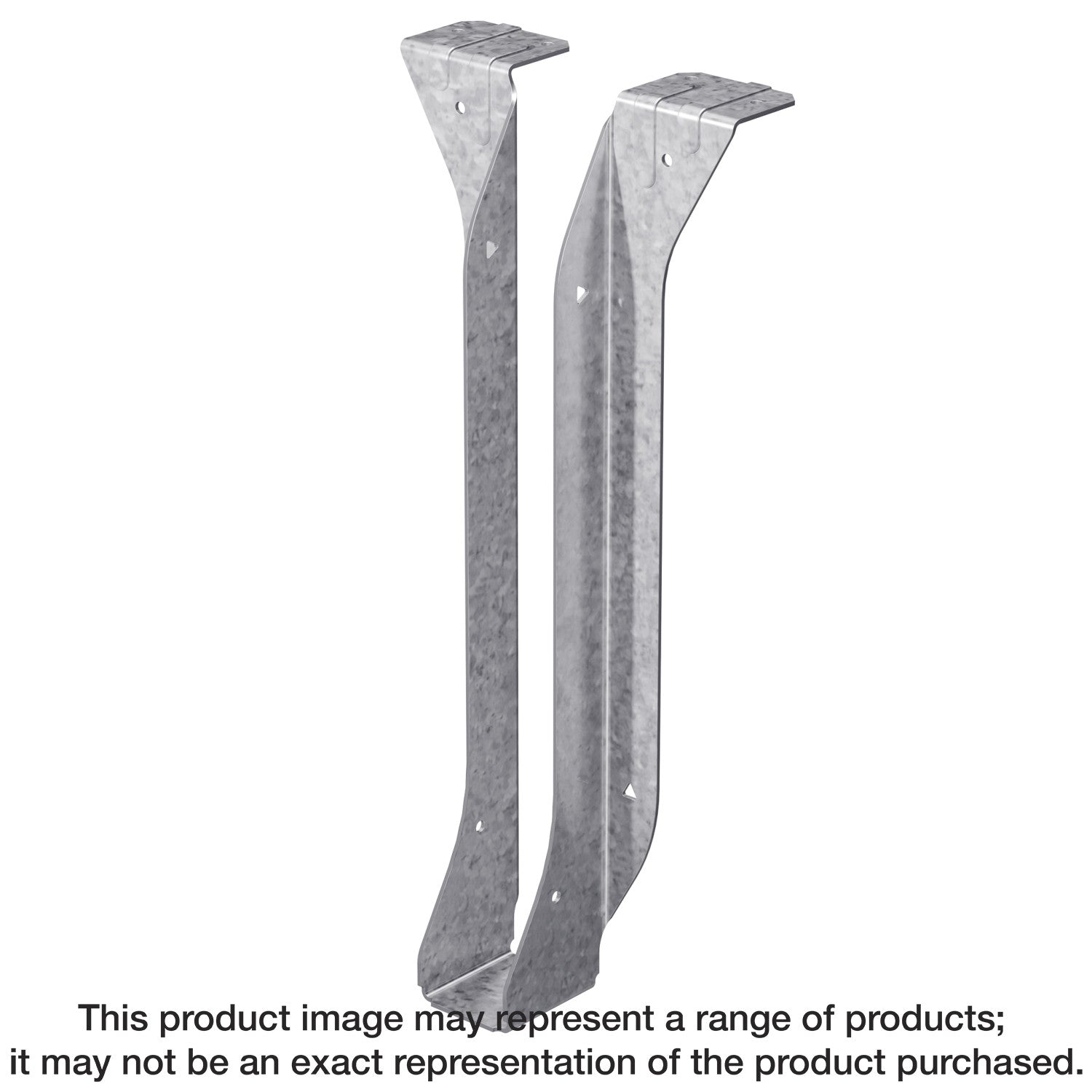

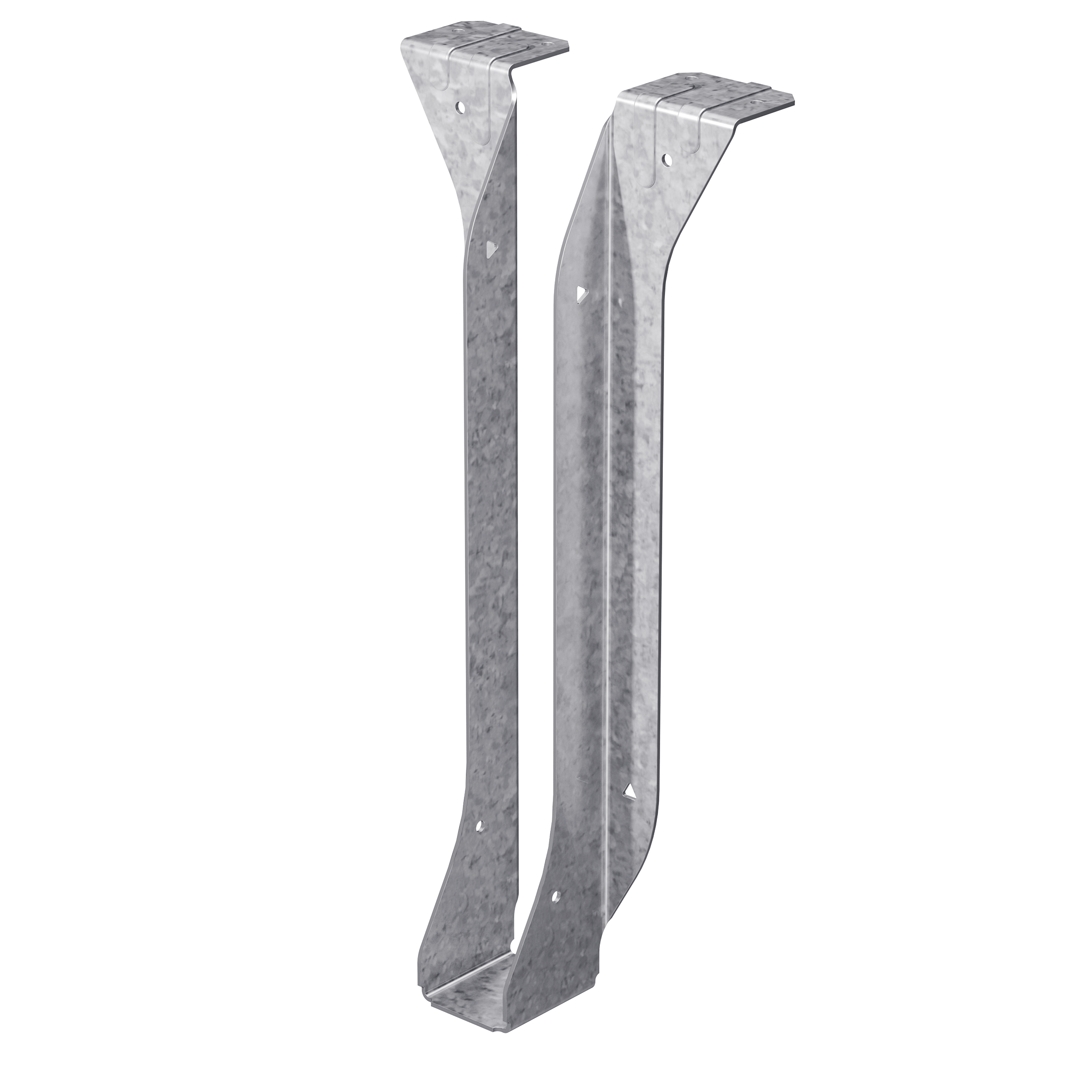

Simpson Strong-Tie LB210AZ LBAZ ZMAX® Galvanized Light-Bent Top-Flange Joist Hanger for 2x10

$14.30

MPN: LB210AZ

Brand: Simpson Strong-Tie
Barcode: 707392429234
Availability : Limited Stock Out of stock

Type: Hanger

Hanger
Add to Wishlist

Minimum order quantity is .

Maximum order quantity is .
The product can be bought in quantity increments of .

Simpson Strong-Tie LB210AZ

The LBAZ is a top-flange hanger for solid sawn lumber applications. This cost-effective hanger is designed to support light-to-medium loads while providing uplift. The zinc-coated LBAZ has been load rated for use with a 2x or 3x nailer if required.

Ask a Question
Specifications

Simpson Strong-Tie LB210AZ

•Designed to help resist download forces
•The unique two-level embossment provides added stiffness to the top flange
•Quick installation
•Seat width: 1-9/16 in.
•Height: 9-3/16 in.
•Top flange depth: 1-7/16 in.
•Nominal joist size: 2x10
•Made from 14-gauge steel
•ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications

Description

Simpson Strong-Tie LB210AZ

The LBAZ is a top-flange hanger for solid sawn lumber applications. This cost-effective hanger is designed to support light-to-medium loads while providing uplift. The zinc-coated LBAZ has been load rated for use with a 2x or 3x nailer if required.

Additional Information
Type

Hanger
