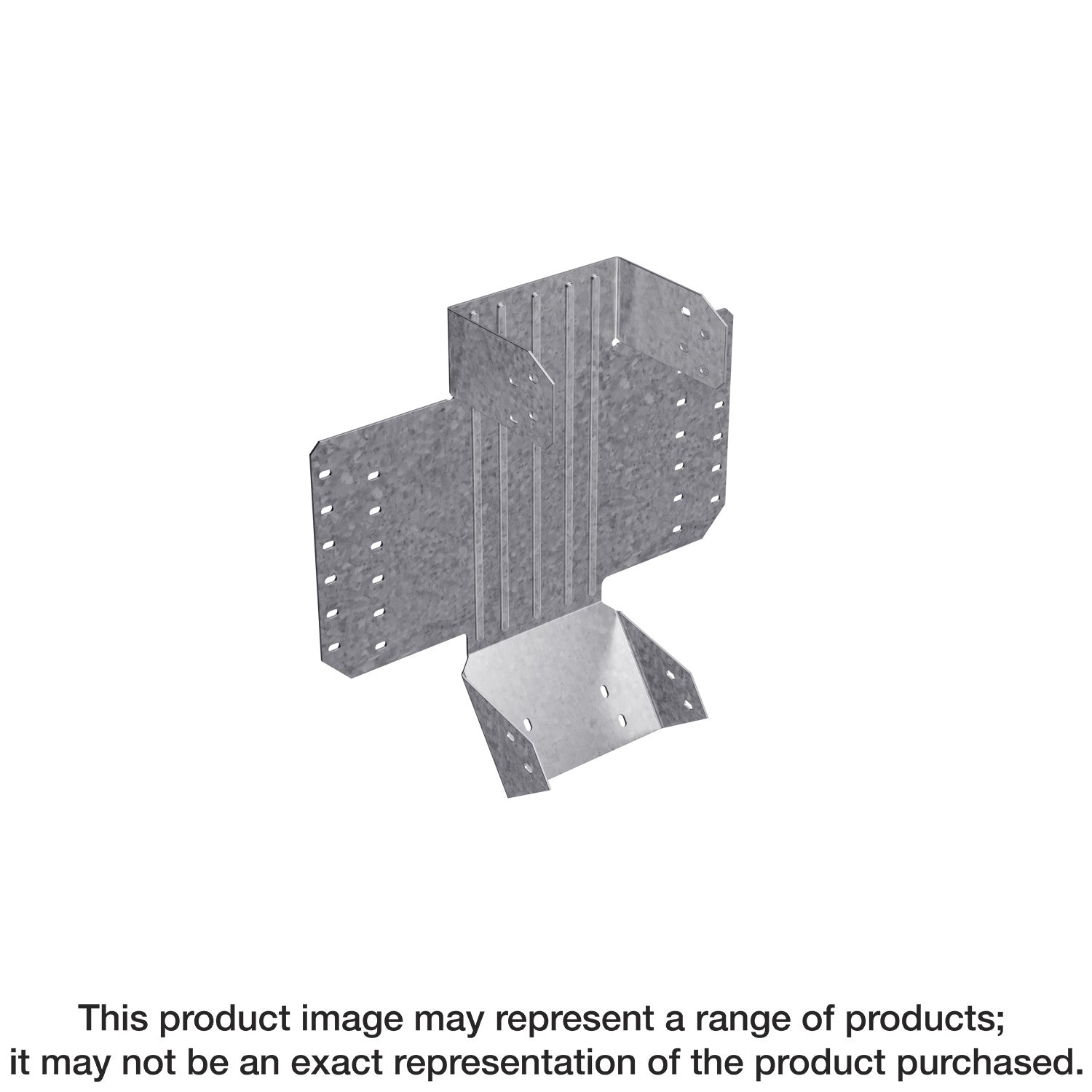

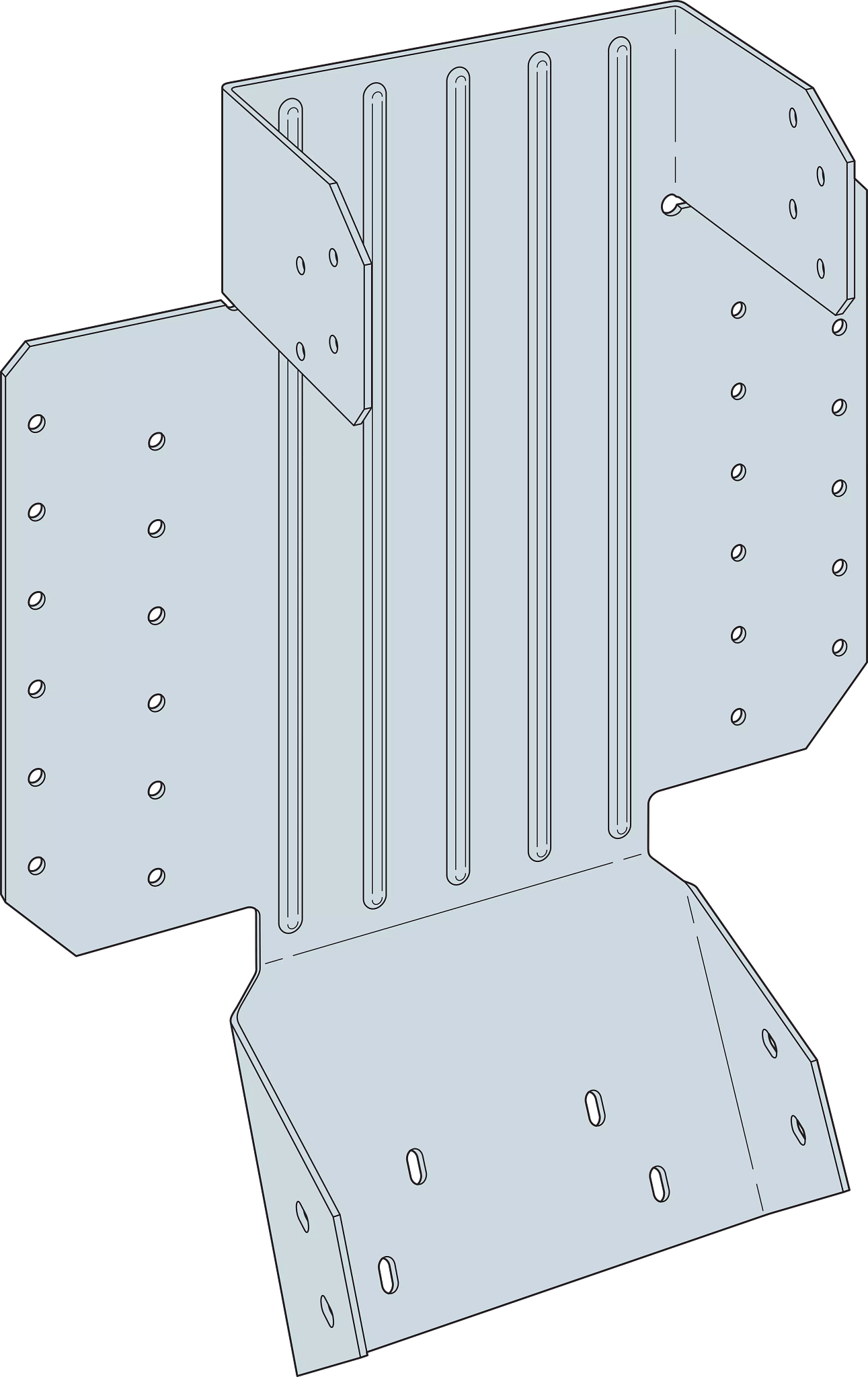

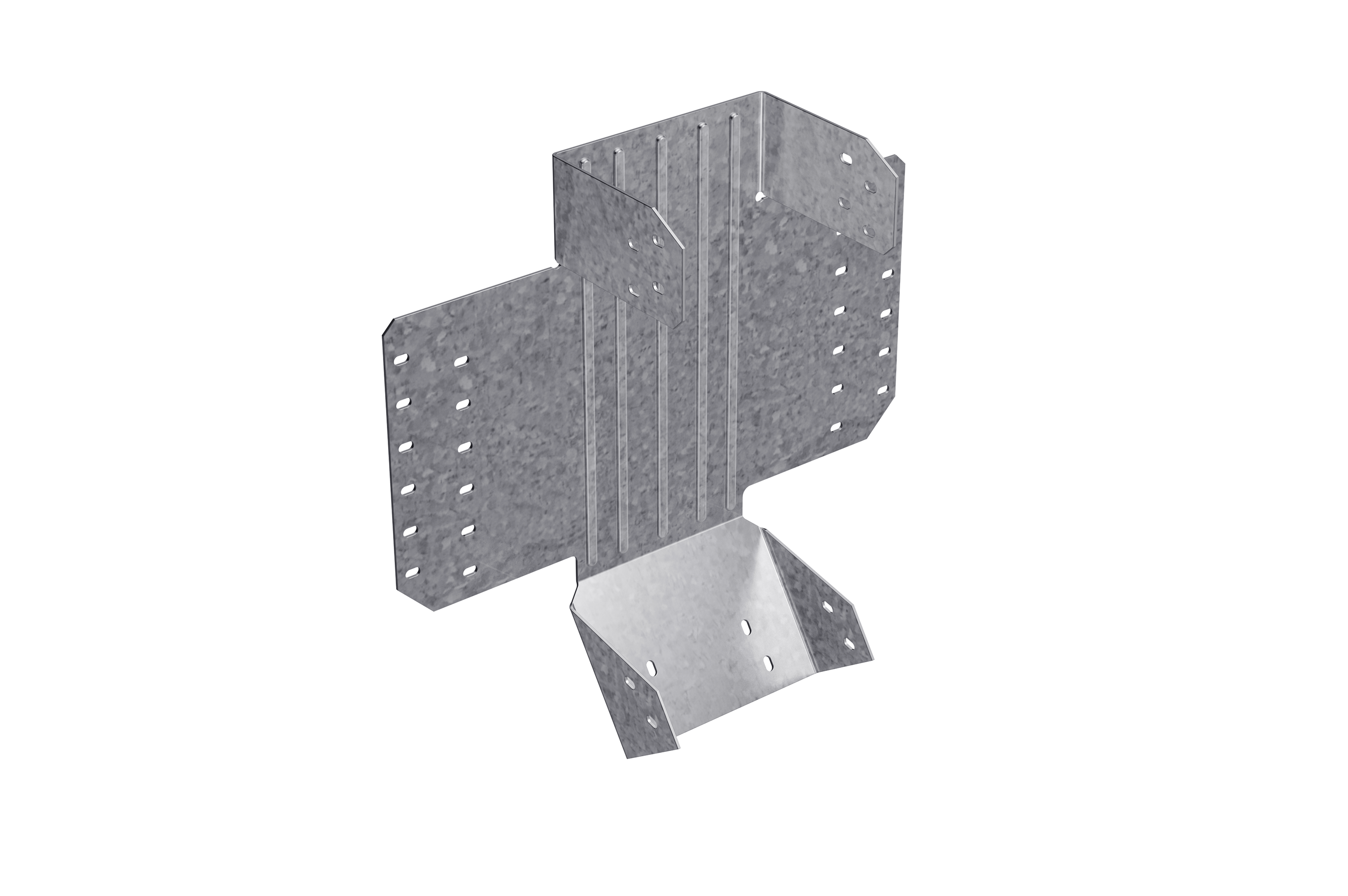

Simpson Strong-Tie LSU5.12 LSU Galvanized Adjustable Light Slopeable/Skewable U Hanger for 5x

$94.08

MPN: LSU5.12

Brand: Simpson Strong-Tie
Barcode: 707392642800
Availability : Limited Stock Out of stock

Type: Hanger

Hanger
Add to Wishlist

Minimum order quantity is .

Maximum order quantity is .
The product can be bought in quantity increments of .

Simpson Strong-Tie LSU5.12

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. The LSU series of hangers may be sloped and skewed in the field, offering a versatile solution for attaching joists and rafters. These hangers may be sloped up or down and skewed left or right, up to 45°.

Ask a Question
Specifications

Simpson Strong-Tie LSU5.12

•This product is preferable to similar connectors because of easier installation, higher loads, and lower installed cost
•Attach the sloped joist at both ends so that the horizontal force developed by the slope is fully supported by the supporting members
•Adjustments can be made in the field
•Web stiffeners required for I-joist applications
•Joist width: 5 in.
•Made from 14-gauge steel
•Galvanized (G90) for extra corrosion resistance



Description

Simpson Strong-Tie LSU5.12

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. The LSU series of hangers may be sloped and skewed in the field, offering a versatile solution for attaching joists and rafters. These hangers may be sloped up or down and skewed left or right, up to 45°.

Additional Information
Type

Hanger
