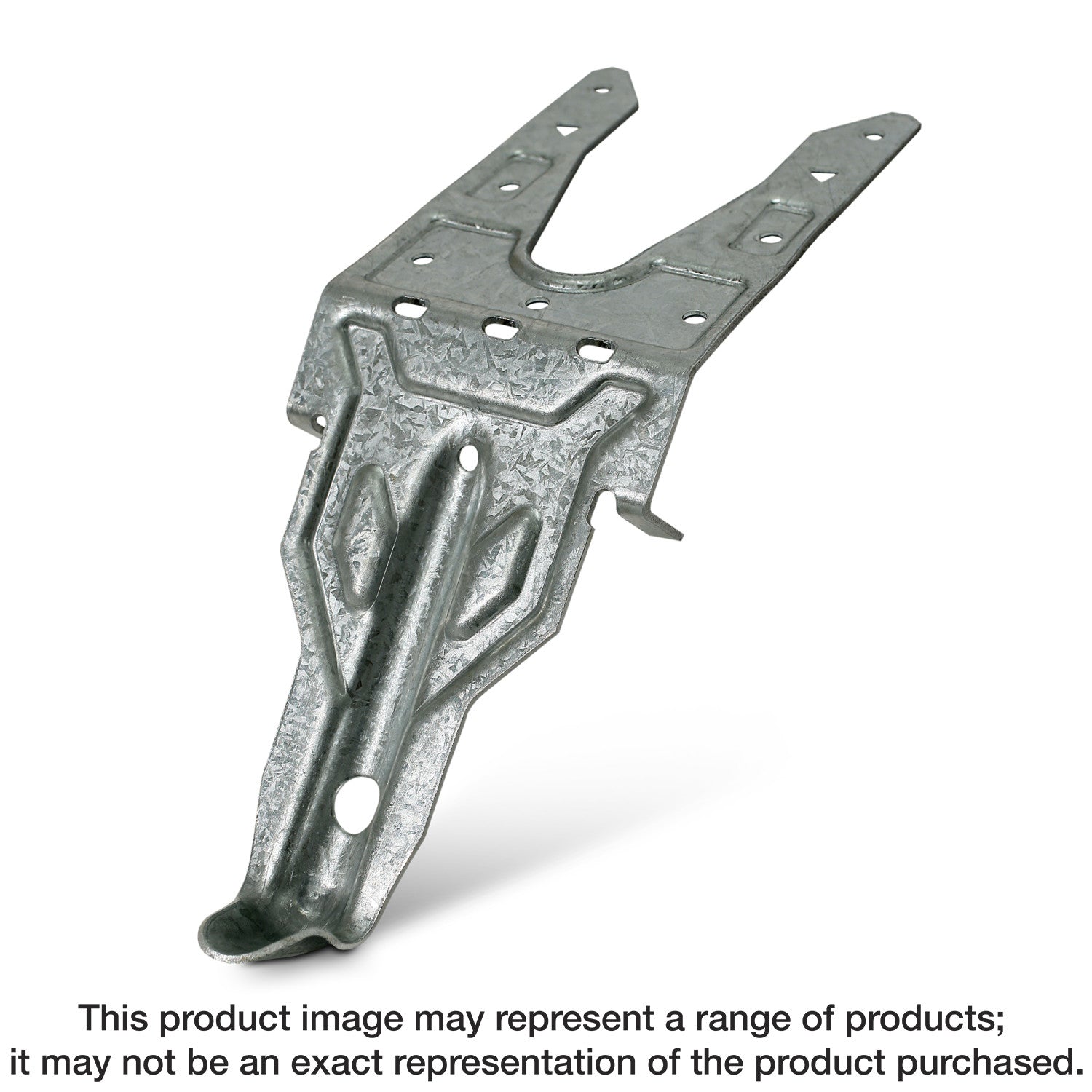

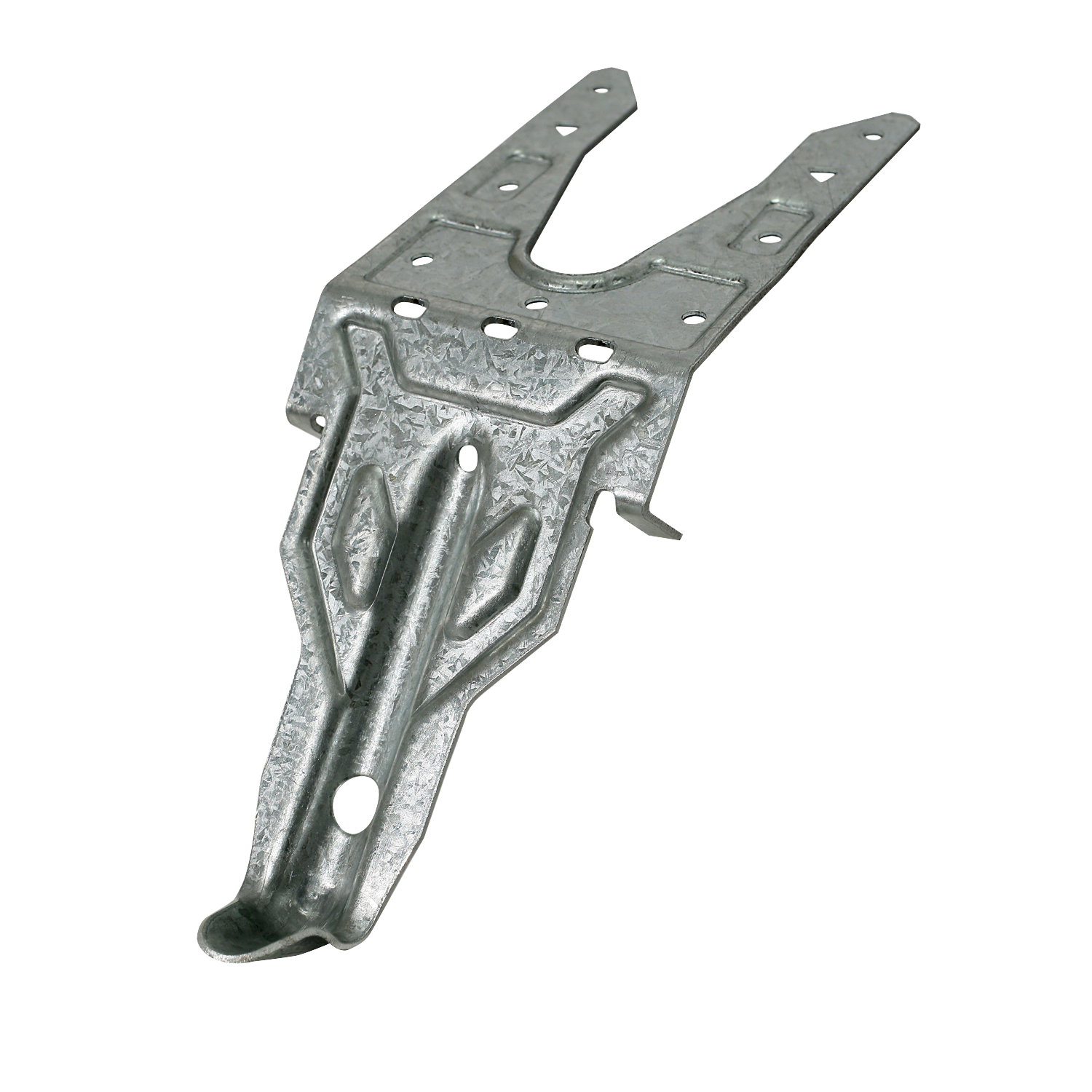

Simpson Strong-Tie MASAZ MASA™ 16-Gauge ZMAX® Galvanized Mudsill Anchor

Simpson Strong-Tie MASAZ

•Attaches easily to the concrete form for quick installation
•Lays flat on the form board so there is no anchor bolt to finish around
•No labor costs involved in drilling plates and aligning holes
•Flat design eliminates chances of modification in prefabricated walls
•Eliminates the need to notch studs due the anchor bolts being placed where it will interfere
•Reduces the chance of having to retrofit anchors because of missing or misplaced anchor bolts
•Minimum MASA end distance is 4 in. and minimum center-to-center spacing is 8 in. for full load
•Made from 16-gauge steel
•ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications

Simpson Strong-Tie MASAZ

Mudsill anchors have always been a time-saving alternative to anchor bolts, and the MASA anchor provides even greater load-carrying capacity alternative for 5/8-in. and 1/2-in. mudsill anchor bolts on 2x, double-2x and 3x mudsills. It also eliminates the need for 3-in. square plate washers for seismic design and, in some cases, has load capacities that meet or exceed the parallel and perpendicular to plate shear capacity of other cast-in-place anchors. Two versions of the MASA are available — the standard MASA for installation on standard forms and the MASAP for panelized forms.
