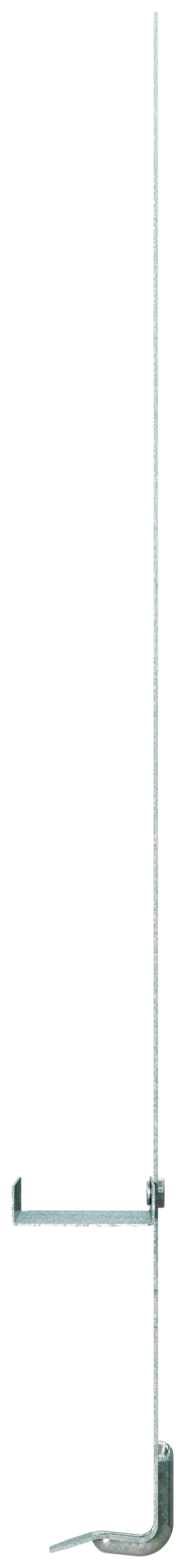

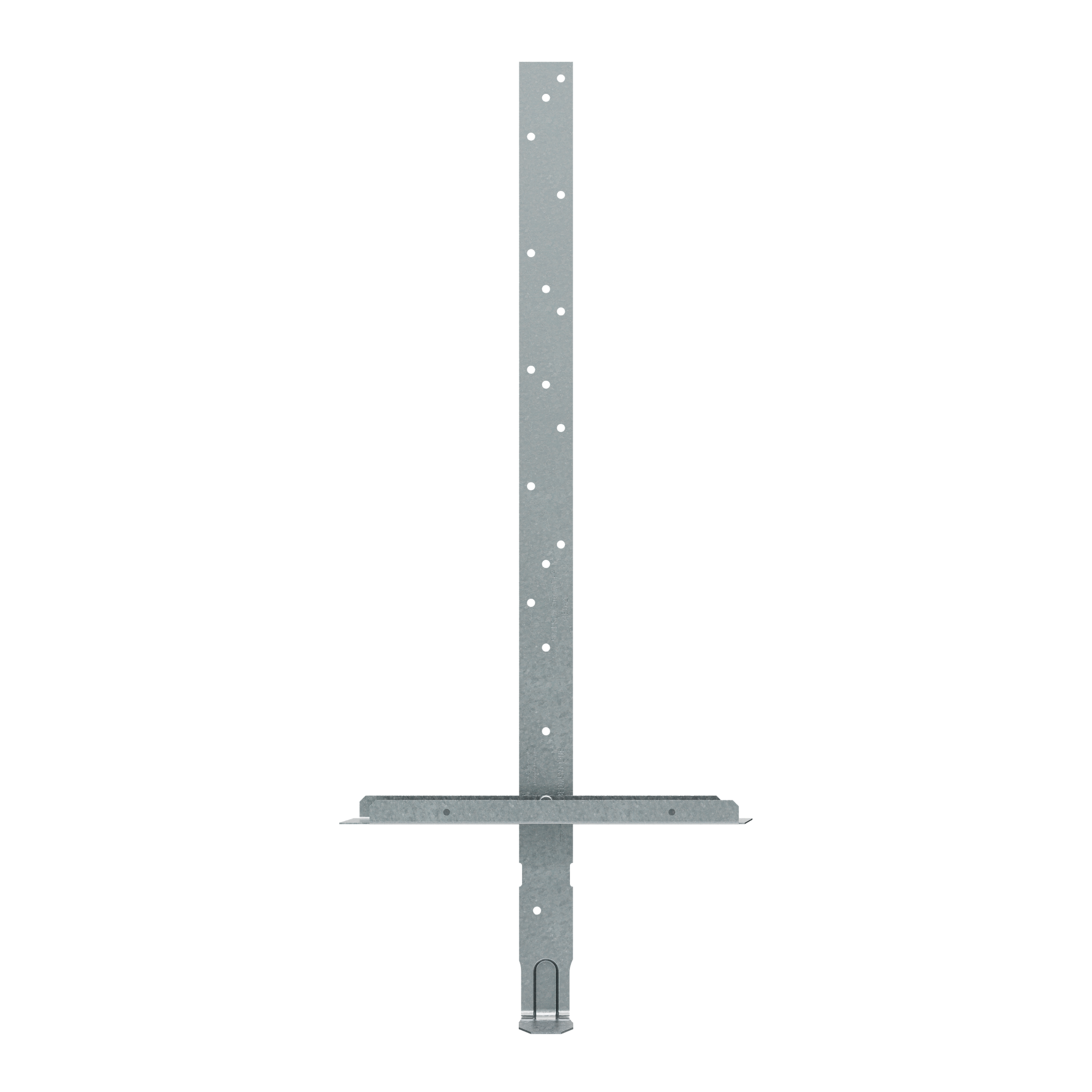

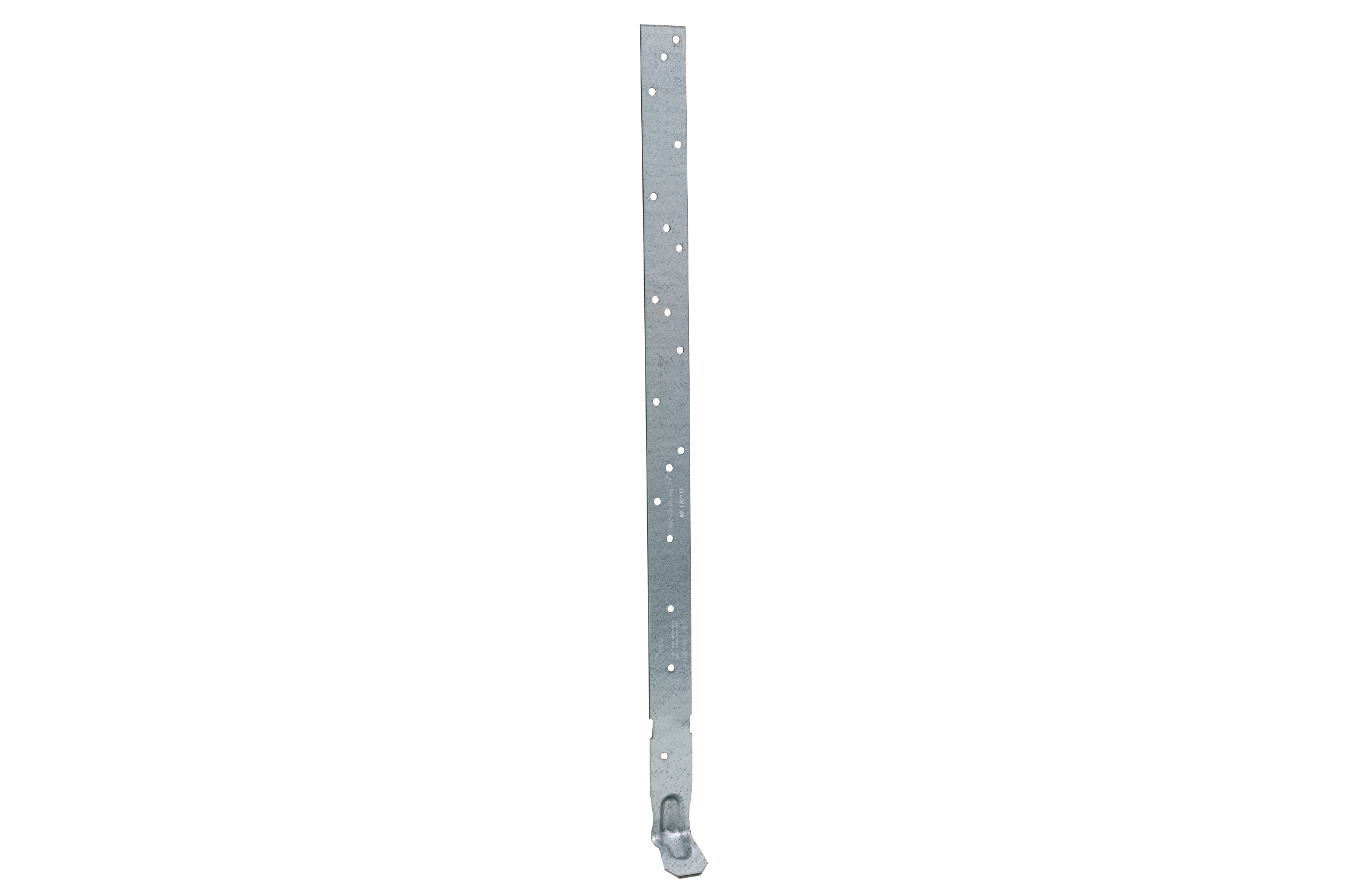

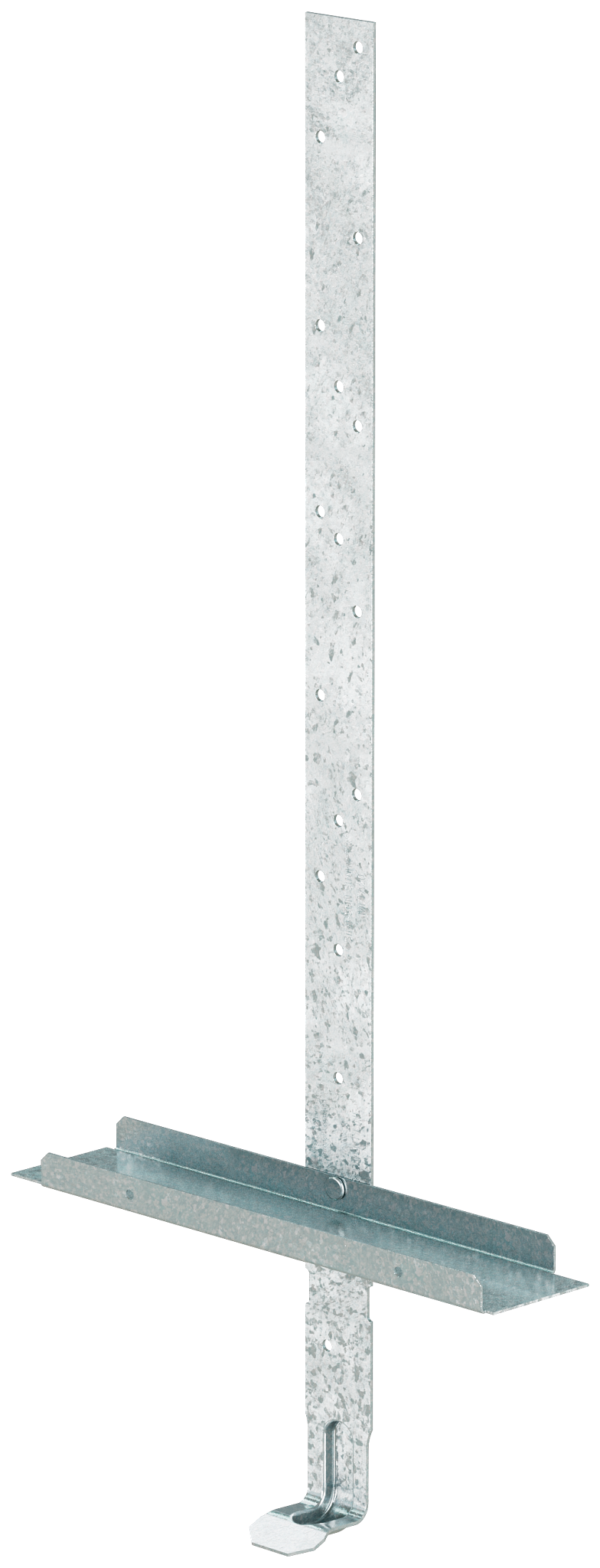

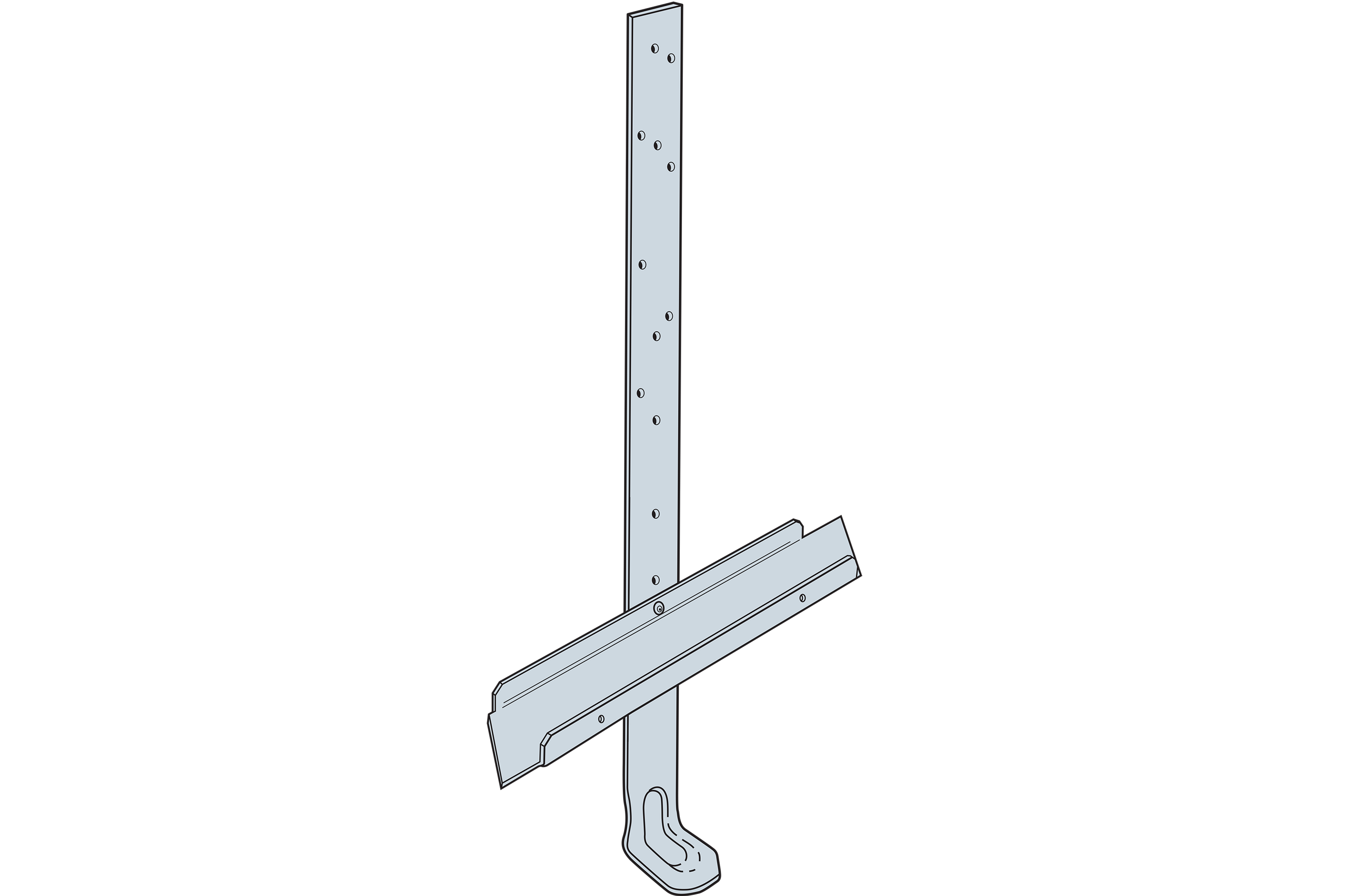

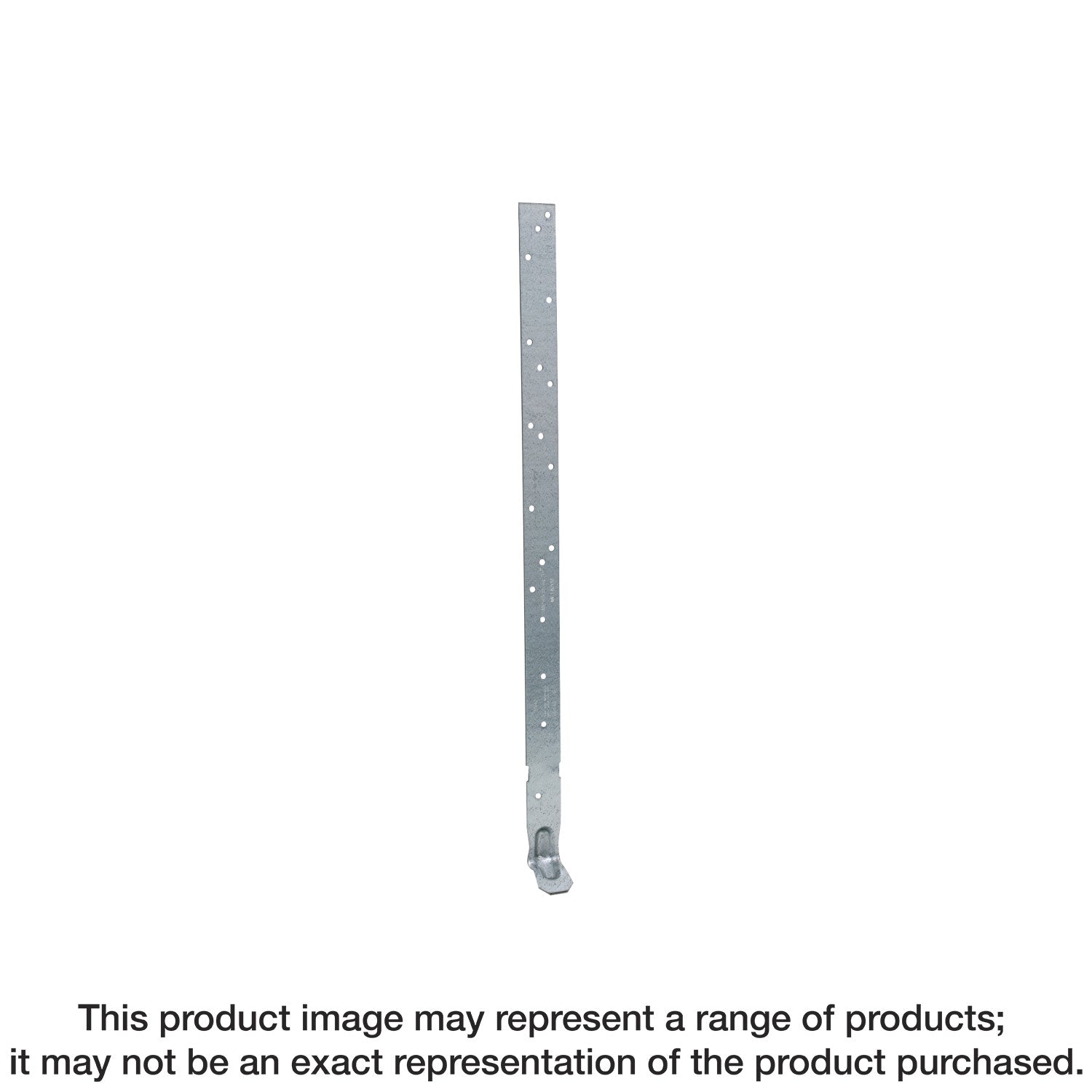

Simpson Strong-Tie META20/TSS2 META 20-in. Galvanized Embedded Truss Anchor w/ TSS2 Truss Seat Snap-In

Simpson Strong-Tie META20/TSS2

•Indented embedment line ensures accurate embedment depth
•Load rated for wind and seismic forces
•16-in. exposed length
•Embed 4 in. into a 6-in. minimum concrete beam or 8-in. nominal grouted block wall
•META20 made from 18-gauge steel; TSS2 made from 22-gauge steel
•Galvanized (G90) for extra corrosion resistance

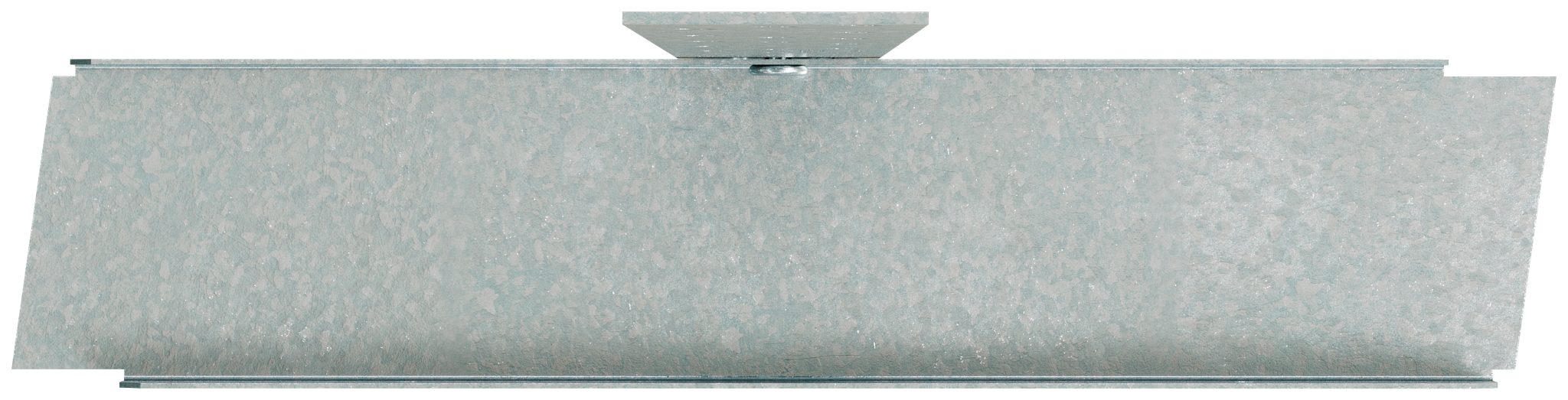

•Includes 1-3/4 in. width TSS2 truss seat snap-in
•The TSS2 moisture barrier may be preattached to the truss using 0.113-in. x 2-in. nails

Simpson Strong-Tie META20/TSS2

Simpson Strong-Tie® connectors make projects easier to build while making them stronger and safer. They are engineered and tested to perform and are manufactured to the highest quality standards. The META provides an engineered method to attach roof trusses securely to concrete and masonry walls. This medium embedded truss anchor features staggered nail patterns to strengthen uplift resistance and can be used in pairs on single- and multi-ply trusses. The versatile META can be installed straight or field-bent around truss or rafter members.
