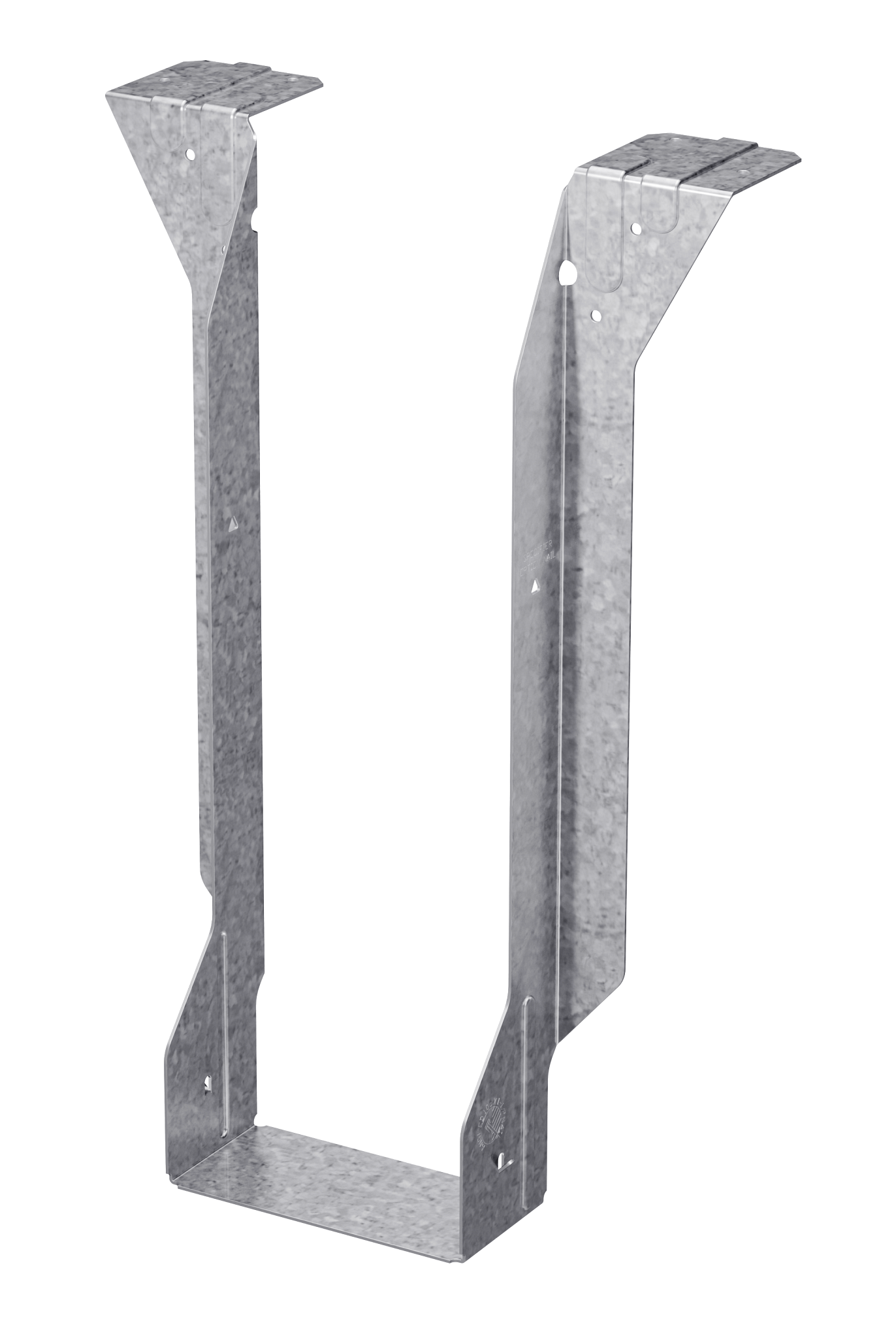

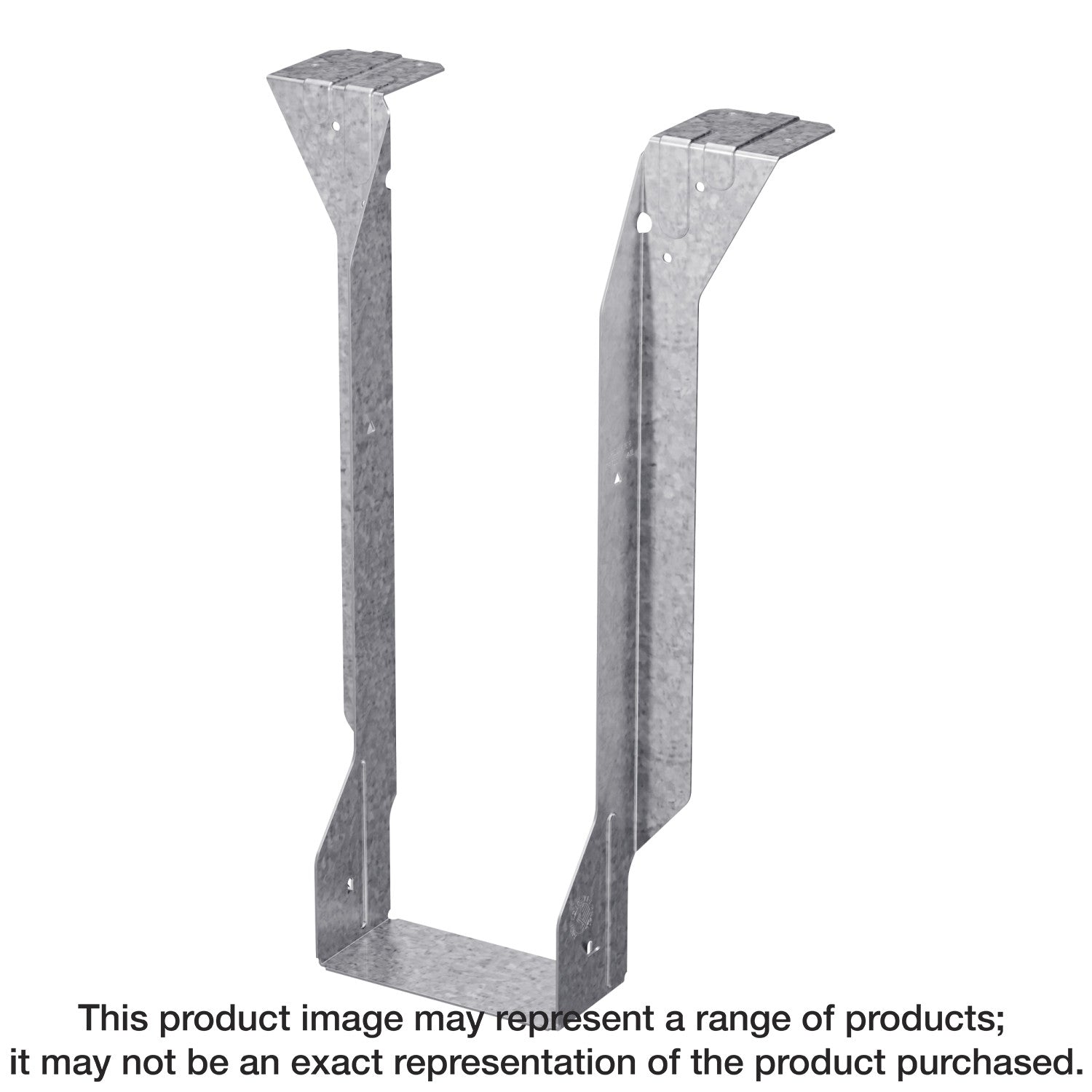

Simpson Strong-Tie MIT5.12/16 MIT Galvanized Top-Flange Joist Hanger for 5 in. x 16 in. Engineered Wood

Simpson Strong-Tie MIT5.12/16

•Positive-angle nailing (PAN) minimizes splitting of the flanges while permitting time-saving nailing from a better angle
•With positive-angle nailing, the nail hole material is not removed
•Optional triangle nail holes may be used for increased uplift capacity; optional uplift nailing requires the addition of properly-secured web stiffeners
•Cost-effective solution for standard 90° connections in comparison to welded hangers
•Features optional fastening with PAT for steel applications/header
•Actual joist size: 5 in. x 16 in.
•Made from 16-gauge steel
•Galvanized (G90) for extra corrosion resistance

Simpson Strong-Tie MIT5.12/16

Top-flange hangers for engineered wood are an integral component for providing maximum down loads that require a minimum amount of fasteners. These metal connectors are created to be installed before the joist is in place. The Simpson Strong-Tie® MIT is designed to support 90° connections of I-joists to headers. This top-flange hanger features a Funnel Flange™ design allowing for easier placement of members. The hanger also features positive-angle nailing (PAN), specifically created for I-joists to minimize splitting.
