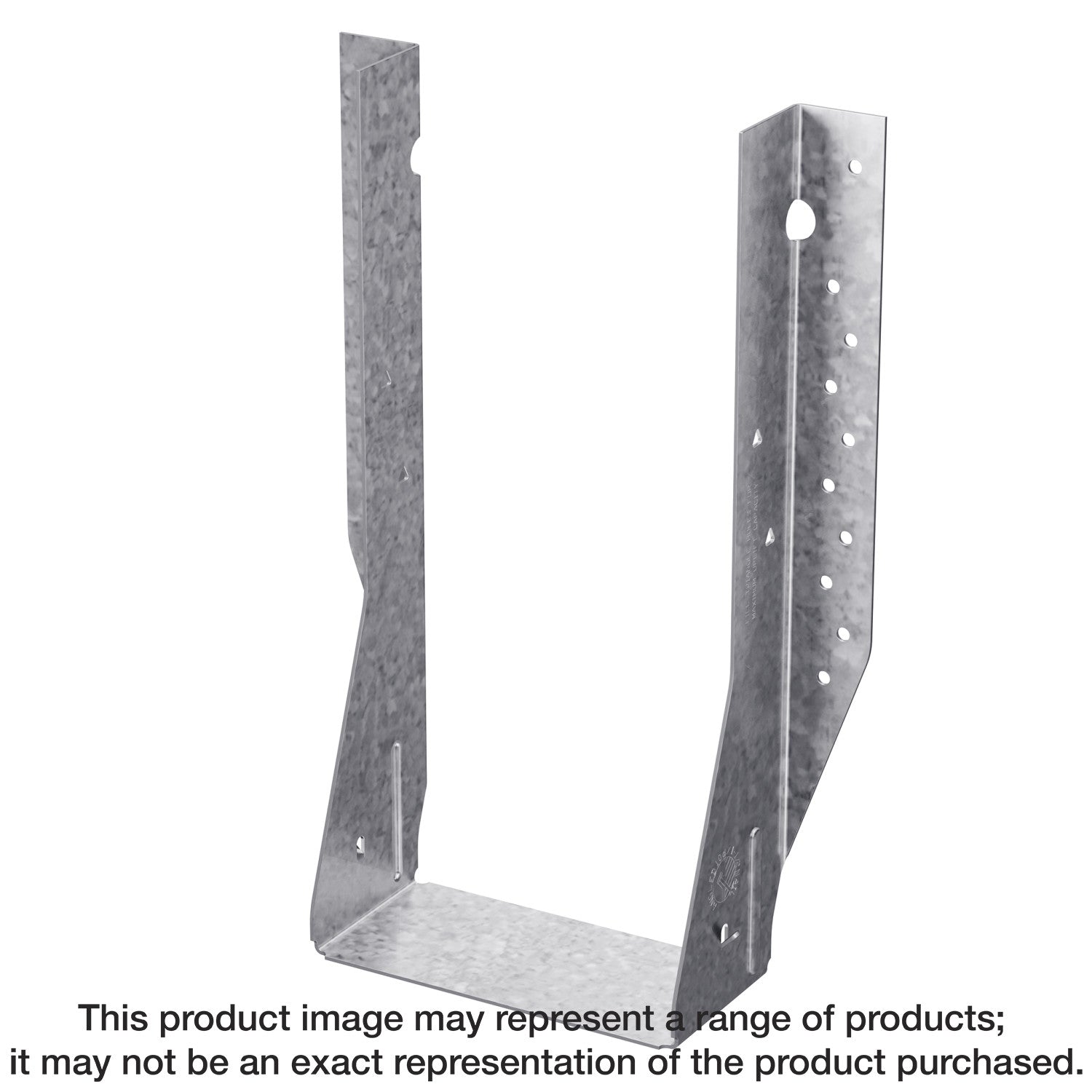

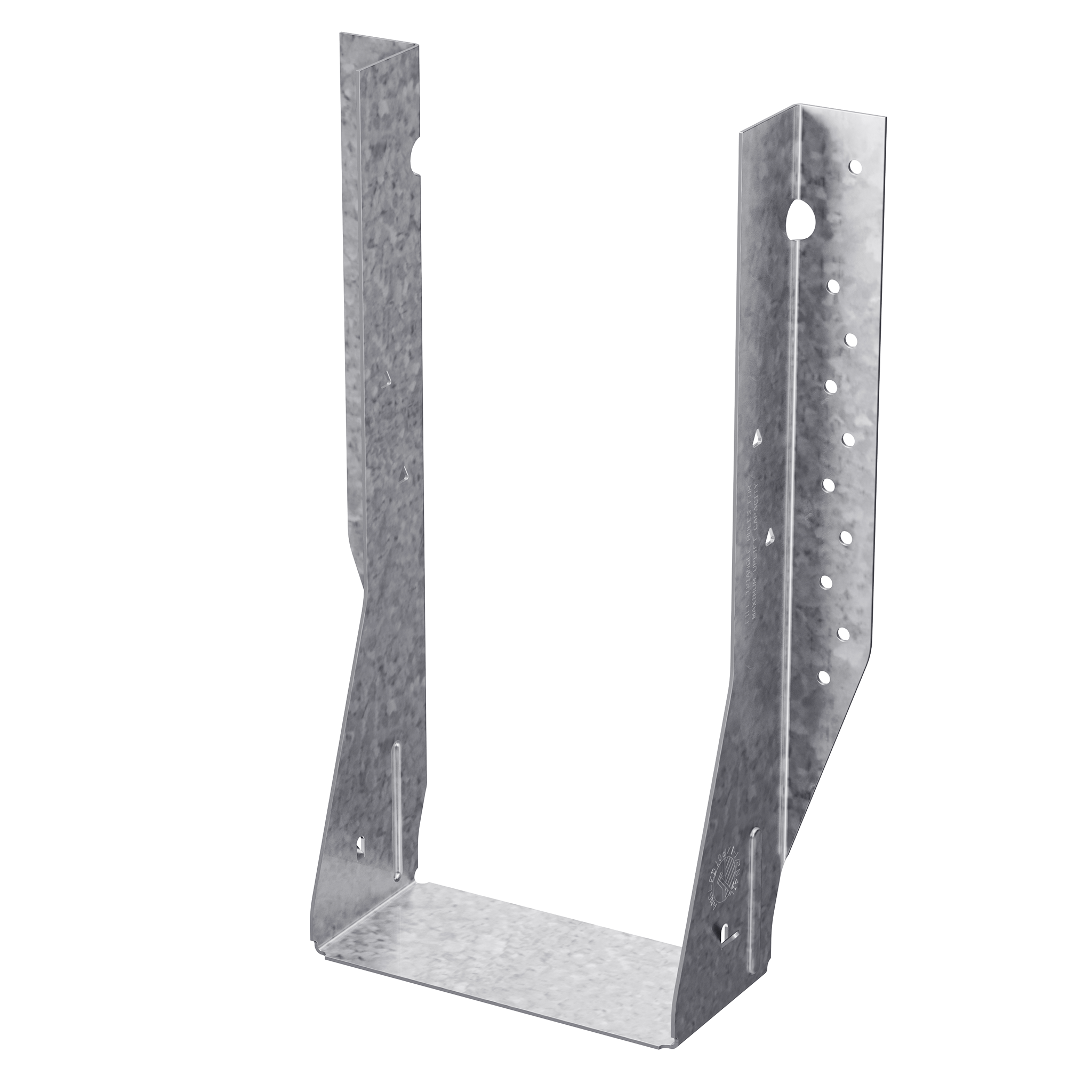

Simpson Strong-Tie MIU4.75/20 MIU Galvanized Face-Mount Joist Hanger for 4-5/8 in. x 20 in. Engineered Wood

$63.48

MPN: MIU4.75/20

Brand: Simpson Strong-Tie
Barcode: 044315483806
Availability : Limited Stock Out of stock

Type: Hanger

Hanger
Add to Wishlist

Minimum order quantity is .

Maximum order quantity is .
The product can be bought in quantity increments of .

Simpson Strong-Tie MIU4.75/20

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. The MIU series hangers are designed for commercial and high-load I-joist applications without requiring web stiffeners.

Ask a Question
Specifications

Simpson Strong-Tie MIU4.75/20

•Positive-angle nailing minimizes splitting of the flanges while permitting time-saving nailing from a better angle
•These hangers cannot be modified
•Actual joist size: 4-5/8 in. x 20 in.
•Made from 16-gauge steel
•Galvanized (G90) for extra corrosion resistance





Description

Simpson Strong-Tie MIU4.75/20

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. The MIU series hangers are designed for commercial and high-load I-joist applications without requiring web stiffeners.

Additional Information
Type

Hanger
