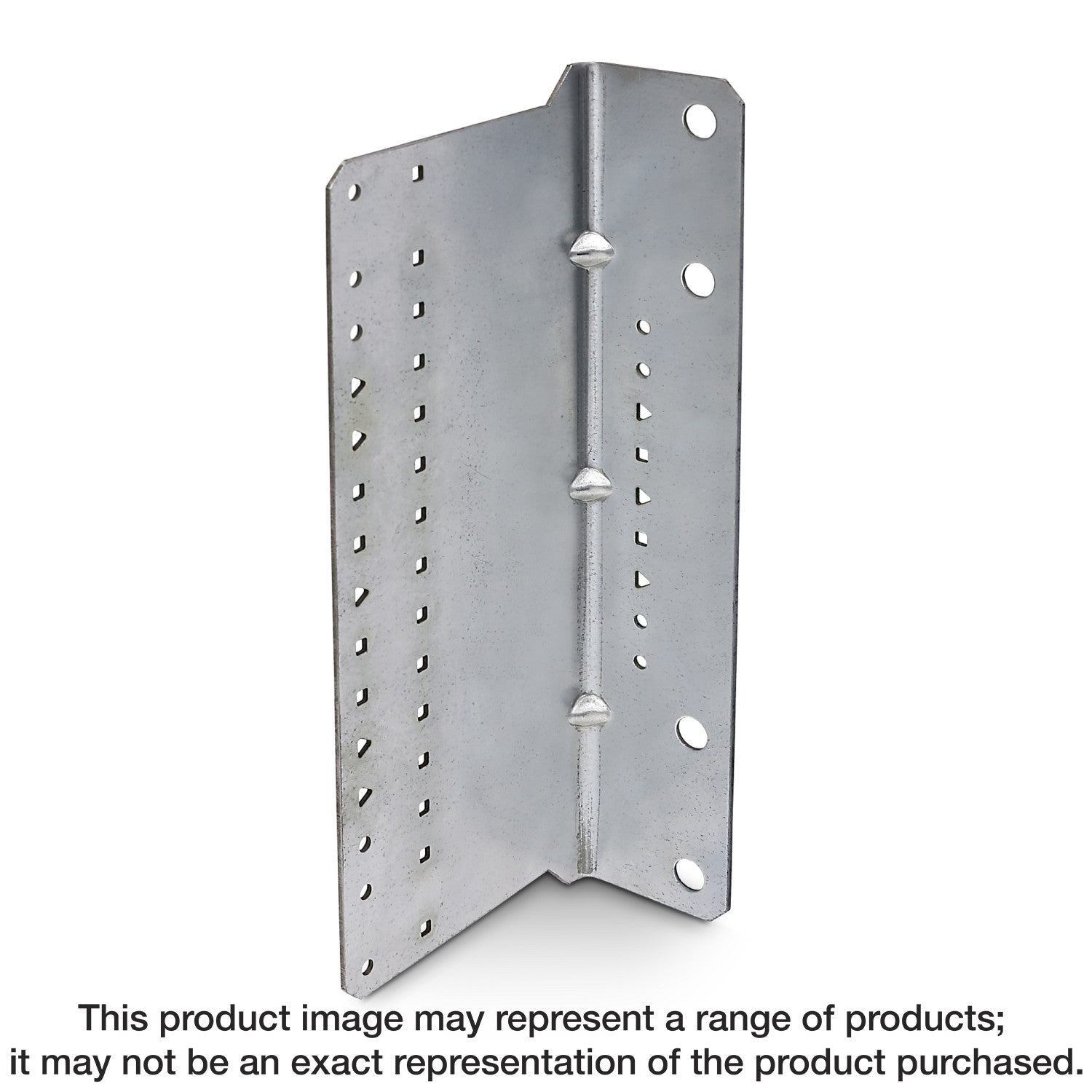

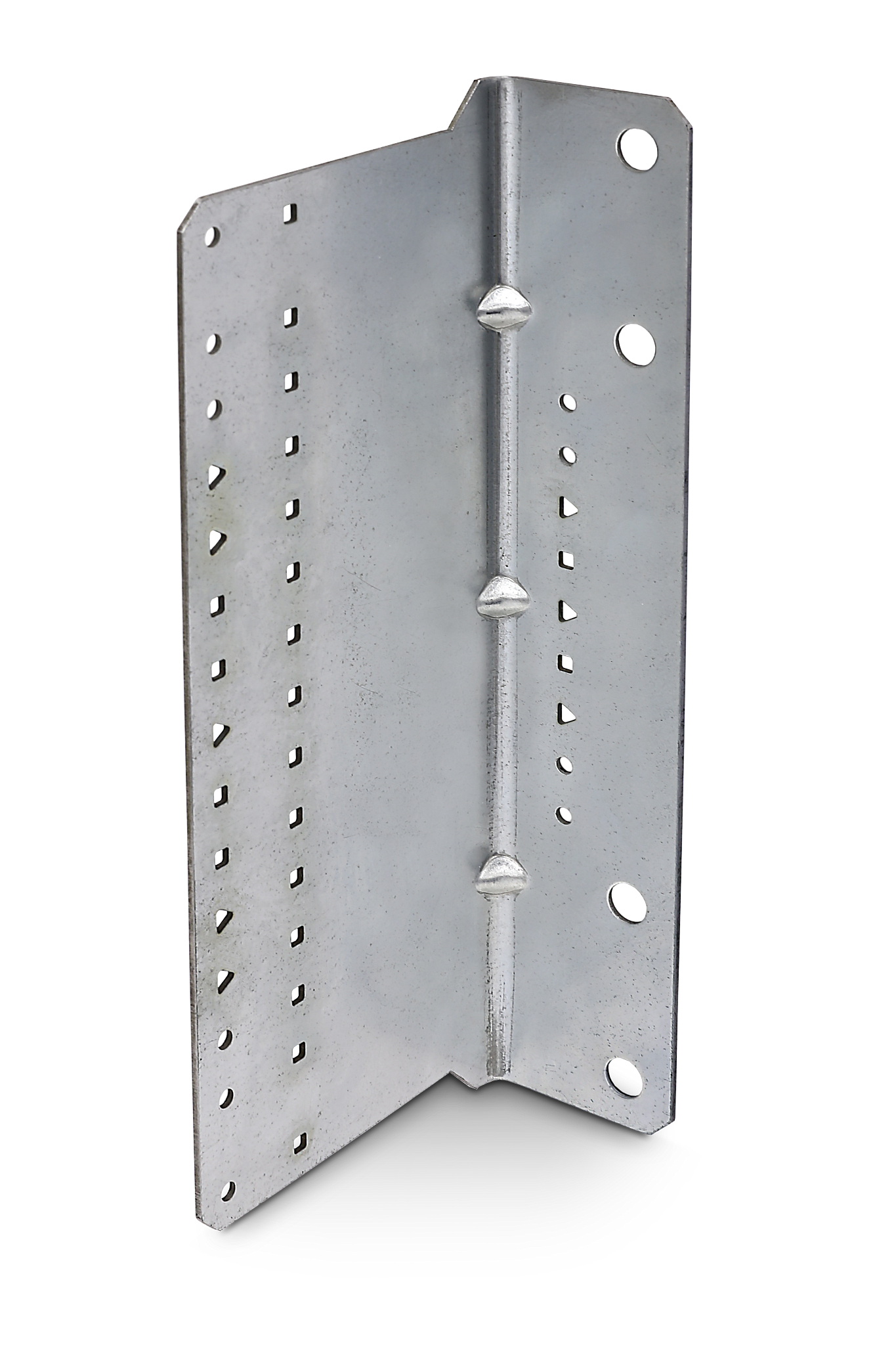

Simpson Strong-Tie MSJC8.25-R15 MSJC 2 in. x 4-1/2 in. x 8-1/4 in. 12-Gauge Galvanized Steel-Joist Connector (15-Qty)

Simpson Strong-Tie MSJC8.25-R15

•Prepunched holes reduce installation cost by eliminating predrilling
•Intuitive fastener hole positions ensure accurate clip installation in accordance with design, support a wide range of design and application requirements and provide installation flexibility
•Angle lengths accommodate either hard-side or soft-side attachment for joists with return lips up to 3/4 in.
•4-1/2 in. leg length enables soft-side connections for joists with flanges up to 3-1/2 in.
•Also accommodates kicker-to-metal-deck applications
•Made from 12-gauge (97 mil) steel
•Galvanized (G90) for extra corrosion resistance
•Size: 2 in. x 4-1/2 in. x 8-1/4 in.
•Quantity: 15

Simpson Strong-Tie MSJC8.25-R15

Simpson Strong-Tie® SJC connectors have been specifically designed for various CFS joist, rafter and underside of metal-deck applications. The unique clip dimensions enable easy installation on the open side of joists and rafters with up to 3-1/2 in. flanges and return lips up to 3/4 in. For metal-deck applications, the prepunched 3/8-in. holes easily accommodate 6-in., 8-in., 10-in. and 12-in. on-center metal-deck flutes.
