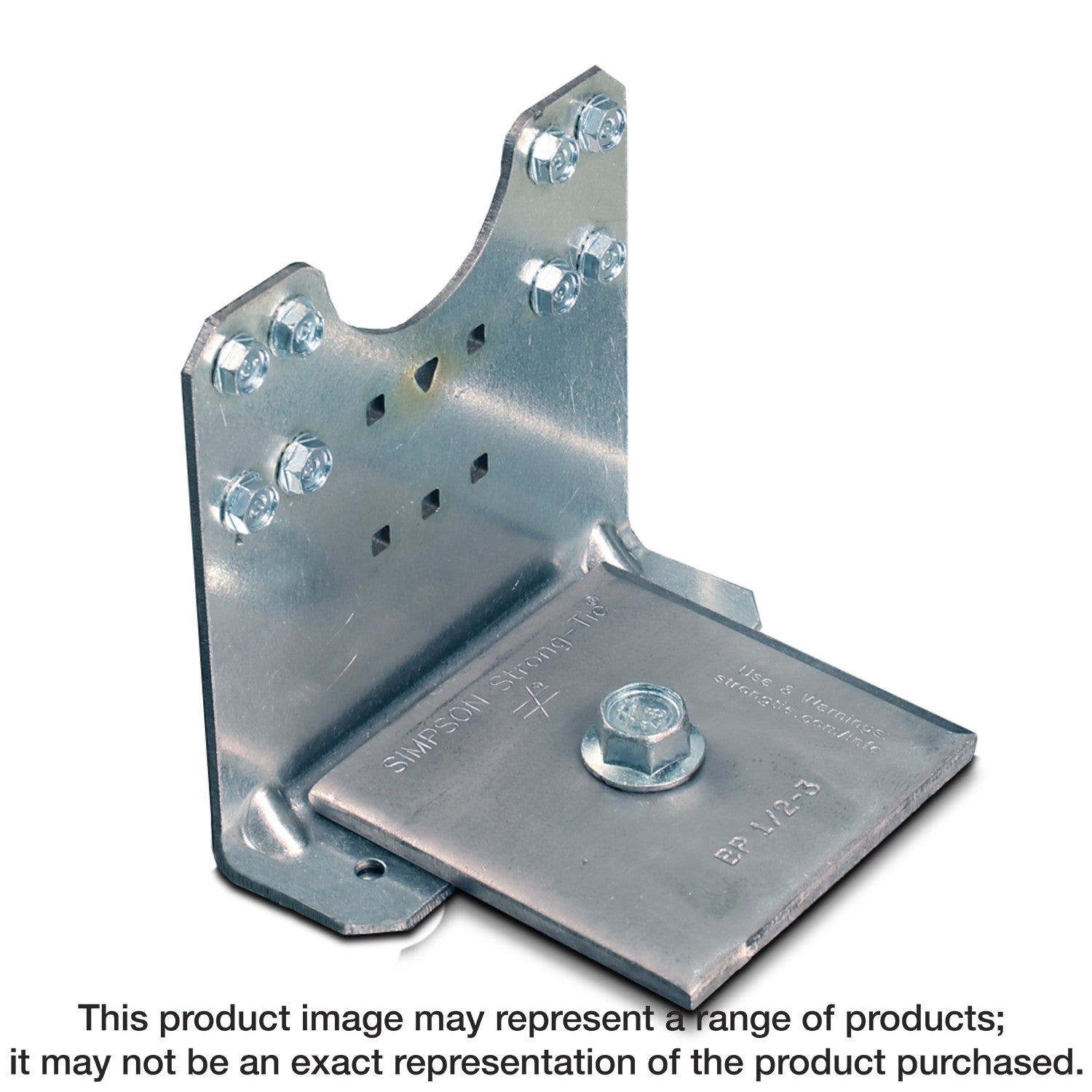

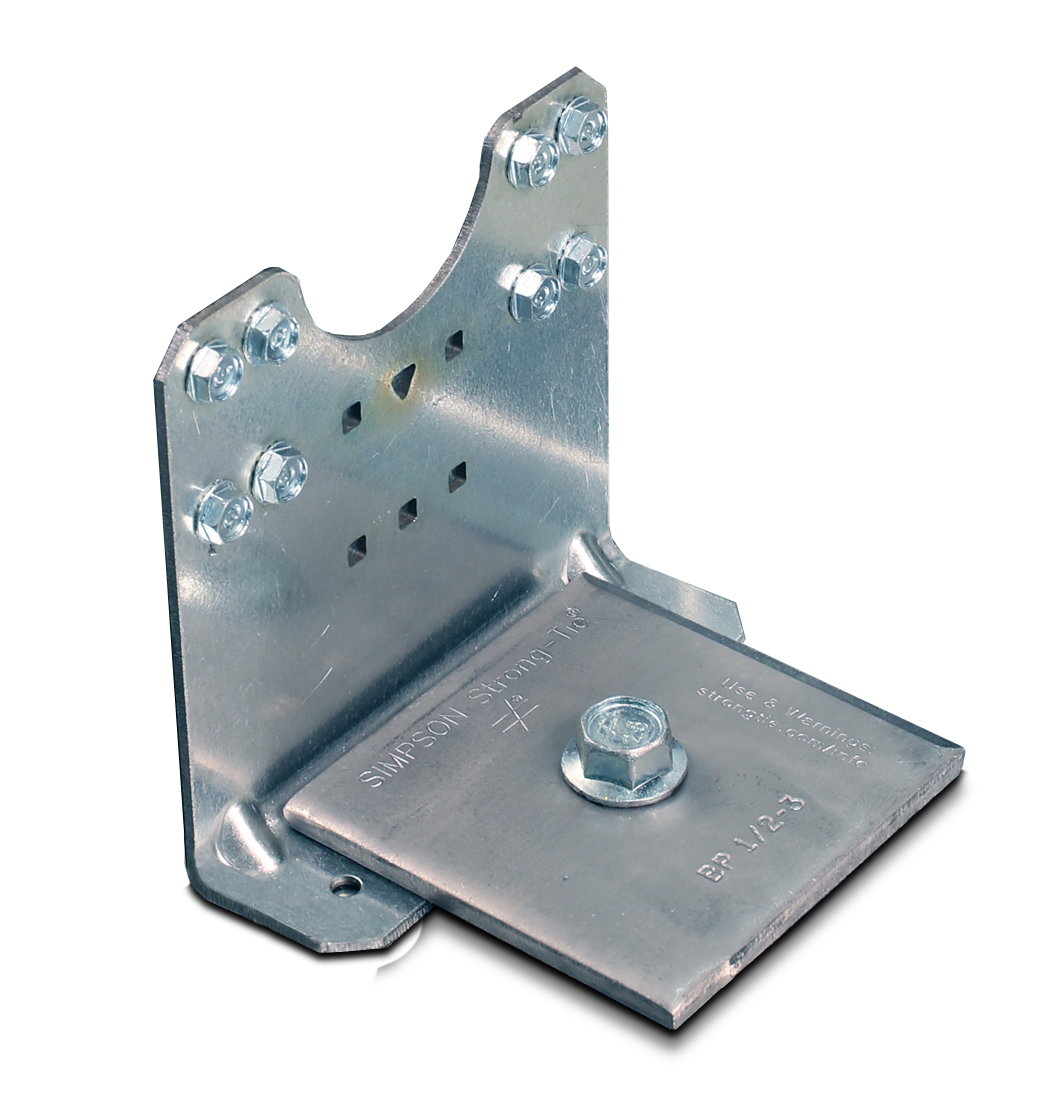

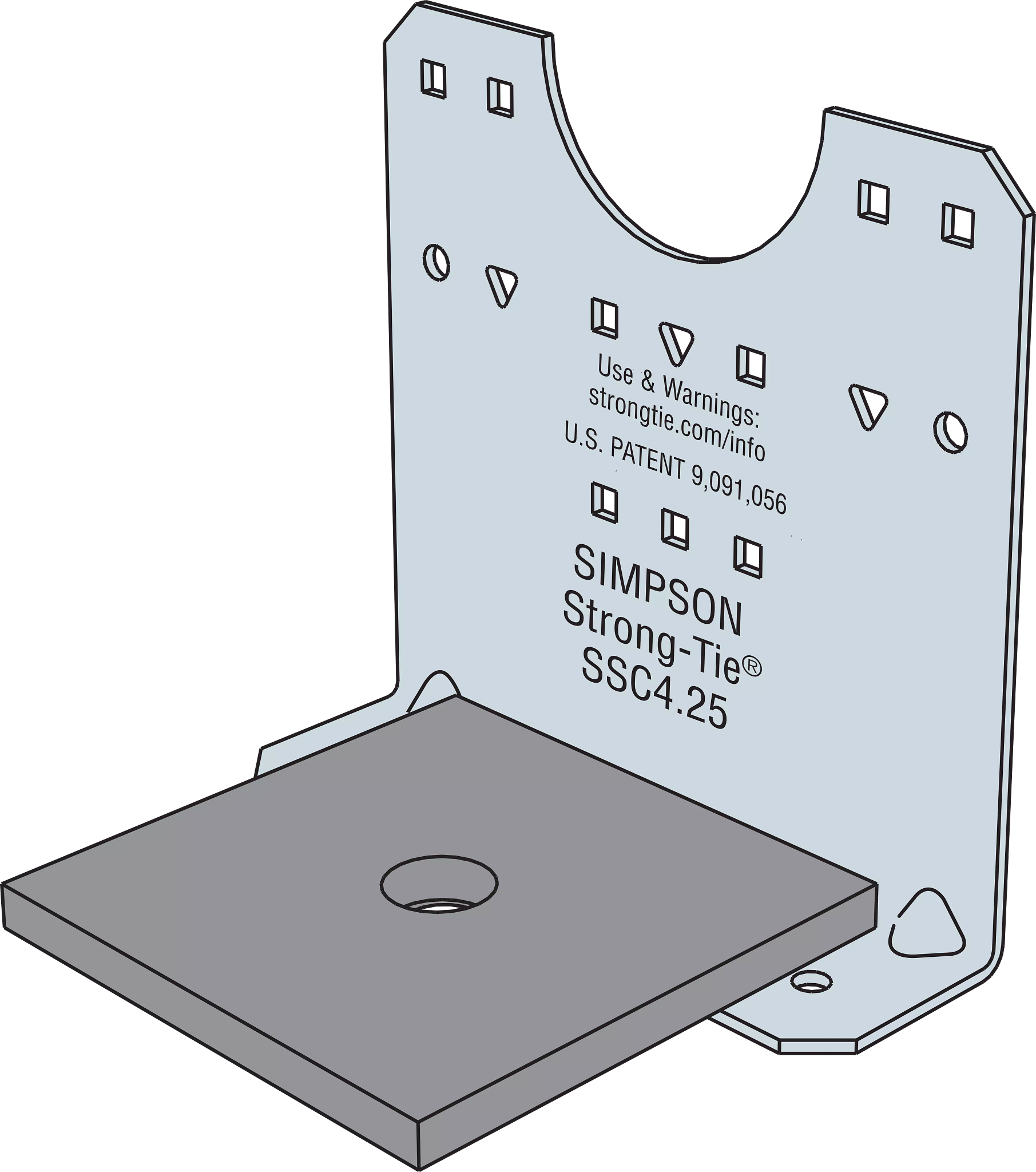

Simpson Strong-Tie MSSC4.25KW-KT20 MSSC 4-1/4 in. Kneewall Connector for 6 in. Framing Member w/ Bearing Plate (Qty-20)

Simpson Strong-Tie MSSC4.25KW-KT20

•One simple custom hole pattern for each stud size simplifies specification and installation
•3/8 in. diameter anchor bolt location enables easy tool access
•BP 1/2-3 bearing plates included
•MSSC made from 97 mil (12 ga.) steel (50 ksi); BP made from 229 mil (3 ga.) steel (33 ksi)
•4-1/4 in. kneewall connector compatible with 6 in. deep steel framing member
•MSSC zinc galvanized (G90) finish; BP uncoated steel
•Quantity: 20 connectors and plates per package

Simpson Strong-Tie MSSC4.25KW-KT20

Simpson Strong-Tie® rigid connectors for cold-formed steel (CFS) construction deliver the increased load capacity needed for steel applications. Rigid connectors include options from skewable angles and steel header hangers to bypass framing and kneewall connectors. These steel connectors are ideal to use in all projects to support load-bearing walls. MSSC connectors are designed to work in tandem with Simpson Strong-Tie BP 1/2-3 bearing plates to provide solutions for moment-resisting kneewall lighter-duty applications.
