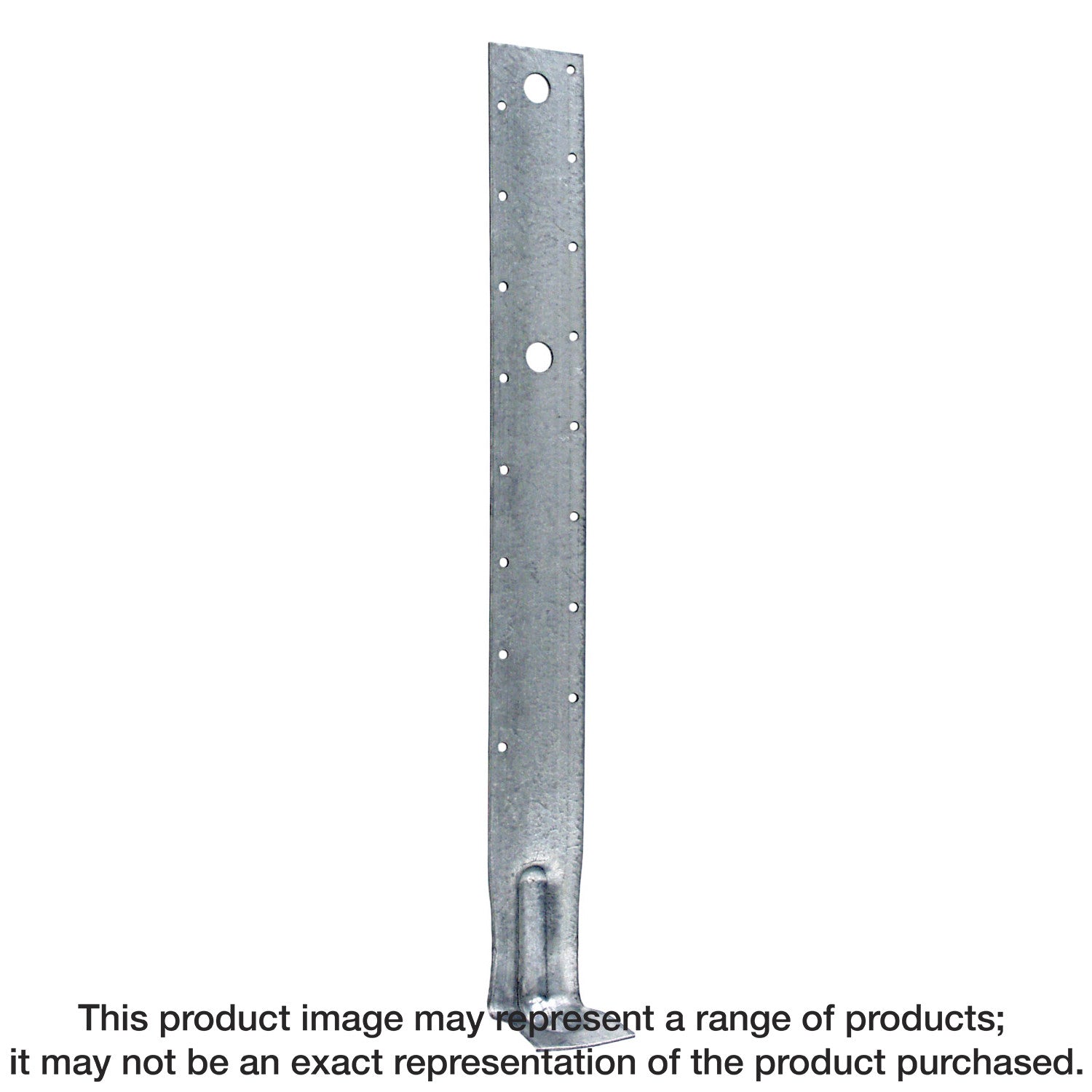

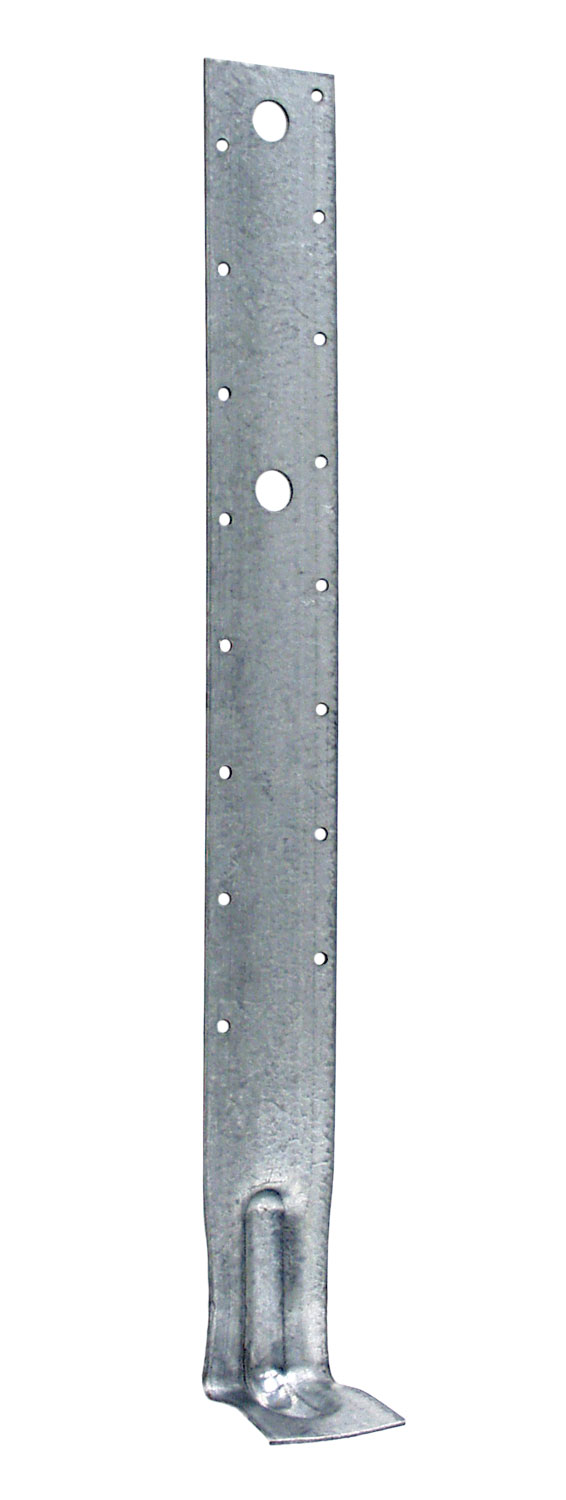

Simpson Strong-Tie PA35Z 35IN PURLIN ANCHOR ZMAX

Simpson Strong-Tie PA35Z

•Ensure all required fasteners are used; some models may have additional holes. Refer to General Notes
• Purlin anchor must encircle rebar
• Allowable loads are for horizontal installation into concrete or masonry walls
• Strap can be bent in a full cycle (90 vertical then horizontal)
• For extended length, attach MST strap to PA51/PA68 using 1/2" bolts through existing holes
• Consult technical bulletin 'PA Foundation Straps for Uplift Resistance' for further details

Simpson Strong-Tie PA35Z

Simpson Strong-Tie's purlin anchors provide solutions for wood-to-concrete and concrete-block connections, meeting code requirements. The PA's dual-embedment line enables installation in concrete or concrete block. During installation, use all specified fasteners; some models may have extra holes. The purlin anchor must hook around rebar. Allowable loads are for horizontal installation into the side of a concrete or masonry wall. The strap can be bent one full cycle. For PA51/PA68, an MST strap can be attached for additional length using 1/2" bolts through existing holes. Refer to the technical bulletin PA Foundation Straps for Uplift Resistance (T-PAUPLIFT) for more information. California Residents: WARNING
