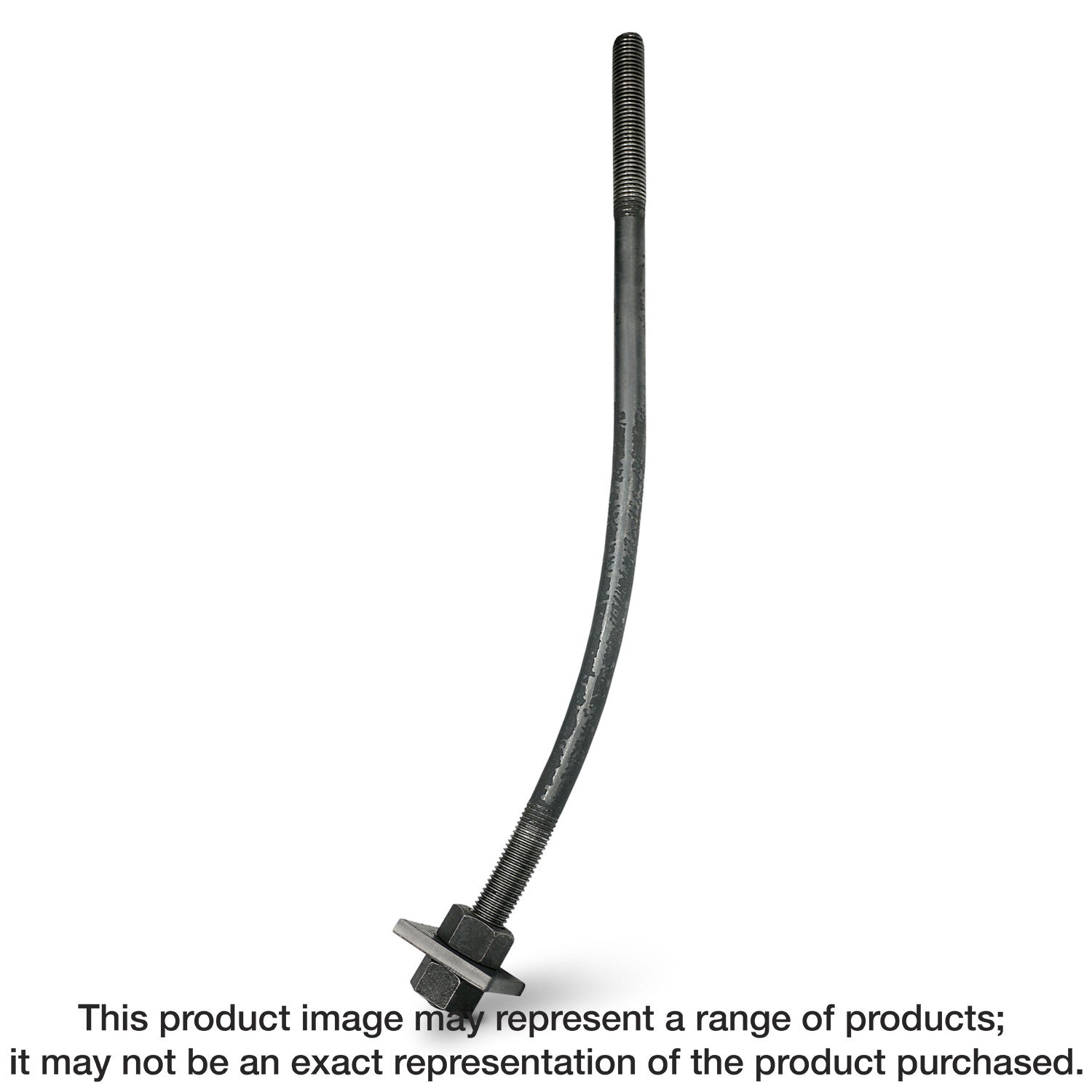

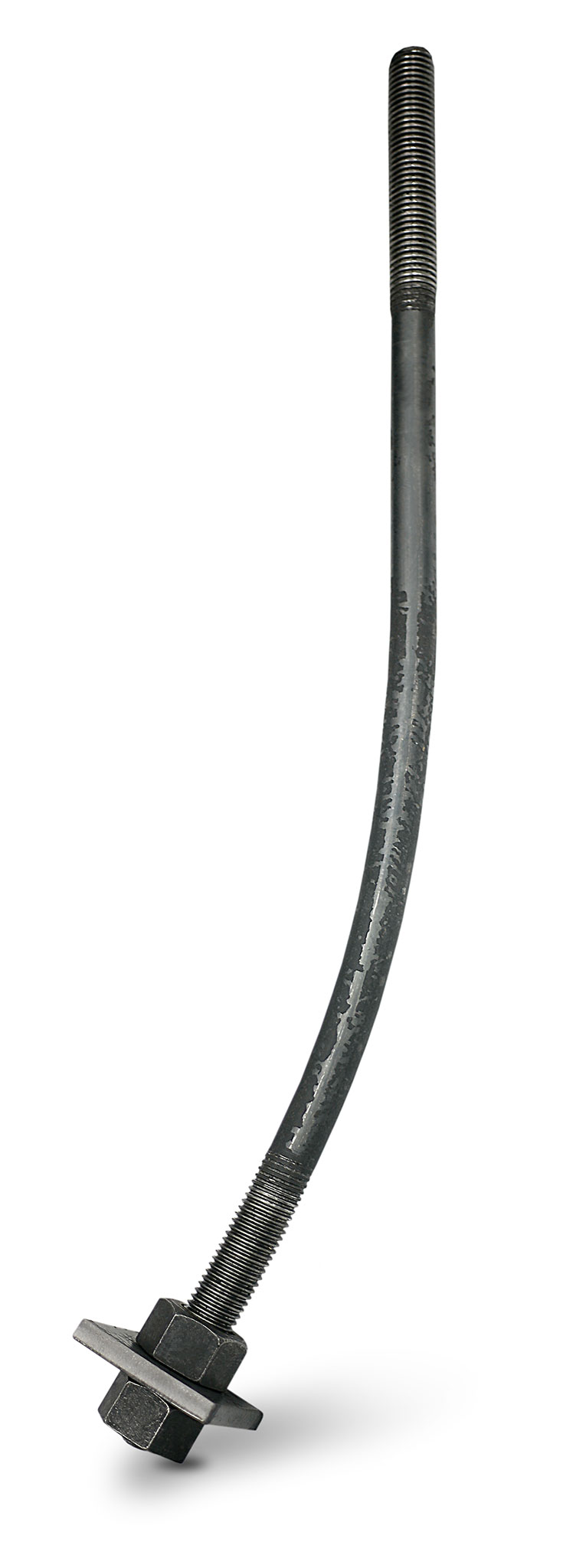

Simpson Strong-Tie SB7/8X24HDG SB 7/8 in. Dia. x 24 in. Hot-Dip Galvanized Anchor Bolt

$58.73

MPN: SB7/8X24HDG

Brand: Simpson Strong-Tie
Barcode: 707392558309
Availability : Limited Stock Out of stock

Type: Other

Other

Length: 24 In.

24 In.
Add to Wishlist

Minimum order quantity is .

Maximum order quantity is .
The product can be bought in quantity increments of .

Simpson Strong-Tie SB7/8X24HDG

The SB anchor bolt is a high-capacity solution for holdowns that require larger diameter anchors. The smooth transition angle positions the head of the anchor in the optimum location in the concrete stem wall to maximize performance. The SB7/8x24 is designed to maximize performance with minimum embedment for holdowns utilizing a 7/8-in. diameter anchor.

Ask a Question
Specifications

Simpson Strong-Tie SB7/8X24HDG

•Identification on the bolt head showing embedment angle and model
•Sweep geometry to optimize position in form
•Rolled thread for higher tensile capacity
•Hex nuts and plate washer fixed in position
•Diameter: 7/8 in.
•Length: 24 in.
•Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications



Description

Simpson Strong-Tie SB7/8X24HDG

The SB anchor bolt is a high-capacity solution for holdowns that require larger diameter anchors. The smooth transition angle positions the head of the anchor in the optimum location in the concrete stem wall to maximize performance. The SB7/8x24 is designed to maximize performance with minimum embedment for holdowns utilizing a 7/8-in. diameter anchor.

Additional Information
Type

Other
Length

24 In.
