Simpson Strong-Tie SP6Z SP 5-9/16 in. x 7-3/4 in. ZMAX® Galvanized Stud-Plate Tie

$8.76

MPN: SP6Z

Brand: Simpson Strong-Tie
Barcode: 707392560807
Availability : Limited Stock Out of stock
Add to Wishlist

Minimum order quantity is .

Maximum order quantity is .
The product can be bought in quantity increments of .

Simpson Strong-Tie SP6Z

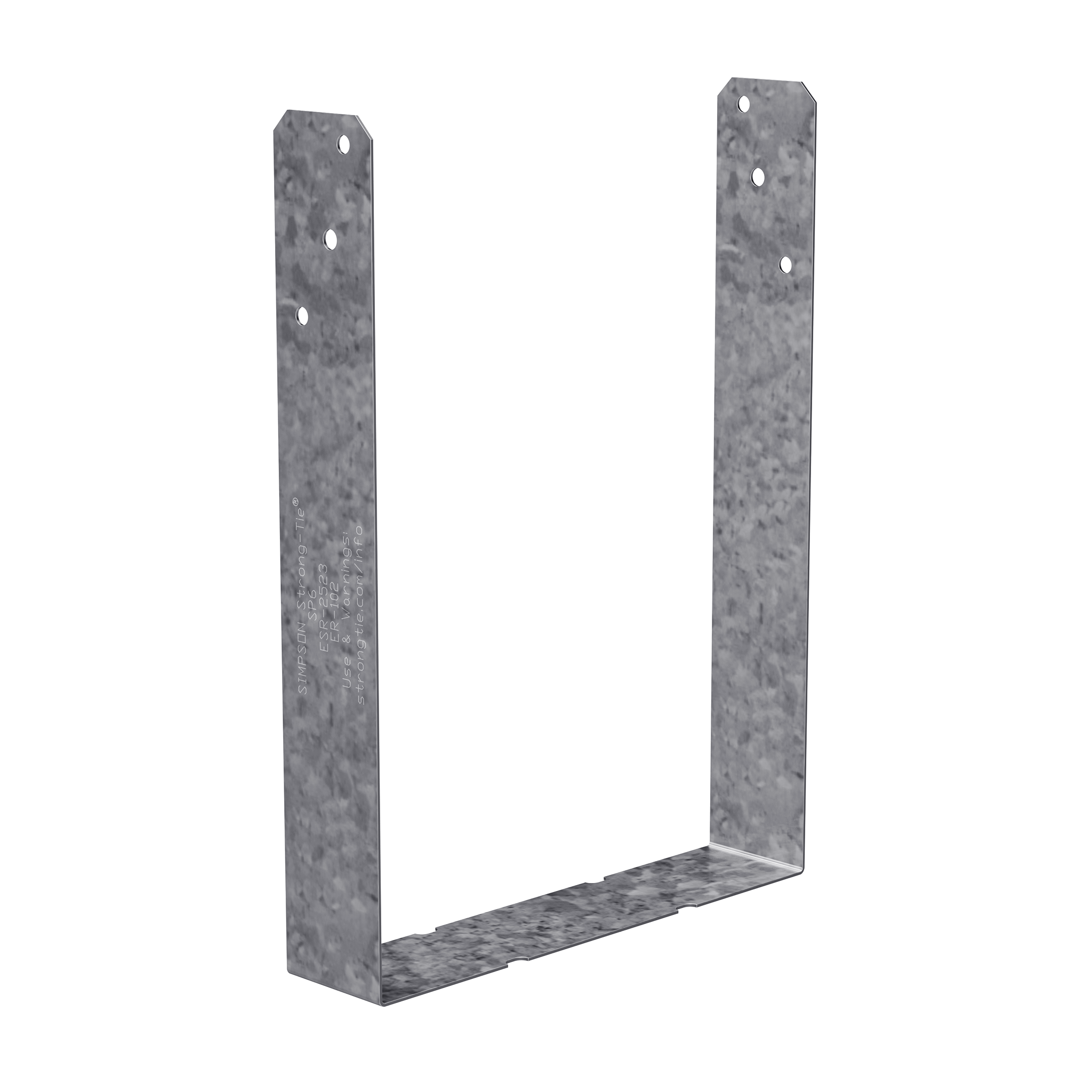

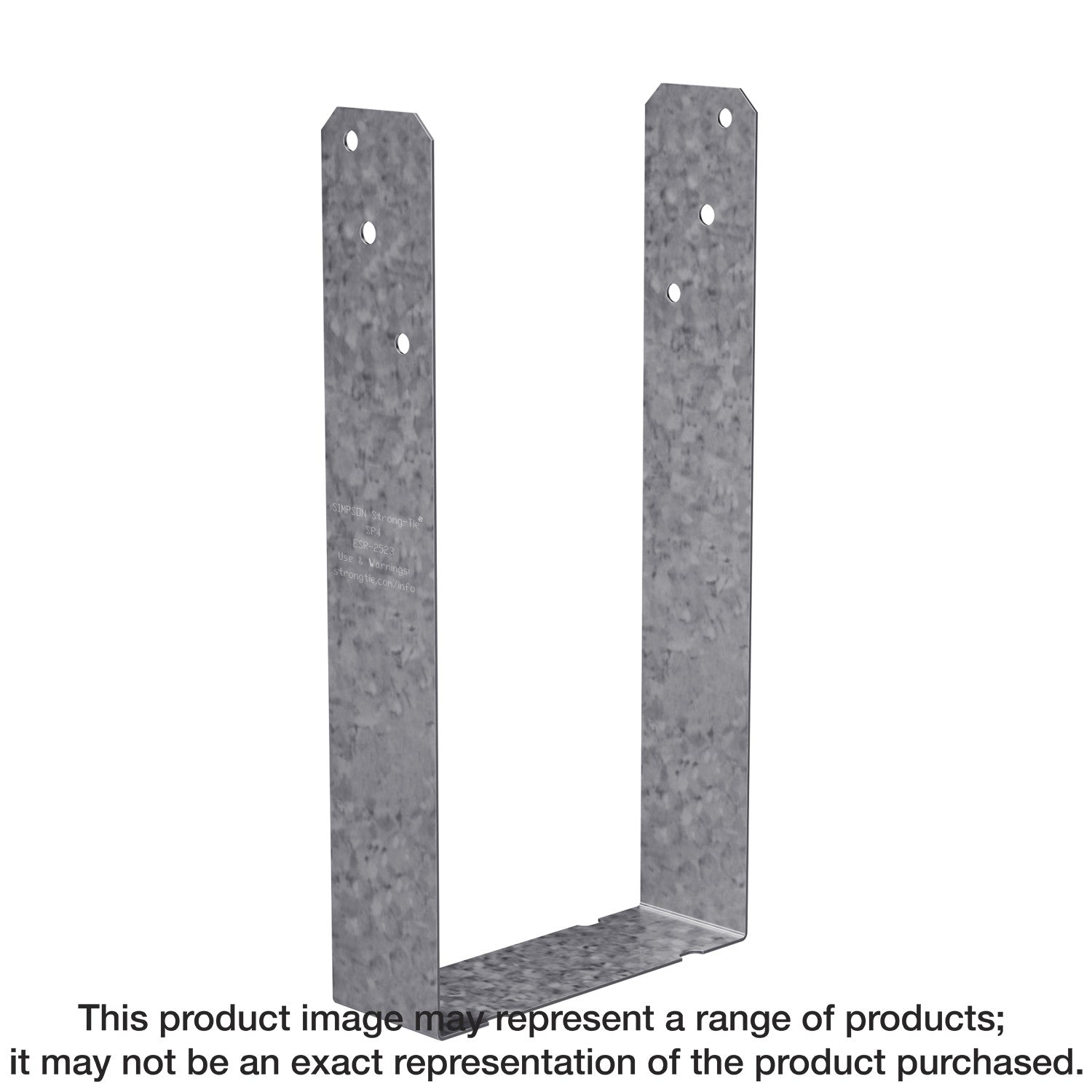

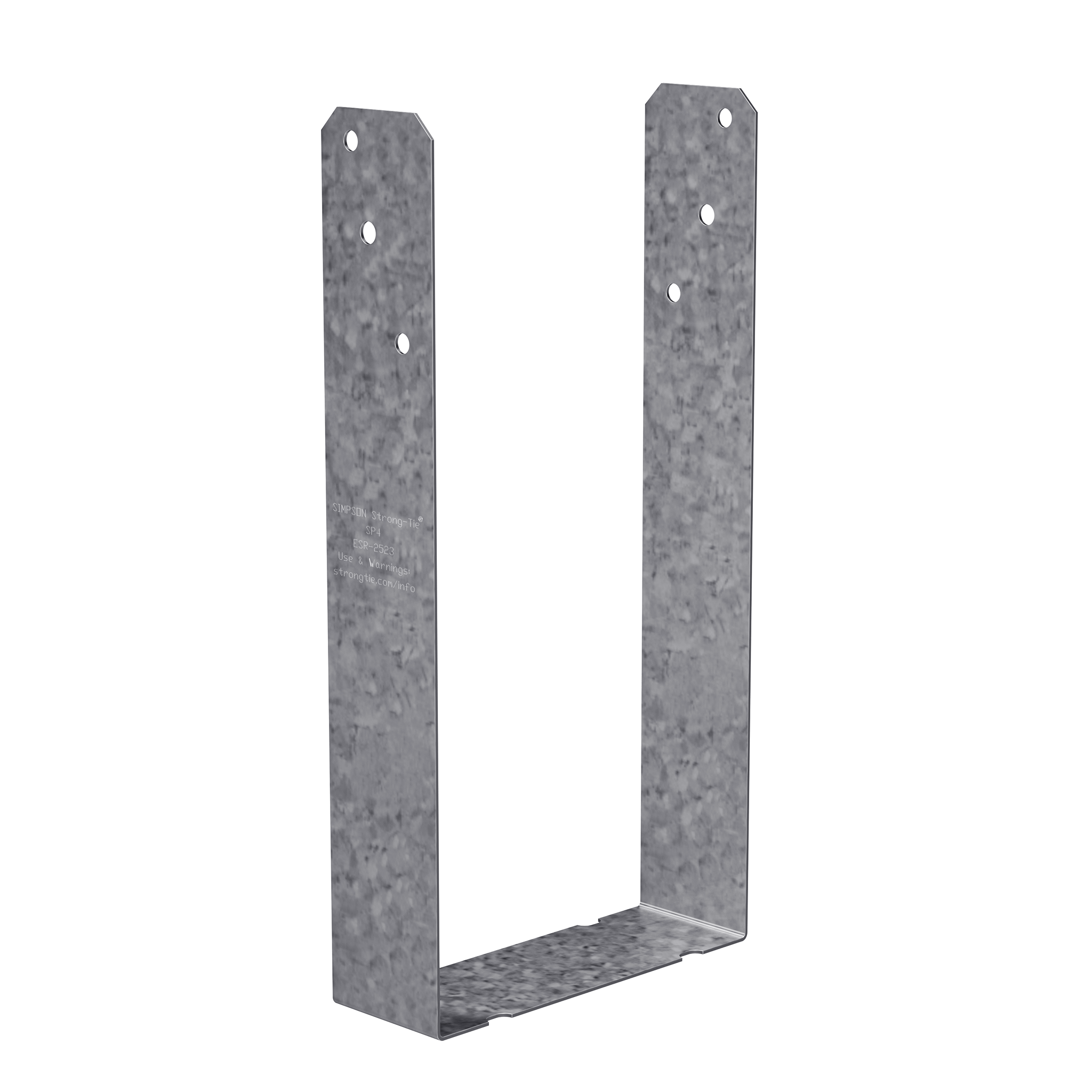

The stud-plate tie series offers various solutions for connecting the stud to the top and bottom plates. The SP is designed as a stud-to-plate connection to resist uplift. This U-shaped strap has a horizontal portion that bears against the wood-wall top plates or sill plates and two vertical legs that are nailed to the edges of a wood stud. These ties are a cost-effective option when properly installed before the placement of the wall.

Ask a Question
Specifications

Simpson Strong-Tie SP6Z

•Load rated
•Designed to resist wind and seismic forces
•Does not require top or bottom track attachment
•Nominal stud size: 2x
•Nominal plate width: 6x
•Made from 20-gauge steel
•ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications



Description

Simpson Strong-Tie SP6Z

The stud-plate tie series offers various solutions for connecting the stud to the top and bottom plates. The SP is designed as a stud-to-plate connection to resist uplift. This U-shaped strap has a horizontal portion that bears against the wood-wall top plates or sill plates and two vertical legs that are nailed to the edges of a wood stud. These ties are a cost-effective option when properly installed before the placement of the wall.
