Simpson Strong-Tie SPH6Z SPH 5-9/16 in. x 9-1/4 in. ZMAX® Galvanized Heavy-Duty Stud Plate Tie

$9.39

MPN: SPH6Z

Brand: Simpson Strong-Tie
Barcode: 707392337201
Availability : Limited Stock Out of stock
Add to Wishlist

Minimum order quantity is .

Maximum order quantity is .
The product can be bought in quantity increments of .

Simpson Strong-Tie SPH6Z

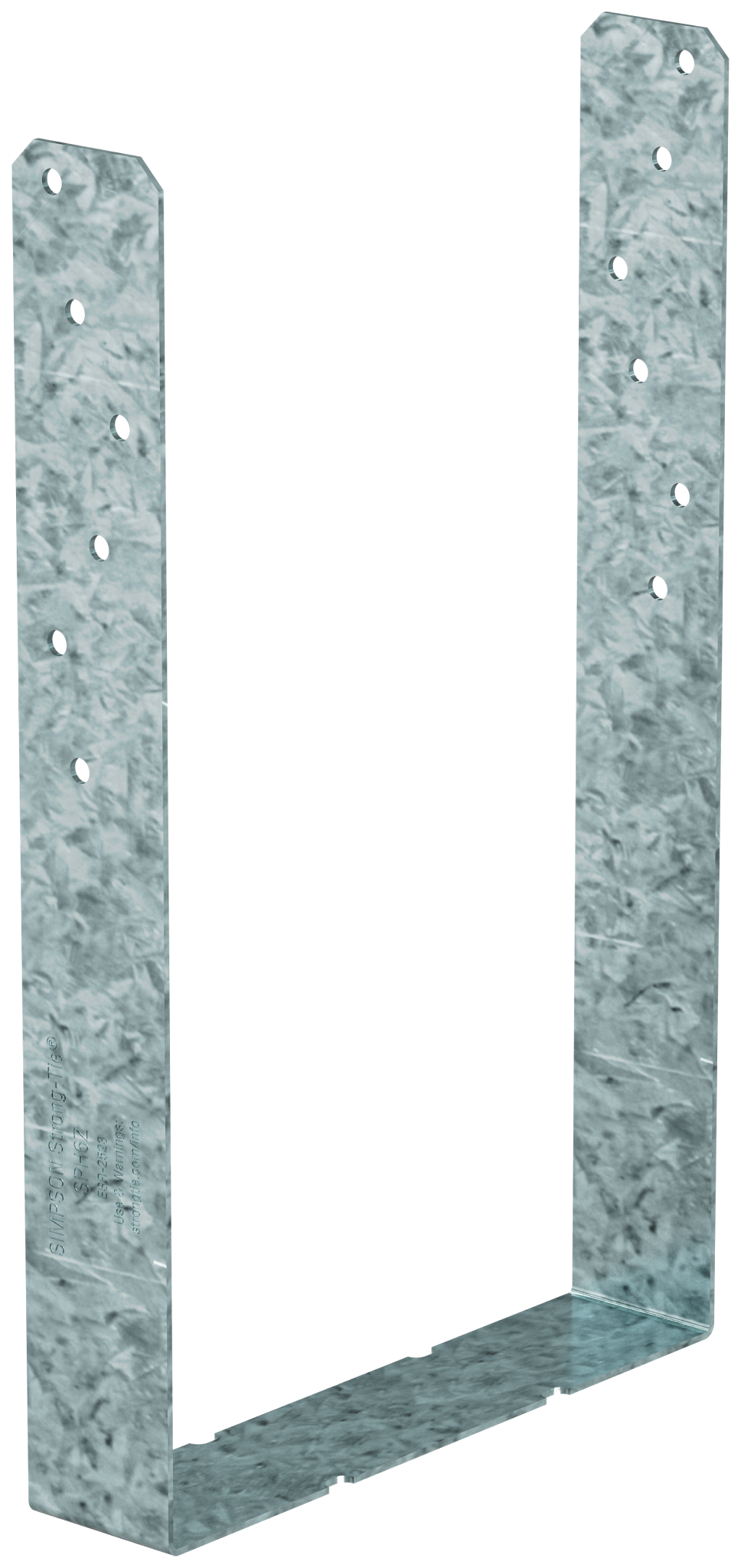

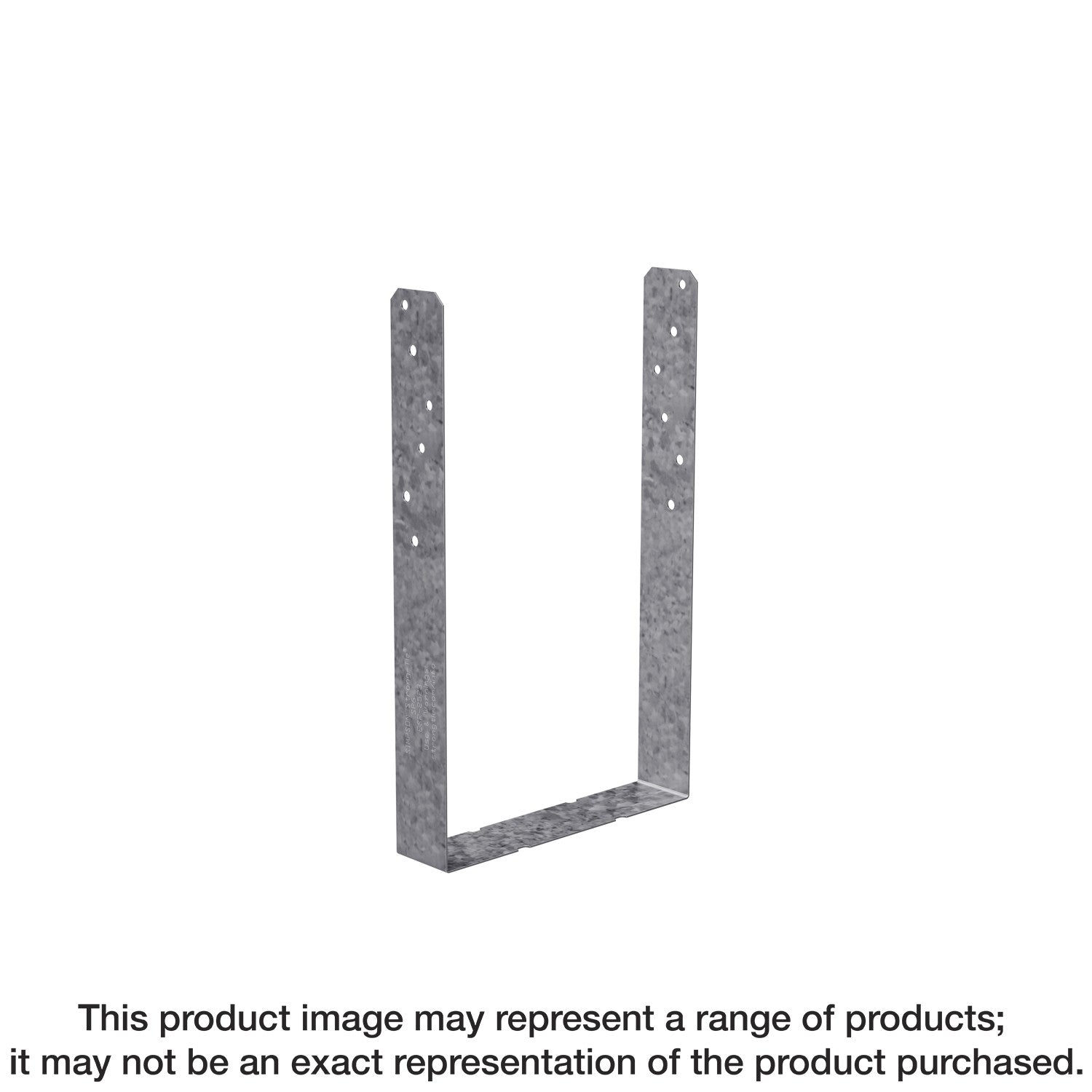

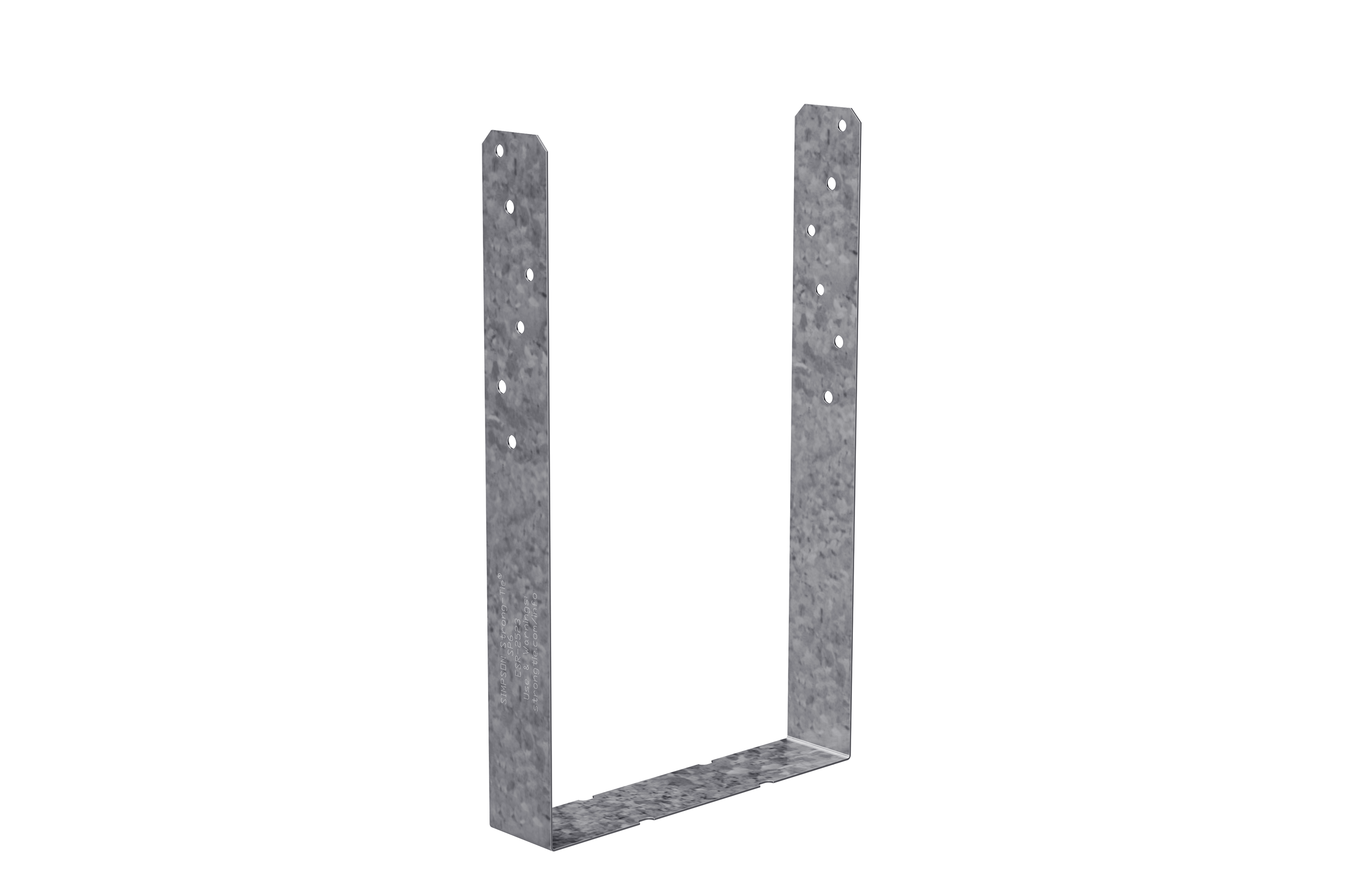

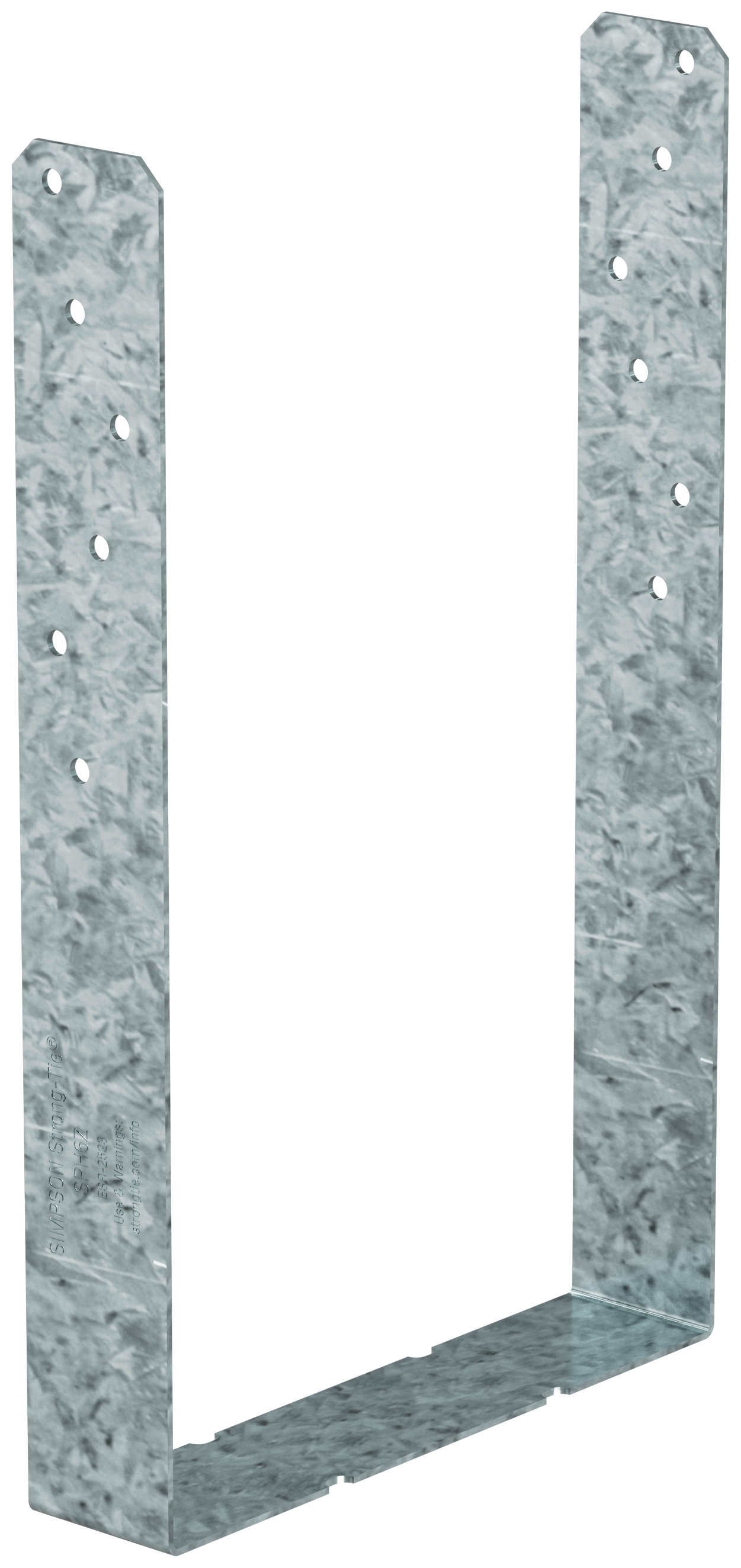

The SPH is a heavy U-shaped strap designed as a stud-to-plate connection to resist roof uplift. This heavy U-shaped strap has a horizontal portion that bears against the wood wall top plates or sill plates and two vertical legs that are nailed to the edges of a wood stud. This tie is a cost-effective option when properly installed before the placement of the wall.

Ask a Question
Specifications

Simpson Strong-Tie SPH6Z

•Load rated
•Designed to resist wind and seismic forces
•Does not require top or bottom track attachment
•Nominal stud size: 2x
•Nominal plate width: 6x
•Made from 18-gauge steel
•ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications



Description

Simpson Strong-Tie SPH6Z

The SPH is a heavy U-shaped strap designed as a stud-to-plate connection to resist roof uplift. This heavy U-shaped strap has a horizontal portion that bears against the wood wall top plates or sill plates and two vertical legs that are nailed to the edges of a wood stud. This tie is a cost-effective option when properly installed before the placement of the wall.
