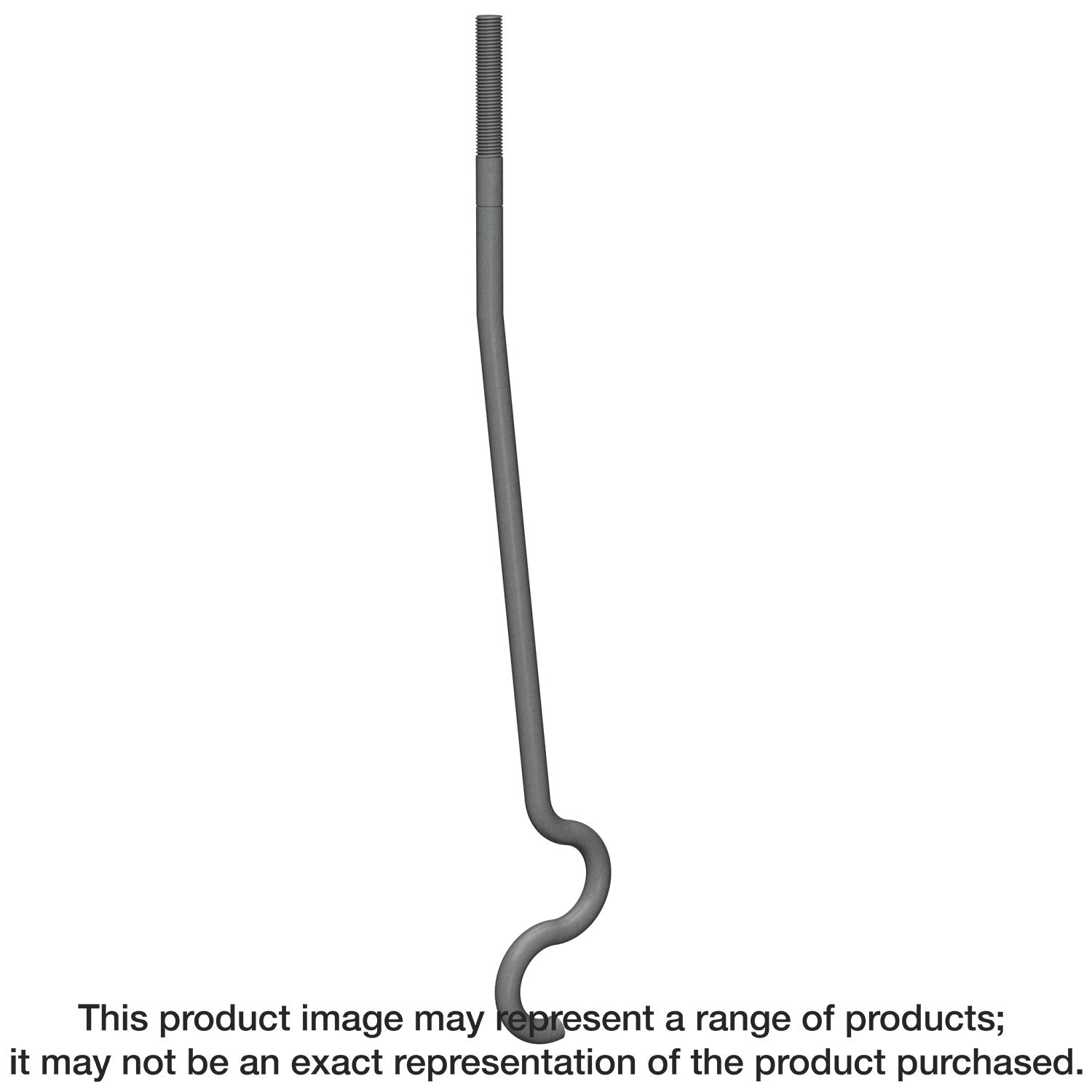

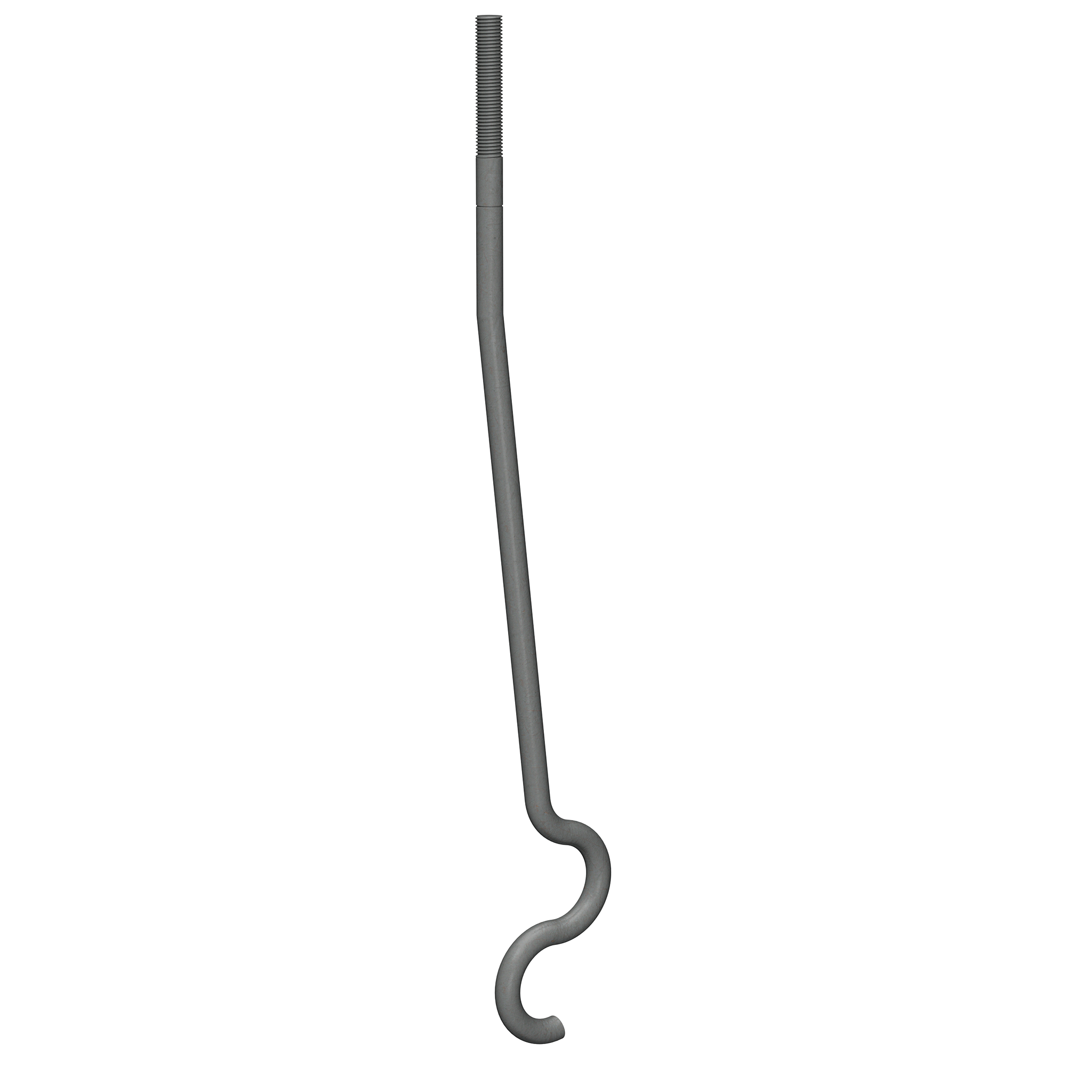

Simpson Strong-Tie SSTB28LHDG SSTB 7/8 in. x 32-7/8 in. Hot-Dip Galvanized Anchor Bolt

$73.94

MPN: SSTB28LHDG

Brand: Simpson Strong-Tie
Barcode: 707392735502
Availability : Limited Stock Out of stock

Type: Other

Other

Length: 32-7/8 In.

32-7/8 In.
Add to Wishlist

Minimum order quantity is .

Maximum order quantity is .
The product can be bought in quantity increments of .

Simpson Strong-Tie SSTB28LHDG

The SSTB anchor bolt is designed for maximum performance as an anchor bolt for holdowns and Simpson Strong-Tie® Strong-Wall® shearwalls. Extensive testing has been done to determine the design load capacity of the SSTB when installed in many common applications. The Simpson Strong-Tie SSTB anchor bolts are code listed by ICC-ES under the 2012, 2015, 2018 and 2021 IBC® and IRC®.

Ask a Question
Specifications

Simpson Strong-Tie SSTB28LHDG

•Identification on the bolt head showing embedment angle and model
•Offset angle reduces side bursting, and provides more concrete cover
•Rolled thread for higher tensile capacity
•Stamped embedment line aids installation
•SSTB is suitable for monolithic and two-pour concrete applications
•Diameter: 7/8 in.
•Length: 32-7/8 in.
•Thread Length: 6-1/2 in.
•Material: ASTM F-1554, Grade 36
•Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications

Description

Simpson Strong-Tie SSTB28LHDG

The SSTB anchor bolt is designed for maximum performance as an anchor bolt for holdowns and Simpson Strong-Tie® Strong-Wall® shearwalls. Extensive testing has been done to determine the design load capacity of the SSTB when installed in many common applications. The Simpson Strong-Tie SSTB anchor bolts are code listed by ICC-ES under the 2012, 2015, 2018 and 2021 IBC® and IRC®.

Additional Information
Type

Other
Length

32-7/8 In.
