Simpson Strong-Tie STB2-62100S6F10 Strong-Bolt® 2 — 5/8 in. x 10 in. Type 316 Stainless-Steel Wedge Anchor, Fully Assembled (10-Qty)

$399.86

MPN: STB2-62100S6F10

Brand: Simpson Strong-Tie
Barcode: 707392030928
Availability : Limited Stock Out of stock

Type: Wedge

Wedge

Length: 10 In.

10 In.
Add to Wishlist

Minimum order quantity is .

Maximum order quantity is .
The product can be bought in quantity increments of .

Simpson Strong-Tie STB2-62100S6F10

The Simpson Strong-Tie® Strong-Bolt® 2 wedge-type expansion anchor is an optimal choice for high-performance even in seismic and high-wind conditions. Dual undercutting embossments on each clip segment enable secondary expansion should a crack form and intersect the anchor location; this feature significantly increases the ability of Strong-Bolt 2 to carry load if the hole expands. The Strong-Bolt 2 stainless-steel wedge anchor offers long-lasting corrosion resistance for a wide variety of service environments.

WARNING! This product can expose you to chemicals including crystalline silica which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Ask a Question
Specifications

Simpson Strong-Tie STB2-62100S6F10

•Code listed for cracked and uncracked concrete applications

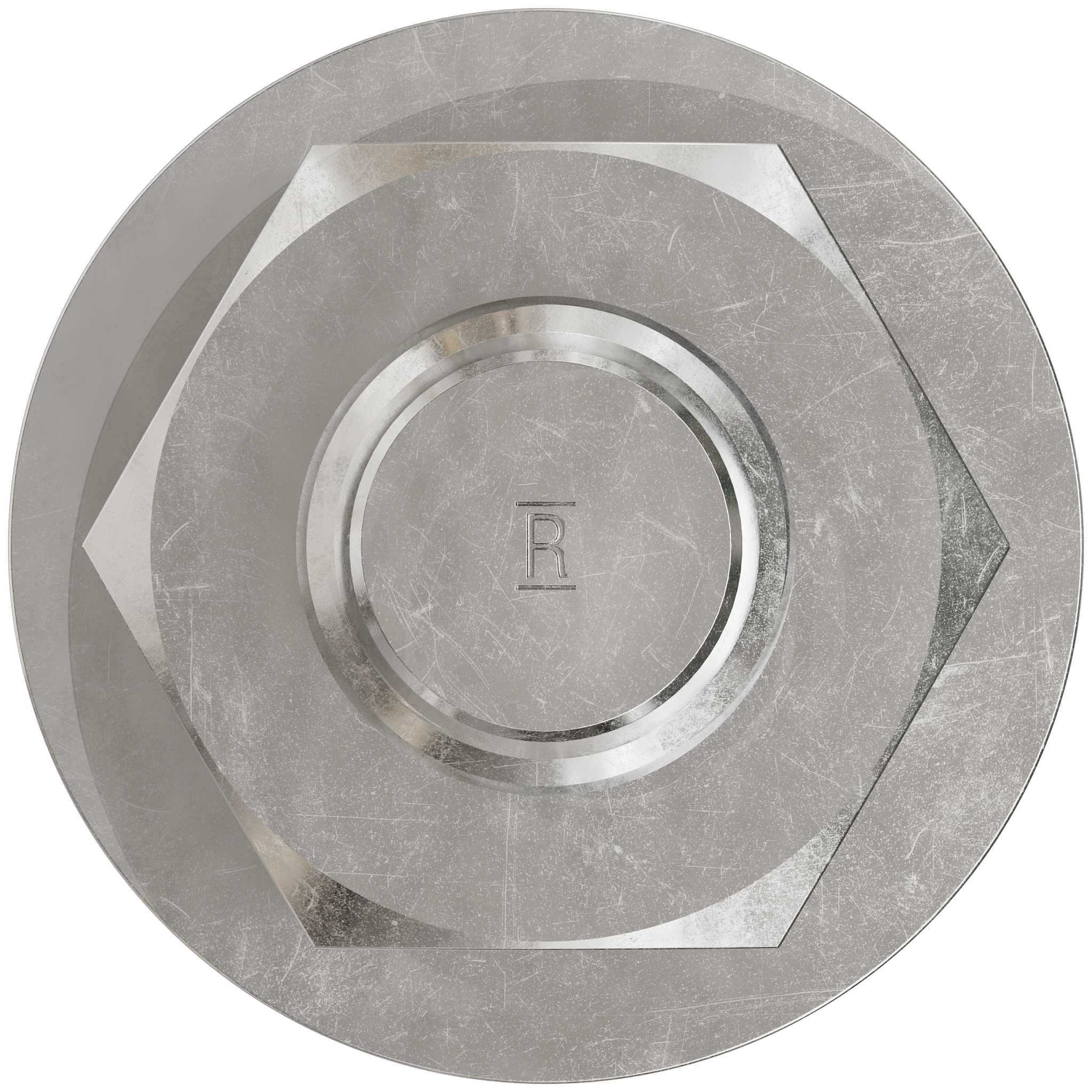

•Chamfered top designed to prevent mushrooming during installation
•Qualified for static and seismic loading conditions (seismic design categories A through F)
•Suitable for horizontal, vertical and overhead applications
•Standard (ANSI) fractional sizes: fits standard fixtures and installs with common drill bit and tool sizes
•Tested per ACI355.2 and AC193
•Size: 5/8 in. x 10 in.
•Made from Type 316 stainless steel for long-lasting corrosion resistance
•Quantity: 10 per package

Description

Simpson Strong-Tie STB2-62100S6F10

The Simpson Strong-Tie® Strong-Bolt® 2 wedge-type expansion anchor is an optimal choice for high-performance even in seismic and high-wind conditions. Dual undercutting embossments on each clip segment enable secondary expansion should a crack form and intersect the anchor location; this feature significantly increases the ability of Strong-Bolt 2 to carry load if the hole expands. The Strong-Bolt 2 stainless-steel wedge anchor offers long-lasting corrosion resistance for a wide variety of service environments.

Additional Information
Type

Wedge
Length

10 In.
