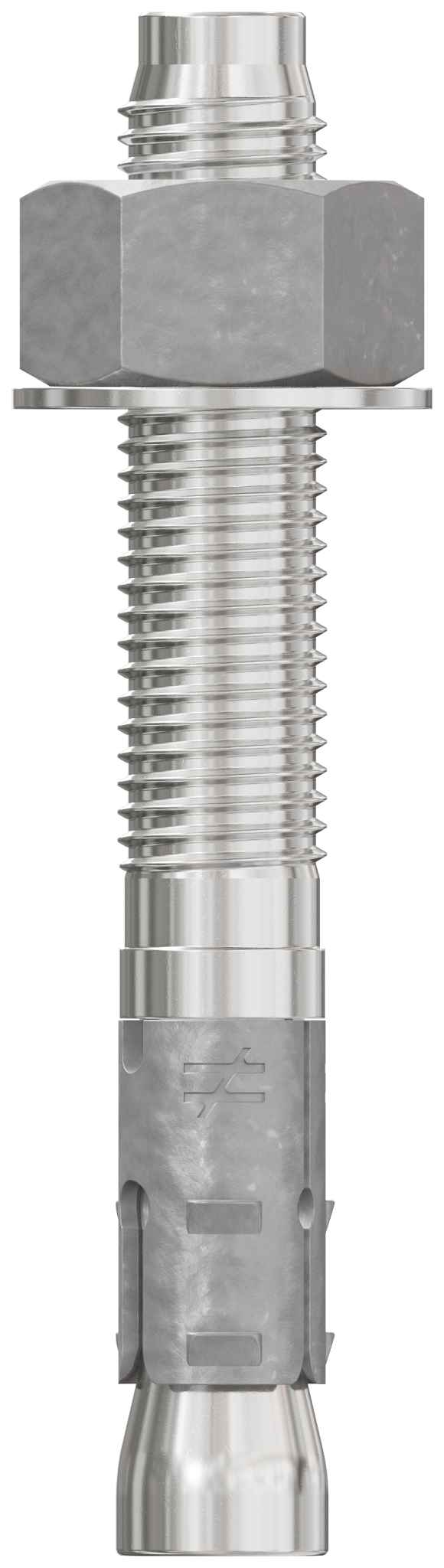

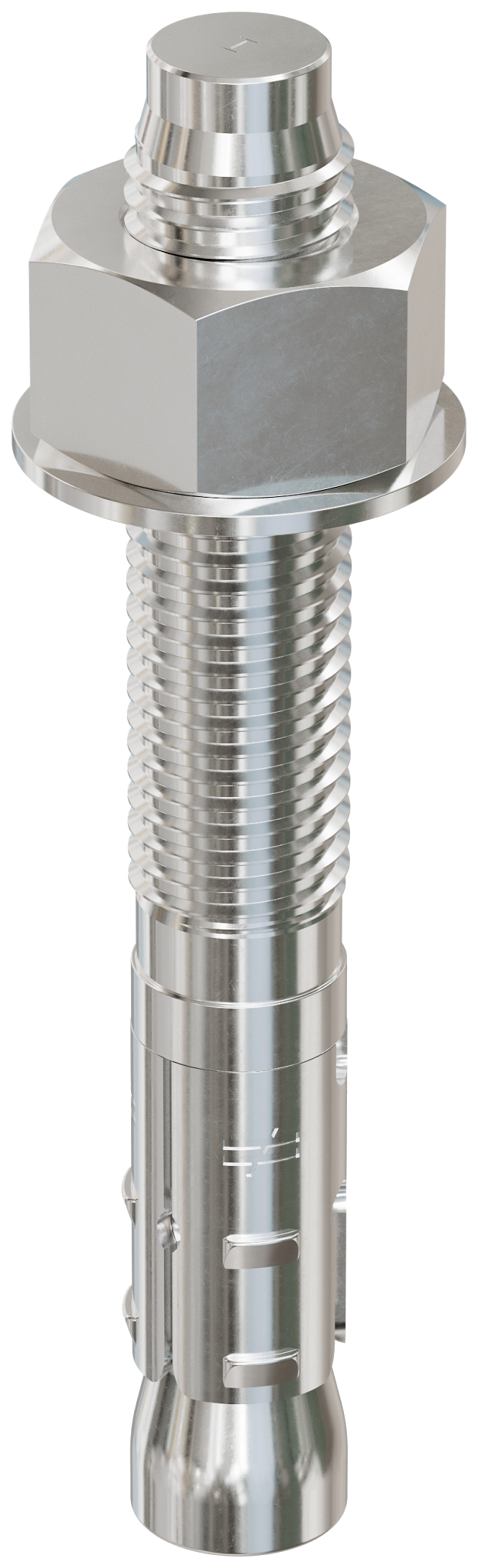

Simpson Strong-Tie STB2-75512S4F10 Strong-Bolt® 2 — 3/4 in. x 5-1/2 in. Type 304 Stainless-Steel Wedge Anchor, Fully Assembled (10-Qty)

Simpson Strong-Tie STB2-75512S4F10

•Code listed for cracked and uncracked concrete applications

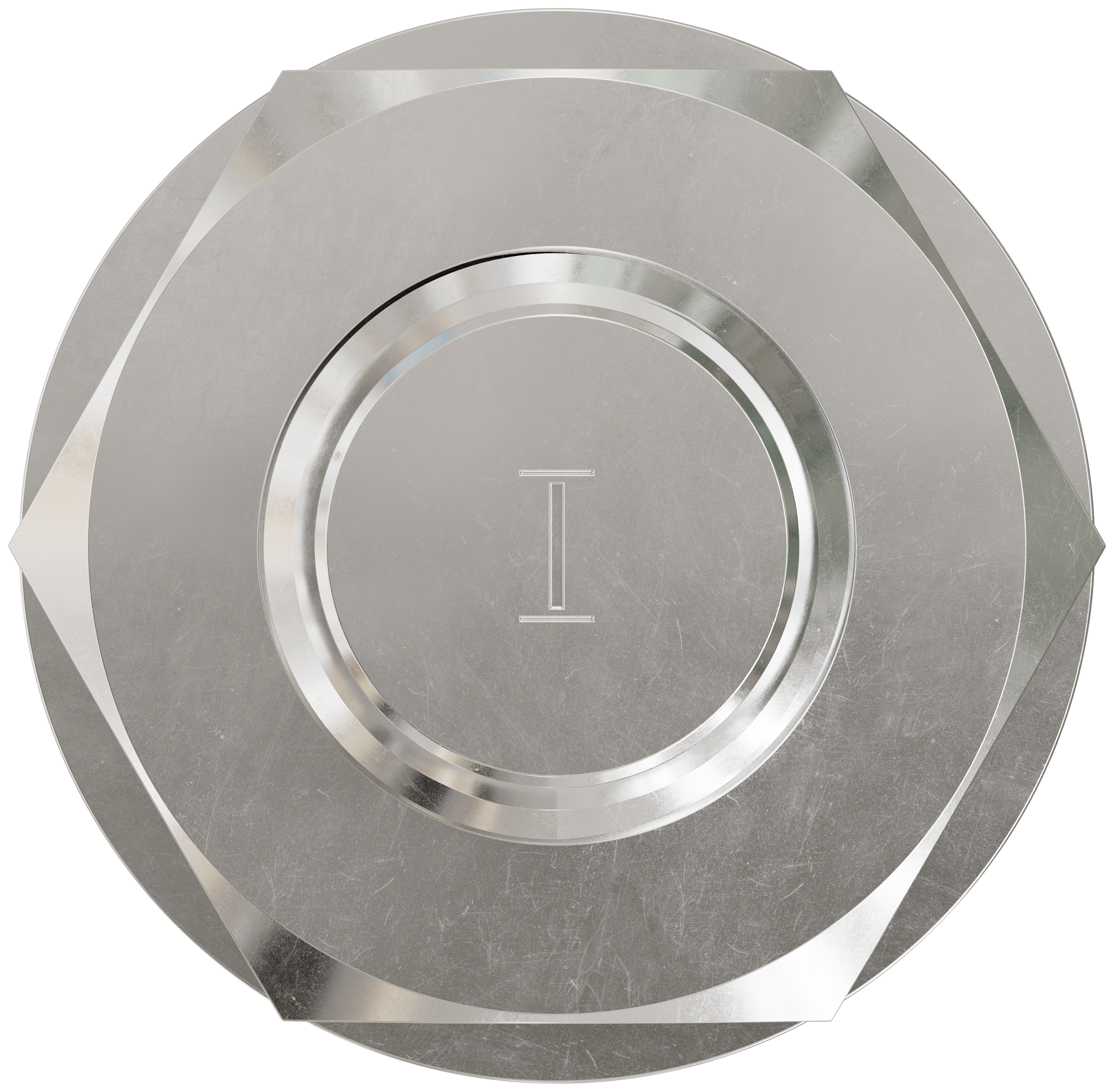

•Chamfered top designed to prevent mushrooming during installation
•Qualified for static and seismic loading conditions (seismic design categories A through F)
•Suitable for horizontal, vertical and overhead applications
•Standard (ANSI) fractional sizes: fits standard fixtures and installs with common drill bit and tool sizes
•Tested per ACI355.2 and AC193
•Size: 3/4 in. x 5-1/2 in.
•Made from Type 304 stainless steel for long-lasting corrosion resistance
•Quantity: 10 per package

Simpson Strong-Tie STB2-75512S4F10

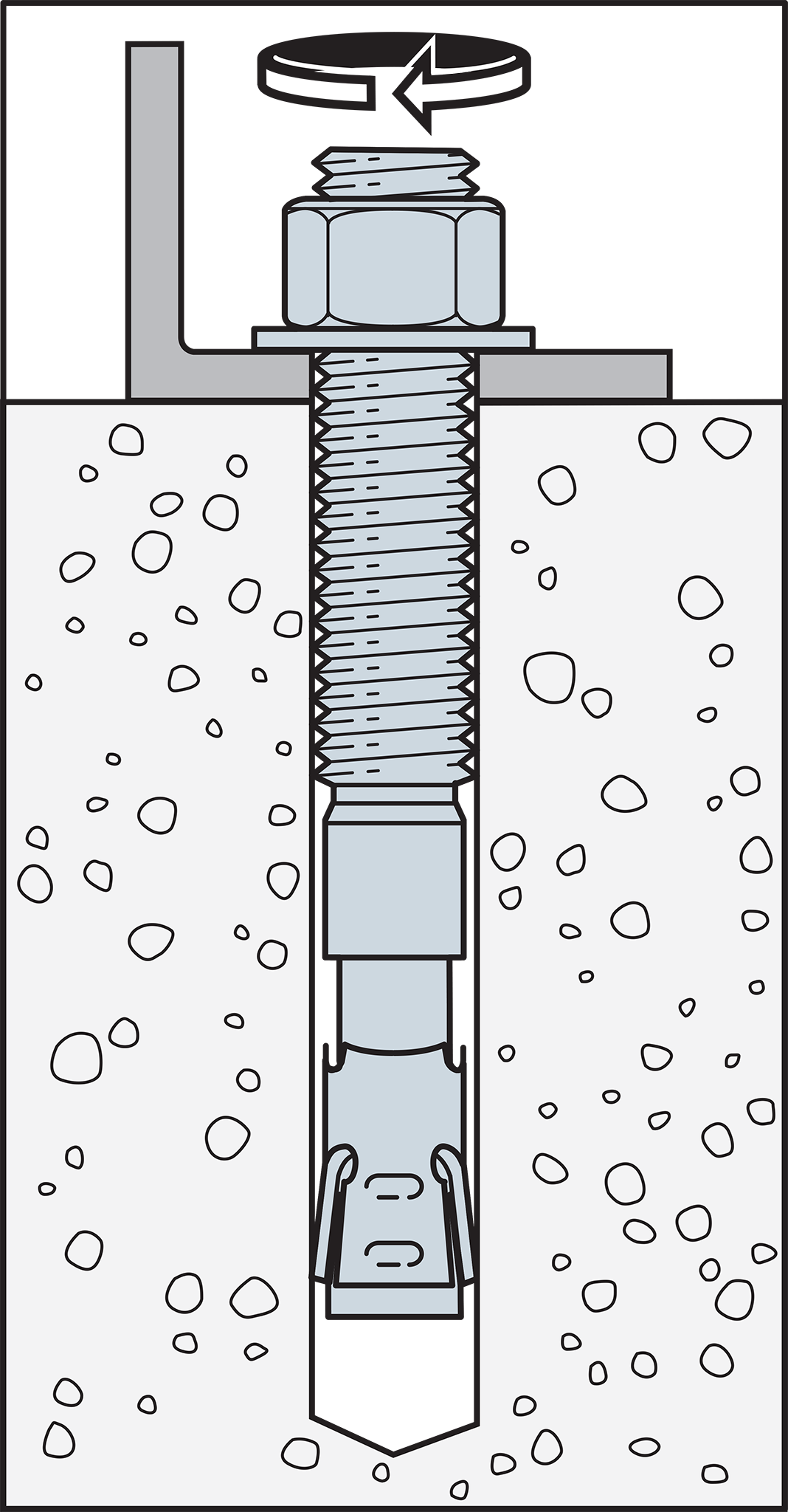

The Simpson Strong-Tie® Strong-Bolt® 2 wedge-type expansion anchor is an optimal choice for high-performance even in seismic and high-wind conditions. Dual undercutting embossments on each clip segment enable secondary expansion should a crack form and intersect the anchor location; this feature significantly increases the ability of Strong-Bolt 2 to carry load if the hole expands. The Strong-Bolt 2 stainless-steel wedge anchor offers long-lasting corrosion resistance for a wide variety of service environments.
