Simpson Strong-Tie STHD14 STHD 26-1/8 in. 12-Gauge Galvanized Strap-Tie Holdown

$32.53

MPN: STHD14

Brand: Simpson Strong-Tie
Barcode: 044315576003
Availability : Limited Stock Out of stock

Type: Holdown

Holdown
Add to Wishlist

Minimum order quantity is .

Maximum order quantity is .
The product can be bought in quantity increments of .

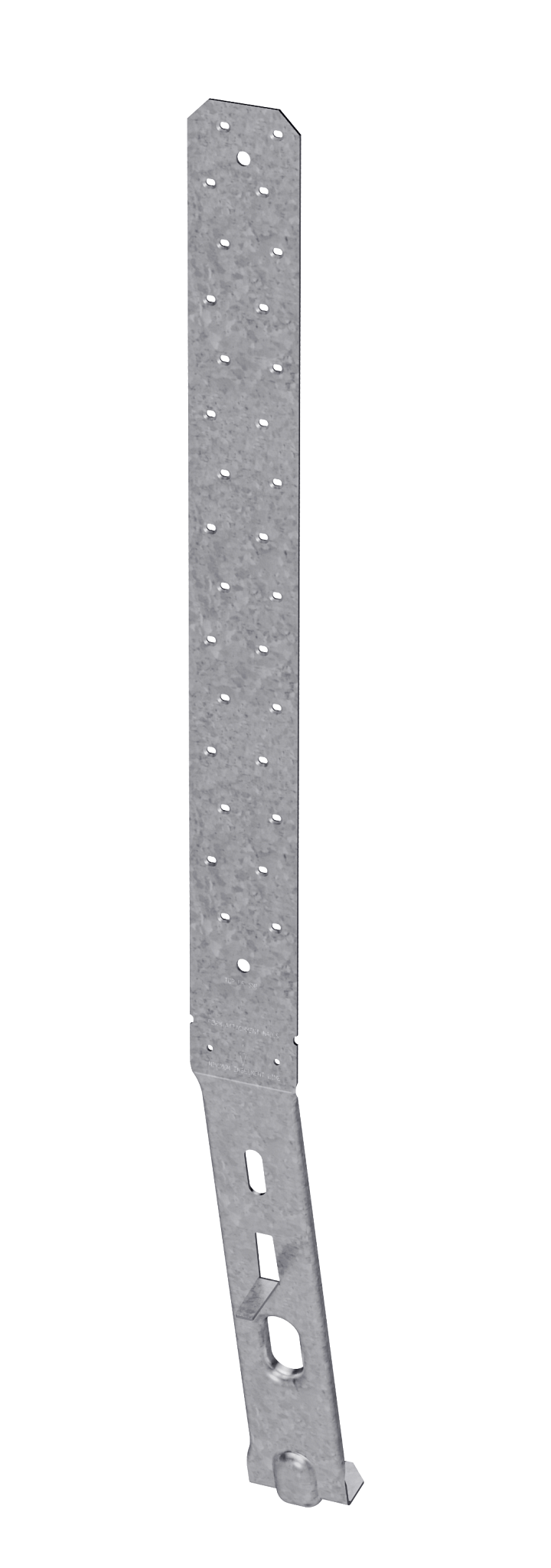

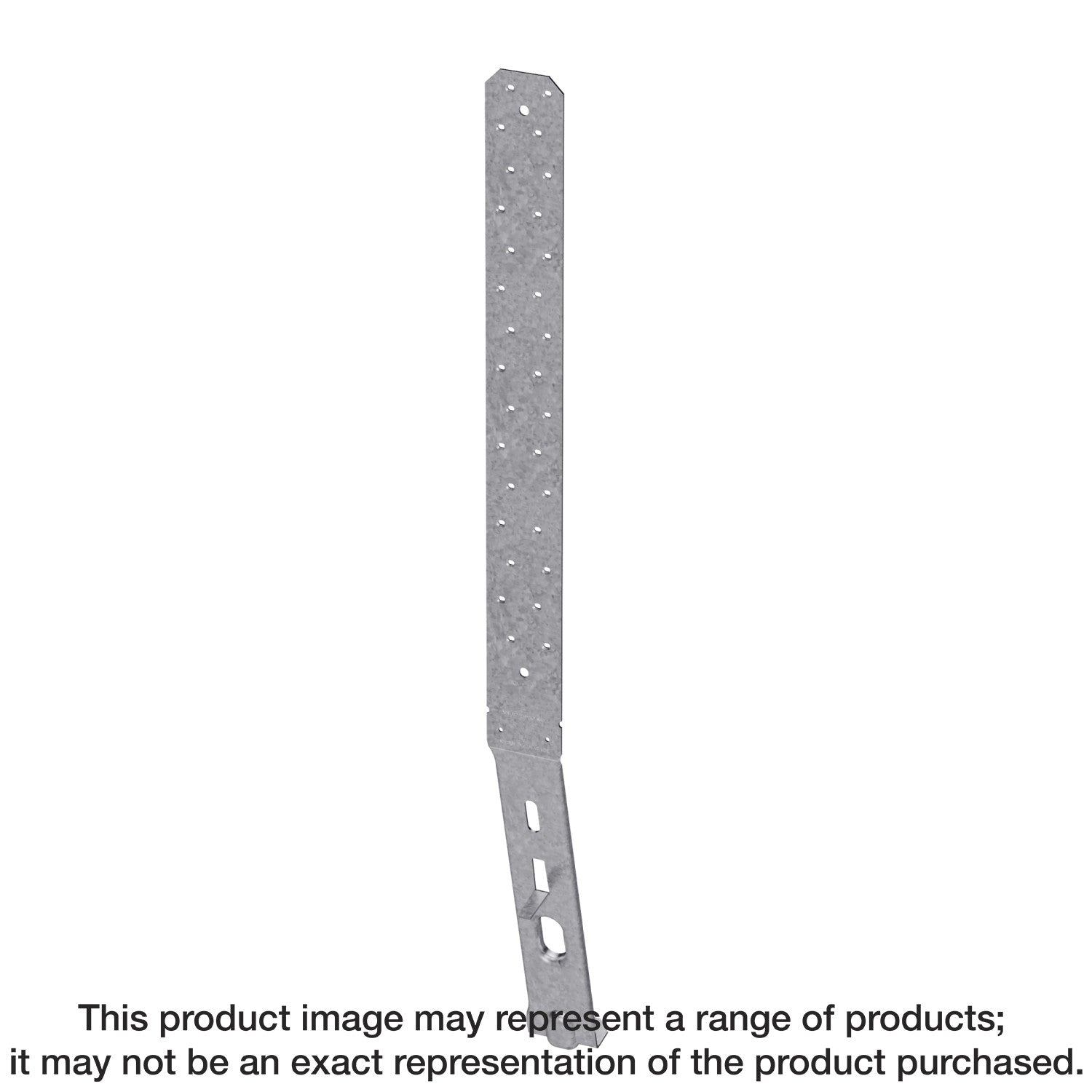

Simpson Strong-Tie STHD14

The STHD is an embedded strap-tie holdown offering high load capacity and a staggered nail pattern to help minimize splitting. The STHD incorporates many features that aid correct installation and improve performance. When installed on the forms with the StrapMate® strap holder the unique design of the STHD delivers enhanced stability before and during the pour to help prevent both parallel and perpendicular movement.

Ask a Question
Specifications

Simpson Strong-Tie STHD14

•The nailing pattern allows for nailing to the edges of double 2x's
•Strap nail slots are countersunk to provide a lower nail head profile
•The slots below the embedment line enable increased front-to-back concrete bond and help to reduce spalling
•Standard strap length: 26-1/8 in.
•Made from 12-gauge steel
•Galvanized (G90) for extra corrosion resistance




Description

Simpson Strong-Tie STHD14

The STHD is an embedded strap-tie holdown offering high load capacity and a staggered nail pattern to help minimize splitting. The STHD incorporates many features that aid correct installation and improve performance. When installed on the forms with the StrapMate® strap holder the unique design of the STHD delivers enhanced stability before and during the pour to help prevent both parallel and perpendicular movement.

Additional Information
Type

Holdown
