Simpson Strong-Tie THAI3522 THAI Galvanized Adjustable Truss Hanger for 2-1/4 in. to 2-5/16 in. Engineered Wood

$24.90

MPN: THAI3522

Brand: Simpson Strong-Tie
Barcode: 044315018909
Availability : Limited Stock Out of stock

Type: Hanger

Hanger
Add to Wishlist

Minimum order quantity is .

Maximum order quantity is .
The product can be bought in quantity increments of .

Simpson Strong-Tie THAI3522

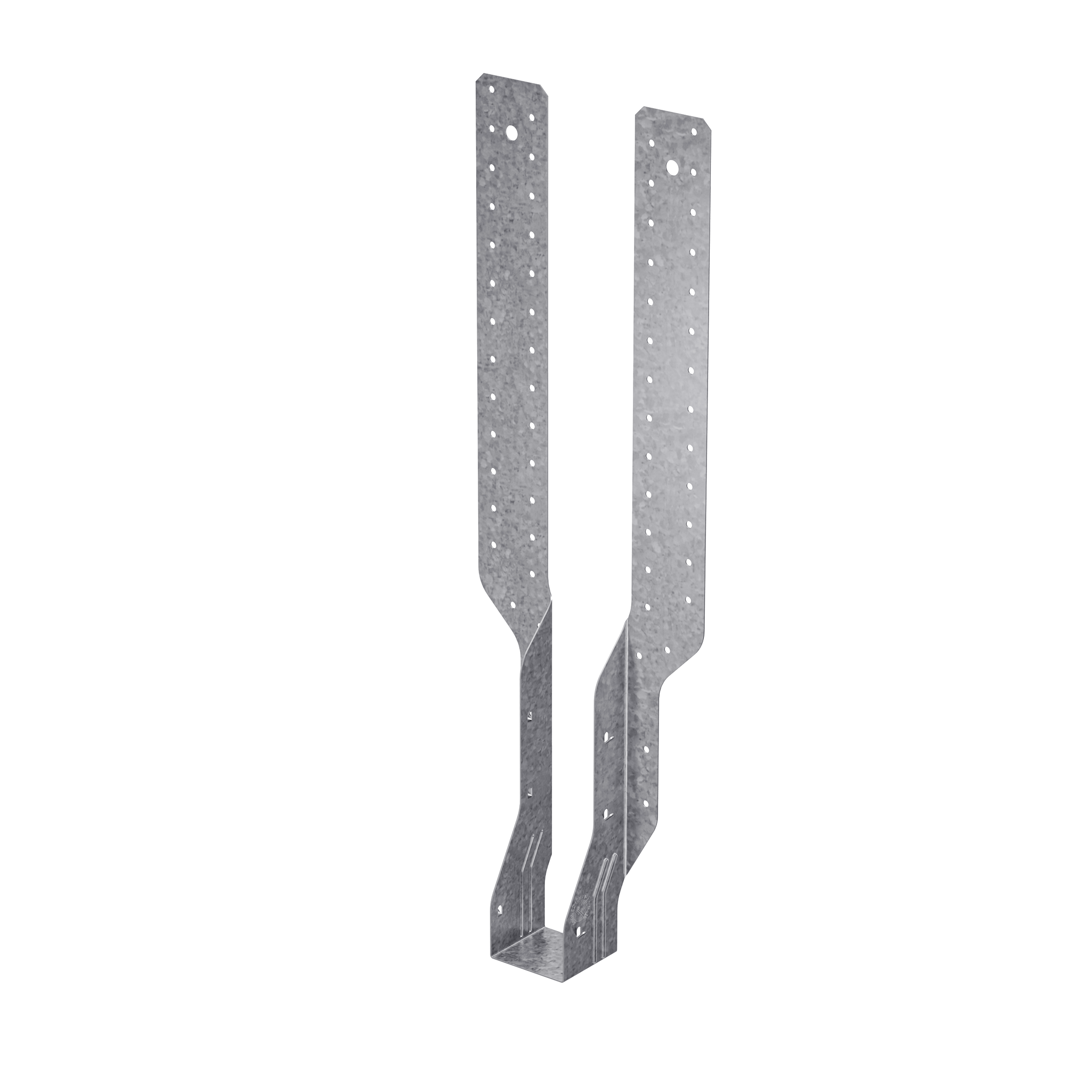

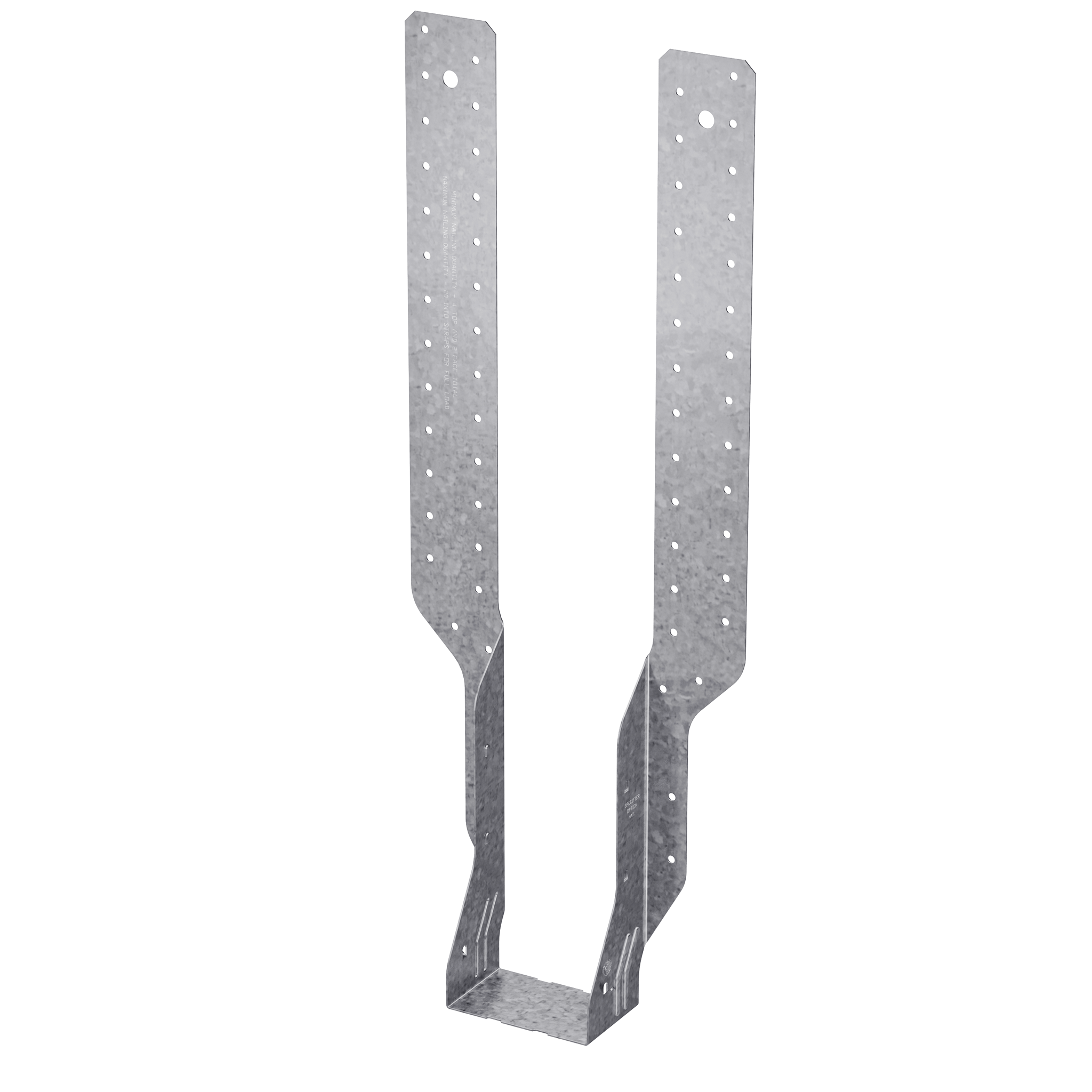

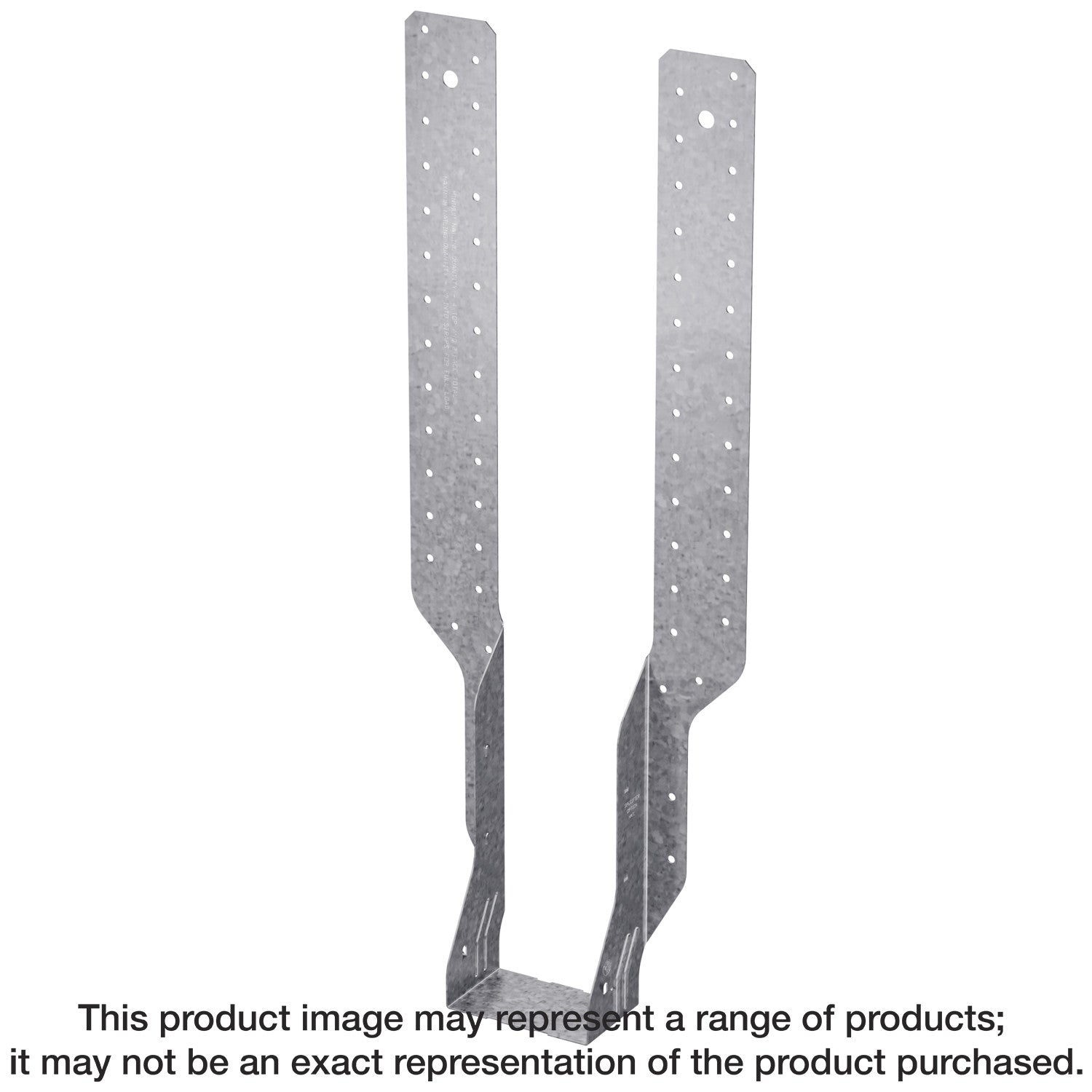

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. Designed for I-joists, the THAI has extra long straps and can be field-formed to give height adjustability and top-flange hanger convenience.

Ask a Question
Specifications

Simpson Strong-Tie THAI3522

•Positive-angle nailing (PAN) helps eliminate splitting of the I-joist's bottom flange
•Joist width: 2-1/4 in. to 2-5/16 in.
•Joist depth: 9-1/4 in. to 14 in.
•Seat width: 2-5/16 in.
•Made from 18-gauge steel
•Galvanized (G90) for extra corrosion resistance




Description

Simpson Strong-Tie THAI3522

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. Designed for I-joists, the THAI has extra long straps and can be field-formed to give height adjustability and top-flange hanger convenience.

Additional Information
Type

Hanger
