Simpson Strong-Tie WP11 WP Welded Top-Flange Joist Hanger for 1-3/4 in. x 11-7/8 in. Engineered Wood

$44.48

MPN: WP11

Brand: Simpson Strong-Tie
Barcode: 044315424700
Availability : Limited Stock Out of stock

Type: Hanger

Hanger
Add to Wishlist

Minimum order quantity is .

Maximum order quantity is .
The product can be bought in quantity increments of .

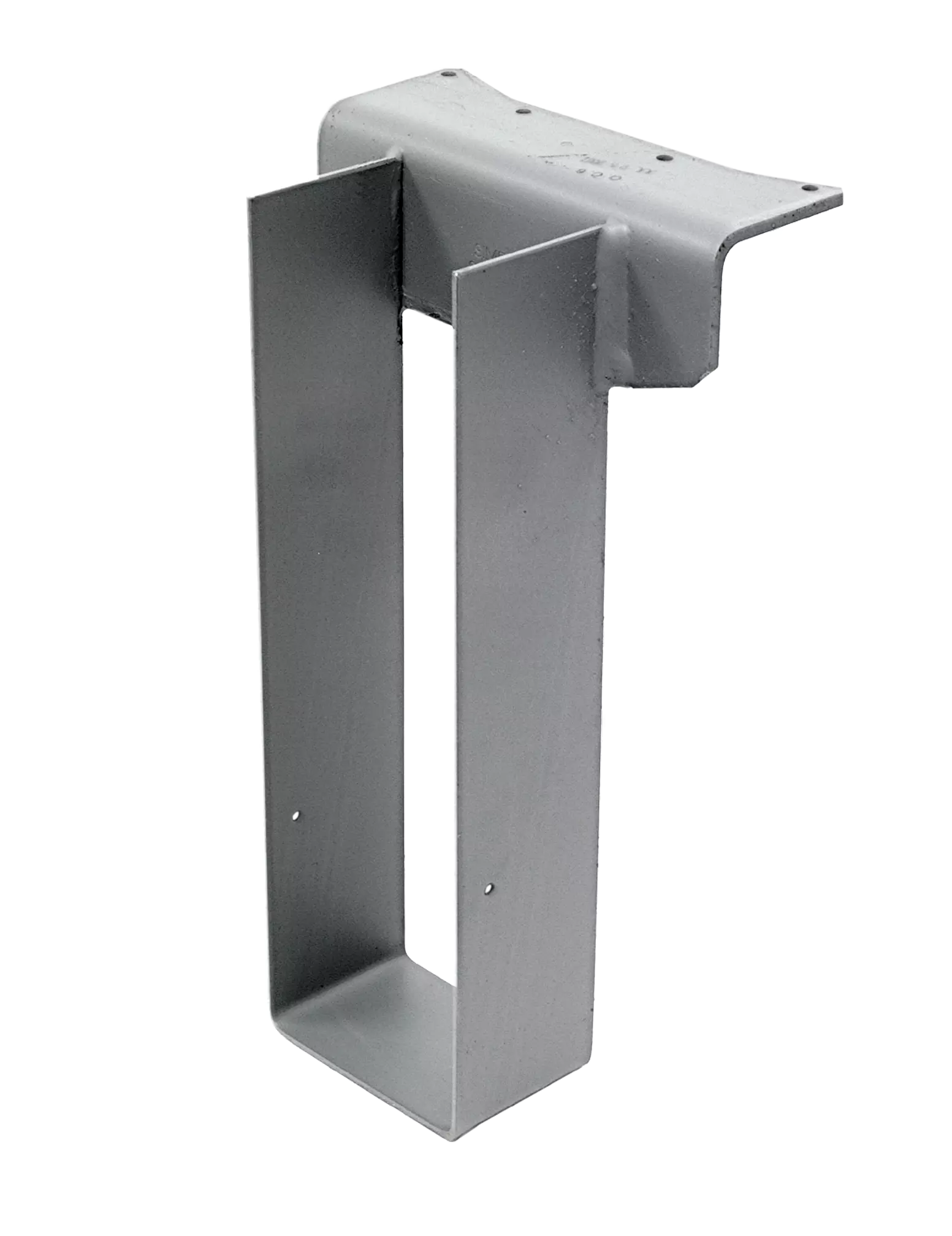

Simpson Strong-Tie WP11

The WP is designed to support joists on purlins or beams and may be used for wood-to-wood or wood-to-steel applications. This top-flange hanger offers exceptional flexibility and versatility with the ability to be skewed up to 84° and/or sloped to a maximum of 45°. The WP is an economical choice with a low installed cost requiring a small number of nails for maximum downloads.

Ask a Question
Specifications

Simpson Strong-Tie WP11

•Highly modifiable with alteration options including opened/closed top flange and offset top flange
•Top flange may be sloped to a maximum of 35° to accommodate a sloped header
•Features a solid one-piece top flange that provides extra stability in panelized roof applications
•Seat width: 1-13/16 in.
•Joist size: 1-3/4 in. x 11-7/8 in.
•Top flange made from 7-gauge steel; stirrup made from 12-gauge steel
•Simpson Strong-Tie gray paint



Description

Simpson Strong-Tie WP11

The WP is designed to support joists on purlins or beams and may be used for wood-to-wood or wood-to-steel applications. This top-flange hanger offers exceptional flexibility and versatility with the ability to be skewed up to 84° and/or sloped to a maximum of 45°. The WP is an economical choice with a low installed cost requiring a small number of nails for maximum downloads.

Additional Information
Type

Hanger
