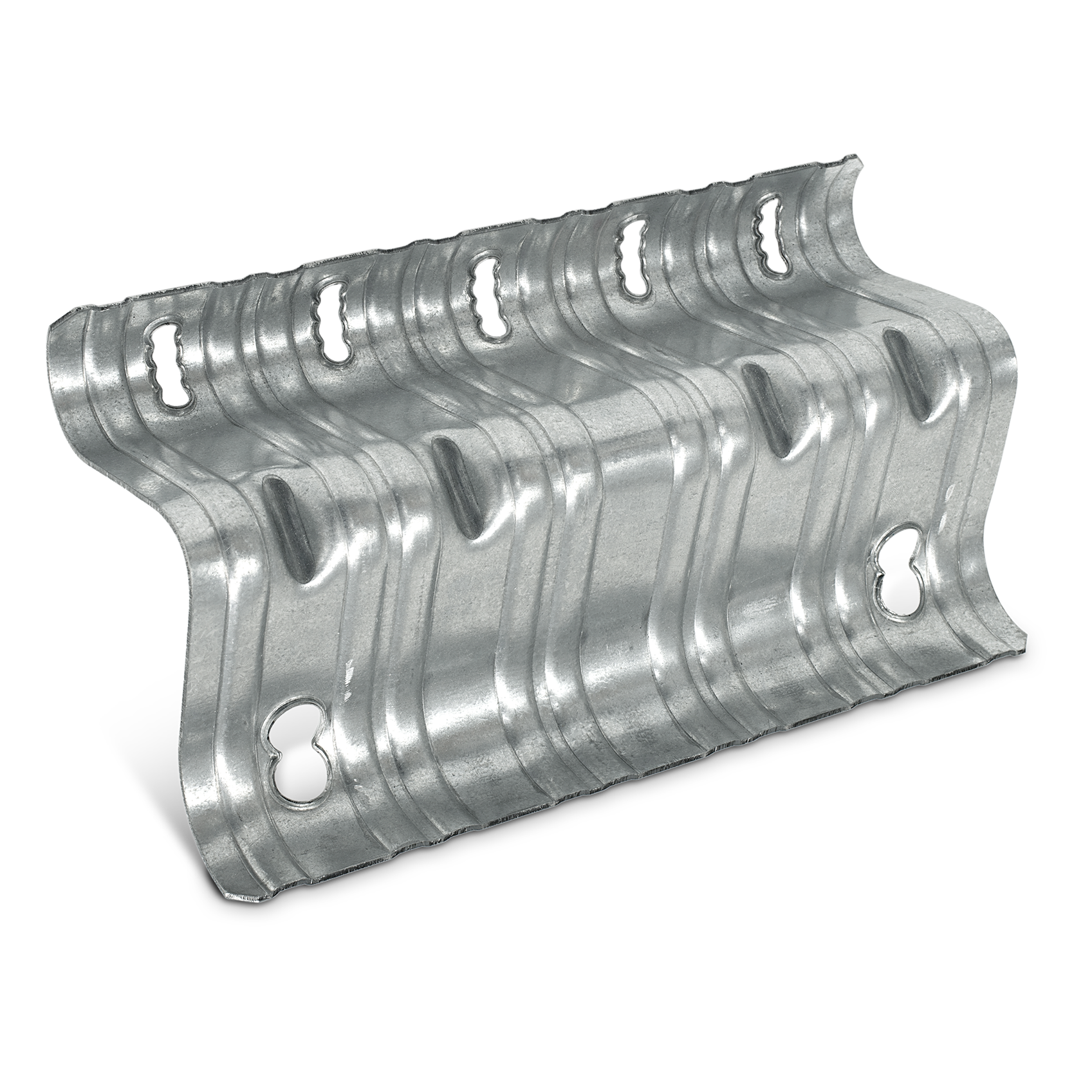

Simpson URFP-SDS3HDG URFP 10-5/8 in. x 6-1/4 in. HDG Universal Retro Foundation Plate with Screws

Simpson Strong-Tie URFP-SDS3HDG

•The higher strength of the new, stiffer design makes it a one-for-one replacement for a 1/2 in. or 5/8 in. diameter anchor bolt
•Suits a variety of foundation types and mudsill positions — from a 2-1/2 in. setback from the inside edge of the foundation to a 1/2 in. overhang (and everything in-between)
•Includes 1/4 in. x 3 in. Strong-Drive SDS Heavy-Duty Connector screws
•Width: 10-5/8 in.
•Height: 6-1/4 in.
•Made from 14-gauge steel
•Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications

Simpson Strong-Tie URFP-SDS3HDG

Ideal where there is minimum vertical clearance, the URFP universal retrofit foundation plate provides a retrofit method to secure the mudsill to the foundation. This design allows installation flexibility when the mudsill is offset or inset from the foundation edge. With its combination of longitudinal embossments, stiffening darts and scalloped slotted holes, the URFP allows for a one-for-one replacement of 1/2-in. or 5/8-in. mudsill anchors as well as fixity to both the SDS screws and required concrete anchorage.
