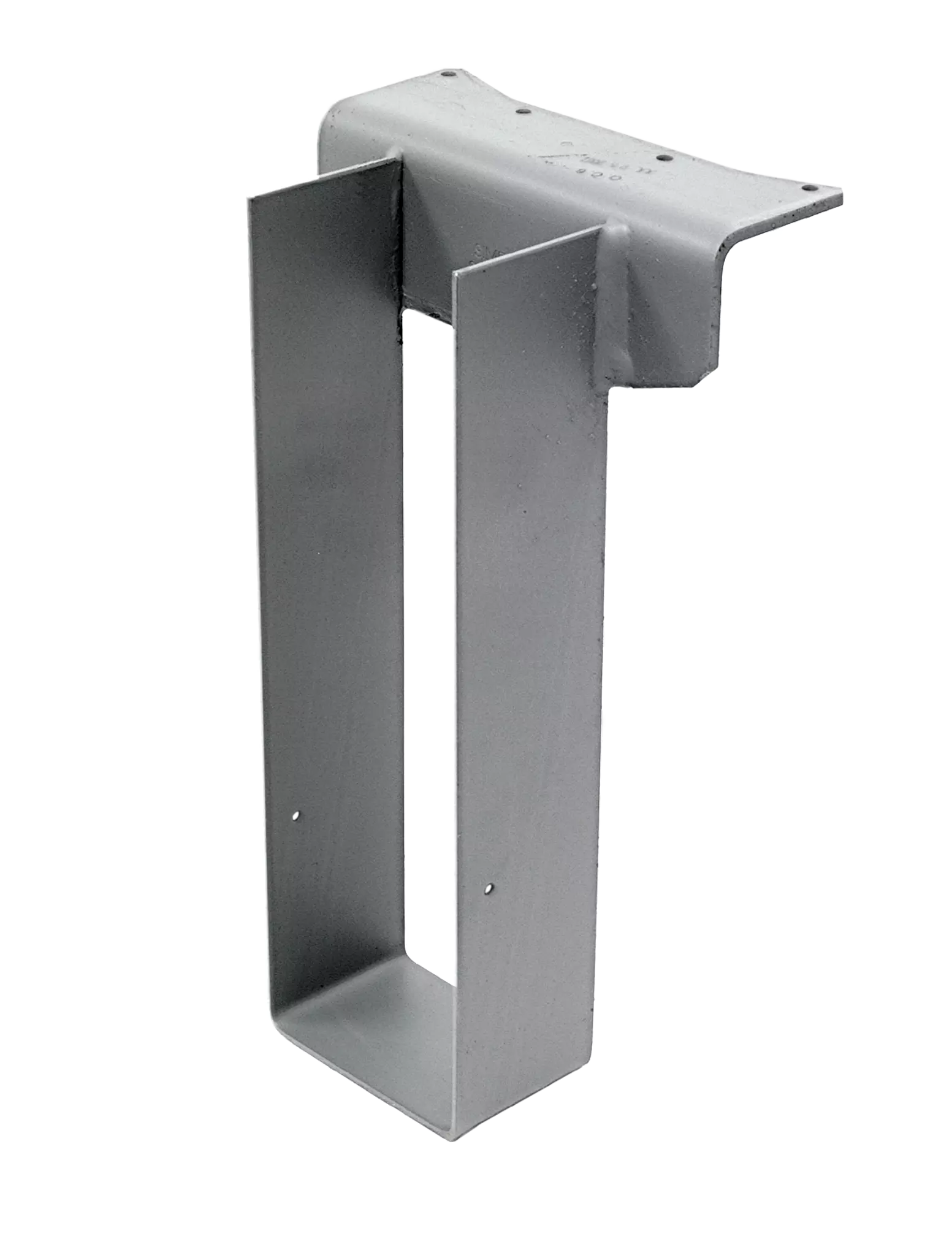

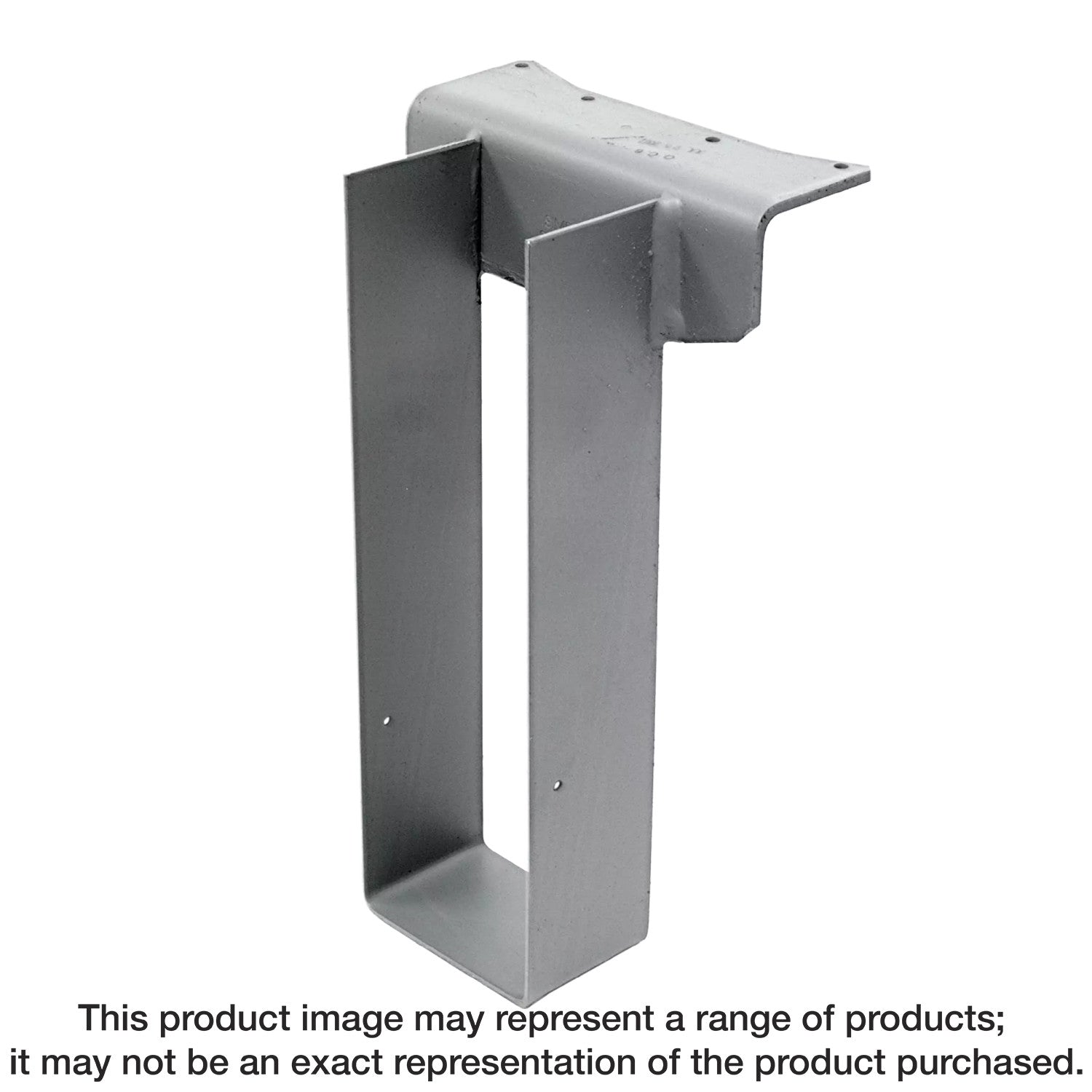

Simpson WP210-2 WP Welded Top-Flange Joist Hanger for Double 2x10
Simpson WP210-2 WP Welded Top-Flange Joist Hanger for Double 2x10
Simpson WP210-2 WP Welded Top-Flange Joist Hanger for Double 2x10

Simpson WP210-2 WP Welded Top-Flange Joist Hanger for Double 2x10

$39.16

MPN: WP210-2

Brand: Simpson Strong-Tie
Barcode: 707392003984
Availability : In Stock Pre order Out of stock

Type: Hanger

Hanger
Add to Wishlist

Minimum order quantity is .

Maximum order quantity is .
The product can be bought in quantity increments of .

left in stock.

Simpson WP210-2 WP Welded Top-Flange Joist Hanger for Double 2x10

Elevate your construction projects with the Simpson WP210-2 WP Welded Top-Flange Joist Hanger, engineered for maximum support and adaptability. This innovative joist hanger is perfect for both wood-to-wood and wood-to-steel applications, ensuring a robust and reliable connection wherever you need it.

Key Features:

  • Exceptional Flexibility: Designed to allow skewing up to 84°, making it suitable for various structural configurations.
  • Optimal Sloping: Capable of accommodating slopes up to 45°, enhancing its versatility across different projects.
  • Cost-Effective Solution: With a low installed cost and minimal nail requirements, the WP210-2 ensures maximum download capacity without breaking the bank.
  • Robust Design: Engineered to support joists on purlins or beams, providing the strength needed for reliable performance.

Choose the Simpson WP210-2 for your next project and experience the perfect blend of strength, versatility, and affordability. This top-flange joist hanger is your go-to solution for creating sturdy and dependable frameworks that stand the test of time.

Ask a Question
Specifications

Simpson Strong-Tie WP210-2

•Highly modifiable with alteration options including opened/closed top flange and offset top flange
•Top flange may be sloped to a maximum of 35° to accommodate a sloped header
•Features a solid one-piece top flange that provides extra stability in panelized roof applications
•Seat width: 3-1/8 in.
•Nominal joist size: Double 2x10
•Top flange made from 7-gauge steel; stirrup made from 12-gauge steel
•Simpson Strong-Tie gray paint



Description

Simpson WP210-2 WP Welded Top-Flange Joist Hanger for Double 2x10

Elevate your construction projects with the Simpson WP210-2 WP Welded Top-Flange Joist Hanger, engineered for maximum support and adaptability. This innovative joist hanger is perfect for both wood-to-wood and wood-to-steel applications, ensuring a robust and reliable connection wherever you need it.

Key Features:

  • Exceptional Flexibility: Designed to allow skewing up to 84°, making it suitable for various structural configurations.
  • Optimal Sloping: Capable of accommodating slopes up to 45°, enhancing its versatility across different projects.
  • Cost-Effective Solution: With a low installed cost and minimal nail requirements, the WP210-2 ensures maximum download capacity without breaking the bank.
  • Robust Design: Engineered to support joists on purlins or beams, providing the strength needed for reliable performance.

Choose the Simpson WP210-2 for your next project and experience the perfect blend of strength, versatility, and affordability. This top-flange joist hanger is your go-to solution for creating sturdy and dependable frameworks that stand the test of time.

Additional Information
Type

Hanger
